主要尺寸與性能資料

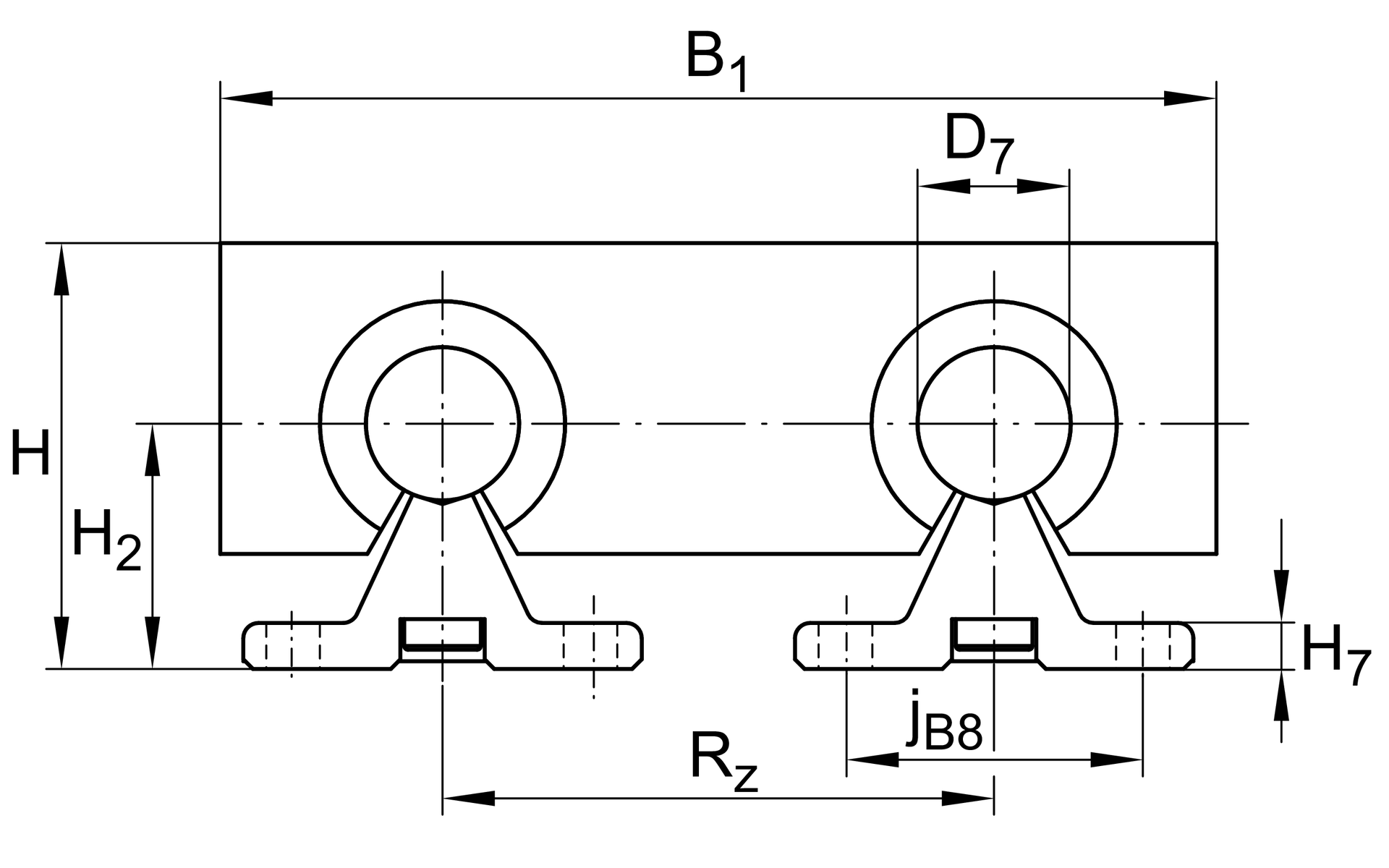

| H | 40 mm | Total Height |
| B1 | 85 mm | Total Width |
| L | 85 mm | Length of carriage |
安裝尺寸
| D7 | 12 mm | Tolerance h7 |
| D8 | 4.5 mm | |

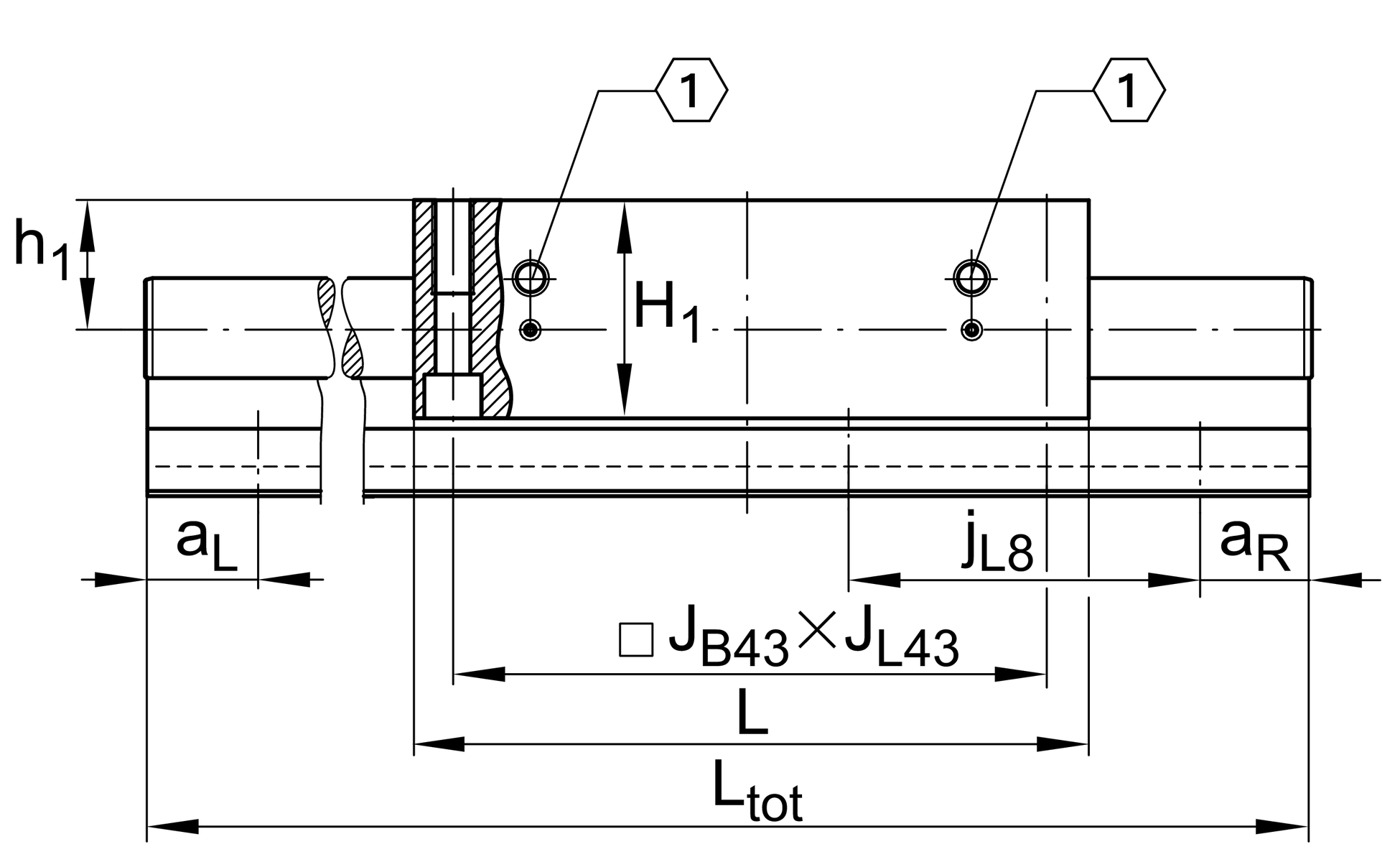

| H1 | 30 mm | Height of carriage |
| H2 | 22 mm | |
| JB43 | 73 mm | |
| jB8 | 29 mm | |
| jL8 | 75 mm | |
| K43 | M5 | |
| L21 | 4 mm | |
| Ltot | 6,000 mm | maximum length |
| Rx | 46 mm | |
| t43 | 13 mm | Depth of Thread |
| G43 | M6 | 線 |
| JL43 | 73 mm |
尺寸
| H7 | 5 mm | |
| h1 | 18 mm | |
| Rz | 42 mm |
科技數據
| mLAW | 0.5 kg | Mass of Carriage |
| vmax | 5 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |
| CI | 1,580 N | Load direction I: compressive load |
| C0I | 1,780 N | Load direction I: compressive load |
| CII | 680 N | Load direction II: tensile load |
| C0II | 840 N | Load direction II: tensile load |
| CIII | 1,715 N | Load direction III: lateral load |
| C0III | 2,320 N | Load direction III: lateral load 1 |
| M0x | 23 Nm | Max. permissible static moment per Carriage 2 |
| M0y | 32 Nm | Max. permissible static moment per Carriage 2 |
| M0z | 21 Nm | Max. permissible static moment per Carriage 2 |
附加資訊
KBO12-PP-AS | Bearing 1 |
溫度範圍
| min | 0 °C | Minimum operating Temperatur |
| max | 80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 12 | |
| Drive type | OA | 沒有 drive |
| Length of carriage | 85 | 85 mm |
| Bellow | 0 | No |
