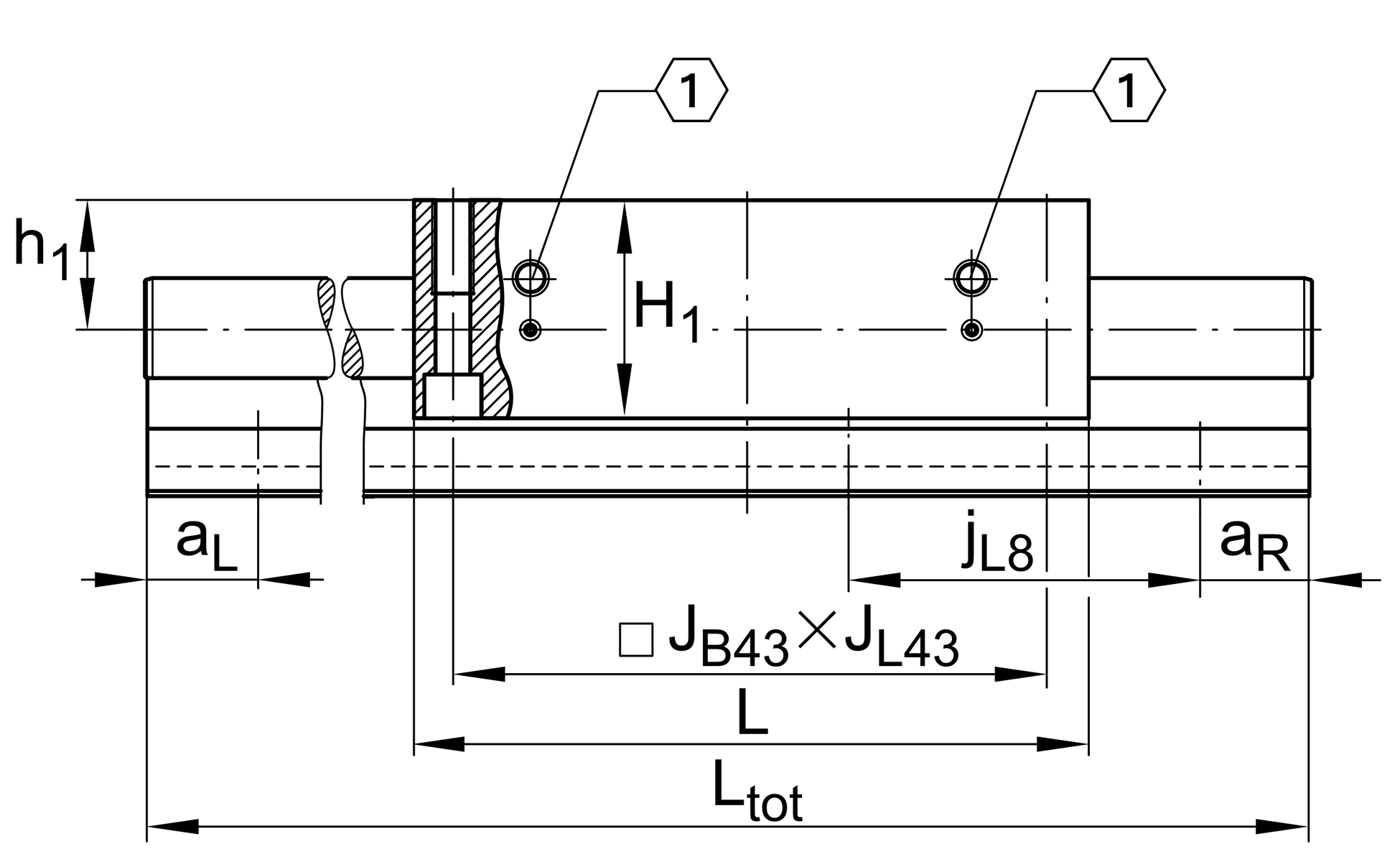

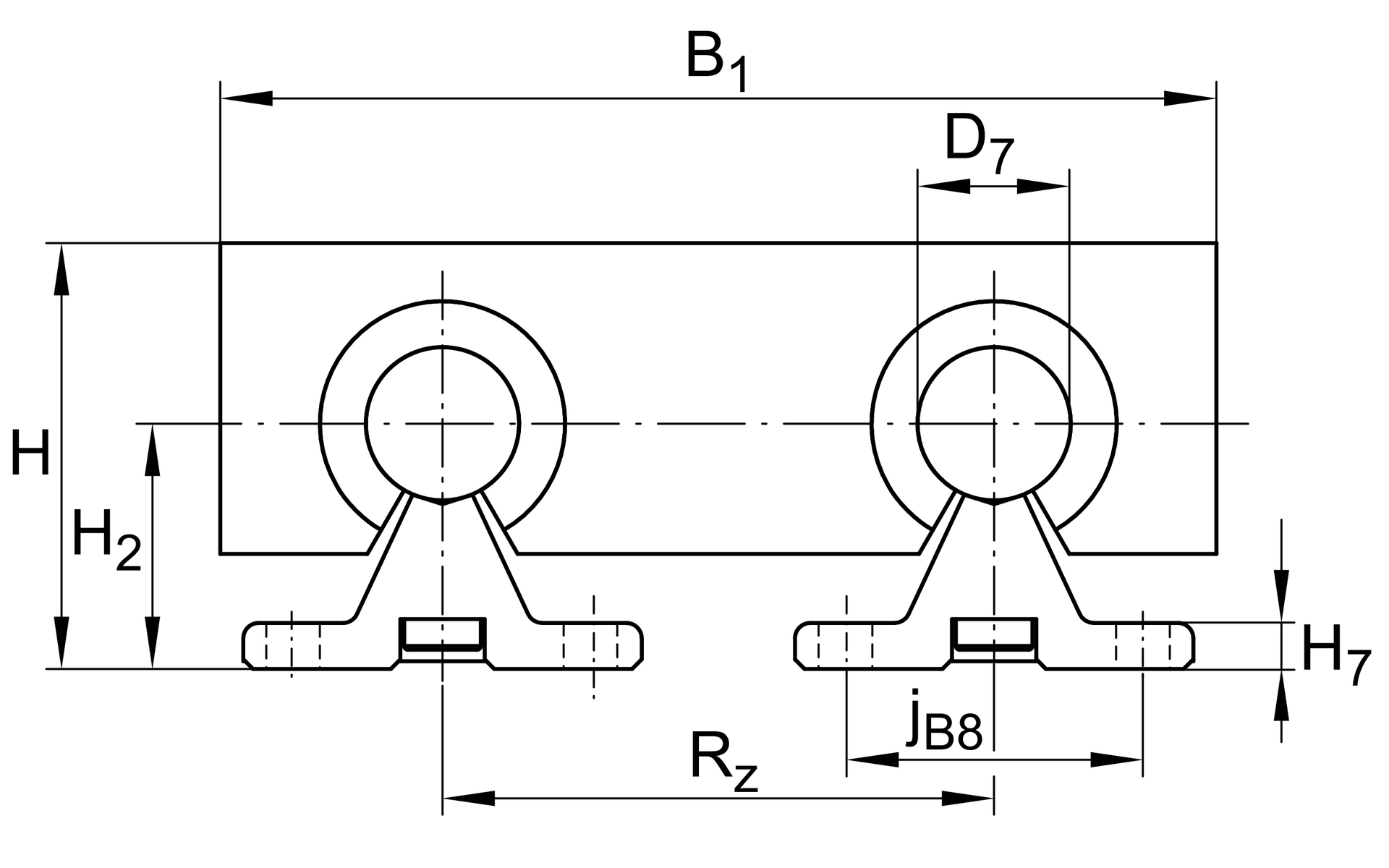

主要尺寸與性能資料
| H | 48 mm | Total Height |
| B1 | 100 mm | Total Width |
| L | 100 mm | Length of carriage |
安裝尺寸
| D7 | 16 mm | Tolerance h7 |
| D8 | 5.5 mm | |
| H1 | 35.5 mm | Height of carriage |
| H12 | 11.5 mm | |
| H2 | 26 mm | |
| JB43 | 88 mm | |
| jB8 | 33 mm | |
| jL8 | 100 mm | |
| K43 | M5 | |
| L20 | 3.3 mm | |
| L21 | 4 mm | |
| Ltot | 6,000 mm | maximum length |
| Rx | 55.6 mm | |
| S | 10 mm | |
| T8 | 5.6 mm | |
| t43 | 13 mm | Depth of Thread |
| G43 | M6 | 線 |
| JL43 | 88 mm |
尺寸
| H7 | 5 mm | |
| h1 | 22 mm | |
| Rz | 54 mm |
科技數據
| mLAW | 0.8 kg | Mass of Carriage |
| vmax | 5 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |
| CI | 2,110 N | Load direction I: compressive load |
| C0I | 2,480 N | Load direction I: compressive load |
| CII | 880 N | Load direction II: tensile load |
| C0II | 1,140 N | Load direction II: tensile load |
| CIII | 2,240 N | Load direction III: lateral load |
| C0III | 2,900 N | Load direction III: lateral load 1 |
| M0x | 29 Nm | Max. permissible static moment per Carriage 2 |
| M0y | 50 Nm | Max. permissible static moment per Carriage 2 |
| M0z | 32 Nm | Max. permissible static moment per Carriage 2 |
附加資訊
KBO16-PP-AS | Bearing 1 |
溫度範圍
| min | 0 °C | Minimum operating Temperatur |
| max | 80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 16 | |
| Drive type | OA | 沒有 drive |
| Length of carriage | 100 | 100 mm |
| Bellow | 0 | No |
