n.r.
F | Spindle nut design |
主要尺寸與性能資料

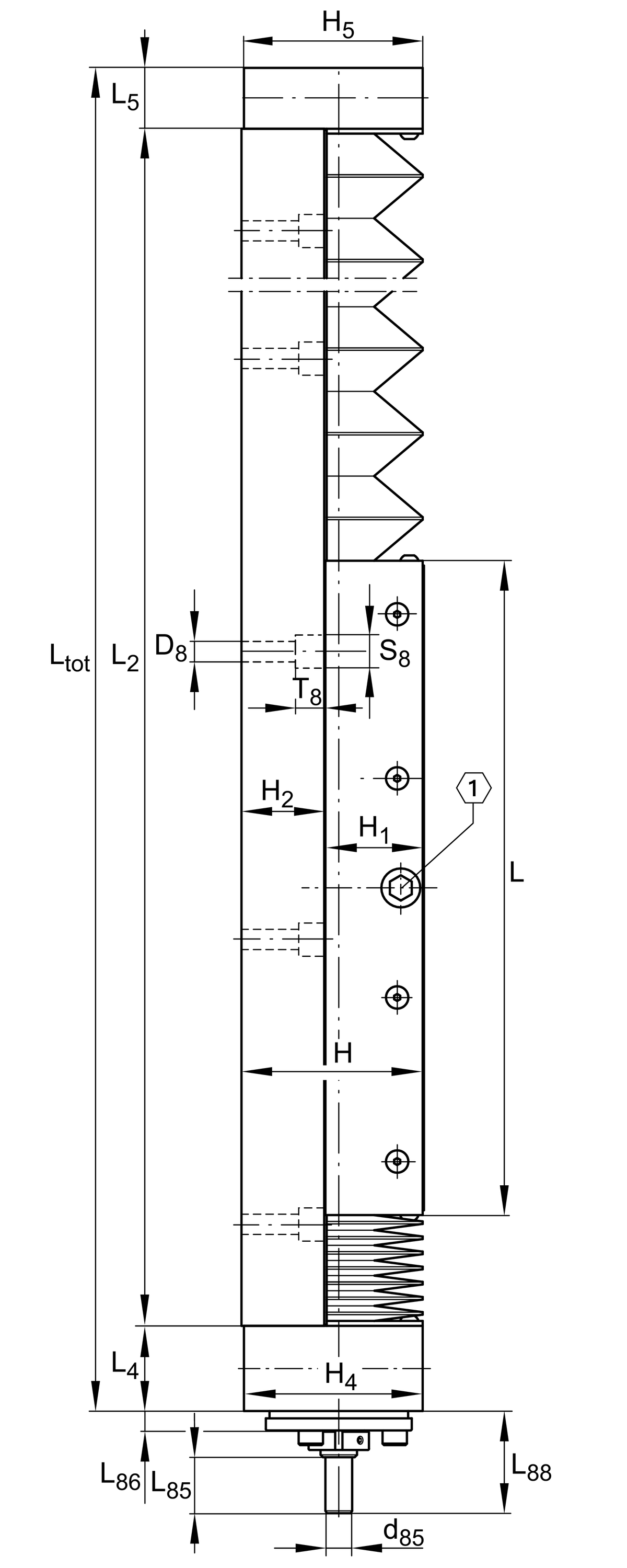

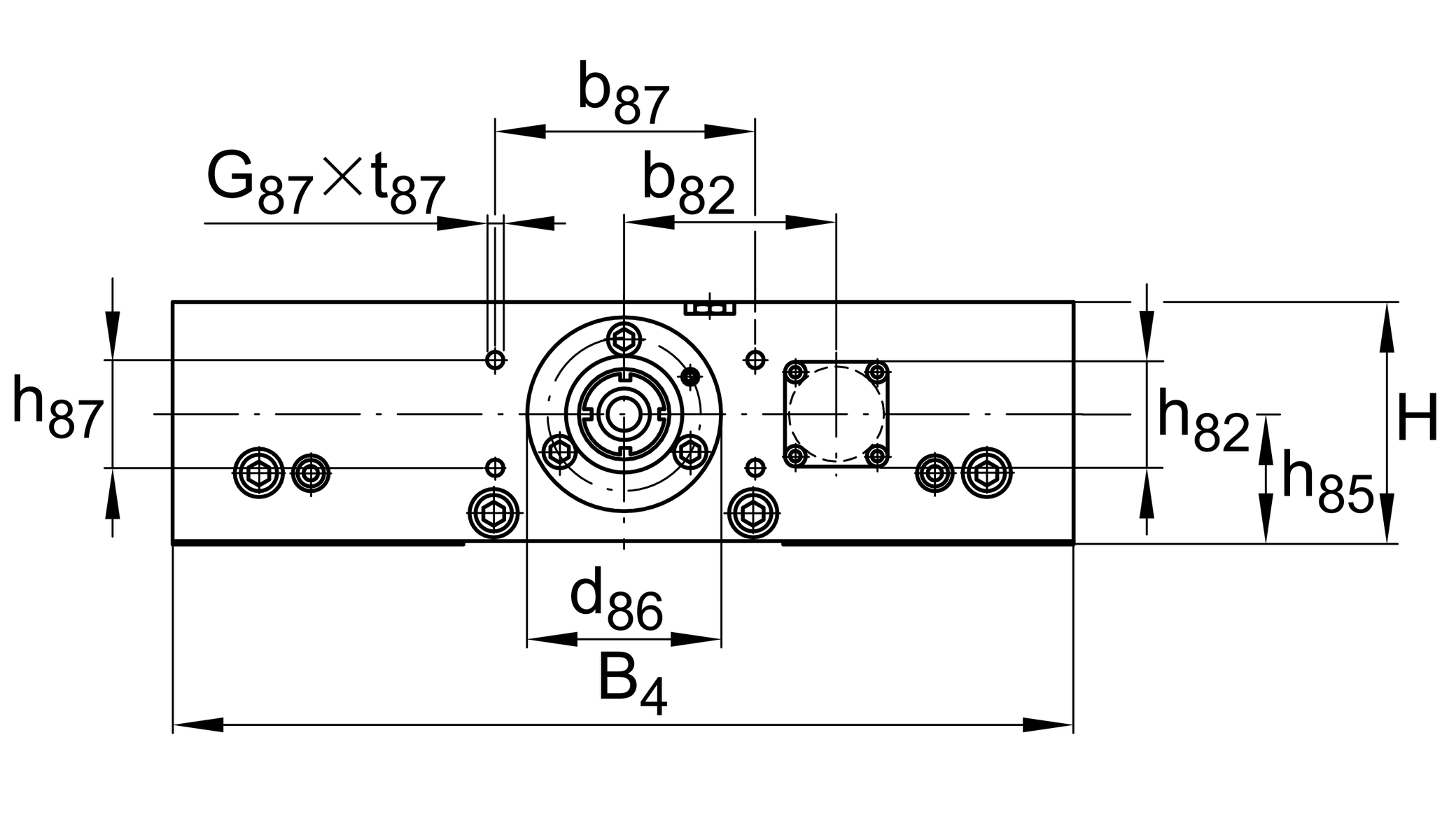

| B4 | 325 mm | Total Width |
| H | 100 mm | Total Height |
| L | 325 mm | Length of Carriage |

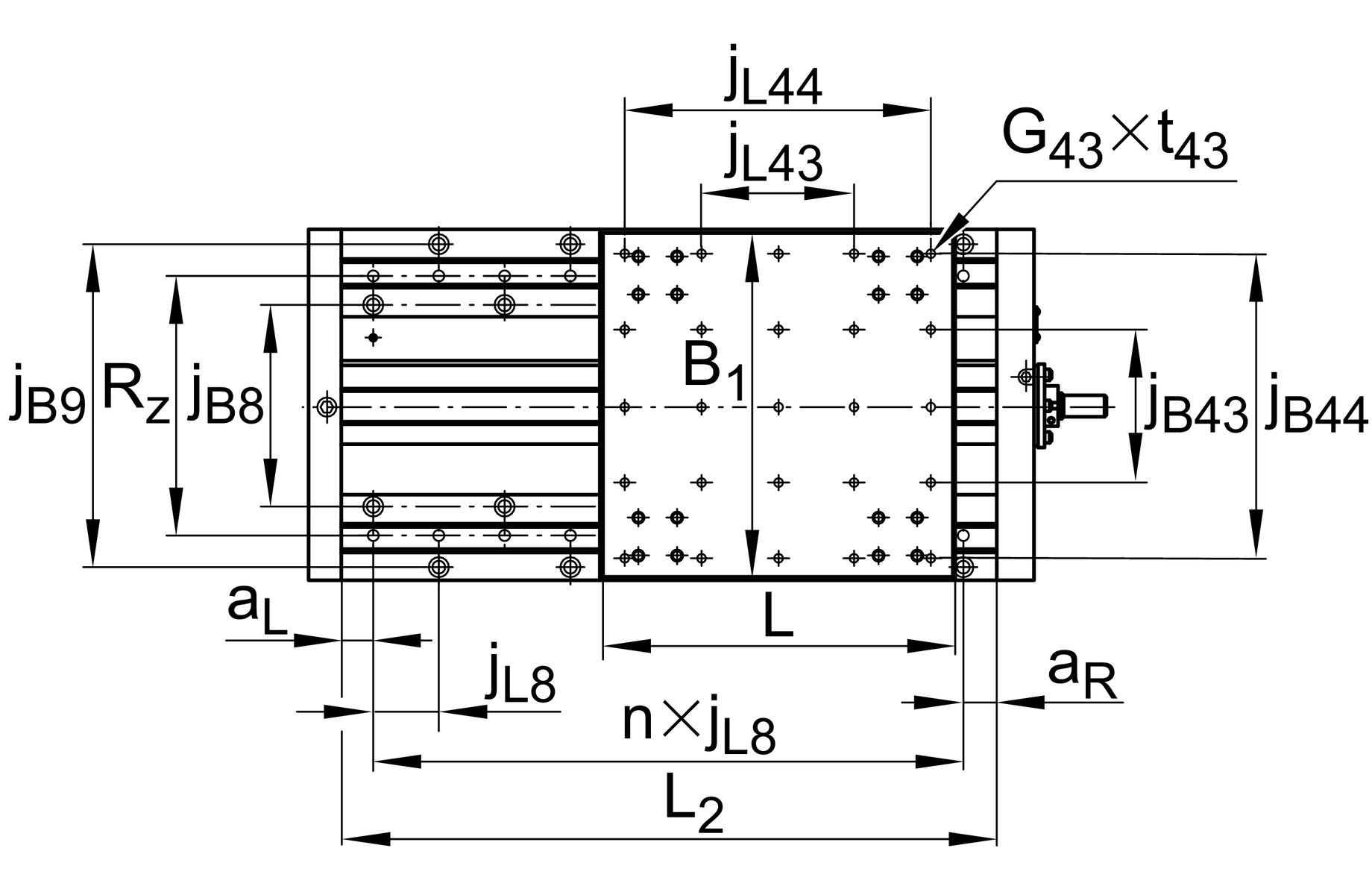

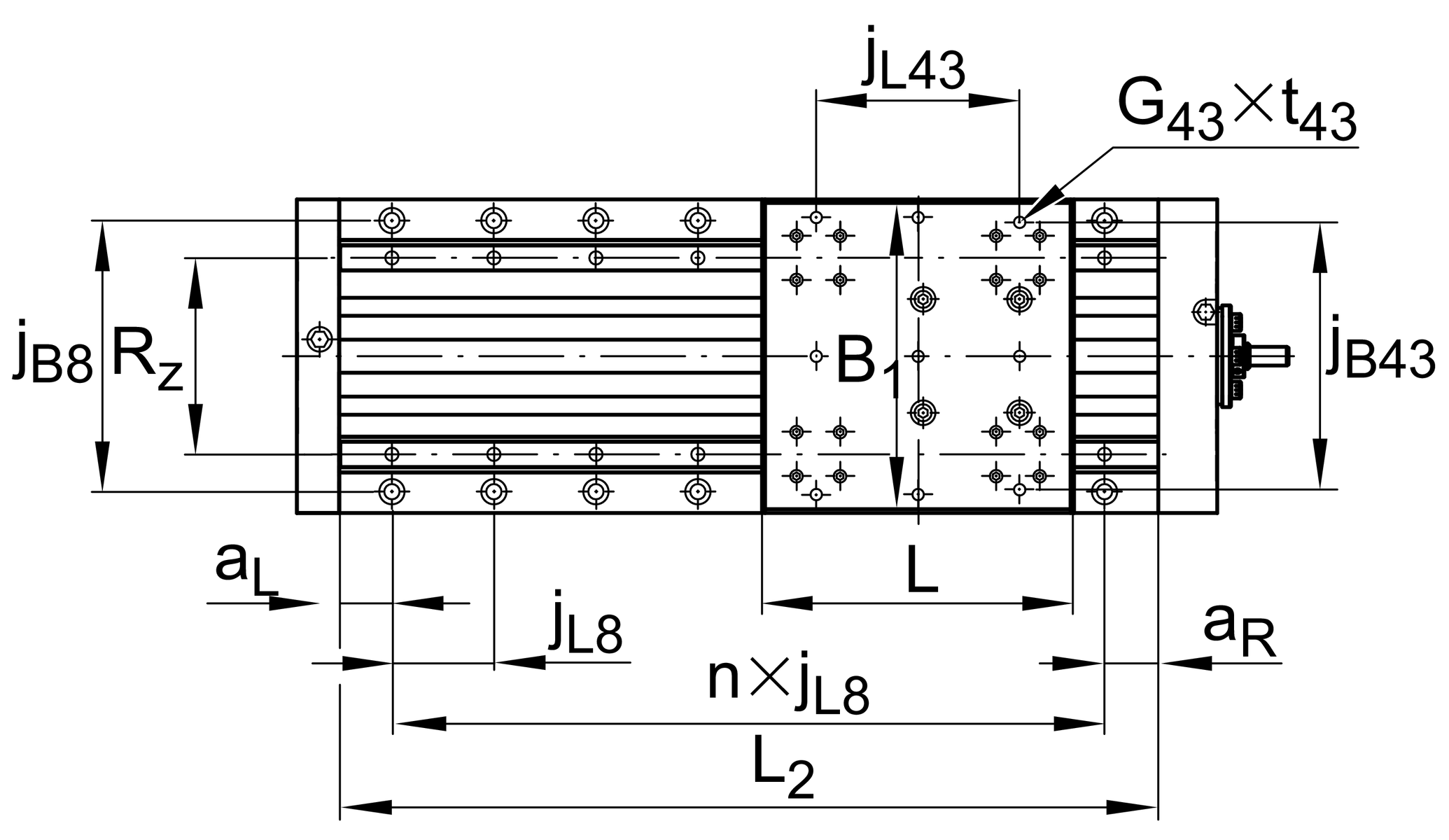

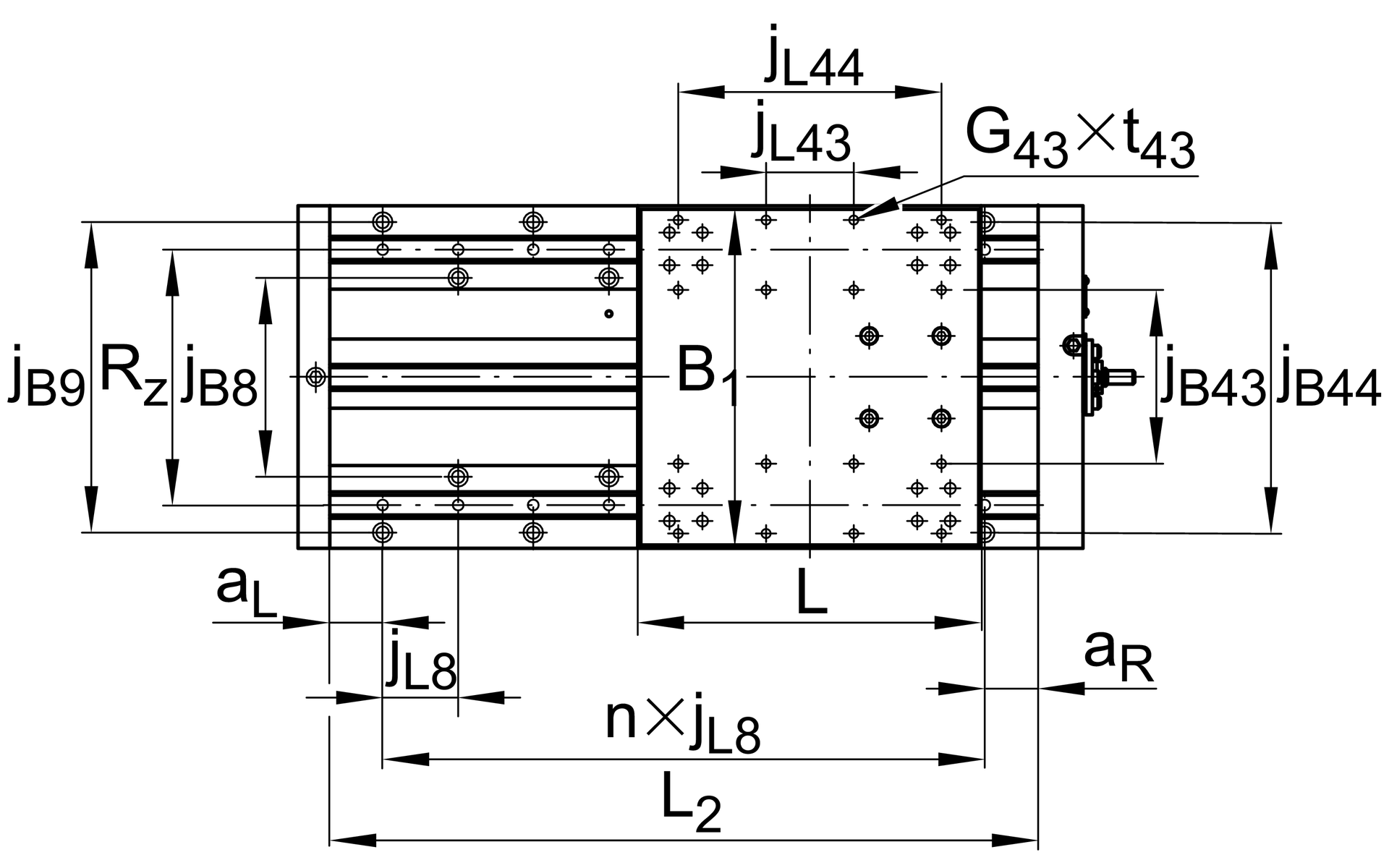

安裝尺寸
| b82 | 75 mm | |
| b87 | 96 mm | |
| D8 | 11 mm | |
| d85 | 19 mm | |
| d86 | 75 mm | Tolerance -0,01 |
| G43 | M8x25 | 線 |
| G87 | M8 | 線 |
| h85 | 52 mm | |
| h87 | 44 mm | Tolerance ±0,2 |
| jB43 | 140 mm | |
| jL43 | 140 mm | |
| jB44 | 280 mm | |
| jB8 | 185 mm | |
| jB9 | 298 mm | |
| jL44 | 280 mm | |
| jL8 | 60 mm | 1 |
| L85 | 40 mm | |
| L86 | 9 mm | |
| L88 | 65 mm | |
| S8 | 18 mm | |
| T8 | 13.5 mm | |
| t43 | 16 mm | Depth of Thread |
| t87 | 20 mm | Depth of Thread |
尺寸
| BB | 20 mm | Length of Bellows Fastener |
| FBL | 1.27 | Effective length factor of bellow |
| H1 | 55.5 mm | Height of Carriage |
| H2 | 44 mm | Height of Support Rail |
| H4 | 99.5 mm | Height of Bearing 軸承座 |
| H5 | 99.5 mm | Height of Bearing 軸承座 |
| h82 | 31 mm | |
| L4 | 35 mm | Length of Bearing 軸承座 with Drive System |
| L5 | 30 mm | Length of Bearing 軸承座沒有 Drive System |
科技數據

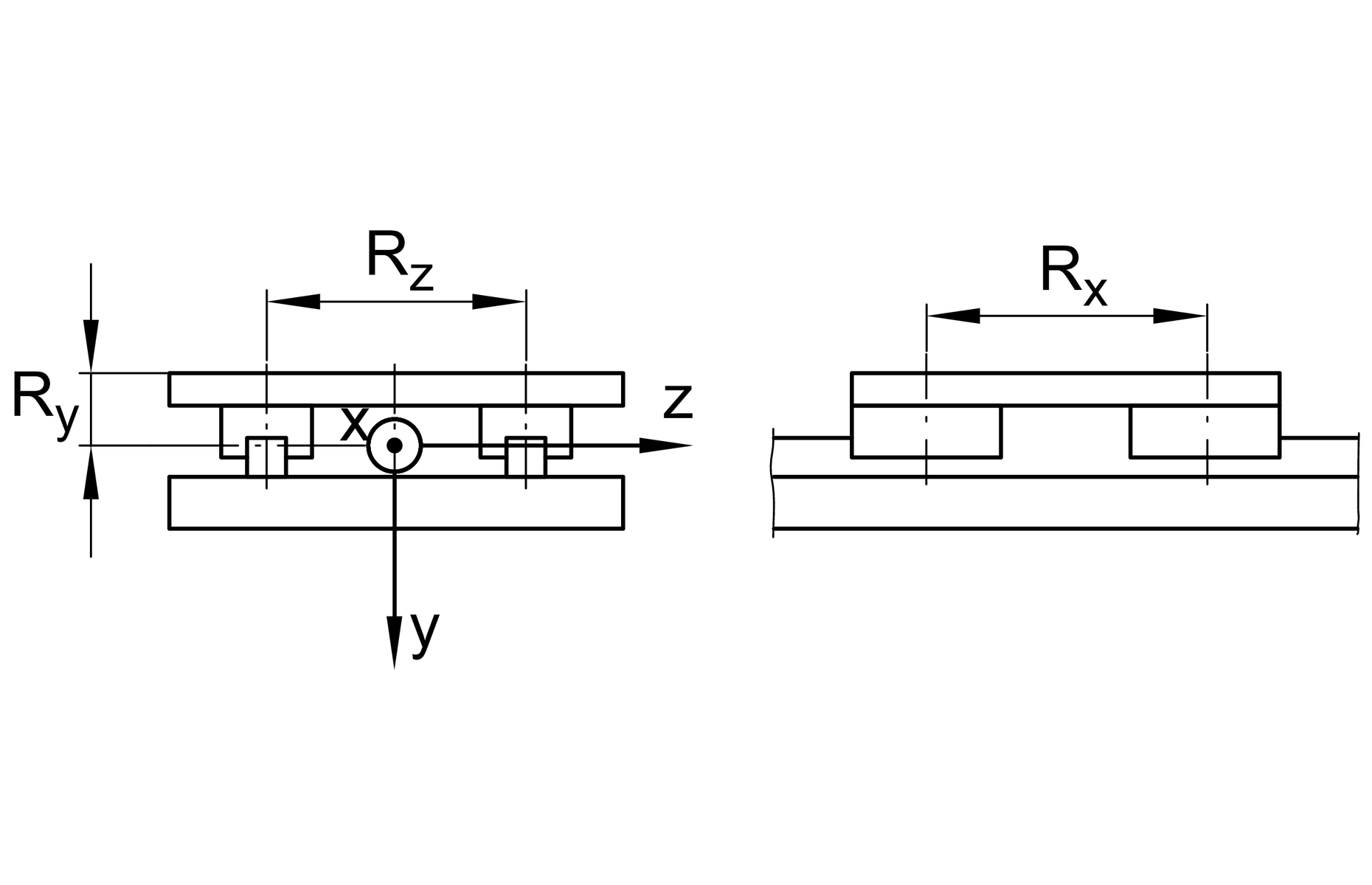

| Rx | 220 mm | |
| Ry | 45.3 mm | |
| Rz | 240 mm | |
| S | 40 mm | Safety Distance |
| mLAW | 26.5 kg | Mass of Carriage |
| vmax | 1.73 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |

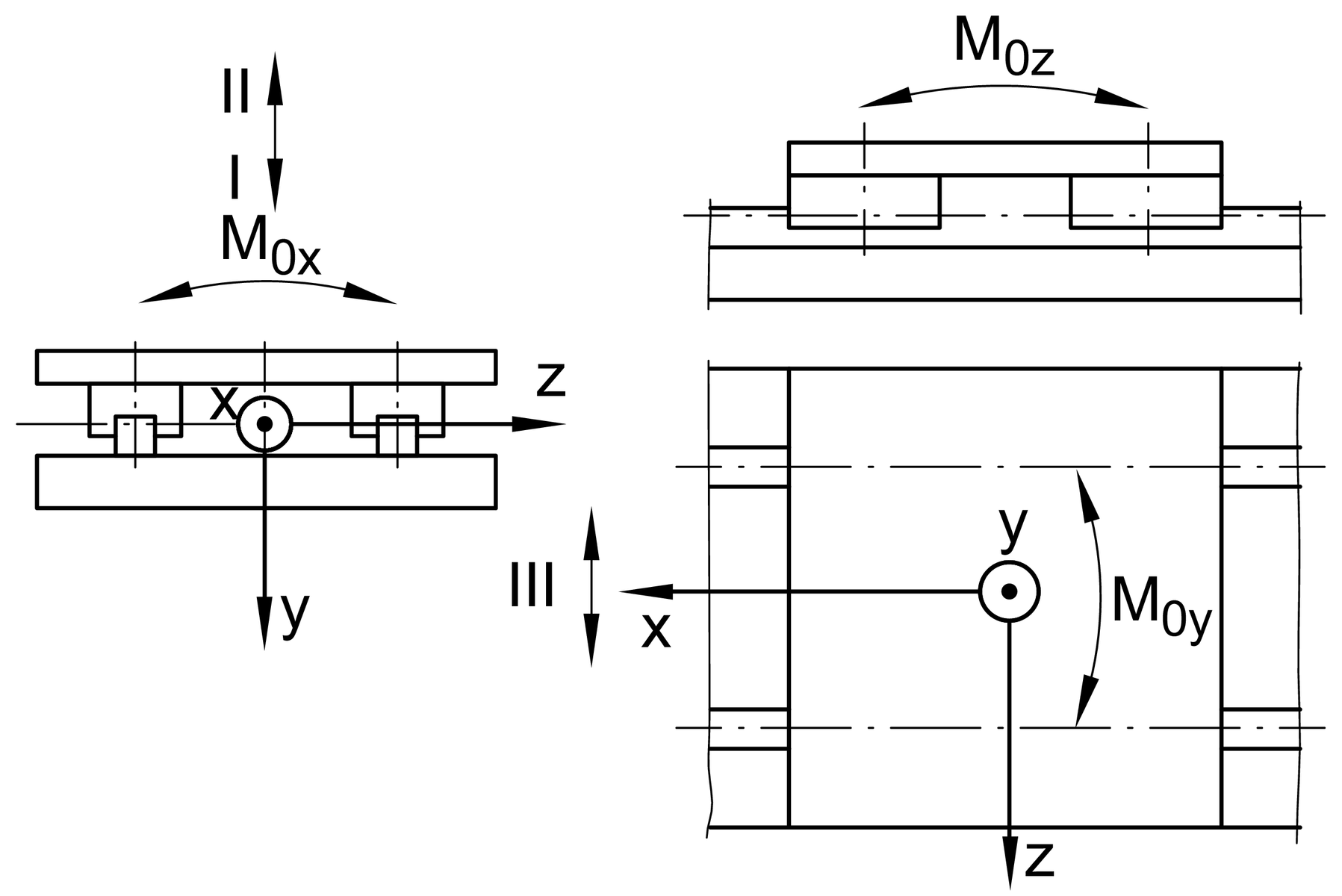

| CI | 73,900 N | Load Direction I: Compressive Load |
| C0 I | 268,000 N | Load Direction I: Compressive Load |
| CII | 60,400 N | Load Direction II: Tensile Load |
| C0 II | 172,000 N | Load Direction II: Tensile Load |
| CIII | 56,200 N | Load Direction III: Lateral Load |
| C0 III | 184,000 N | Load Direction III: Lateral Load |
| M0x per | 18,000 Nm | Max. permissible static moment per Carriage 2 |
| M0y per | 10,400 Nm | Max. permissible static moment per Carriage 2 |
| M0z per | 10,400 Nm | Max. permissible static moment per Carriage 2 |
| d0 | 32 mm | Spindle Diameter |
| P | 40 mm | Spindle Pitch |
| C | 14,900 N | dynamic load rating 3 |
| C0 | 32,400 N | Basic static load capacity 3 |
| Ca | 27,500 N | Load capacity fixed Spindle bearing dyn |
| C0a | 55,000 N | Load capacity fixed Spindle bearing stat |
附加資訊
50 Nm | max. drive torque for the drive spigot | |
2 x KUSE25-H | Carriage | |
ZKLF2575.2RS | Rolling Bearings (locating bearing) | |
0.05 mm | Repeat accuracy ± | |
6.43 kg*cm2 | 質量慣性矩 of threaded Spindle |
溫度範圍
0 °C | Minimum operating Temperatur | |
80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 25 | |
| Drive System | KGT | Ball screw drive |
| Length of carriage | 325 | 325 mm |
| Spindle diameter | 32 | |
| Spindle pitch | 40 | 40 mm |
| Bellow | 1 | Yes |
