科技數據
| W | 32 – 41 | 平面寬度s |
M22 – M27 | Nut thread | |
| FC | 190 kN | Cutting force |
| Voil | 80 cm³ | Oil capacity |

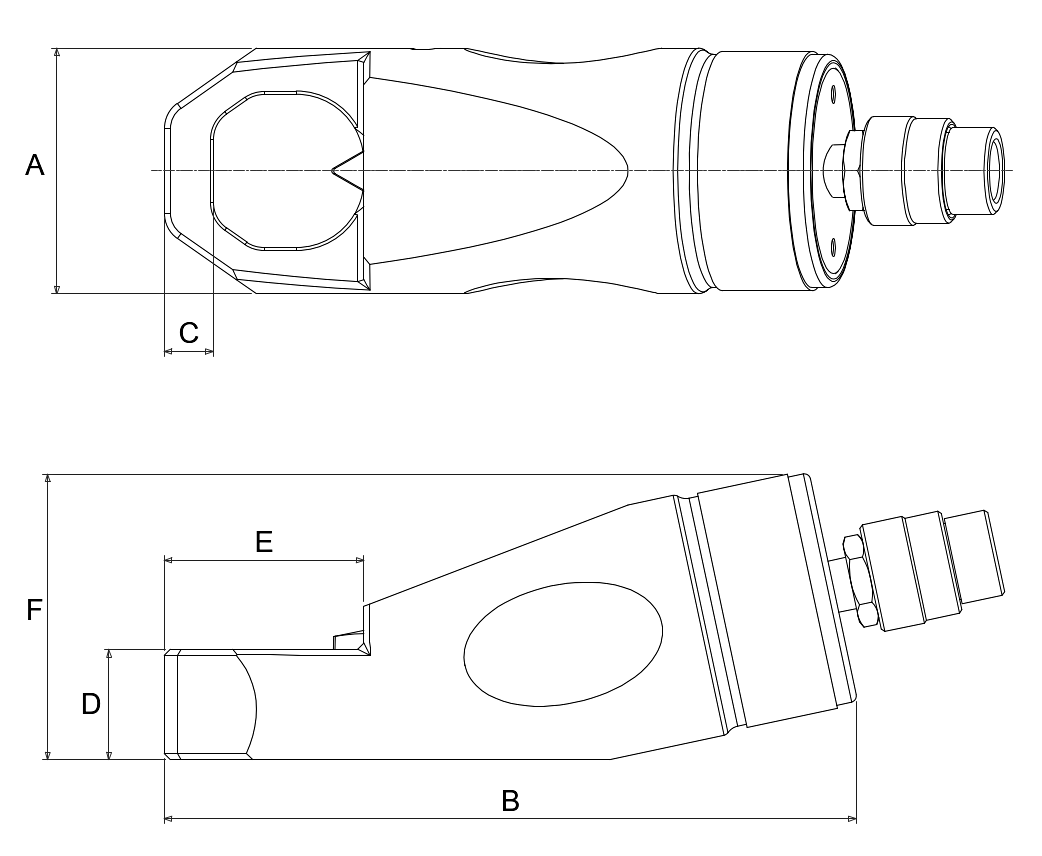

| A | 80 mm | |
| B | 226 mm | |
| C | 15 mm | |
| D | 36 mm | |
| E | 65 mm | |
| F | 93 mm | |
| ≈m | 5.6 kg | 重量 |
附加資訊
compact design for use in the smallest spaces, robust cutting frame with angled cutting head, high-performance hydraulic cylinderfor, nuts up to and including strength class 12.9 | Product specifics |
