科技數據
| W | 24 – 32 | 平面寬度s |
M16 – M22 | Nut thread | |
| FC | 140 kN | Cutting force |
| Voil | 60 cm³ | Oil capacity |

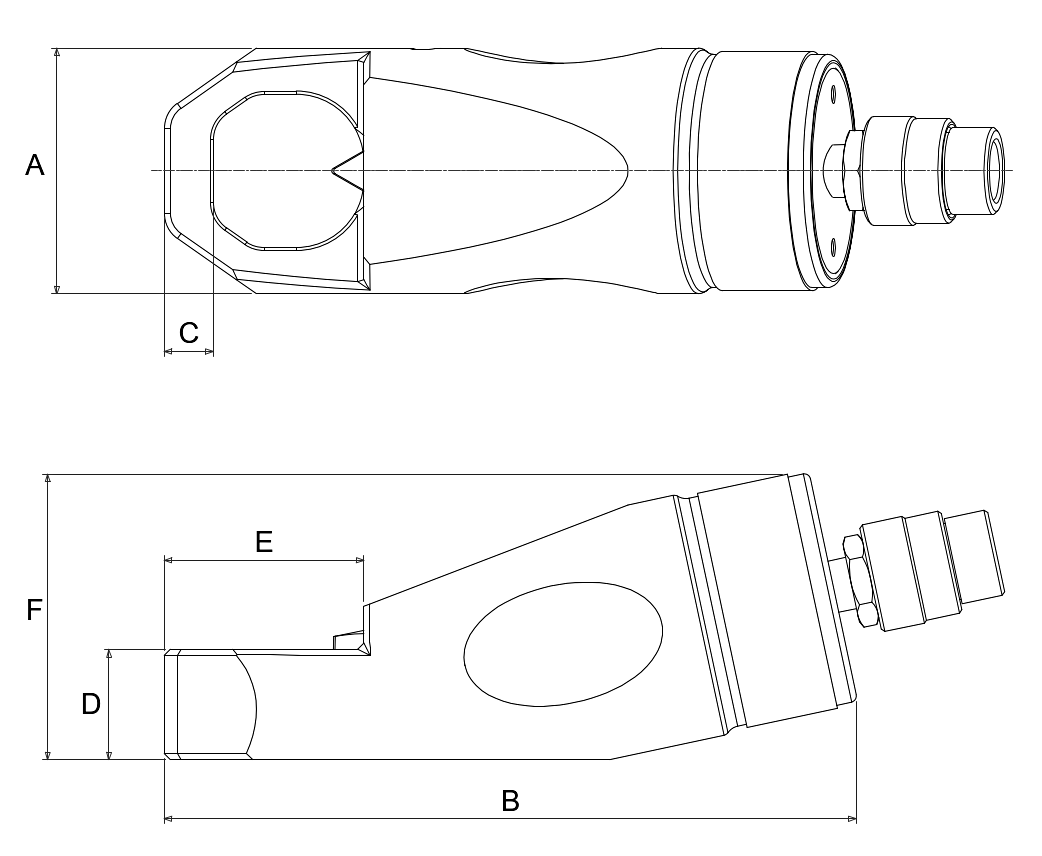

| A | 70 mm | |
| B | 178 mm | |
| C | 13 mm | |
| D | 30 mm | |
| E | 52 mm | |
| F | 76 mm | |
| ≈m | 3.75 kg | 重量 |
附加資訊
compact design for use in the smallest spaces, robust cutting frame with angled cutting head, high-performance hydraulic cylinderfor, nuts up to and including strength class 12.9 | Product specifics |
