科技數據
| W | 41 – 50 | 平面寬度s |
M27 – M33 | Nut thread | |
| FC | 340 kN | Cutting force |
| Voil | 155 cm³ | Oil capacity |

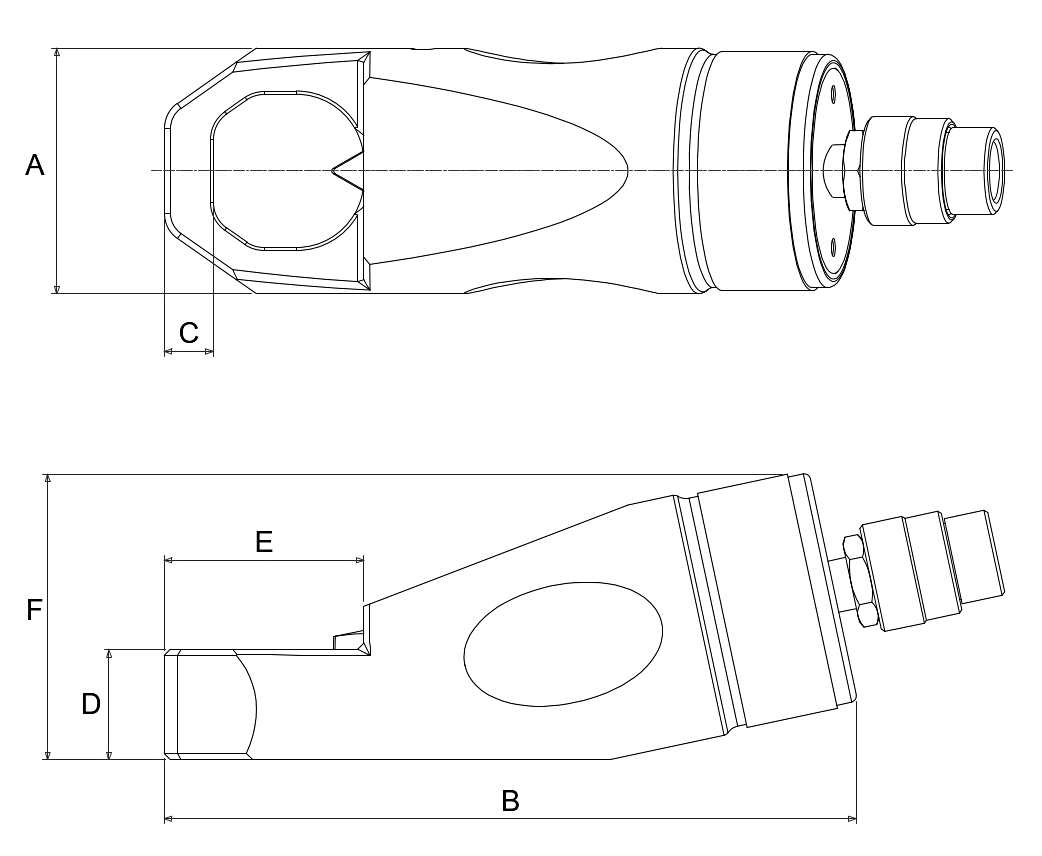

| A | 95 mm | |
| B | 244 mm | |
| C | 21 mm | |
| D | 45 mm | |
| E | 76 mm | |
| F | 106 mm | |
| ≈m | 11.45 kg | 重量 |
附加資訊
compact design for use in the smallest spaces, robust cutting frame with angled cutting head, high-performance hydraulic cylinderfor, nuts up to and including strength class 12.9 | Product specifics |
