主要尺寸與性能資料
| Dmax | 47 mm | |
| ≈m | 0.17 kg | 重量 |

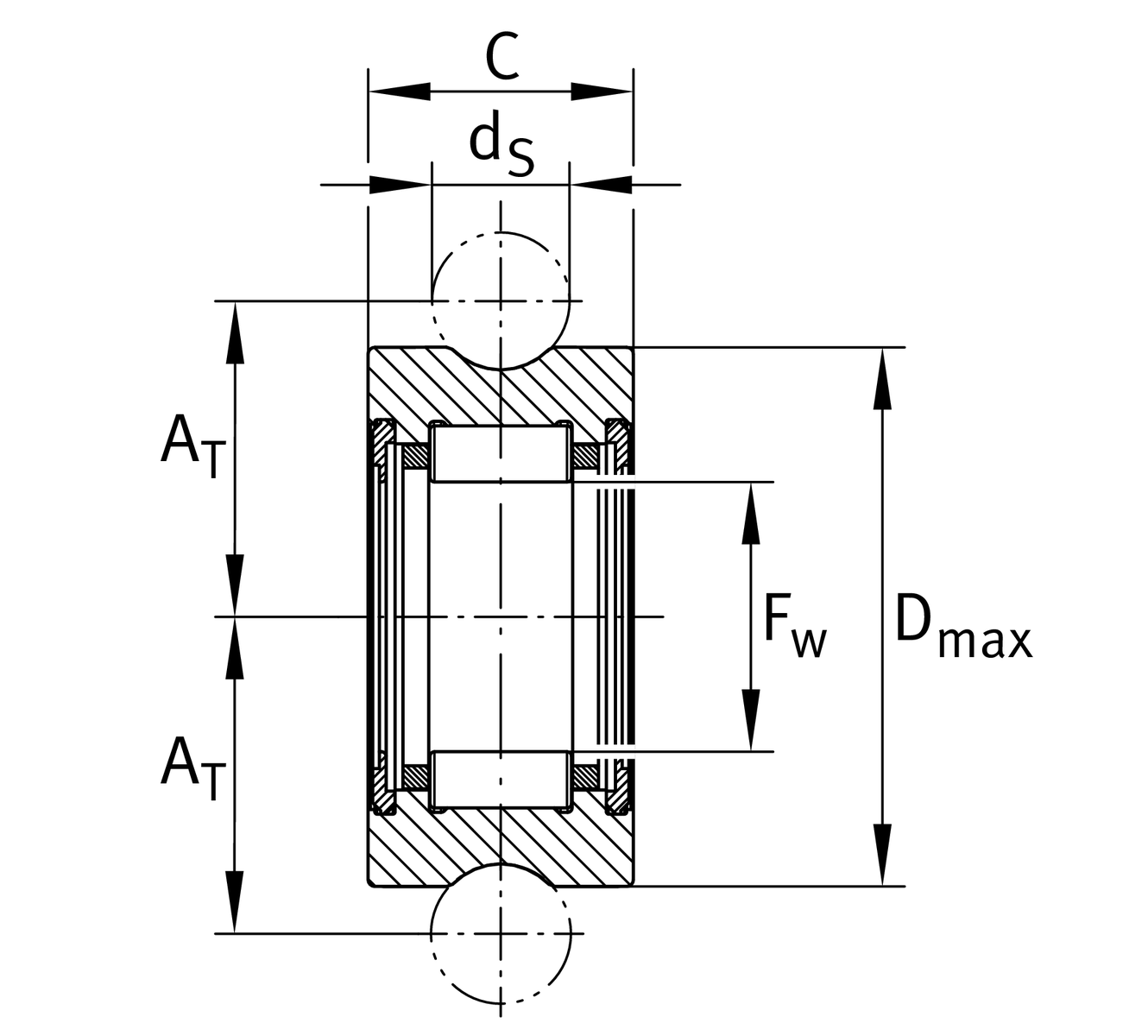

安裝尺寸
| AT | 26.64 mm | |
| FW | 25 mm | |
| C | 17.8 mm | |
| ds | 10 mm |
Main dimensions
| Cr w | 13,700 N | Effective dynamic load rating as track roller (radial) |
| C0r w | 18,600 N | Effective static load rating as track roller (radial) |
| Cur w | 2,550 N | Limit of fatigue load |
您目前的產品型號
| Size code | 2204 | |
| Seal | 2RSR | double-sided sliding seal |
| Code | RNA | 沒有 inner ring |
