主要尺寸與性能資料
| H | 48 mm | 高度 |
| B | 98 mm | 寬度 |
| L1 | 150 | standard length 1 1 |
| ≈m | 3.2 kg | 重量 |

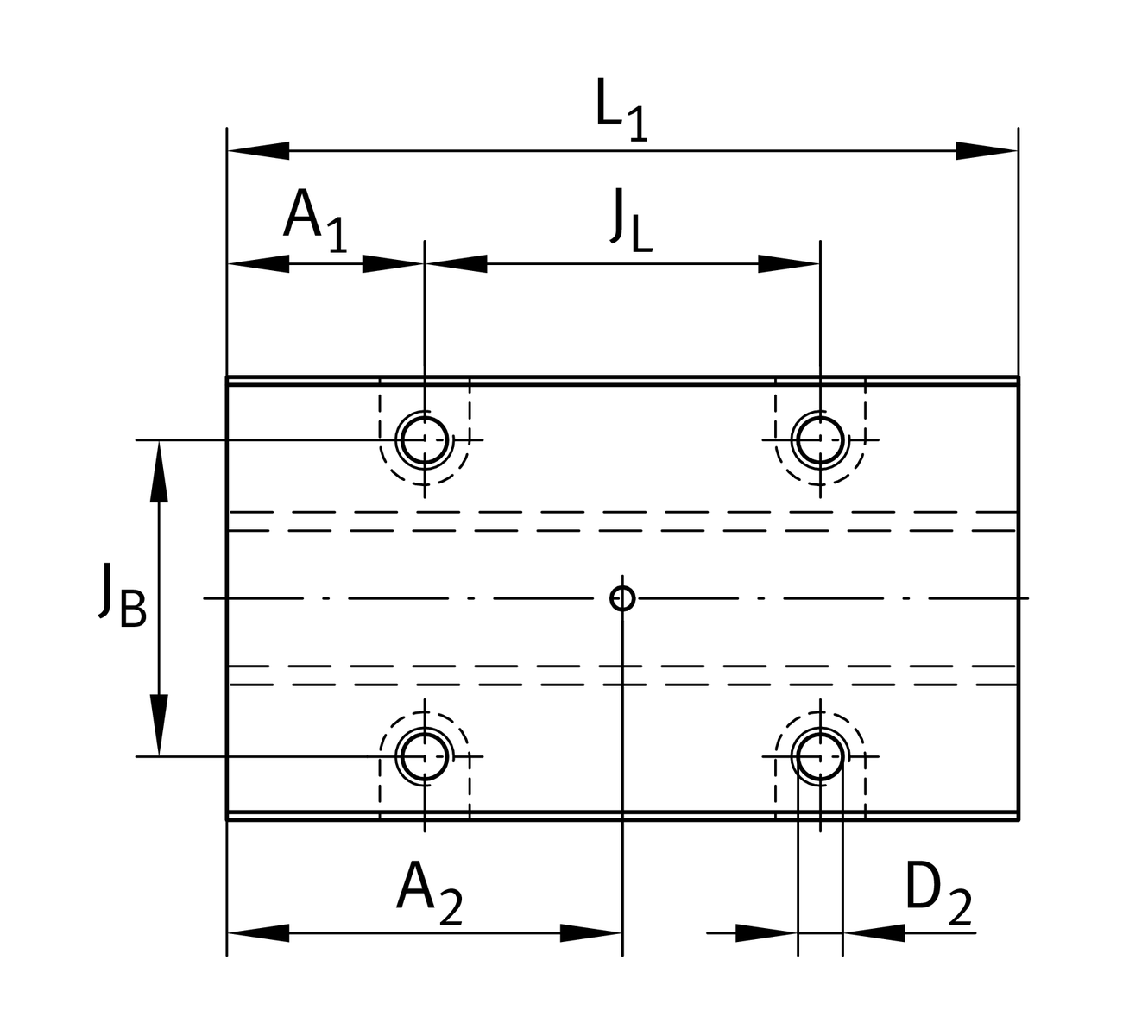

安裝尺寸
| H1 | 6.8 mm | |
| T5 | 12 mm | |
| H3 | 20 mm | |
| JB | 82 mm | |
| A1 | 37.5 mm | |
| A2 | 75 mm | |
| JL | 75 mm | |
| G2 | M10 | fixing screws 2 |
| G2 MA | 83 Nm | tightening torque 3 |
| K3 | M8 | fixing screws 4 |
| K3 MA | 42.2 Nm | tightening torque 3 |
| n | 4 | number of fixing threads |
| D2 | 8.6 mm |
Related products
RUE35-E, RUE35-E-L, RUE35-F, RUE35-F-L | suitable linear guidances |
您目前的產品型號
| Size code | 35 | |
| Length | 150 | standardlength 1 |
| Suffix | D |
