主要尺寸與性能資料
| D | 40 mm | Diameter |
| Tol D | H8 | Tolerance |
| B | 108 mm | 寬度 |
| L | 48 mm | 長度 |
| H | 90 mm | 高度 |
| ≈m | 0.82 kg | 重量 |

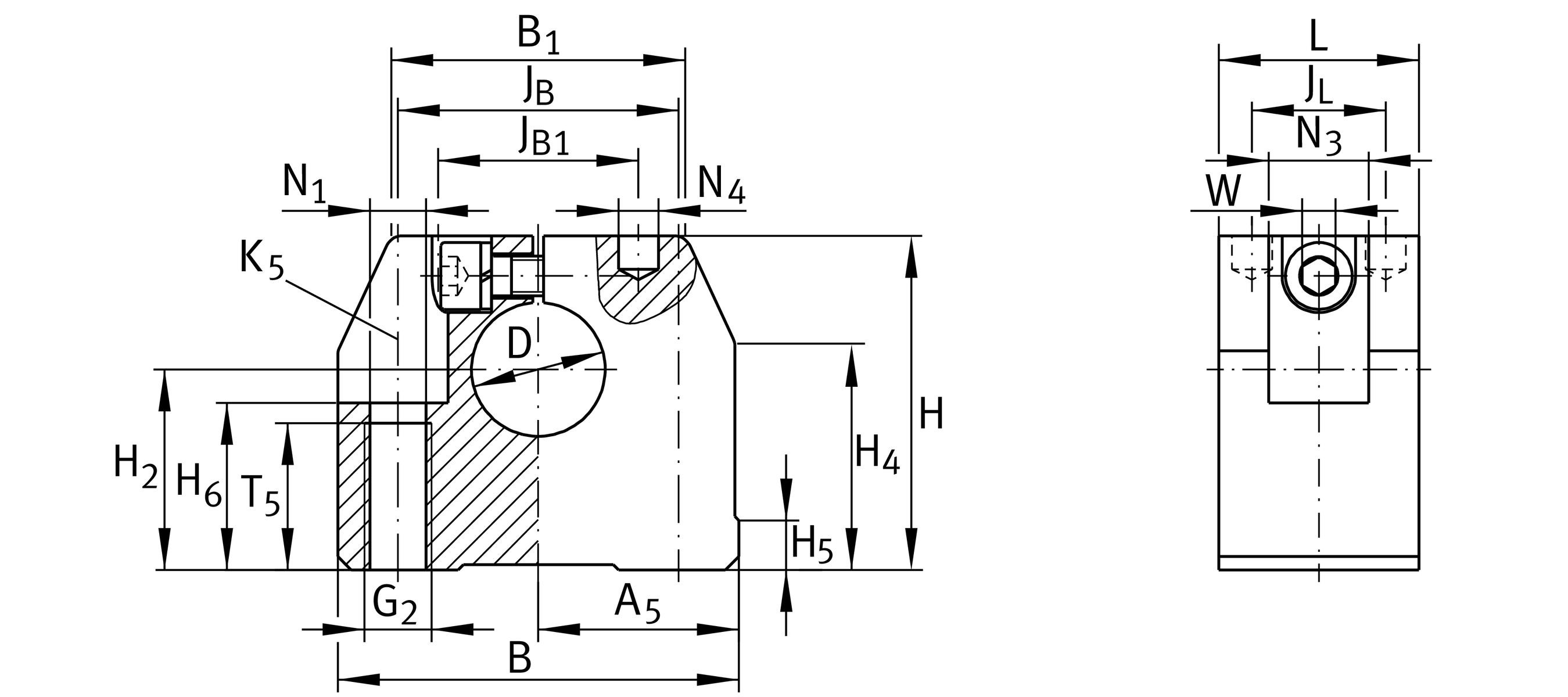

安裝尺寸
| JB | 82 mm | Mounting Dimension |
| Tol JB | ±0,15 | Tolerance |
| JB1 | 65 mm | Mounting Dimension |
| B1 | 76 mm | Mounting Dimension |
| A5 | 54 mm | Mounting Dimension |
| Tol A5 | +0,01 | 公差上限 |
| JL | 32 mm | Mounting Dimension |
| H2 | 50 mm | Mounting Dimension |
| Tol H2 | +0,01 | 公差上限 |
| Tol H2 | -0,01 | 較低的公差 |
| H4 | 57.6 mm | Mounting Dimension |
| H5 | 11.7 mm | Mounting Dimension |
| Tol A5 | -0,01 | 較低的公差 |
| T5 | 34 mm | Mounting Dimension |
| H6 | 44 mm | Mounting Dimension |
| G2 | M16 | Mounting thread below |
| N1 | 13.5 mm | Mounting Dimension 1 |
| N3 | 20 mm | Mounting Dimension |
| N4 | 10 mm | Mounting Dimension |
| K5 | M12 | Size thread fixing screws above 2 |
| W | 8 mm | 平面寬度 |
您目前的產品型號
| Size code | 40 | |
| Version | B |
