主要尺寸與性能資料
| D | 30 mm | Diameter |
| Tol D | H8 | Tolerance |
| B | 87 mm | 寬度 |
| L | 40 mm | 長度 |
| H | 70 mm | 高度 |
| ≈m | 0.45 kg | 重量 |

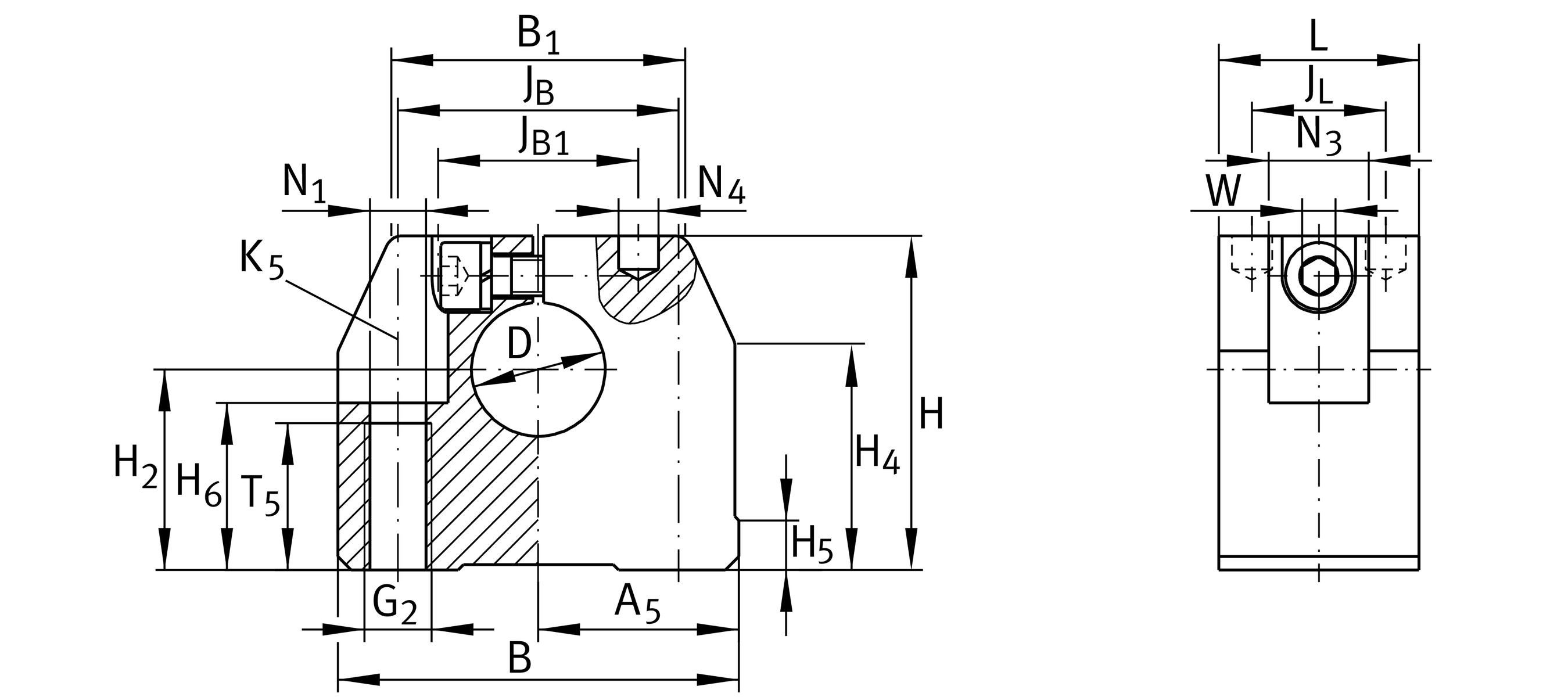

安裝尺寸
| JB | 64 mm | Mounting Dimension |
| Tol JB | ±0,15 | Tolerance |
| JB1 | 45 mm | Mounting Dimension |
| B1 | 63 mm | Mounting Dimension |
| A5 | 43.5 mm | Mounting Dimension |
| Tol A5 | +0,01 | 公差上限 |
| JL | 26 mm | Mounting Dimension |
| H2 | 40 mm | Mounting Dimension |
| Tol H2 | +0,01 | 公差上限 |
| Tol H2 | -0,01 | 較低的公差 |
| H4 | 46.2 mm | Mounting Dimension |
| H5 | 9.3 mm | Mounting Dimension |
| Tol A5 | -0,01 | 較低的公差 |
| T5 | 26 mm | Mounting Dimension |
| H6 | 4 mm | Mounting Dimension |
| G2 | M12 | Mounting thread below |
| N1 | 10.5 mm | Mounting Dimension 1 |
| N3 | 18 mm | Mounting Dimension |
| N4 | 8 mm | Mounting Dimension |
| K5 | M10 | Size thread fixing screws above 2 |
| W | 6 mm | 平面寬度 |
您目前的產品型號
| Size code | 30 | |
| Version | B |
