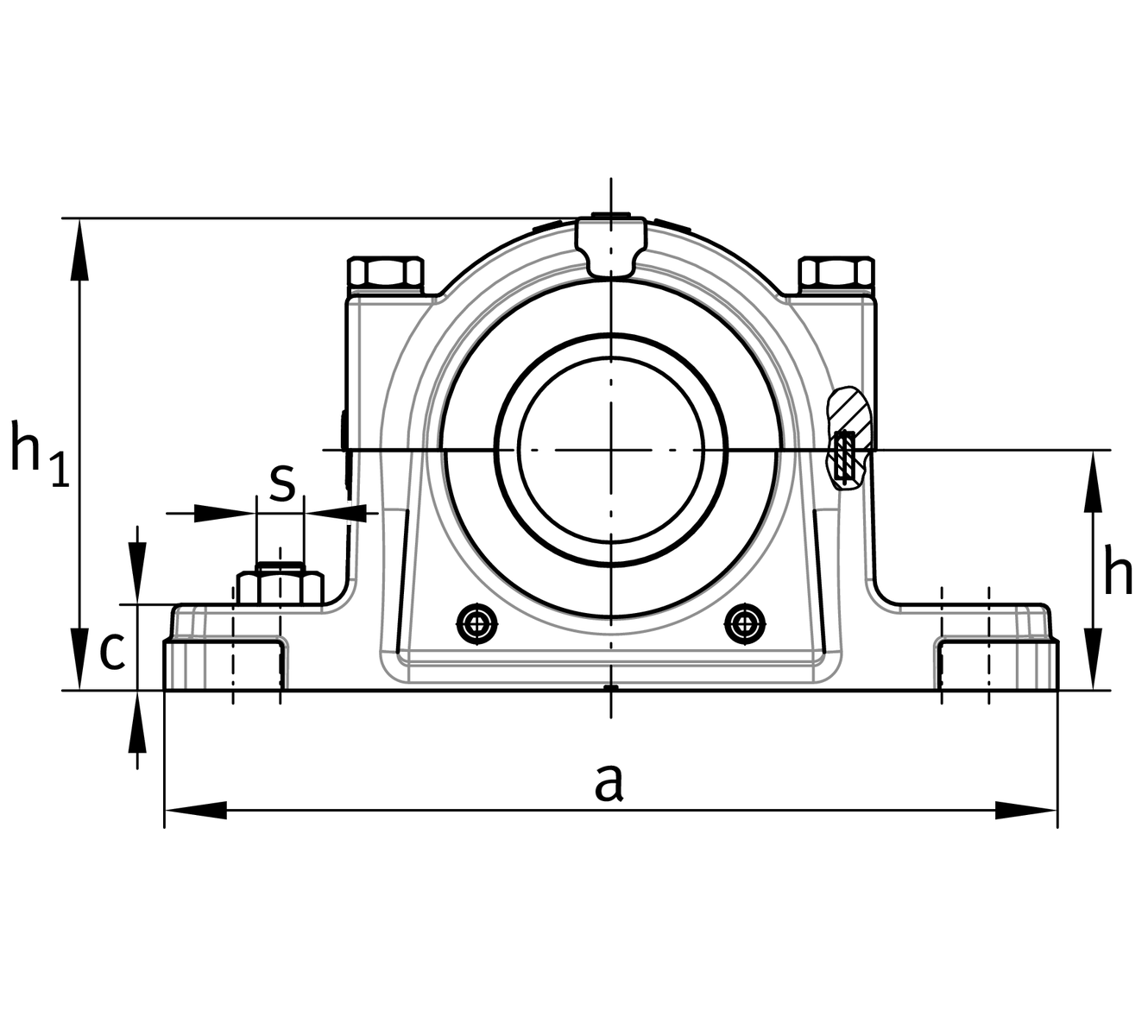

主要尺寸與性能資料
| d1 | 87.313 mm | Shaft diameter inch |
| d1 | 87.3125 mm | Shaft diameter |
| a | 387.35 mm | Length foot |
| h1 | 214.313 mm | Total height |
| g | 147.637 mm | Width 軸承座 body |
| ≈m | 21.78 kg | 重量 |

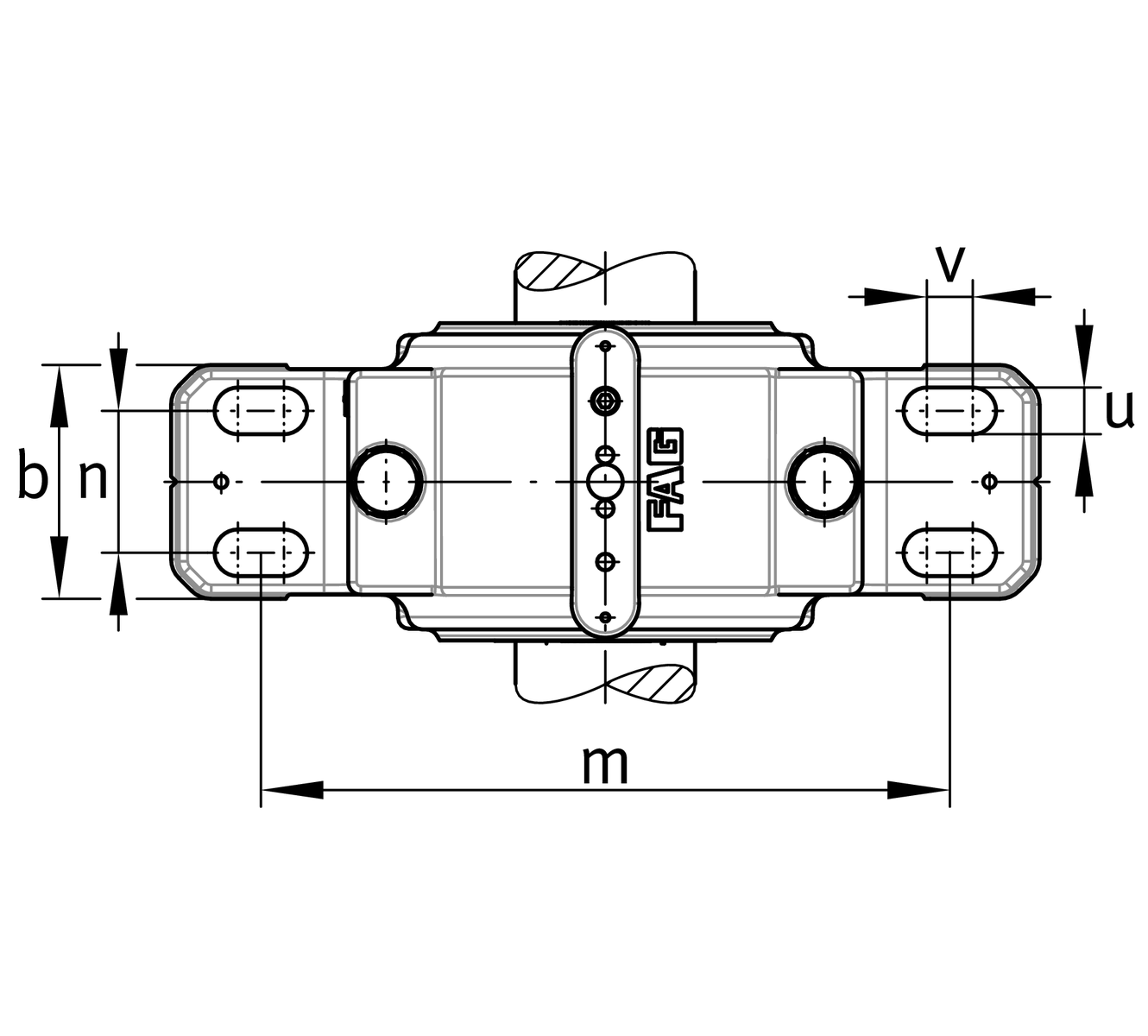

尺寸
| b | 111.125 mm | Width foot |
| c | 44.45 mm | Height foot |
| D | 180 mm | 外徑 bearing |
| e | 5.08 mm | Offset Bearing centre |
| h | 114.3 mm | Distance shaft axis |
| k | 55.8 mm | Width bearing seat |
| m | 314.325 mm | Distance mounting holes |
| n | 60.325 mm | Width bore spacing |
| s | 19.05 mm | screw size |
| v | 22.225 mm | Width oblong hole |
| v | 19.05 mm | Length oblong hole |
