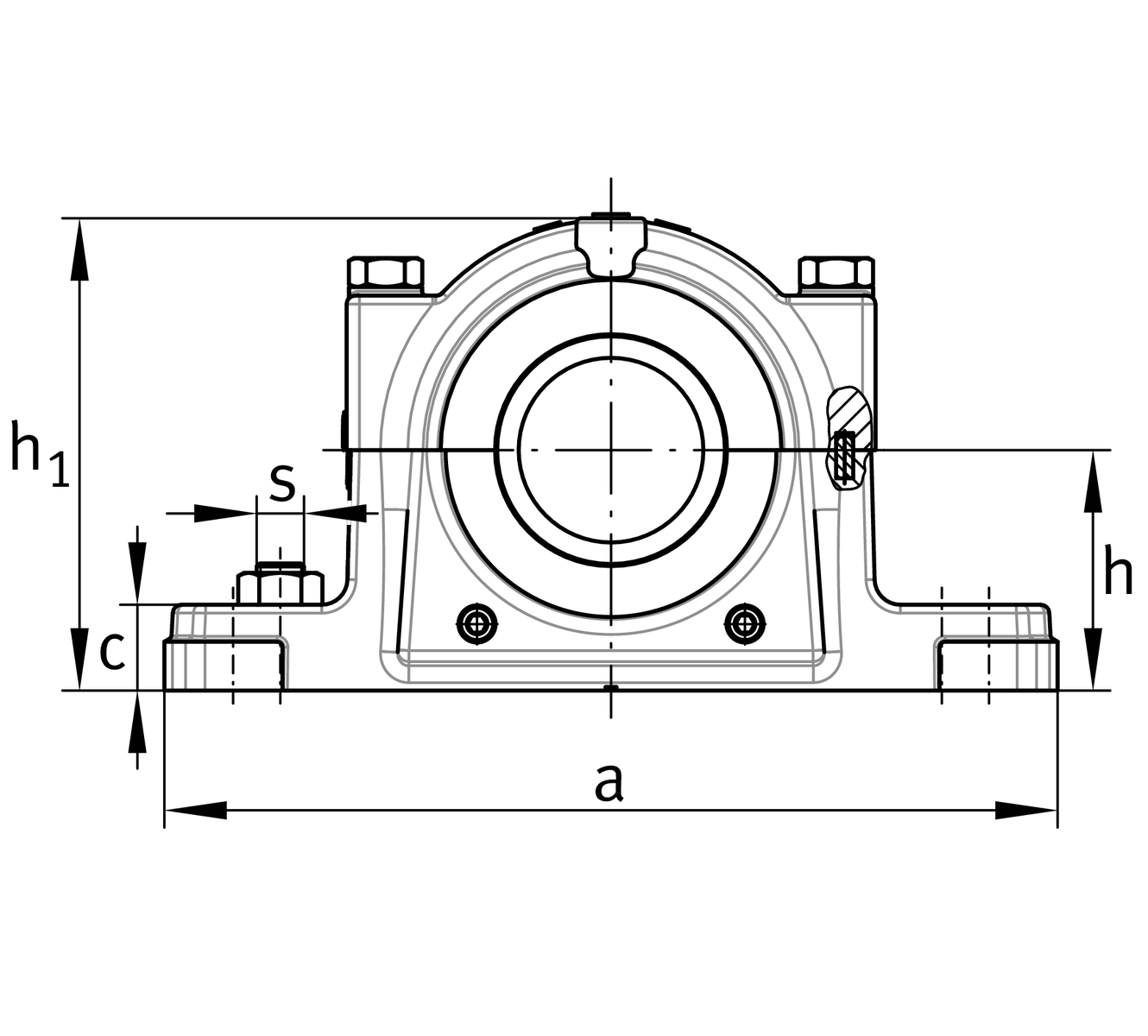

主要尺寸與性能資料
| d1 | 61.912 mm | Shaft diameter inch |
| d1 | 61.9125 mm | Shaft diameter |
| a | 285.75 mm | Length foot |
| h1 | 161.925 mm | Total height |
| g | 117.475 mm | Width 軸承座 body |
| ≈m | 10.6 kg | 重量 |

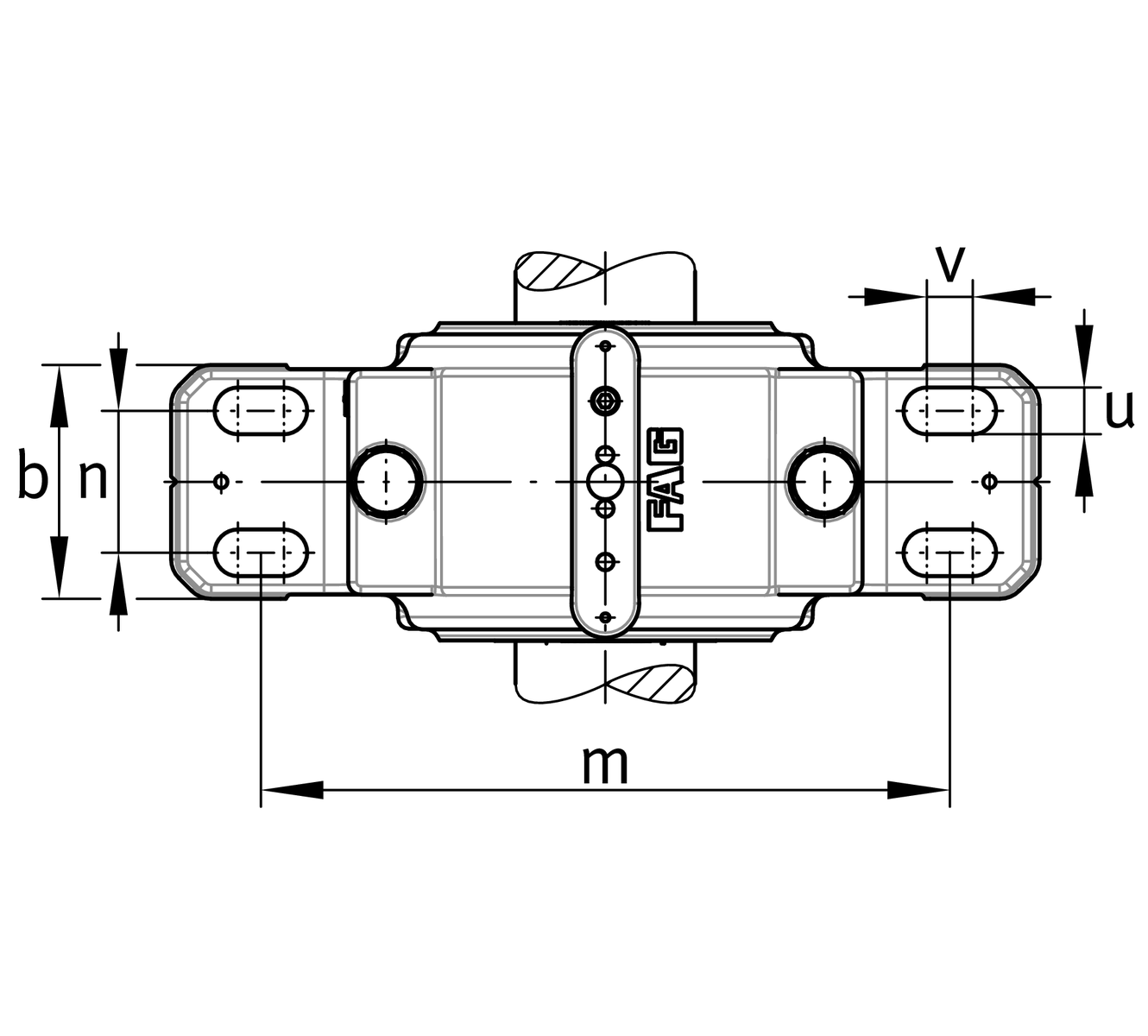

尺寸
| b | 79.375 mm | Width foot |
| c | 28.575 mm | Height foot |
| D | 130 mm | 外徑 bearing |
| e | 2.54 mm | Offset Bearing centre |
| h | 82.55 mm | Distance shaft axis |
| k | 37 mm | Width bearing seat |
| m | 231.775 mm | Distance mounting holes |
| n | 47.625 mm | Width bore spacing |
| s | 12.7 mm | screw size |
| v | 15.875 mm | Width oblong hole |
| v | 12.7 mm | Length oblong hole |
