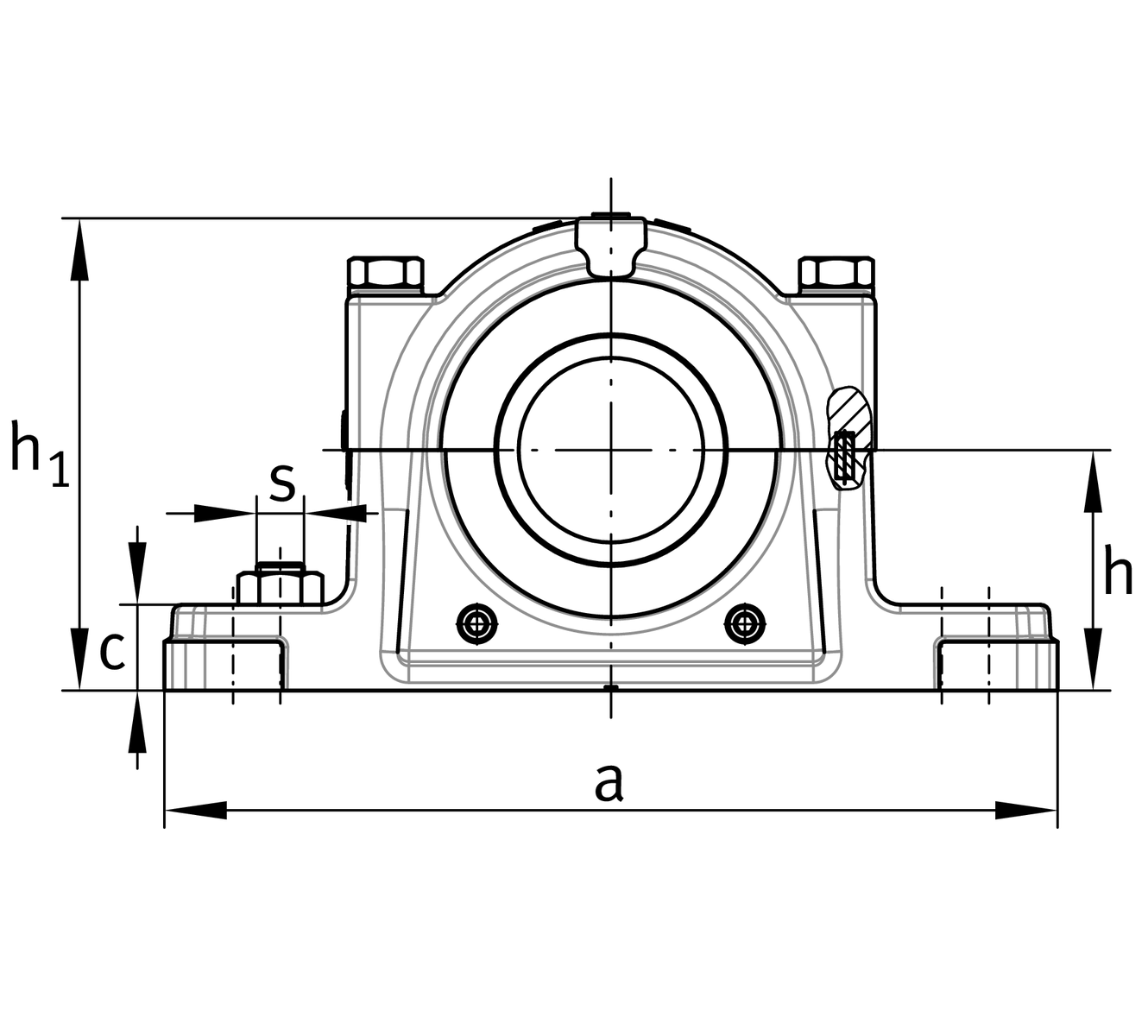

主要尺寸與性能資料
| d1 | 80.962 mm | Shaft diameter inch |
| d1 | 80.9625 mm | Shaft diameter |
| a | 349.25 mm | Length foot |
| h1 | 196.85 mm | Total height |
| g | 139.7 mm | Width 軸承座 body |
| ≈m | 16.4 kg | 重量 |

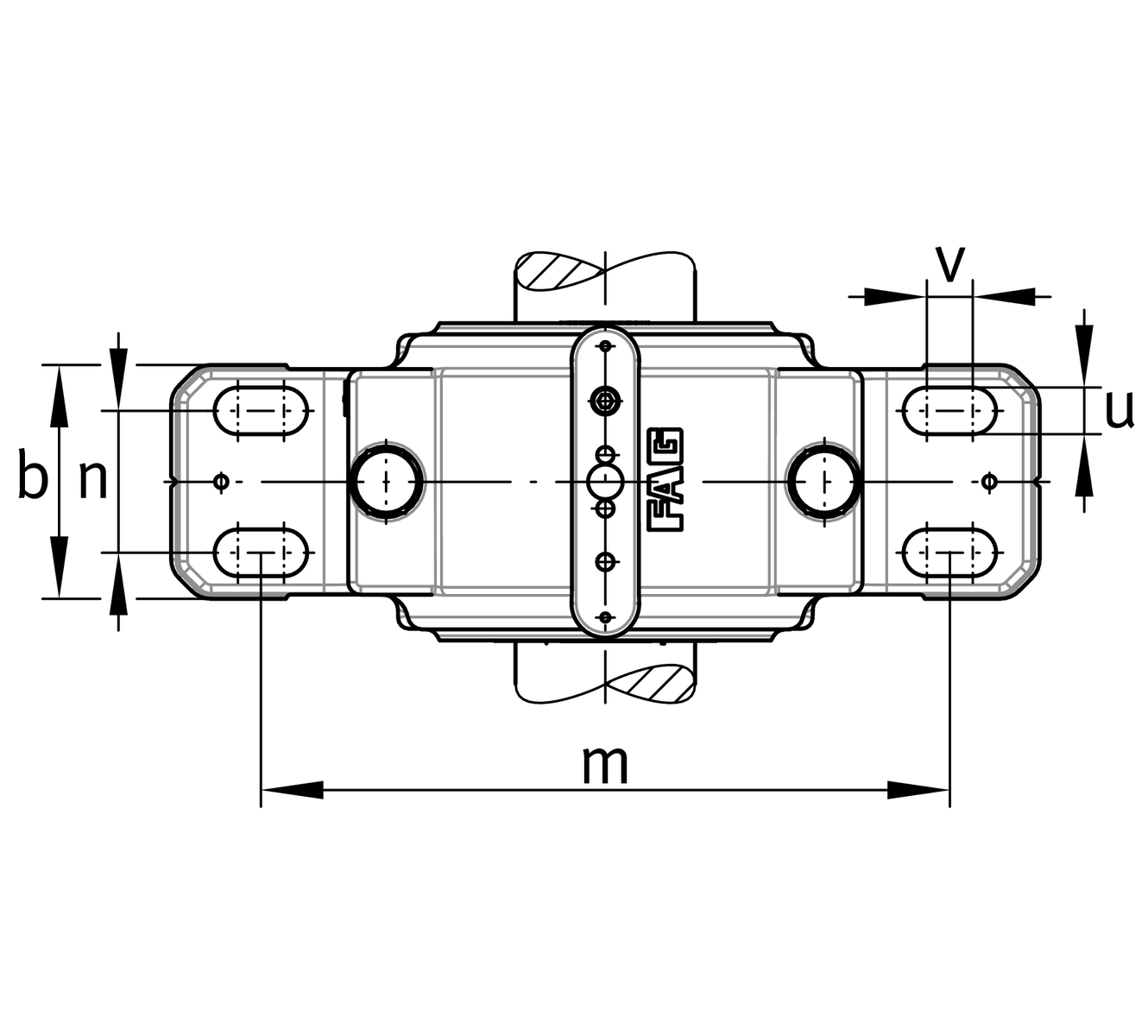

尺寸
| b | 98.425 mm | Width foot |
| c | 41.275 mm | Height foot |
| D | 160 mm | 外徑 bearing |
| e | 5.08 mm | Offset Bearing centre |
| h | 101.6 mm | Distance shaft axis |
| k | 49.8 mm | Width bearing seat |
| m | 279.4 mm | Distance mounting holes |
| n | 53.975 mm | Width bore spacing |
| s | 15.875 mm | screw size |
| v | 19.05 mm | Width oblong hole |
| v | 15.875 mm | Length oblong hole |
