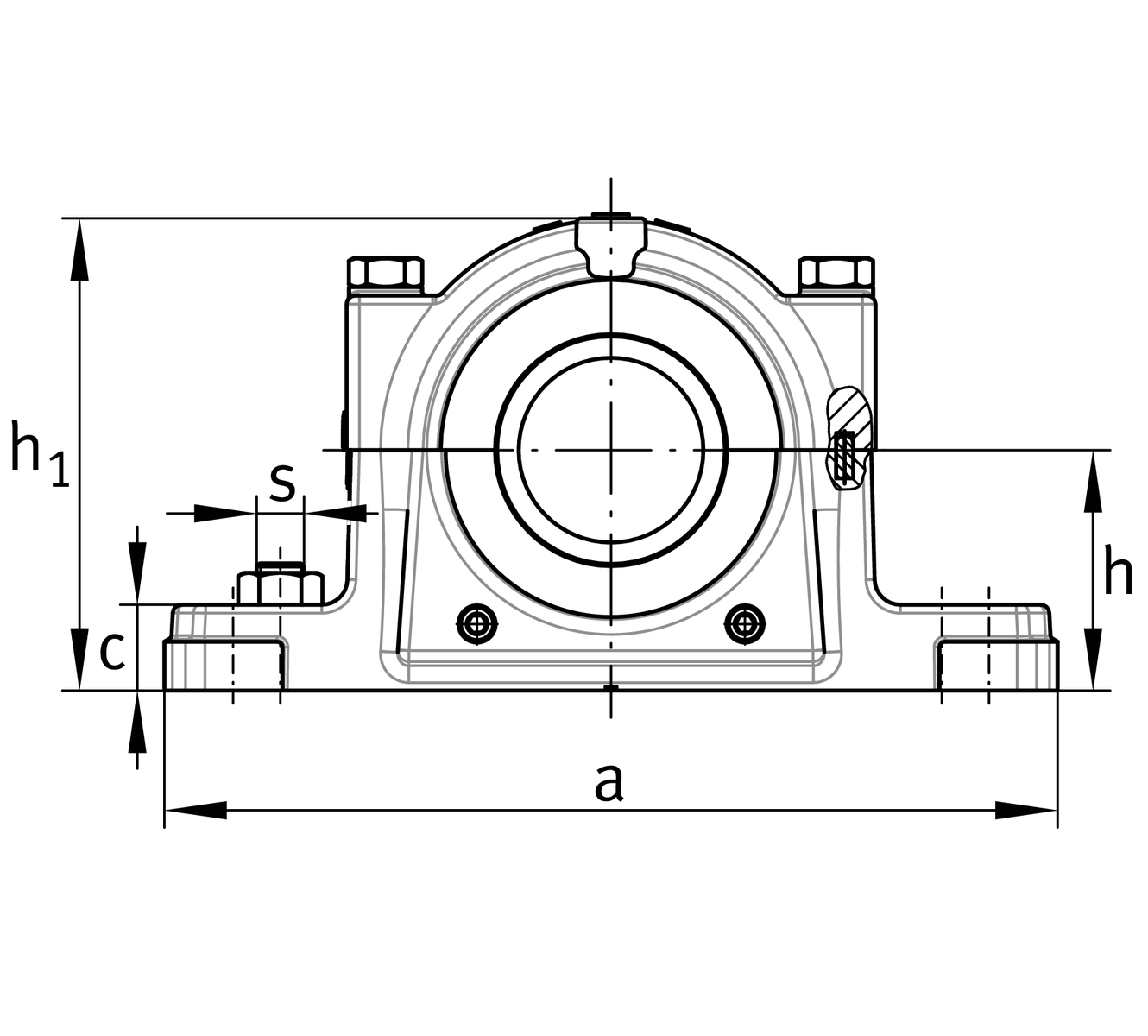

主要尺寸與性能資料
| d1 | 74.612 mm | Shaft diameter inch |
| d1 | 74.6125 mm | Shaft diameter |
| a | 330.2 mm | Length foot |
| h1 | 185.737 mm | Total height |
| g | 122.237 mm | Width 軸承座 body |
| ≈m | 13.9 kg | 重量 |

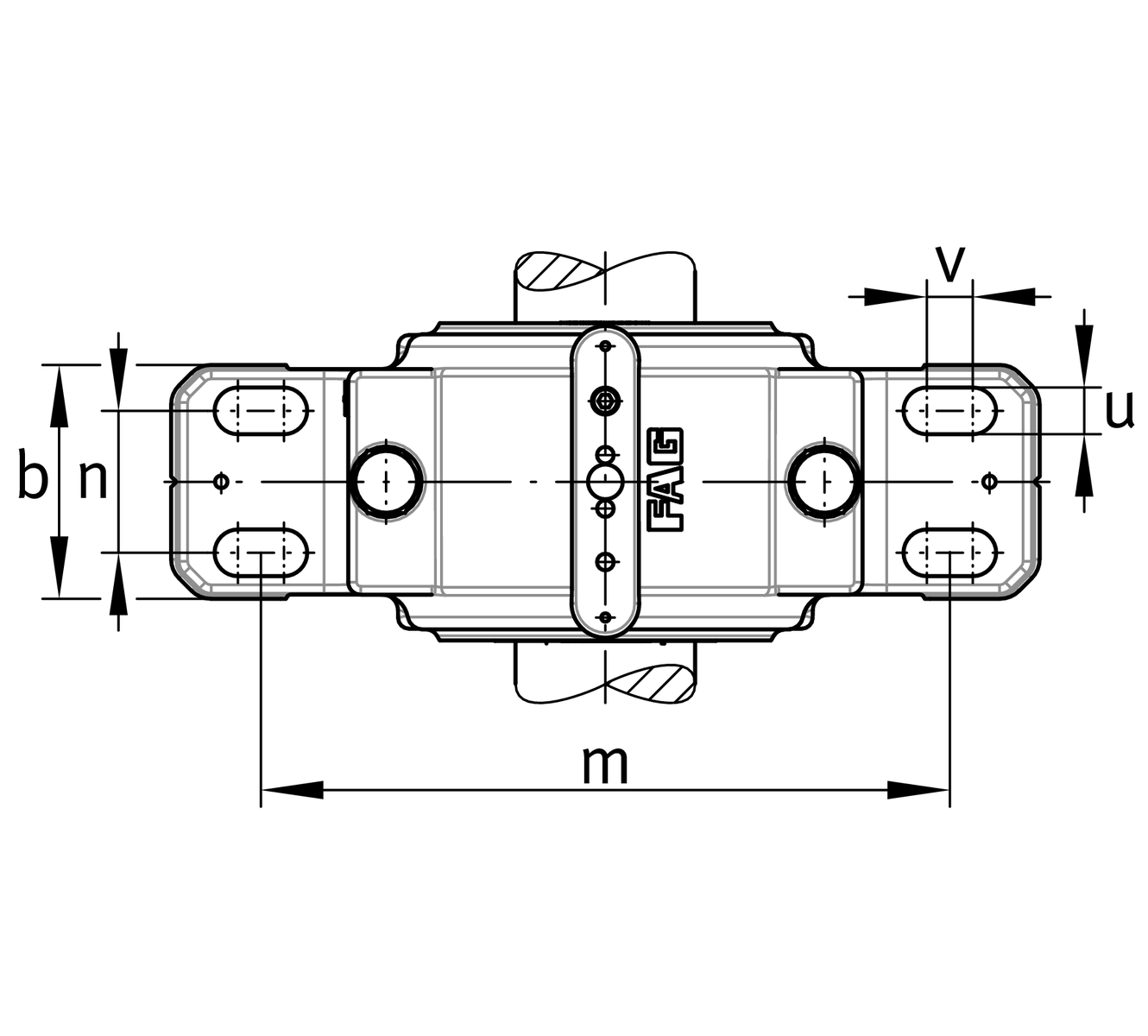

尺寸
| b | 88.9 mm | Width foot |
| c | 31.75 mm | Height foot |
| D | 150 mm | 外徑 bearing |
| e | 5.08 mm | Offset Bearing centre |
| h | 95.25 mm | Distance shaft axis |
| k | 45.8 mm | Width bearing seat |
| m | 265.113 mm | Distance mounting holes |
| n | 53.975 mm | Width bore spacing |
| s | 15.875 mm | screw size |
| v | 19.05 mm | Width oblong hole |
| v | 14.224 mm | Length oblong hole |
