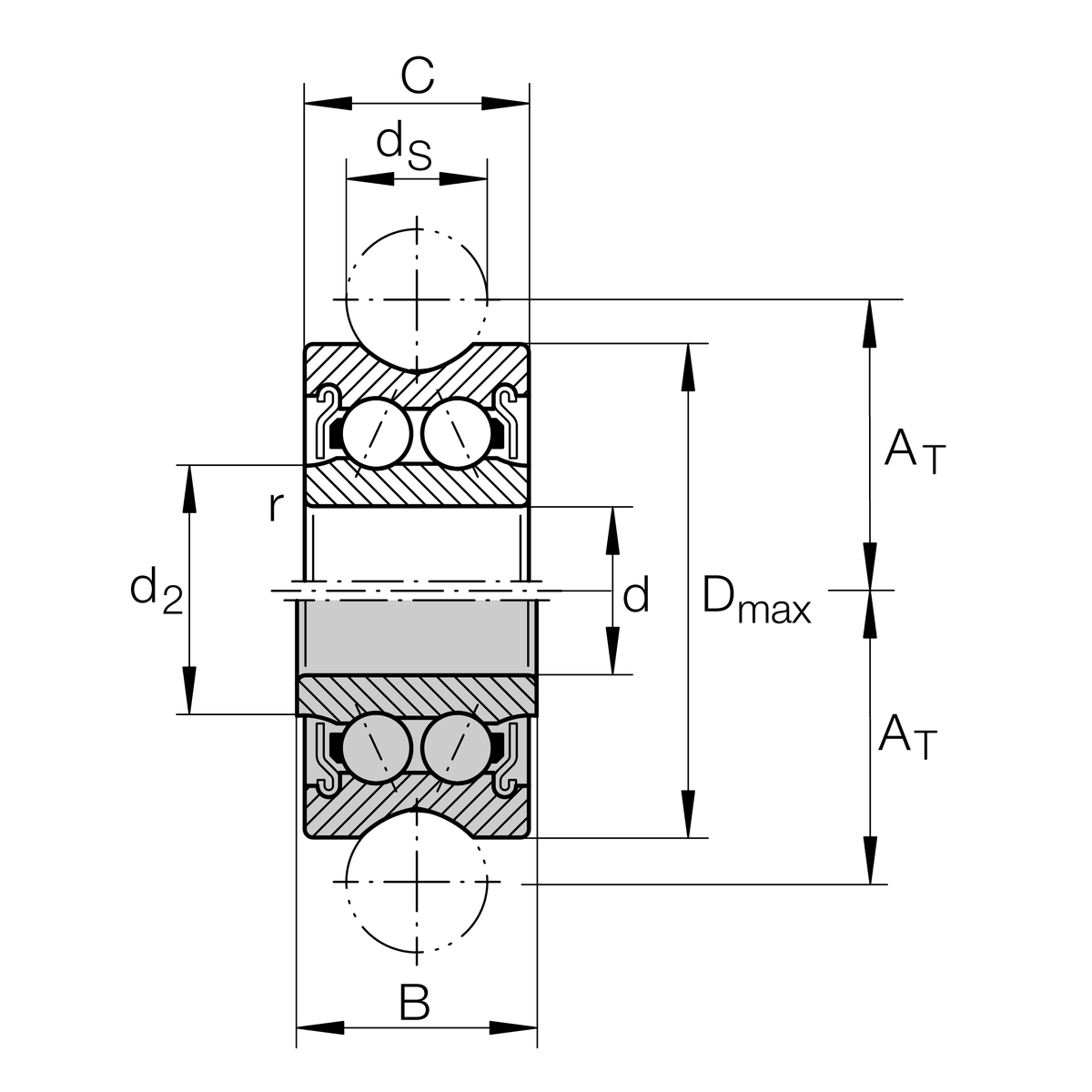

主要尺寸與性能資料
| d | 20 mm | |
| Dmax | 52 mm | |
| B | 22.6 mm | |
| ≈m | 0.26 kg | 重量 |
安裝尺寸
| AT | 31.5 mm | |
| C | 20.6 mm | |
| Da | 49.14 mm | Diameter of rolling |
| ds | 16 mm | |
| rmin | 1 mm |
Main dimensions
| Cr w | 15,300 N | Effective dynamic load rating as track roller (radial) |
| C0r w | 10,100 N | Effective static load rating as track roller (radial) |
| Cur w | 520 N | Limit of fatigue load |
| Fr per | 10,500 N | Permissible dynamic limit load |
| F0r per | 20,200 N | Permissible static limit load |
附加資訊
| LFE/LFZ | siehe Katalog: LF1 | Possible roller-pin combination |
您目前的產品型號
| Size code | 5204 | |
| Seal | 2RS | double-sided sliding seal |
| Coating | RB | rustproof design |
