主要尺寸與性能資料
| d | 12 mm | |
| Dmax | 35 mm | |
| B | 15.9 mm | |
| ≈m | 70 g | 重量 |

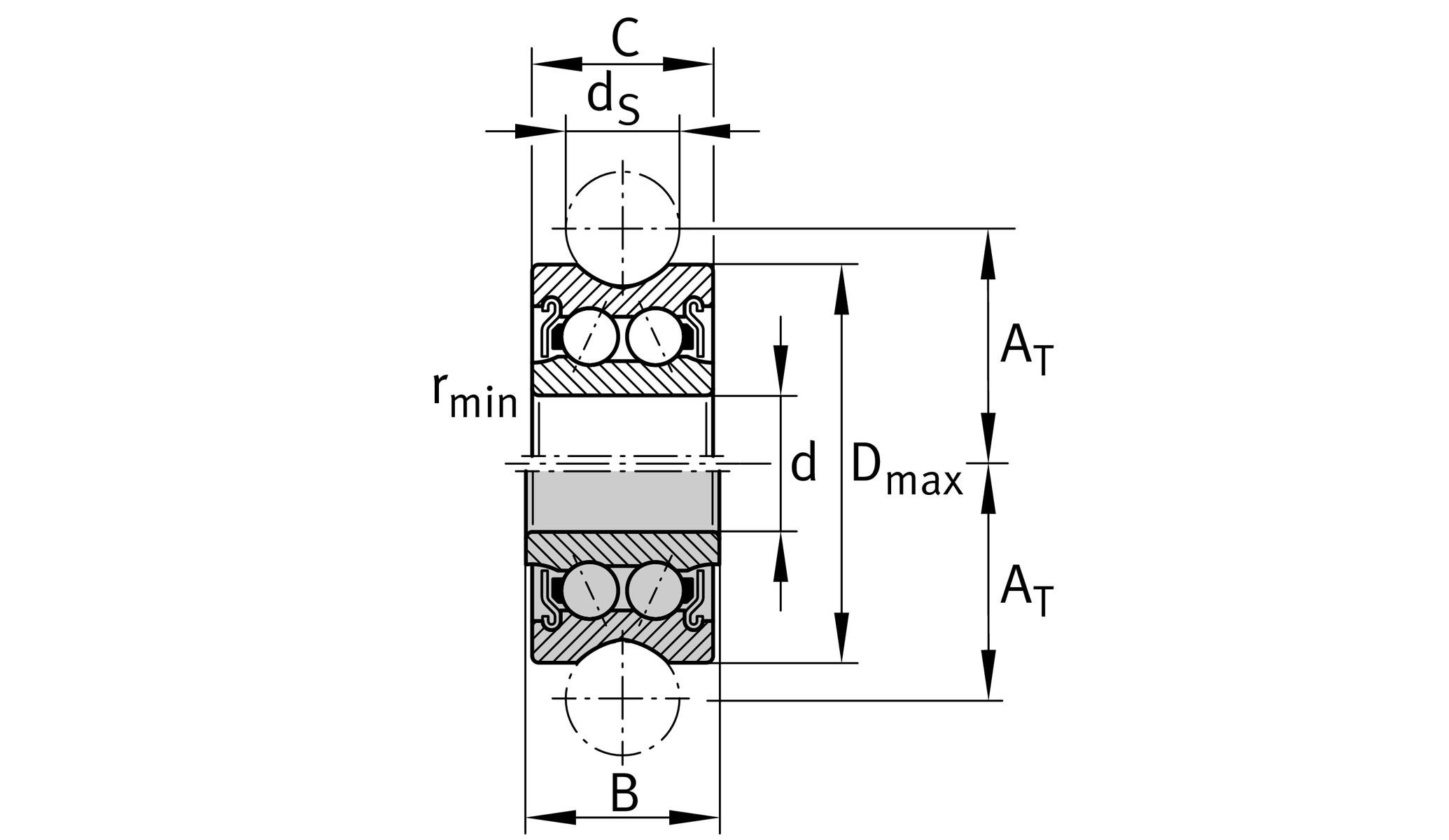

安裝尺寸
| AT | 21.75 mm | |
| C | 15.9 mm | |
| Da | 33.1 mm | Diameter of rolling |
| ds | 12 mm | |
| rmin | 0.6 mm |
Main dimensions
| Cr w | 8,300 N | Effective dynamic load rating as track roller (radial) |
| C0r w | 5,000 N | Effective static load rating as track roller (radial) |
| Cur w | 250 N | Limit of fatigue load |
| Fr per | 4,650 N | Permissible dynamic limit load |
| F0r per | 10,000 N | Permissible static limit load |
附加資訊
| LFE/LFZ | siehe Katalog: LF1 | Possible roller-pin combination |
您目前的產品型號
| Size code | 5201 | |
| Seal | 2Z | 兩側間隙密封 |
