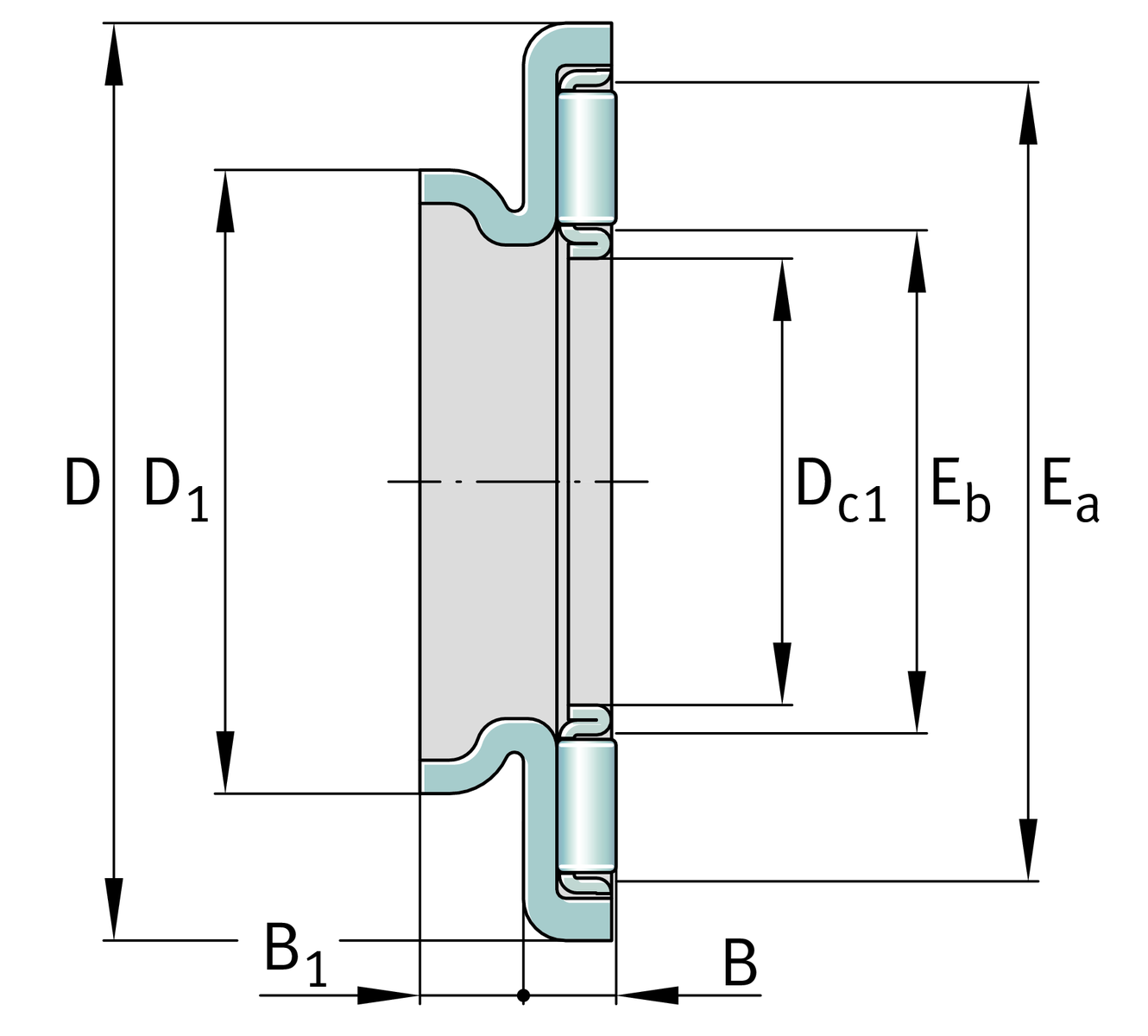

主要尺寸與性能資料
| Dc1 | 20 mm | 內徑 cage |
| D | 38 mm | 外徑 bearing washer |
| B | 3.2 mm | Height bearing |
| B1 | 3.5 mm | Height centering collar |
| D1 | 26 mm | 外徑 centering collar |
| Ea | 34 mm | Raceway dimension |
| Eb | 22 mm | Raceway dimension |
| C | 13,100 N | 基本額定動載荷，軸向 |
| C0a | 46,500 N | 基本額定靜態載荷，軸向 |
| cua | 4,800 N | 疲勞負荷極限，軸向 |
| nG | 10,500 1/min | 極限轉速 |
| n ϑr | 5,300 1/min | 參考轉速 |
| ≈m | 15.15 g | 重量 |
附加資訊
AS2035 | Axial bearing washer | |
HK2018-RS | Drawn cup needle roller bearings turned | |
HK2016 | Drawn cup needle roller bearings | |
HK2020 | Drawn cup needle roller bearings | |
HK2030-ZW | Drawn cup needle roller bearings | |
HK2012 | Drawn cup needle roller bearings for radial bearing arrangement | |
BK2016 | Needle bush | |
BK2020 | Needle bush | |
NK18/16 | Needle roller bearings with out inner ring | |
NK18/20 | Needle roller bearings with out inner ring |
