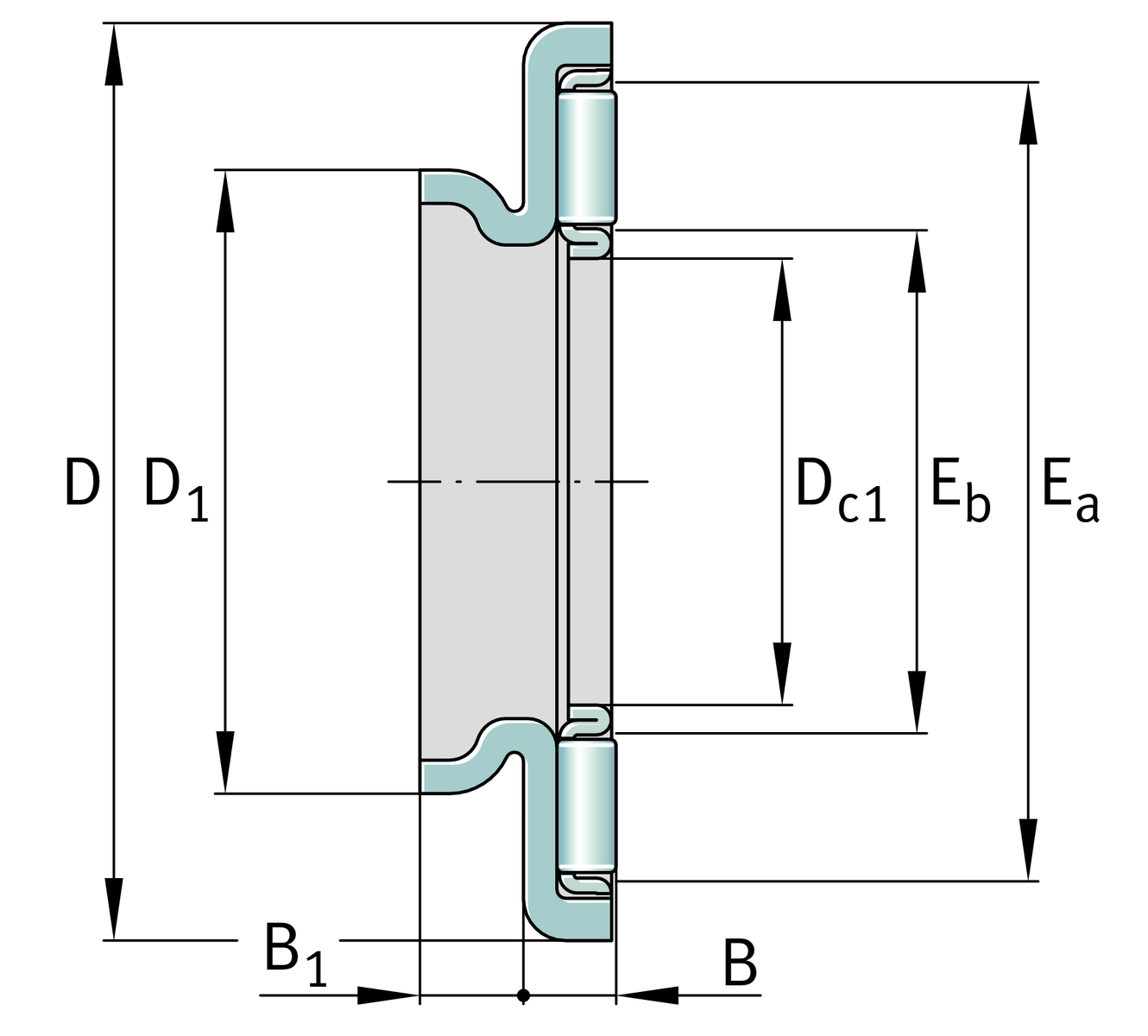

主要尺寸與性能資料
| Dc1 | 25 mm | 內徑 cage |
| D | 45 mm | 外徑 bearing washer |
| B | 3.2 mm | Height bearing |
| B1 | 4 mm | Height centering collar |
| D1 | 32 mm | 外徑 centering collar |
| Ea | 41 mm | Raceway dimension |
| Eb | 29 mm | Raceway dimension |
| C | 14,800 N | 基本額定動載荷，軸向 |
| C0a | 58,000 N | 基本額定靜態載荷，軸向 |
| cua | 6,000 N | 疲勞負荷極限，軸向 |
| nG | 8,600 1/min | 極限轉速 |
| n ϑr | 4,550 1/min | 參考轉速 |
| ≈m | 20.08 g | 重量 |
附加資訊
AS2542 | Axial bearing washer | |
HK2518-RS | Drawn cup needle roller bearings turned | |
HK2516 | Drawn cup needle roller bearings | |
HK2520 | Drawn cup needle roller bearings | |
HK2526 | Drawn cup needle roller bearings | |
HK2538-ZW | Drawn cup needle roller bearings | |
HK2512 | Drawn cup needle roller bearings for radial bearing arrangement | |
BK2520 | Needle bush | |
BK2526 | Needle bush | |
BK2538-ZW | Needle bush | |
NKI20/16 | Needle roller bearings with inner ring | |
NKI20/20 | Needle roller bearings with inner ring | |
NK24/16 | Needle roller bearings with out inner ring | |
NK24/20 | Needle roller bearings with out inner ring | |
NKS20 | Needle roller bearings with out inner ring |
