主要尺寸與性能資料
| Dc1 | 17 mm | 內徑 cage |
| D | 33 mm | 外徑 bearing washer |
| B | 3.2 mm | Height bearing |
| B1 | 3.5 mm | Height centering collar |
| D1 | 23 mm | 外徑 centering collar |
| Ea | 29 mm | Raceway dimension |
| Eb | 19 mm | Raceway dimension |
| C | 12,000 N | 基本額定動載荷，軸向 |
| C0a | 39,500 N | 基本額定靜態載荷，軸向 |
| cua | 4,000 N | 疲勞負荷極限，軸向 |
| nG | 12,300 1/min | 極限轉速 |
| n ϑr | 5,800 1/min | 參考轉速 |
| ≈m | 11.54 g | 重量 |
附加資訊
AS1730 | Axial bearing washer | |

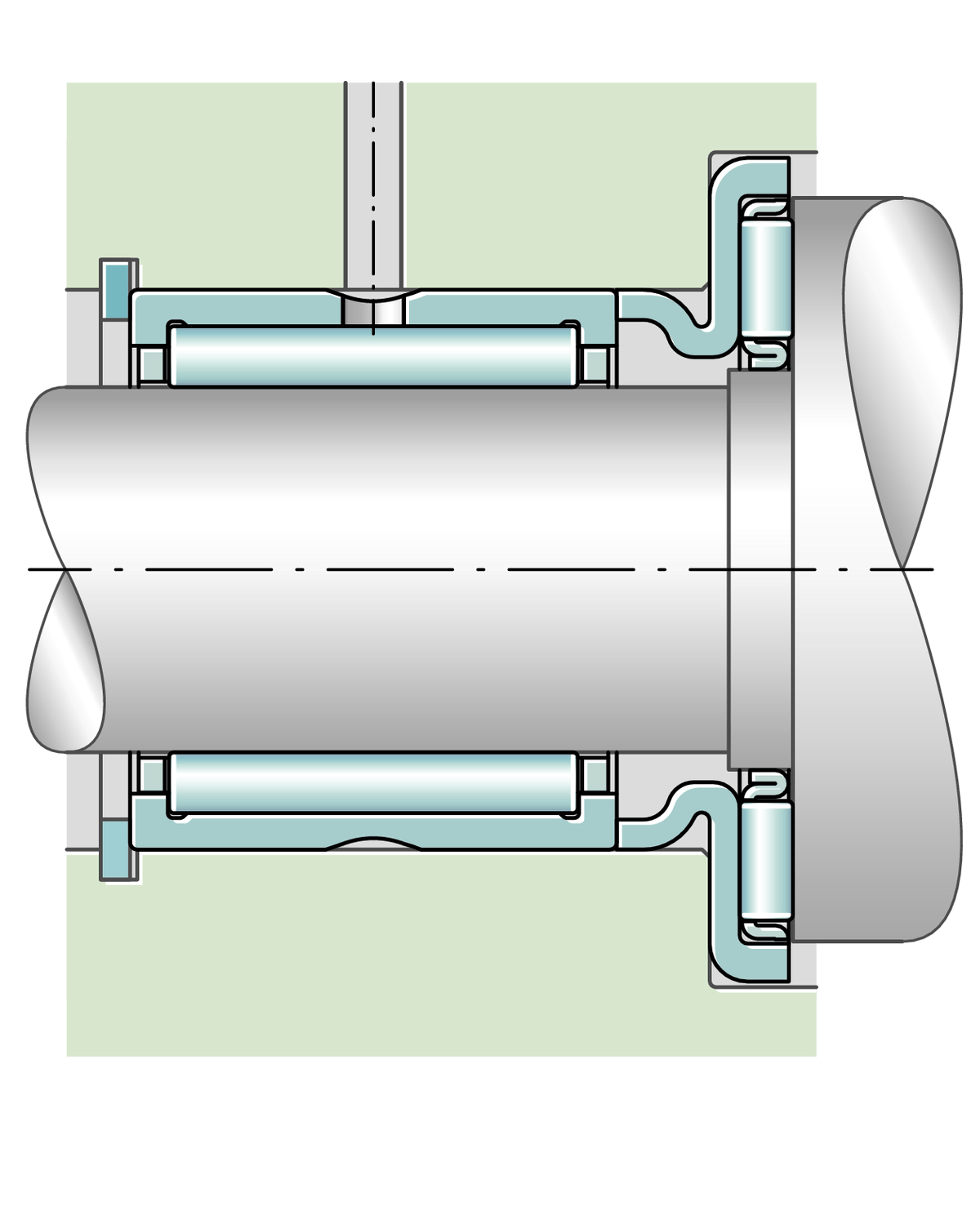

HK1712 | Drawn cup needle roller bearings for radial bearing arrangement | |

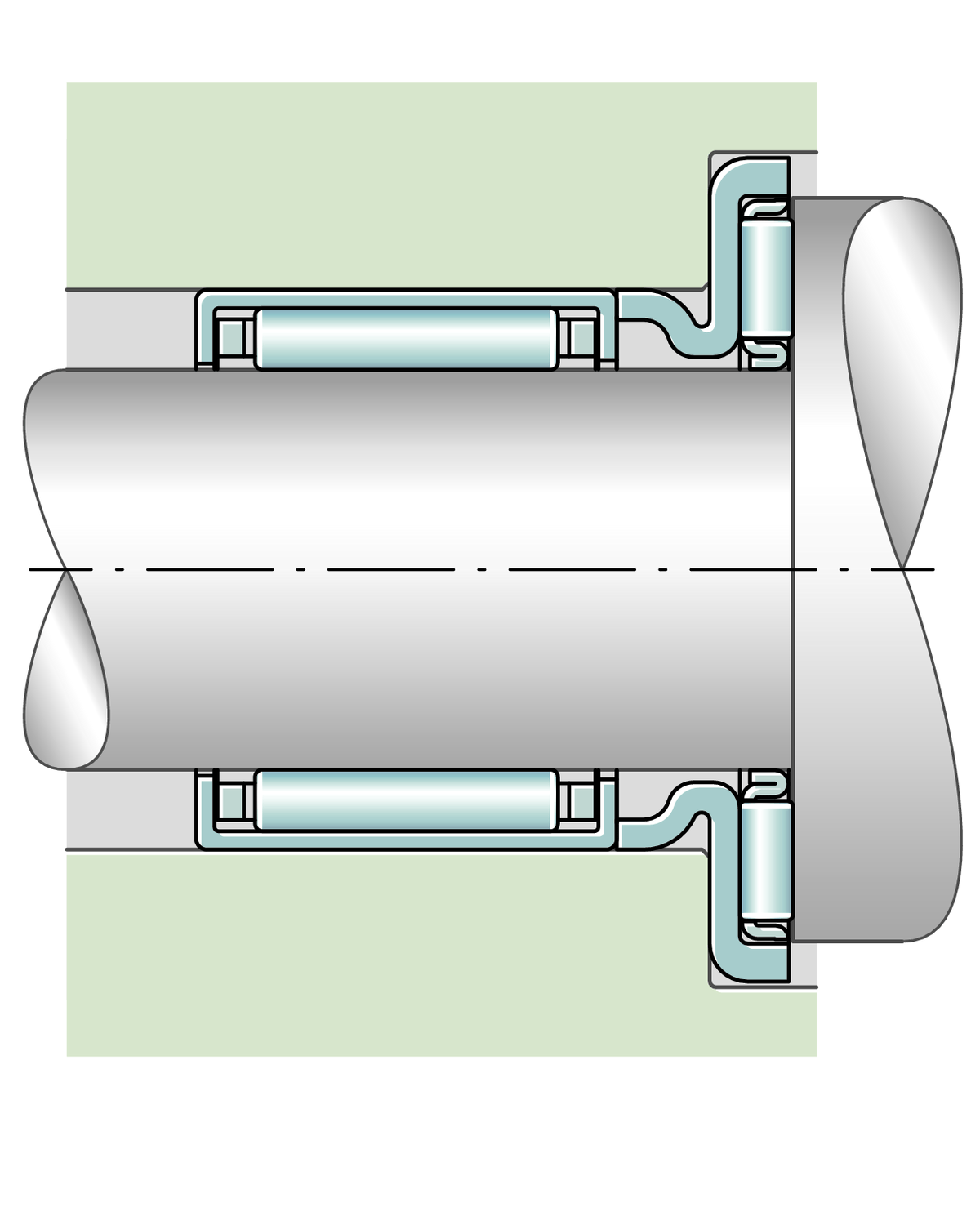

NK15/16 | Needle roller bearings with out inner ring | |

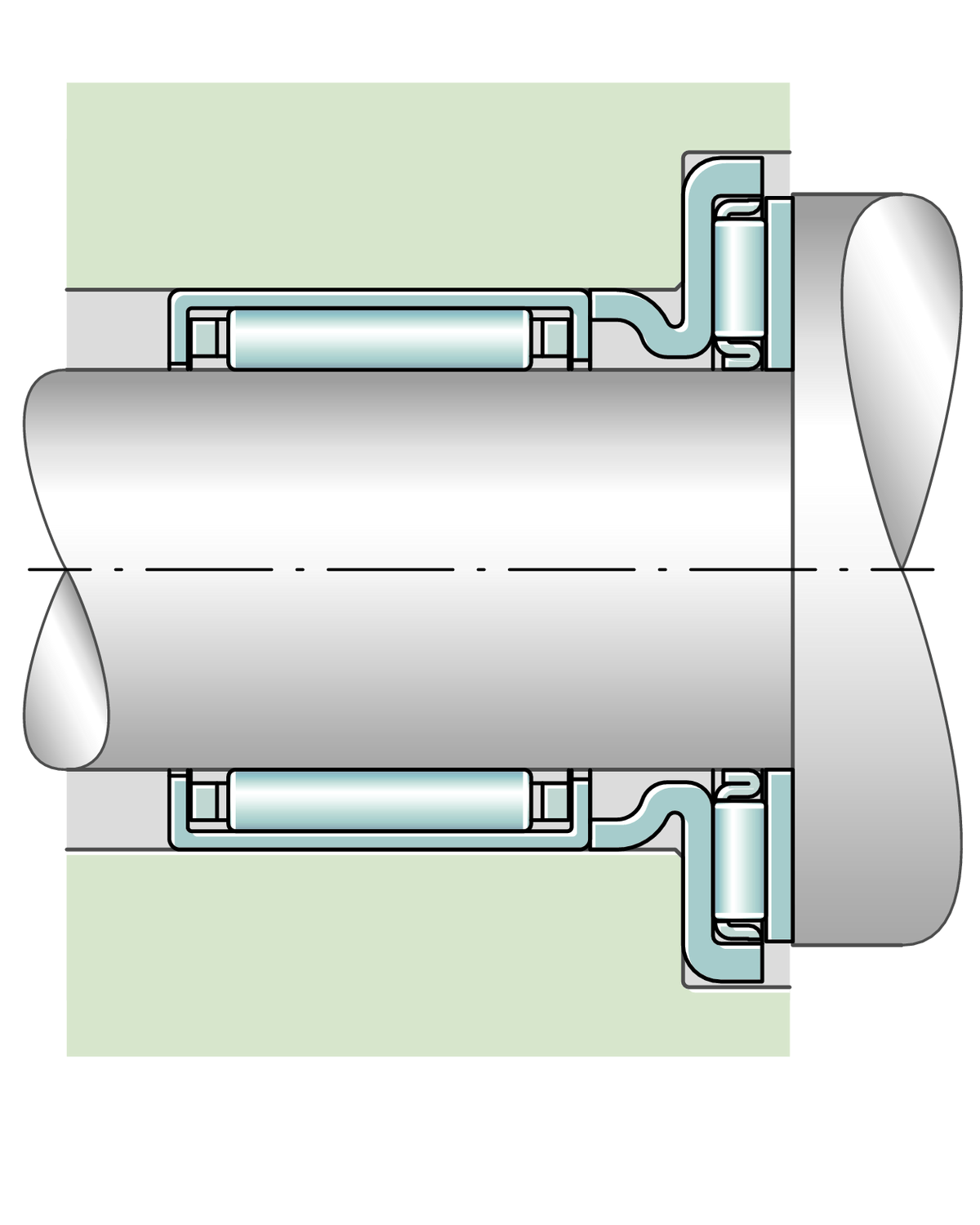

NK15/20 | Needle roller bearings with out inner ring |
