PR14032-PP
Linear recirculating roller bearing unit PR14032-PP
加入詢價
主要尺寸與性能資料

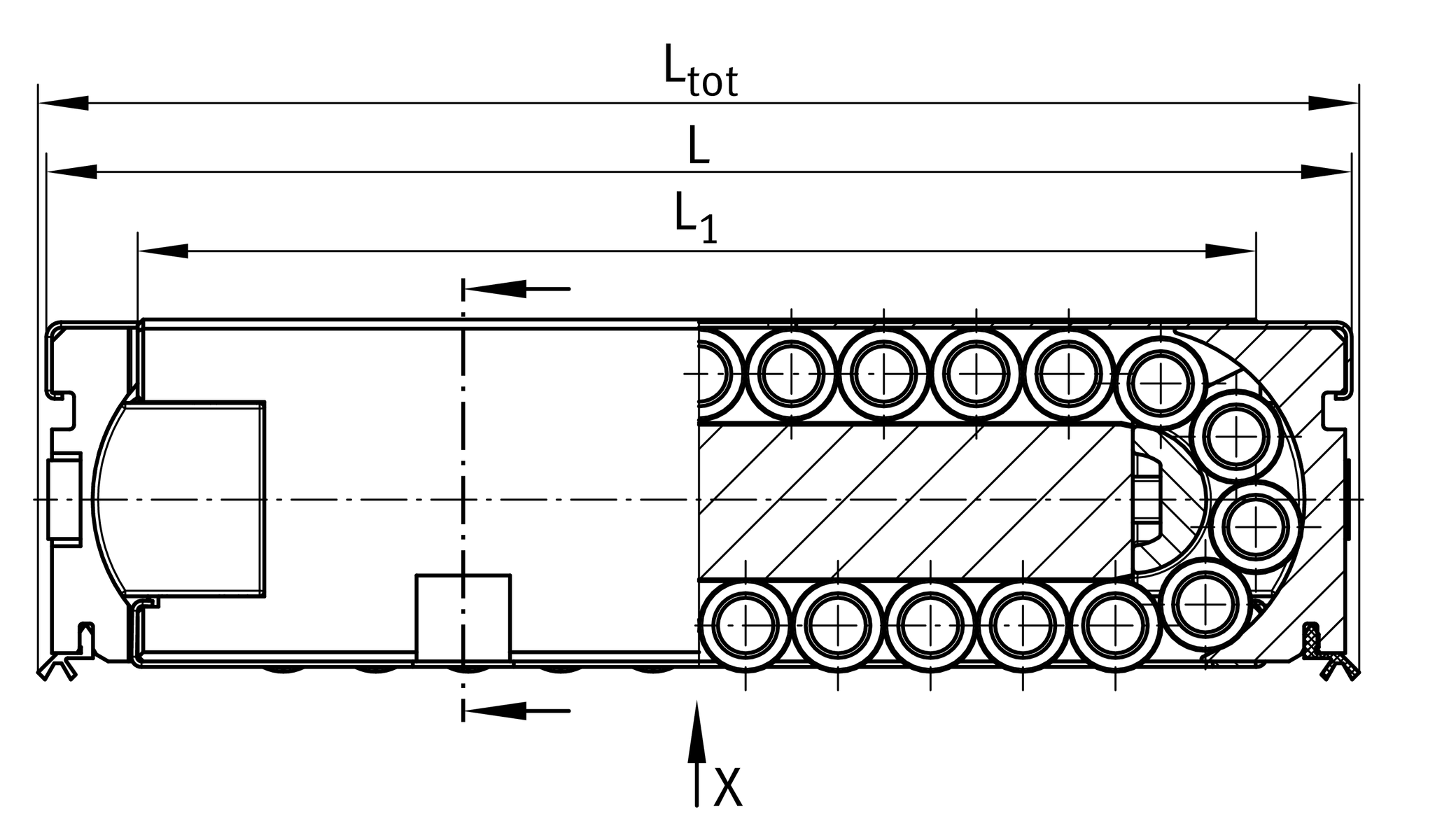

Ltot
61.8 mm
Length total

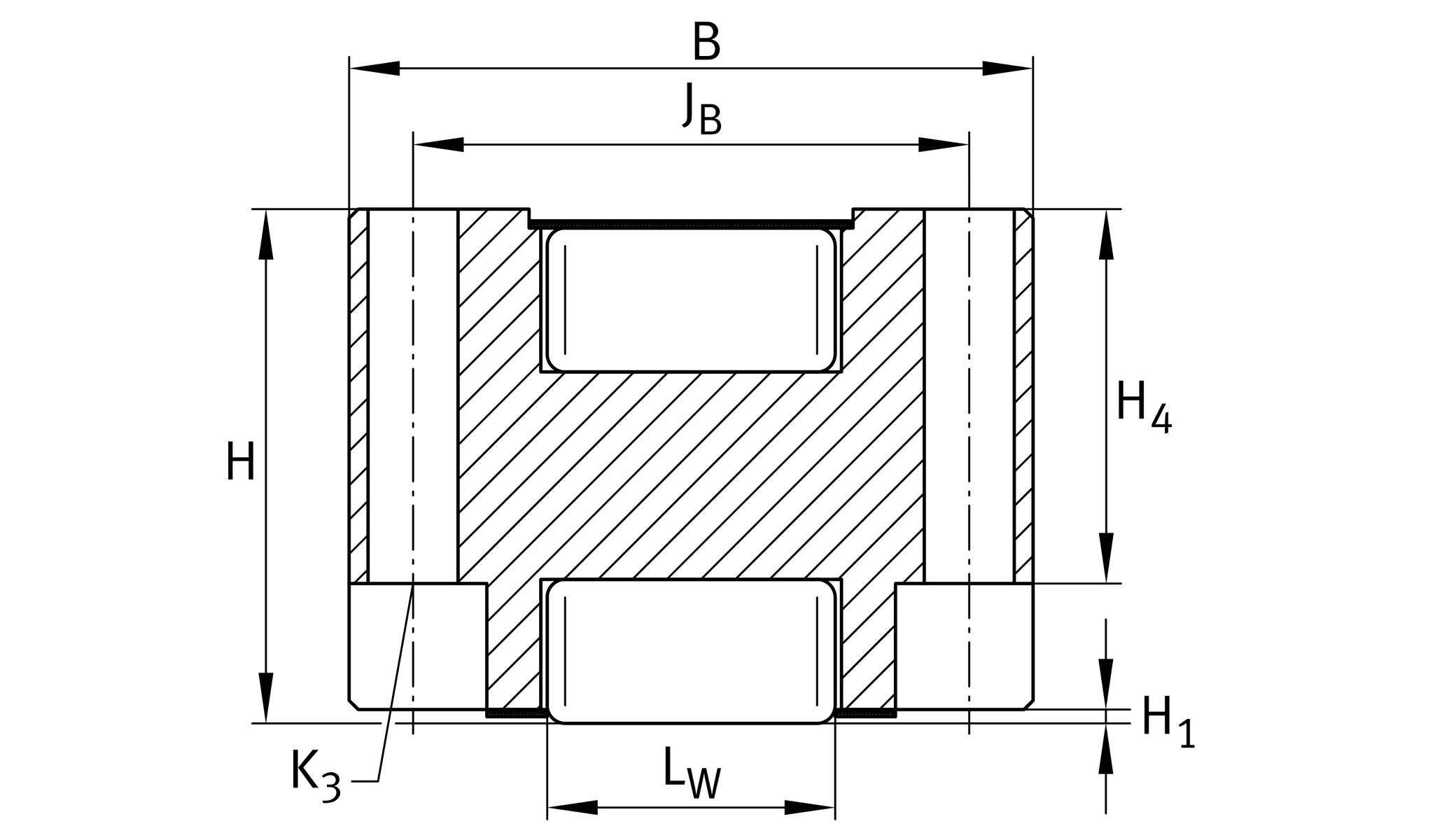

B
22.2 mm
寬度
H
14.3 mm
高度
C
21,700 N
Load capacity Dynamic
C0
19,900 N
Load capacity static
≈m
102 g
重量

安裝尺寸
L1
37.8 mm

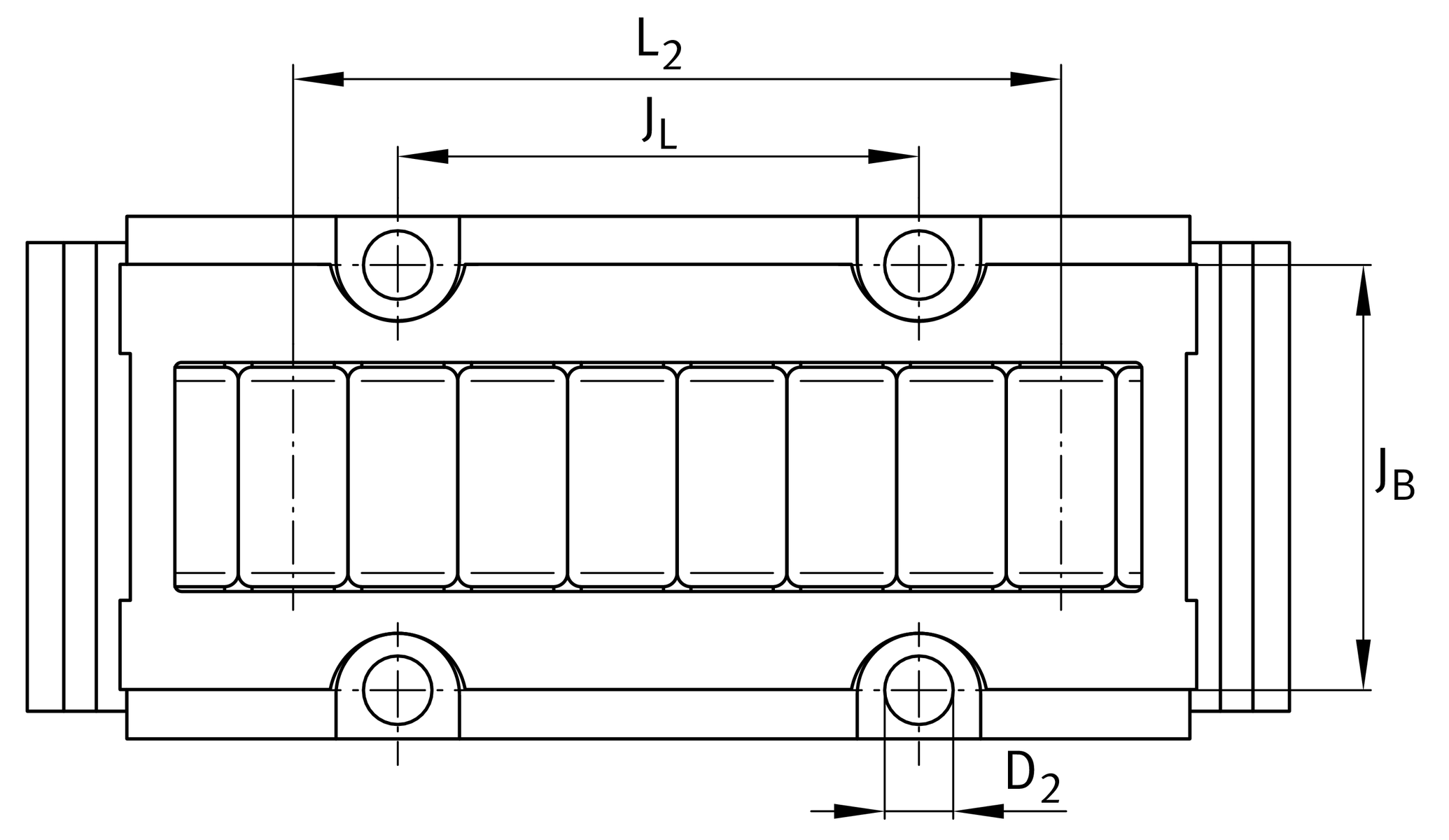

JB
17.1 mm
Mounting Dimension
Tol JB
±0,1
Tolerance
JL
19.1 mm
Mounting Dimension
Tol JL
±0,1
Tolerance
H1
0.1 mm
L2
31 mm
LW
9 mm
H4
10.3 mm
K3
M2,5
Size thread K3 1
K3 MA
1 Nm
Tightening Torque fixing screws
D2
3 mm

Related products
UG6628, UGN6628, UZ6628, UZN6628, UFK3210
suitable Guide Rail

您目前的產品型號
SuffixPPwith end face wiper
Size code14032
