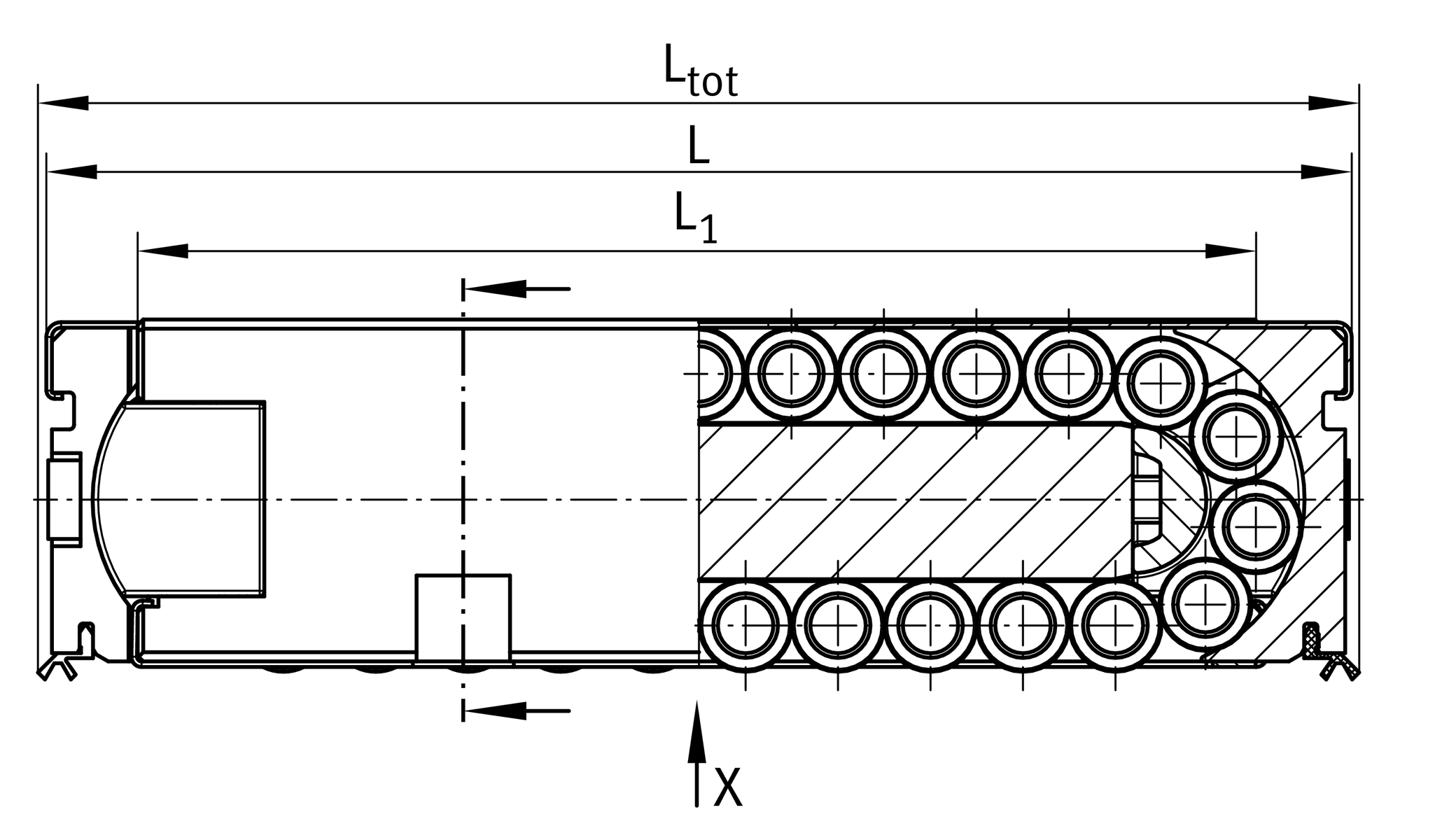

主要尺寸與性能資料
| L | 51 mm | |
| B | 22.2 mm | 寬度 |
| H | 14.3 mm | 高度 |
| C | 21,700 N | Load capacity Dynamic |
| C0 | 19,900 N | Load capacity static |
| ≈m | 102 g | 重量 |

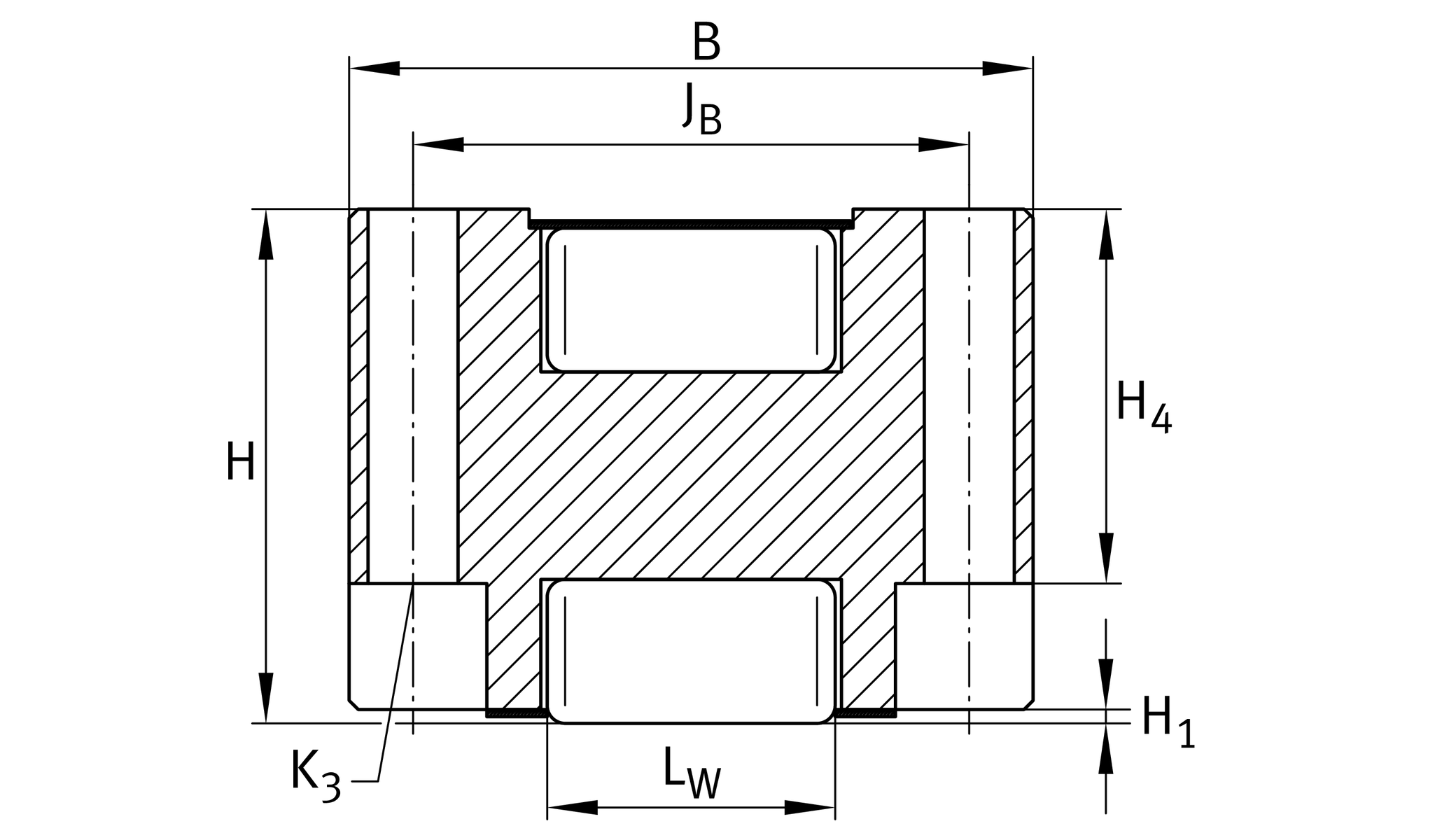

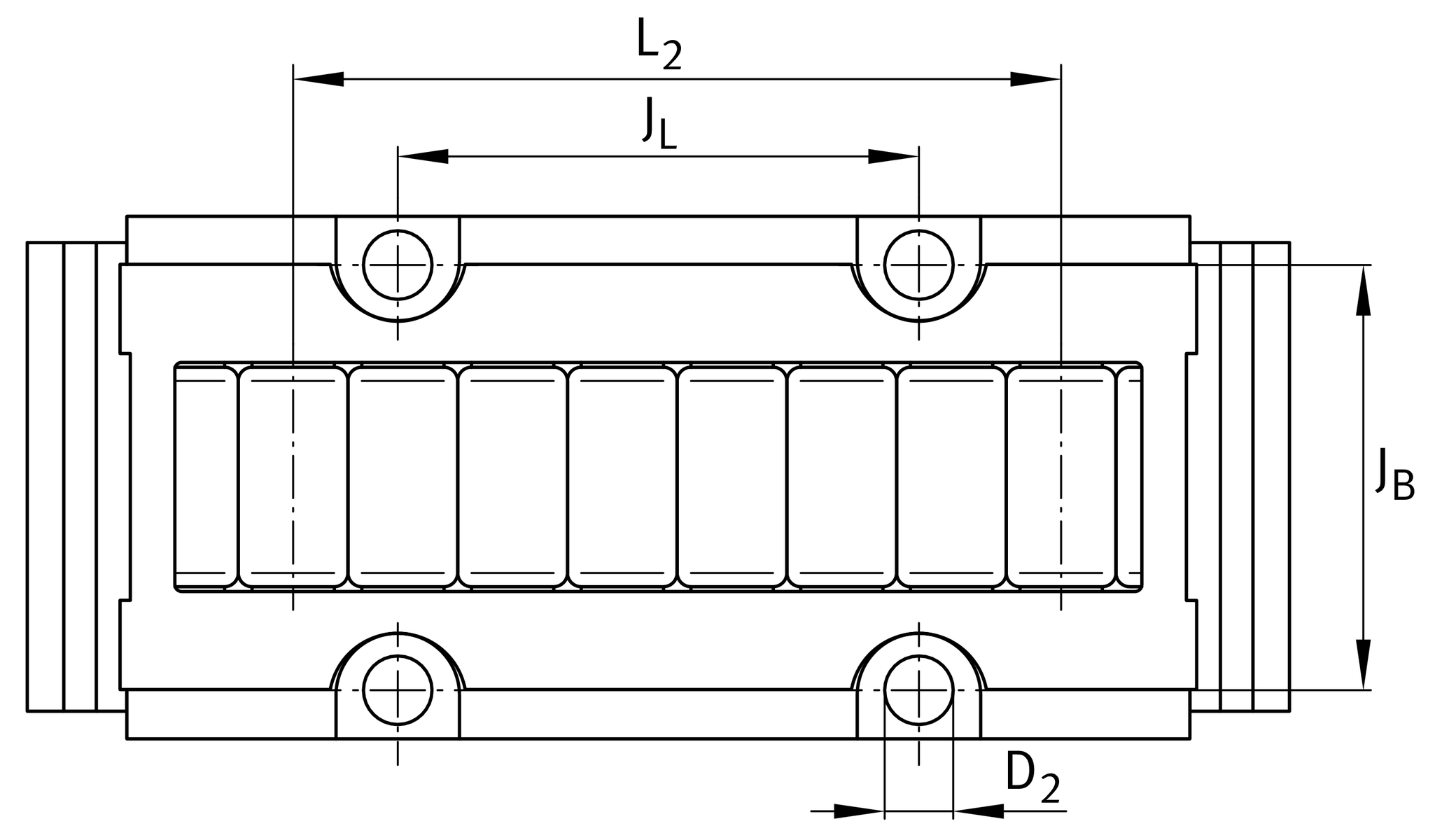

安裝尺寸
| L1 | 37.8 mm | |
| JB | 17.1 mm | Mounting Dimension |
| Tol JB | ±0,1 | Tolerance |
| JL | 19.1 mm | Mounting Dimension |
| Tol JL | ±0,1 | Tolerance |
| H1 | 0.1 mm | |
| L2 | 31 mm | |
| LW | 9 mm | |
| H4 | 10.3 mm | |
| K3 | M2,5 | Size thread K3 1 |
| K3 MA | 1 Nm | Tightening Torque fixing screws |
| D2 | 3 mm |
Related products
UG6628, UGN6628, UZ6628, UZN6628, UFK3210 | suitable Guide Rail |
您目前的產品型號
| Size code | 14032 |
