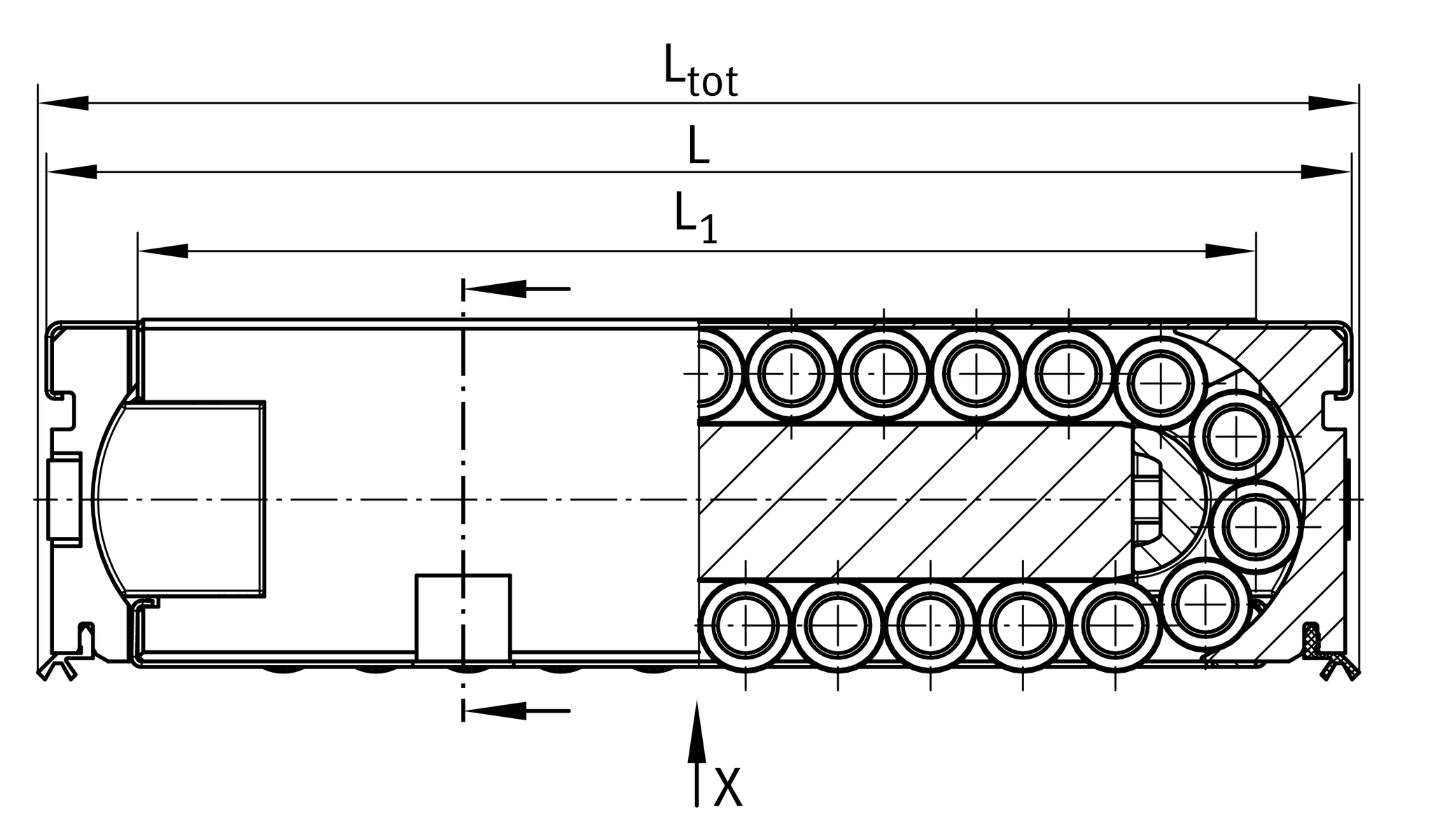

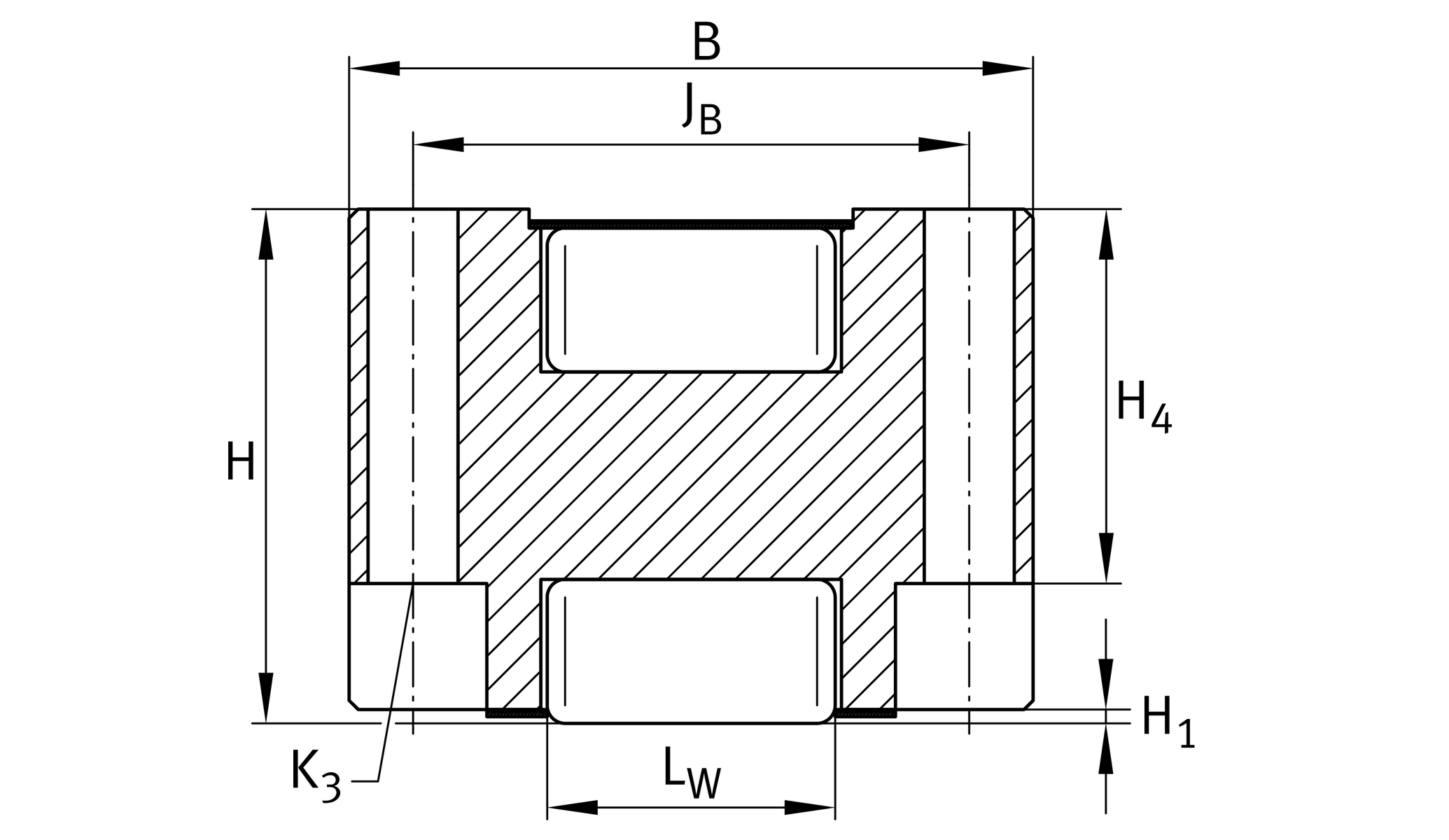

主要尺寸與性能資料
| L | 68.5 mm | |
| B | 25.4 mm | 寬度 |
| H | 19.1 mm | 高度 |
| C | 44,000 N | Load capacity Dynamic |
| C0 | 76,000 N | Load capacity static |
| ≈m | 0.202 kg | 重量 |

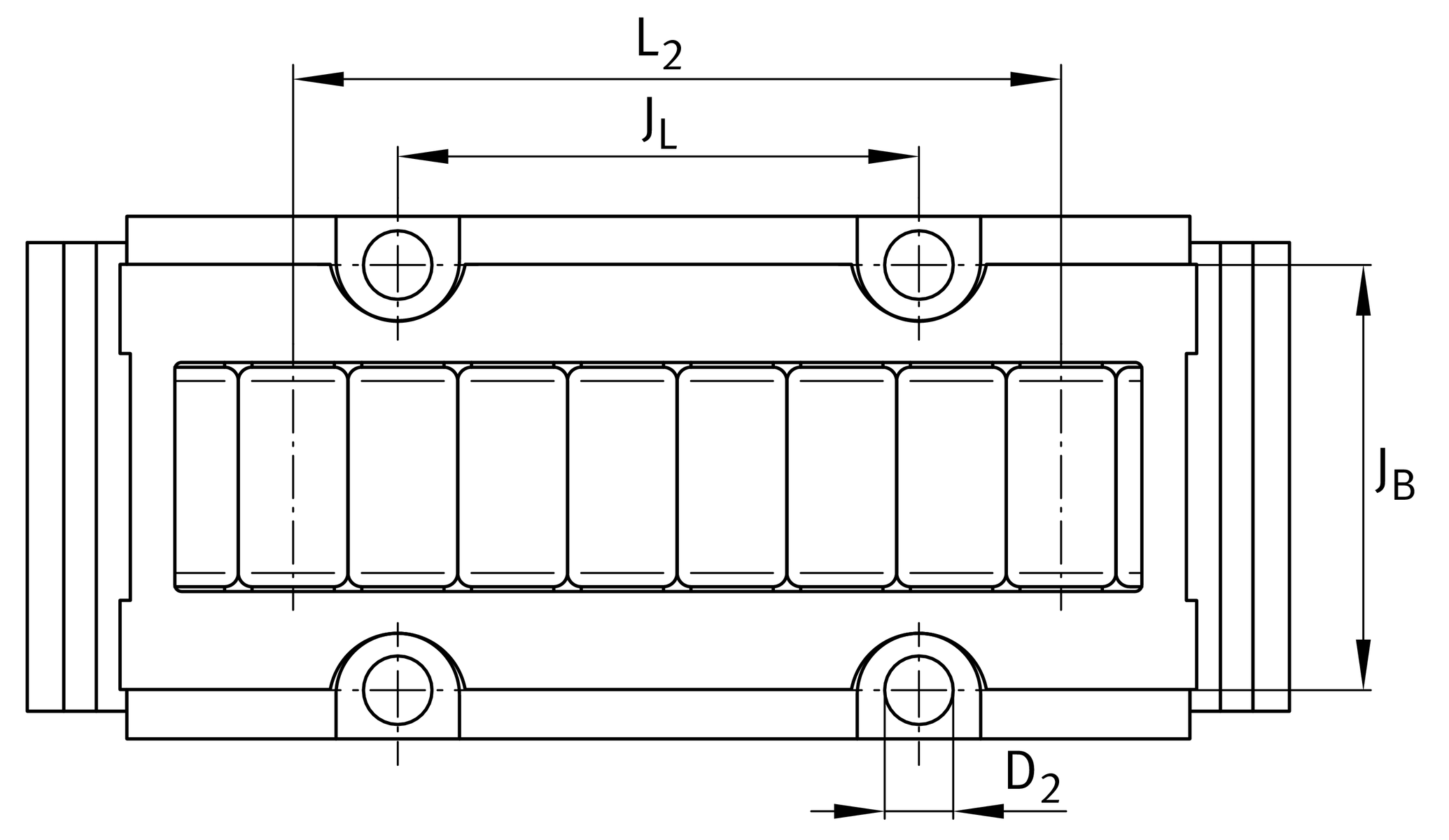

安裝尺寸
| L1 | 54.6 mm | |
| JB | 20.6 mm | Mounting Dimension |
| Tol JB | ±0,1 | Tolerance |
| JL | 25.5 mm | Mounting Dimension |
| Tol JL | ±0,1 | Tolerance |
| H1 | 0.1 mm | |
| L2 | 42 mm | |
| LW | 10 mm | |
| H4 | 14.8 mm | |
| K3 | M3 | Size thread K3 1 |
| K3 MA | 1.8 Nm | Tightening Torque fixing screws |
| D2 | 3.65 mm |
Related products
VUSZ12044-A | Adjustment gib | |
UG6628, UGN6628, UZ6628, UZN6628, UFK3210, UFB4710 | suitable Guide Rail |
您目前的產品型號
| Size code | 14044 |
