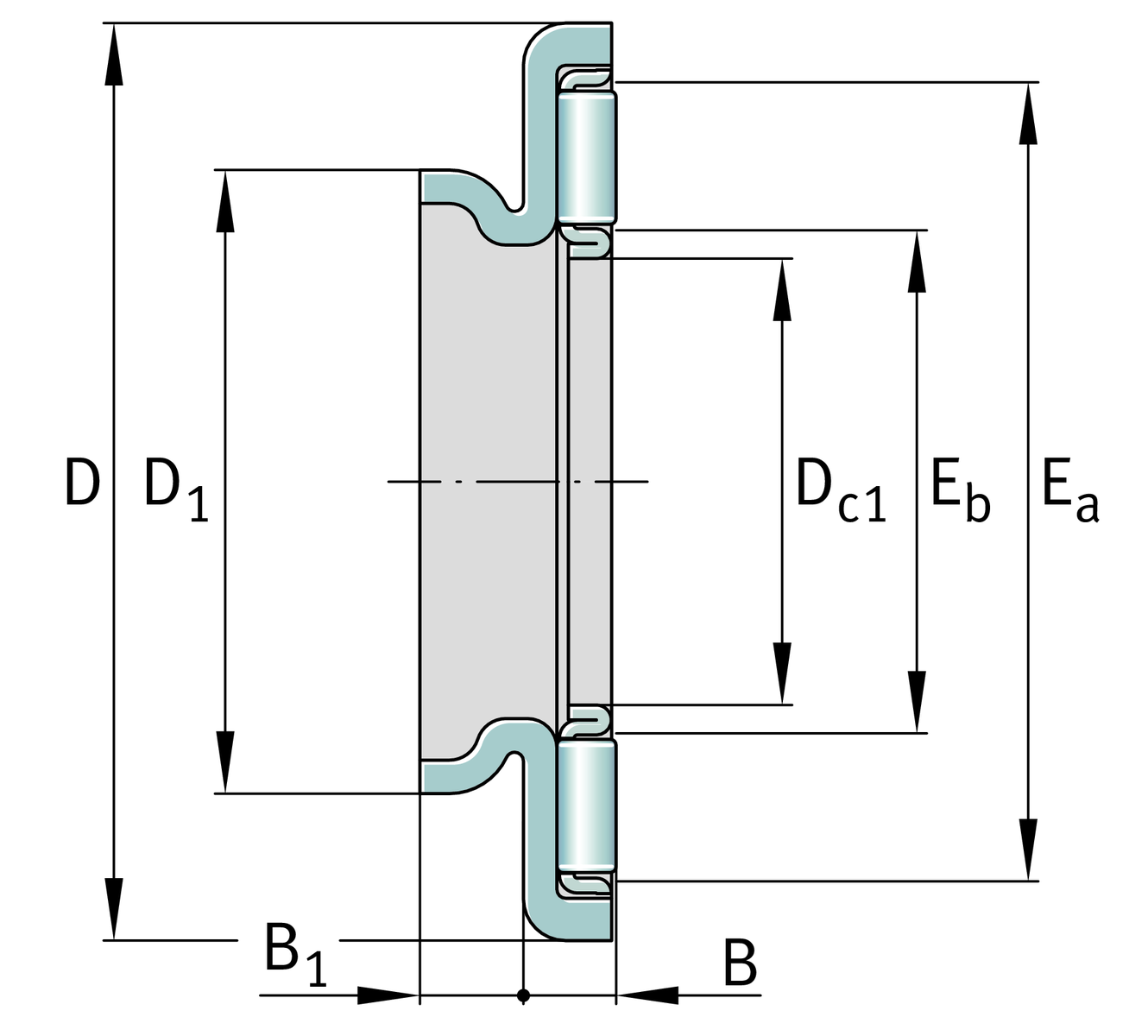

主要尺寸與性能資料
| Dc1 | 15 mm | 內徑 cage |
| D | 31 mm | 外徑 bearing washer |
| B | 3.2 mm | Height bearing |
| B1 | 3.5 mm | Height centering collar |
| D1 | 21 mm | 外徑 centering collar |
| Ea | 27 mm | Raceway dimension |
| Eb | 17 mm | Raceway dimension |
| C | 11,400 N | 基本額定動載荷，軸向 |
| C0a | 36,000 N | 基本額定靜態載荷，軸向 |
| cua | 3,650 N | 疲勞負荷極限，軸向 |
| nG | 13,400 1/min | 極限轉速 |
| n ϑr | 6,400 1/min | 參考轉速 |
| ≈m | 10.5 g | 重量 |
附加資訊
AS1528 | Axial bearing washer | |
HK1514-RS | Drawn cup needle roller bearings turned | |
HK1516 | Drawn cup needle roller bearings | |
HK1522-ZW | Drawn cup needle roller bearings | |
HK1512 | Drawn cup needle roller bearings for radial bearing arrangement | |
BK1512 | Needle bush | |
BK1516 | Needle bush |
