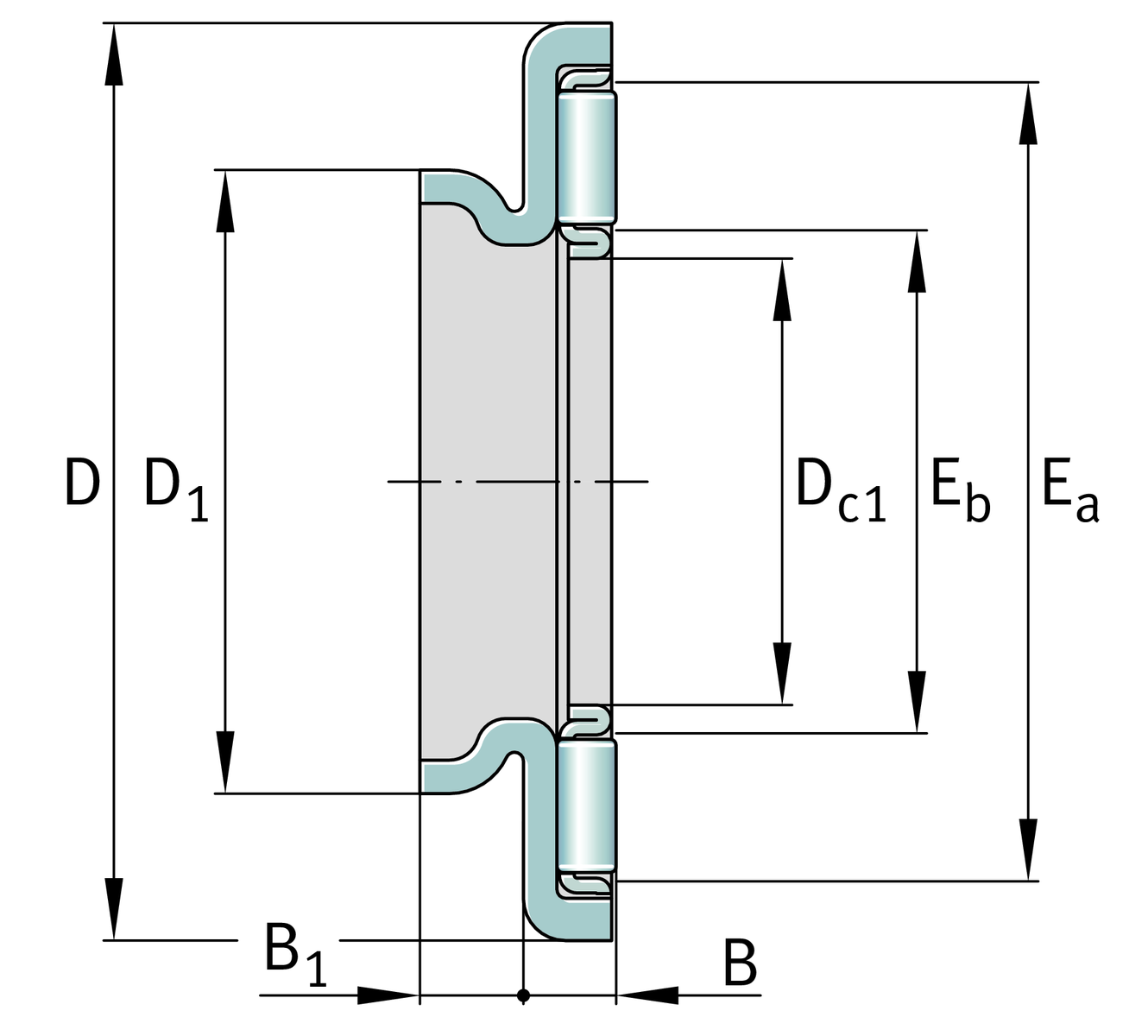

主要尺寸與性能資料
| Dc1 | 12 mm | 內徑 cage |
| D | 29 mm | 外徑 bearing washer |
| B | 3.2 mm | Height bearing |
| B1 | 3 mm | Height centering collar |
| D1 | 16 mm | 外徑 centering collar |
| Ea | 25 mm | Raceway dimension |
| Eb | 14 mm | Raceway dimension |
| C | 9,900 N | 基本額定動載荷，軸向 |
| C0a | 29,000 N | 基本額定靜態載荷，軸向 |
| cua | 2,950 N | 疲勞負荷極限，軸向 |
| nG | 15,200 1/min | 極限轉速 |
| n ϑr | 8,100 1/min | 參考轉速 |
| ≈m | 9.8 g | 重量 |
附加資訊
AS1226 | Axial bearing washer | |
HK1210 | Drawn cup needle roller bearings for radial bearing arrangement | |
BK1210 | Needle bush | |
NKI6/12-TV | Needle roller bearings with inner ring | |
NKI6/16-TV | Needle roller bearings with inner ring | |
NK9/12-TV | Needle roller bearings with out inner ring | |
NK9/16-TV | Needle roller bearings with out inner ring |
