INA
AB.LFR5301
Wiper AB.LFR5301
加入詢價

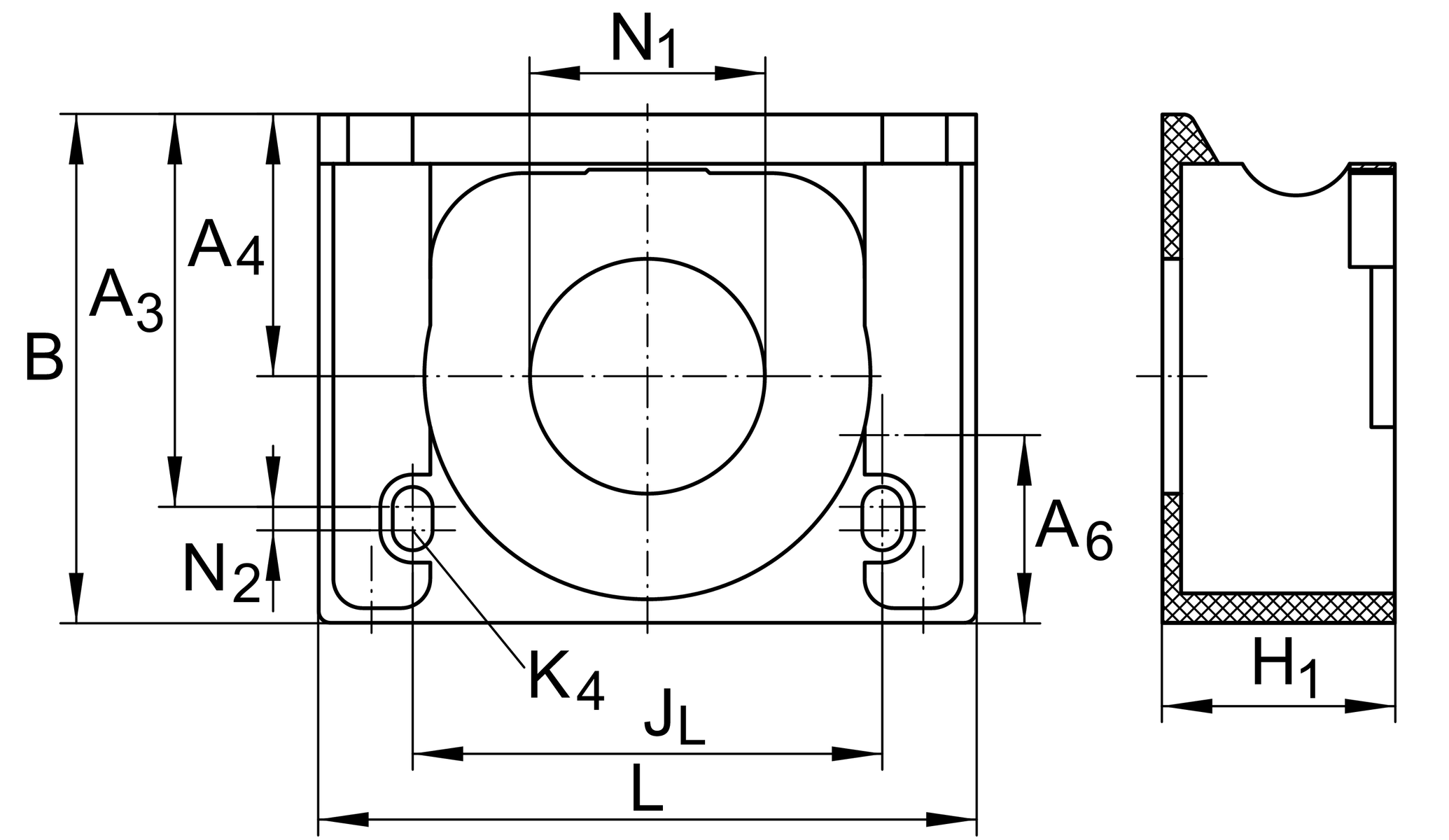

主要尺寸與性能資料
| A3 | 38.7 mm | |
| A4 | 26 mm | |
| A6 | 10.4 mm | |
| B | 50 mm | |
| H1 | 25 mm | |
| jL | 46 mm | |
| K4 | M3 | |
| L | 76 mm | |
| LTol | 0.1 | |
| LTol | -0.1 | |
| N1 | 20 mm | |
| N1 Tol | 0.1 | |
| N2 | 2 mm | |
| ≈m | 26 g | 重量 |
Related products
| LFCL86 | Compatible with the following carriage |
| LFR5301 | Compatible with the following track roller |
