INA
AB.LFR5201
Wiper AB.LFR5201
加入詢價

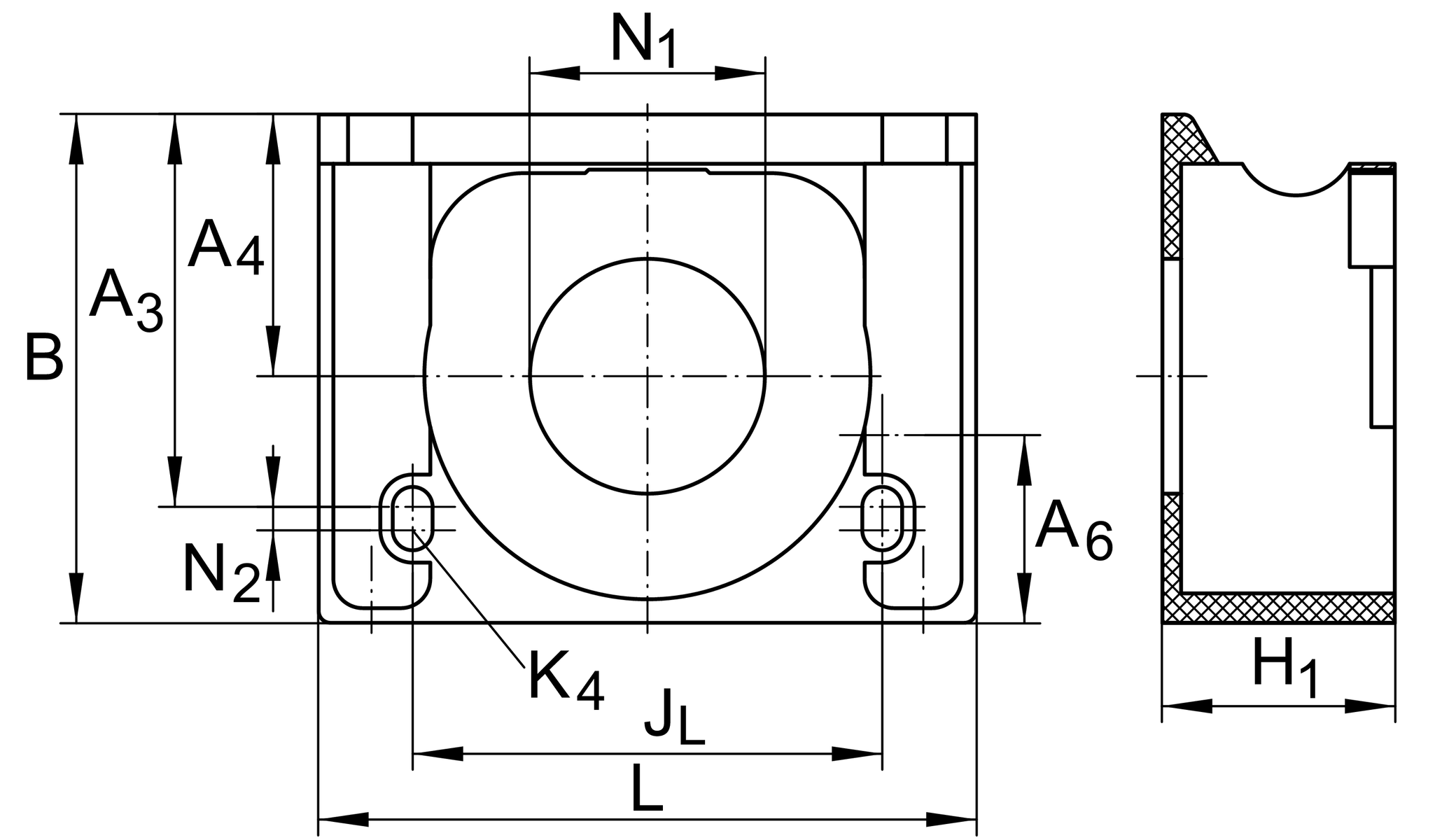

主要尺寸與性能資料
| A3 | 33.4 mm | |
| A4 | 22.3 mm | |
| A6 | 16 mm | |
| B | 43.3 mm | |
| H1 | 21.3 mm | |
| jL | 40 mm | |
| K4 | M3 | |
| L | 56 mm | |
| LTol | 0.1 | |
| LTol | -0.1 | |
| N1 | 20 mm | |
| N1 Tol | 0.1 | |
| N2 | 2 mm | |
| ≈m | 22 g | 重量 |
Related products
| LFCL42 | Compatible with the following carriage |
| LFR5201 | Compatible with the following track roller |
