INA
AB.LFR50/8
Wiper AB.LFR50/8
加入詢價

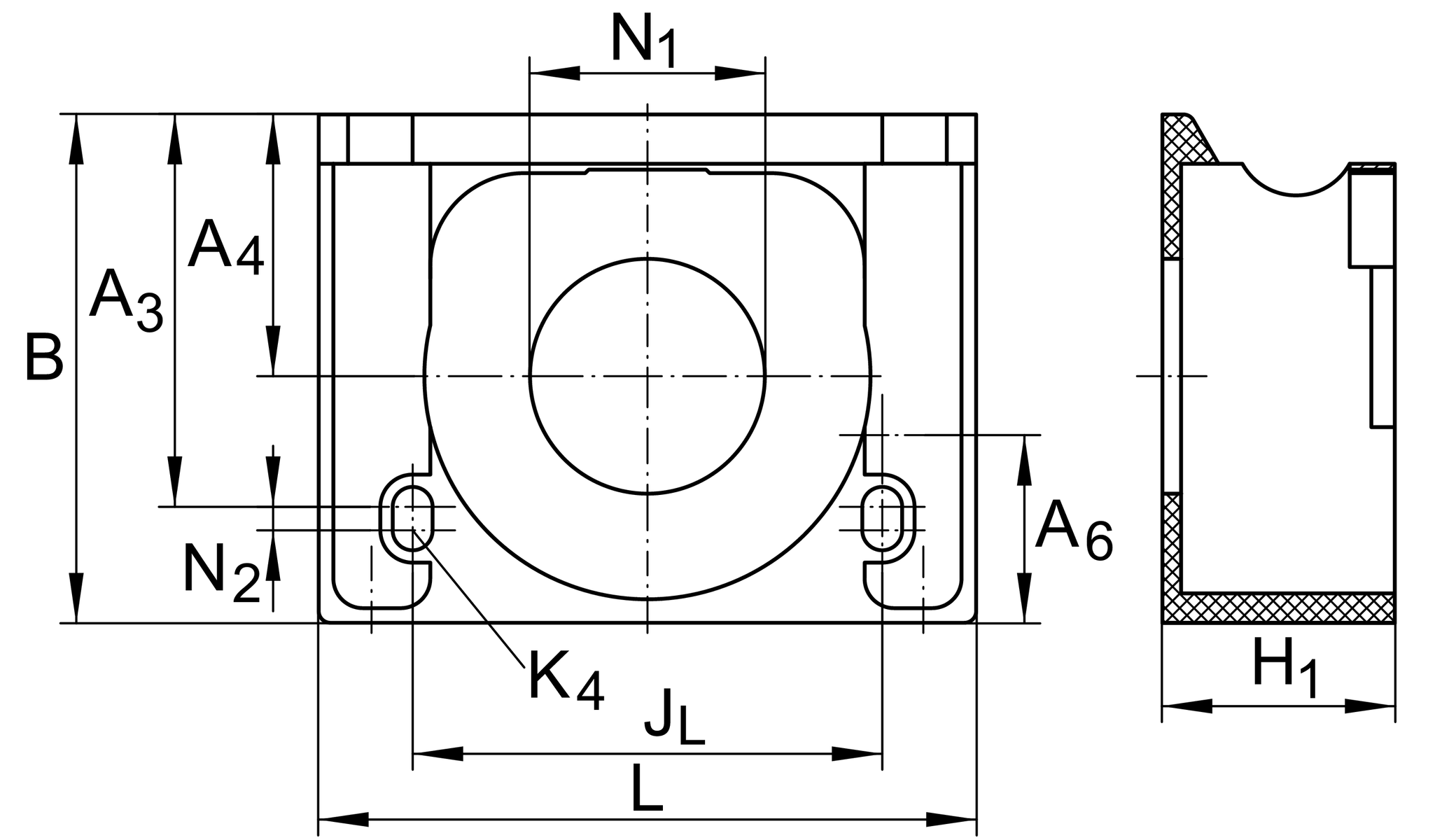

主要尺寸與性能資料
| A3 | 25.9 mm | |
| A4 | 15.6 mm | |
| A6 | 6.4 mm | |
| B | 31.6 mm | |
| H1 | 15 mm | |
| jL | 28.5 mm | |
| K4 | M3 | |
| L | 51 mm | |
| LTol | 0.1 | |
| LTol | -0.1 | |
| N1 | 15 mm | |
| N1 Tol | 0.1 | |
| N2 | 2 mm | |
| ≈m | 16 g | 重量 |
Related products
| LFCL25 | Compatible with the following carriage |
| LFR50/8 | Compatible with the following track roller |
