主要尺寸與性能資料
| Dmax | 35 mm | |
| ≈m | 51.19 g | 重量 |

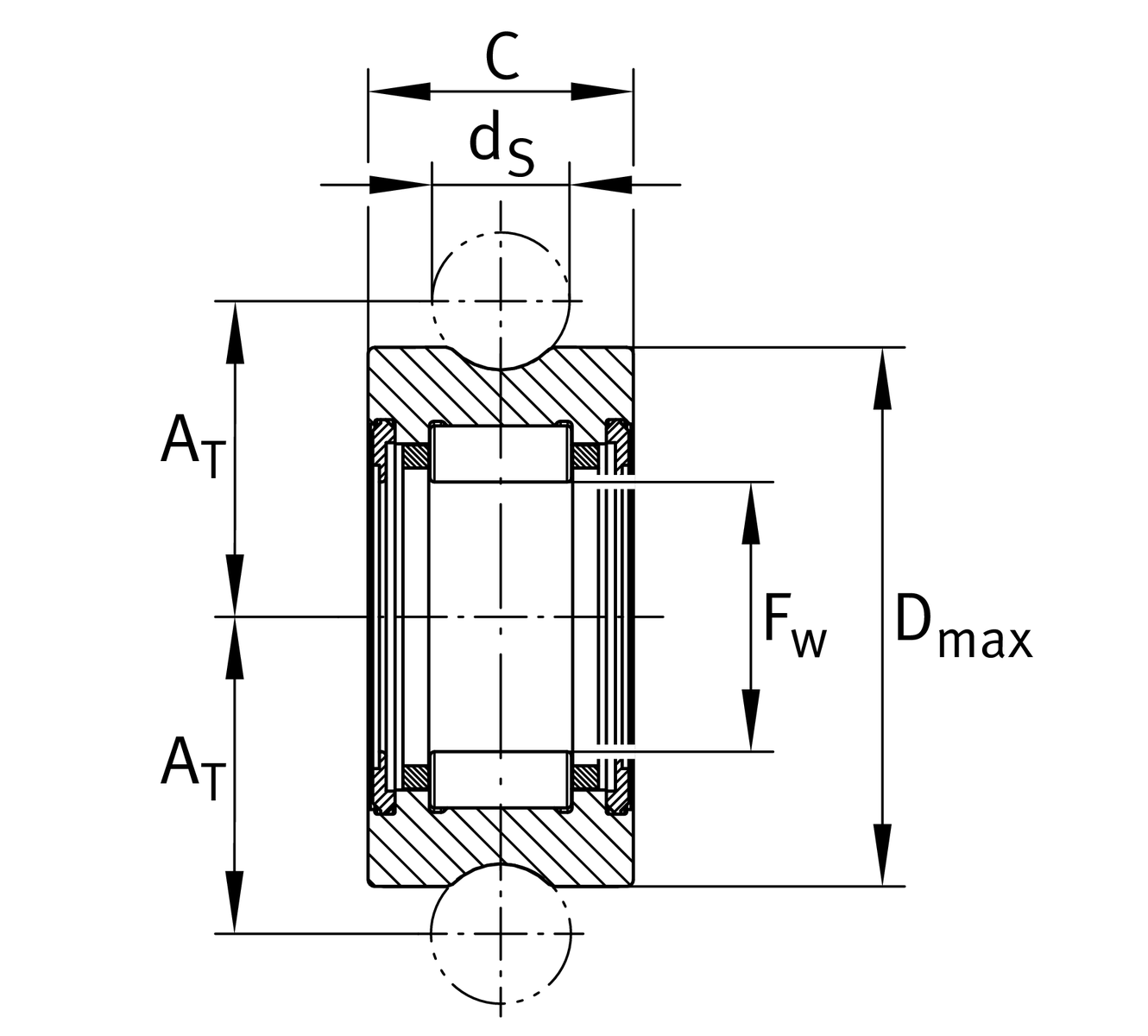

安裝尺寸
| AT | 20.63 mm | |
| FW | 20 mm | |
| C | 13.8 mm | |
| ds | 10 mm |
Main dimensions
| Cr w | 6,500 N | Effective dynamic load rating as track roller (radial) |
| C0r w | 9,300 N | Effective static load rating as track roller (radial) |
| Cur w | 1,310 N | Limit of fatigue load |
您目前的產品型號
| Size code | 2202 | |
| Seal | 2RSR | double-sided sliding seal |
| Code | RNA | 沒有 inner ring |
