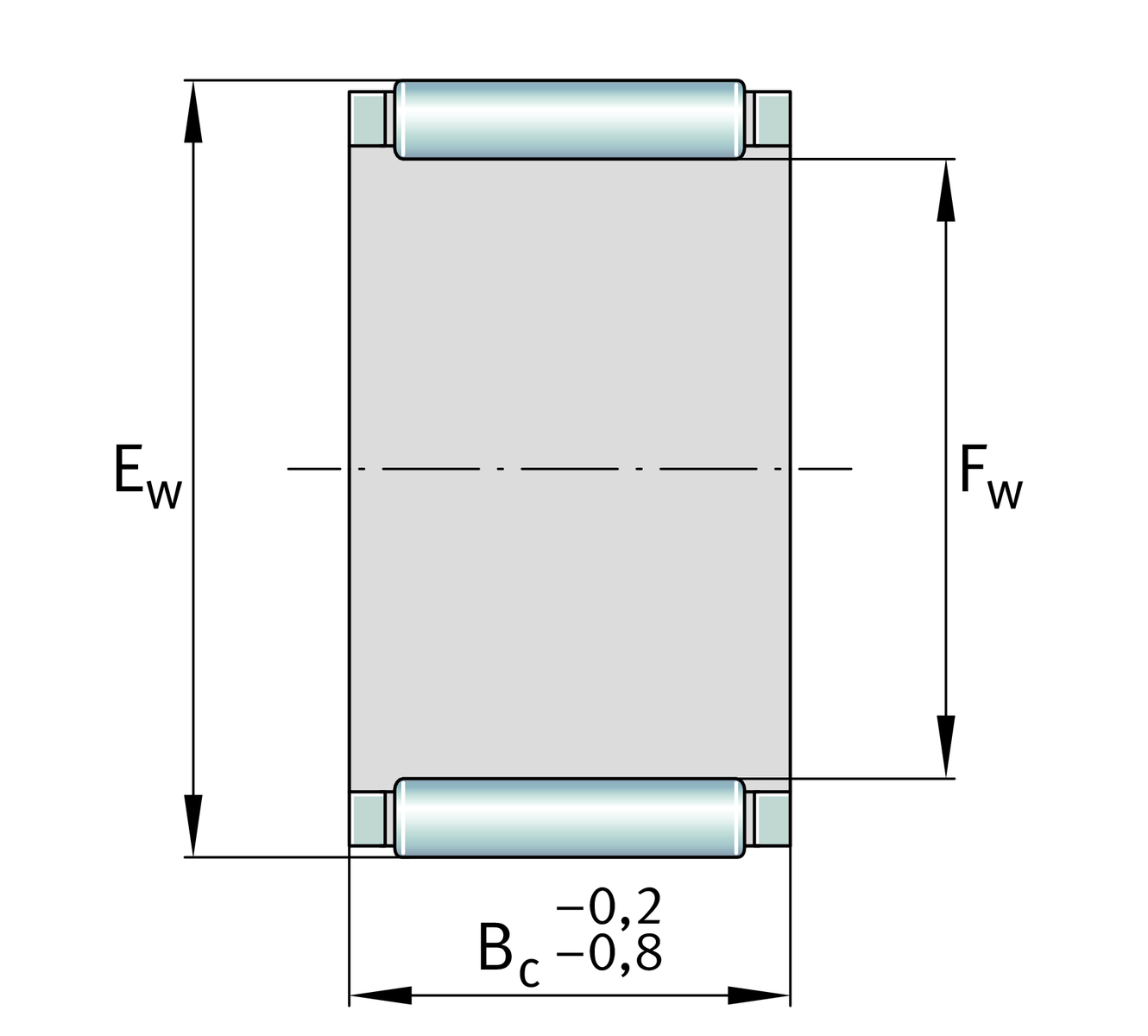

Main Dimensions & Performance Data
| Fw | 42 mm | Inner diameter of needle roller complement |
| Ew | 50 mm | Outside diameter of needle roller complement |
| Bc | 13 mm | Width |
| Cr | 22,500 N | Basic dynamic load rating, radial |
| C0r | 32,500 N | Basic static load rating, radial |
| Cur | 4,500 N | Fatigue load limit, radial |
| nG | 10,700 1/min | Limiting speed |
| nϑr | 6,300 1/min | Reference speed |
| ≈m | 34.04 g | Weight |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 140 °C | Operating temperature max. |
Your current product variant
| Cage | JN | steel sheet metal |
