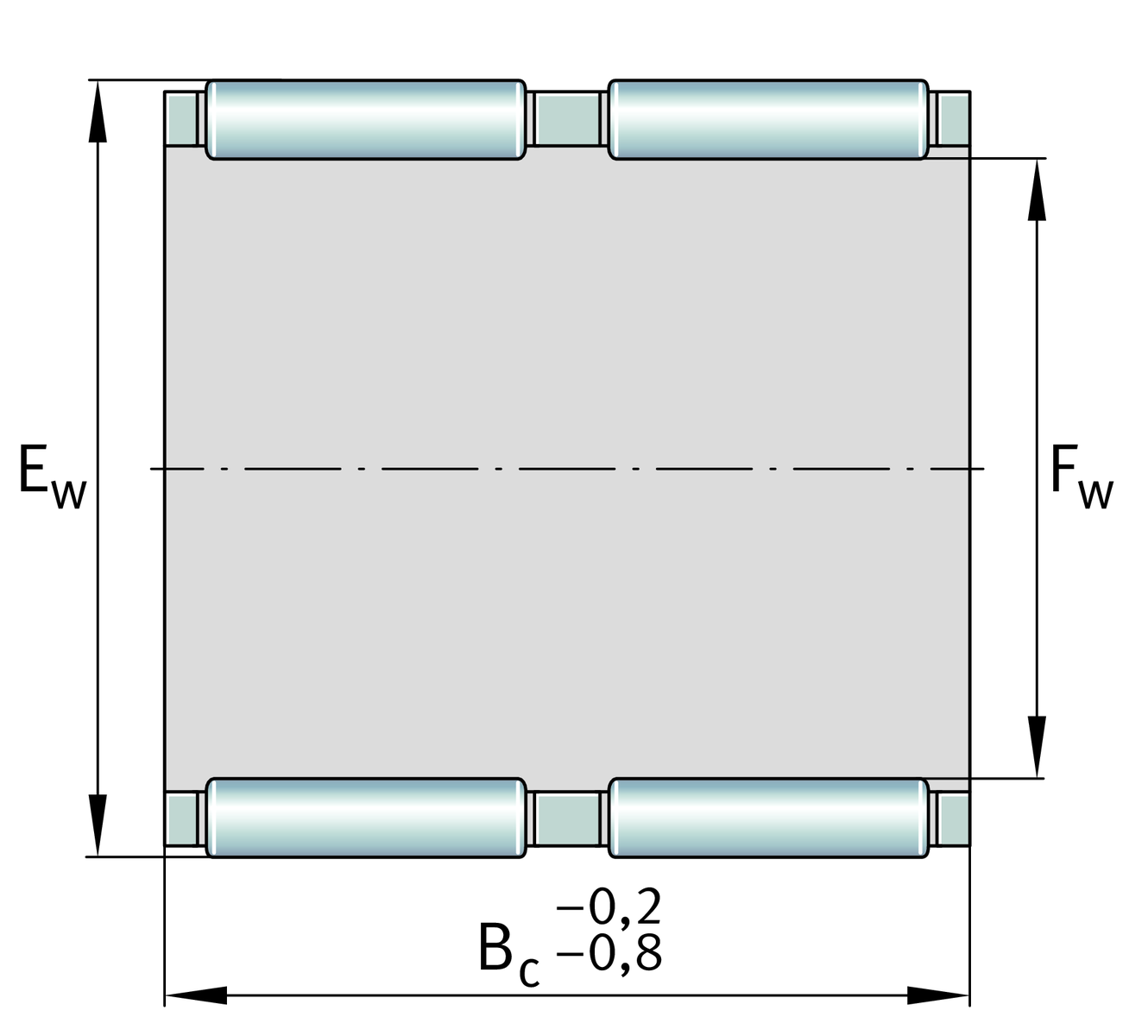

Main Dimensions & Performance Data
| Fw | 42 mm | Inner diameter of needle roller complement |
| Ew | 47 mm | Outside diameter of needle roller complement |
| Bc | 30 mm | Width |
| Cr | 33,500 N | Basic dynamic load rating, radial |
| C0r | 76,000 N | Basic static load rating, radial |
| Cur | 10,200 N | Fatigue load limit, radial |
| nG | 11,000 1/min | Limiting speed |
| nϑr | 6,400 1/min | Reference speed |
| ≈m | 54.6 g | Weight |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 140 °C | Operating temperature max. |
Your current product variant
| Cage | JN | Steel sheet metal |
| Number of rolling element rows | ZW | Double-row design |
