主要尺寸與性能資料
| H | 21 mm | height system |
| B | 68 mm | width carriage |
| L | 55.6 mm | overall length carriage |
| C | 7,200 N | dynamic load rating 1 |
| C0 | 14,500 N | static load rating 1 |

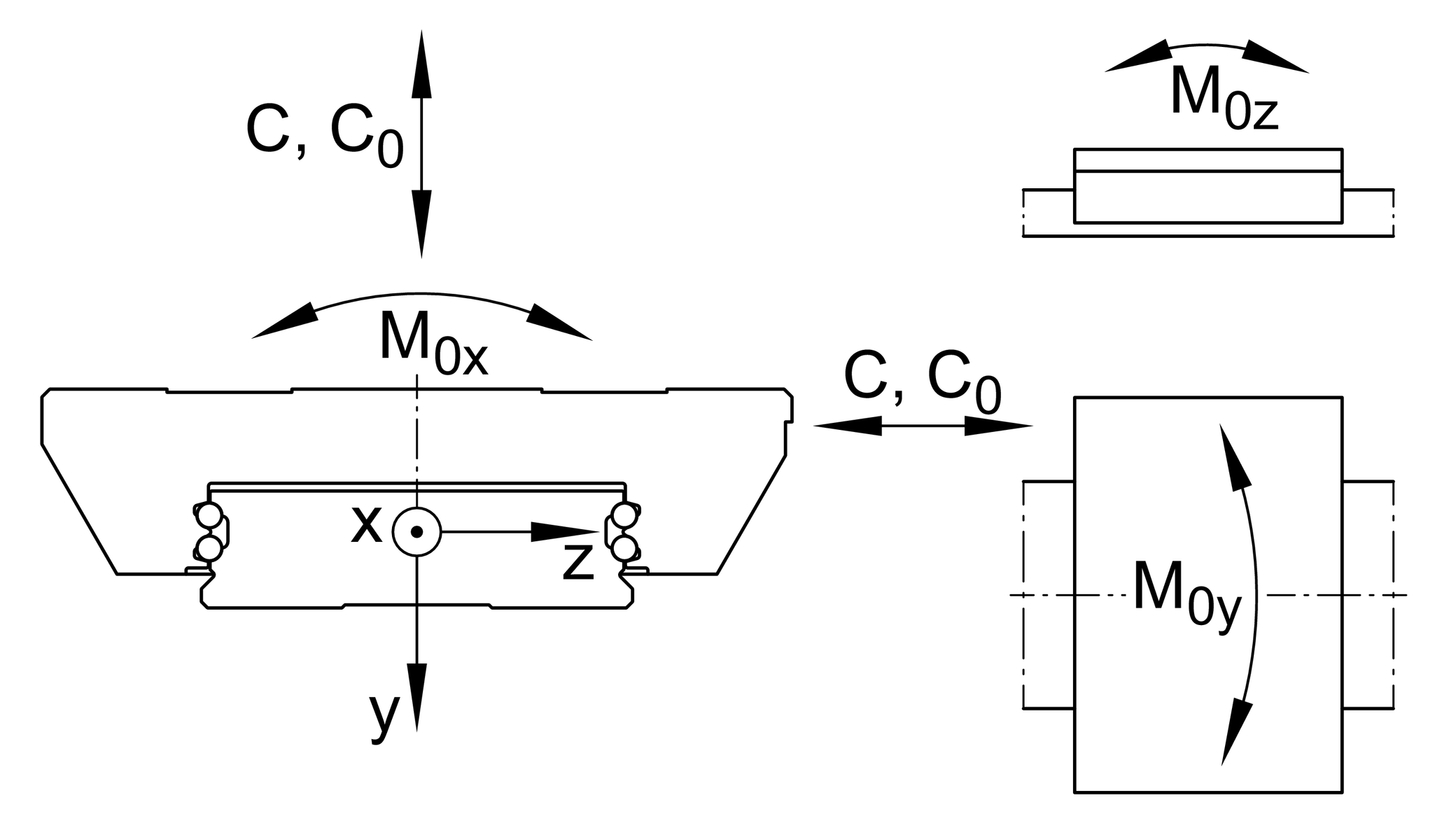

| M0x | 332 Nm | static moment rating about X axis |
| M0y | 100 Nm | static moment rating about Y axis |
| M0z | 100 Nm | static moment rating about Z axis |
| ≈m | 0.27 kg | 重量 |

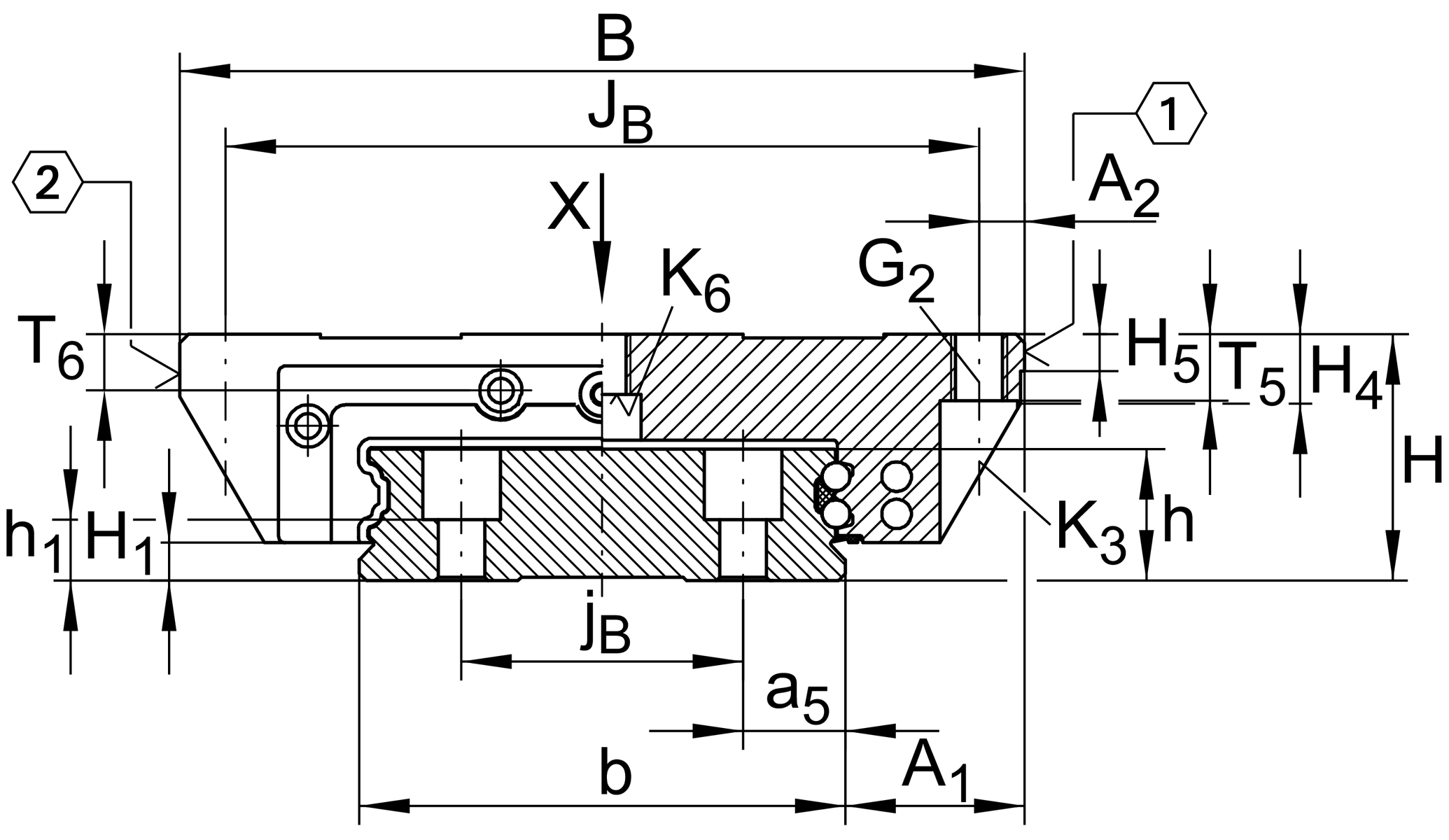

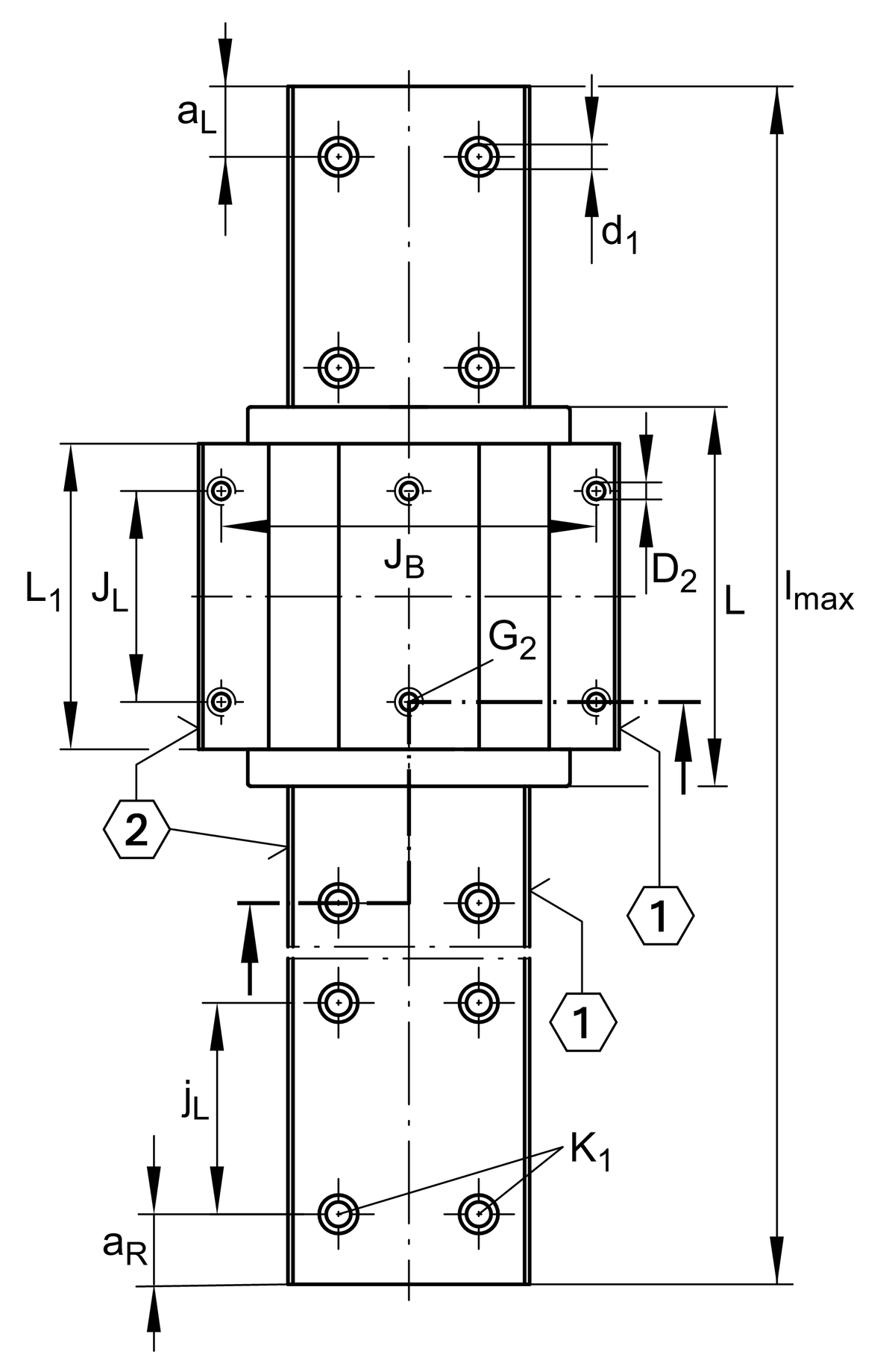

安裝尺寸
| A1 | 15.5 mm | |
| JB | 60 mm | |
| b | 37 mm | width rail |
| A2 | 4 mm | |
| L1 | 39.8 mm | |
| JL | 29 mm | |
| H1 | 2.1 mm | |
| H4 | 7.7 mm | |
| H5 | 4.5 mm | |
| T5 | 7 mm | |
| T6 | 4.8 mm | |
| G2 | M5 | fixing screws above (DIN ISO 4762-12.9) |
| G2 MA | 5.8 Nm | maximum tightening torque 2 |
| K3 | M4 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 5 Nm | maximum tightening torque 2 |
| K6 | M4 | fixing screws below (DIN 7984-8.8) |
| K6 MA | 2 Nm | maximum tightening torque 2 |
| D2 | 4.5 mm | |

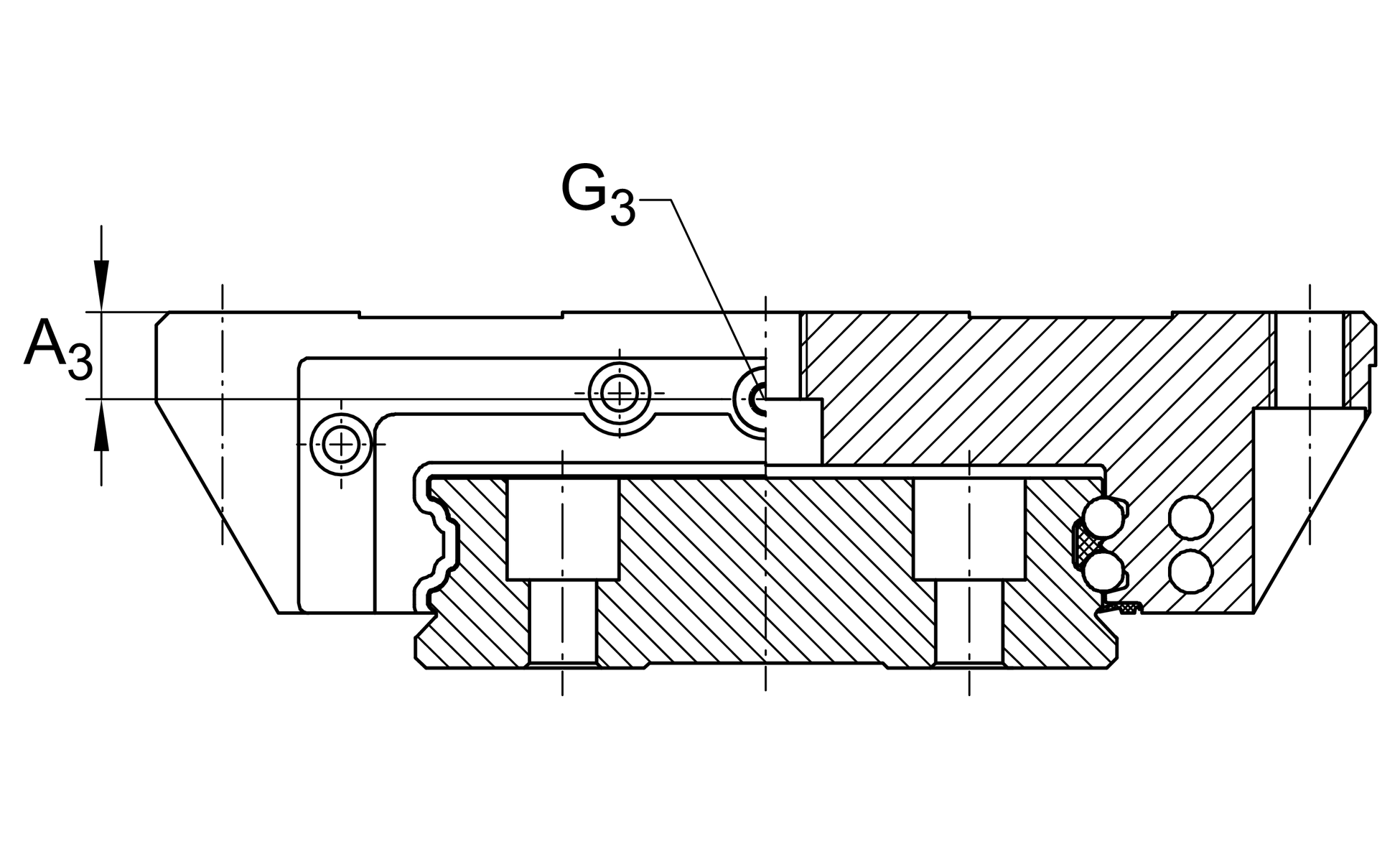

| A3 | 3.6 mm | position lubrication connector |

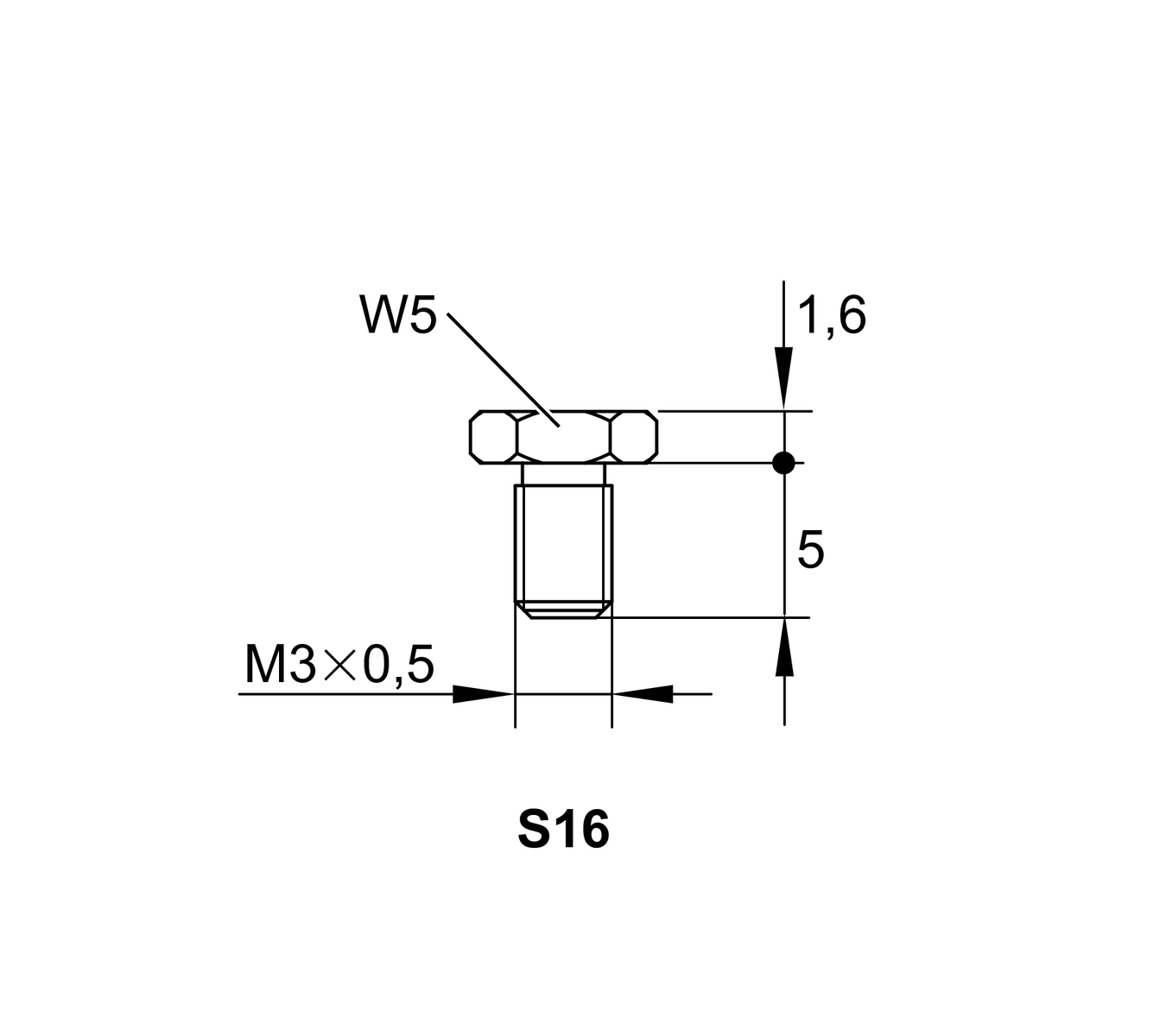

| G3 | M3 | lubrication connector |
| t G3 | 4 mm | maximum permissible screw depth for lubrication connectors |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 15 | |
| Version | Version | |
| Carriage design | W | Wide carriage and wide guideway |
