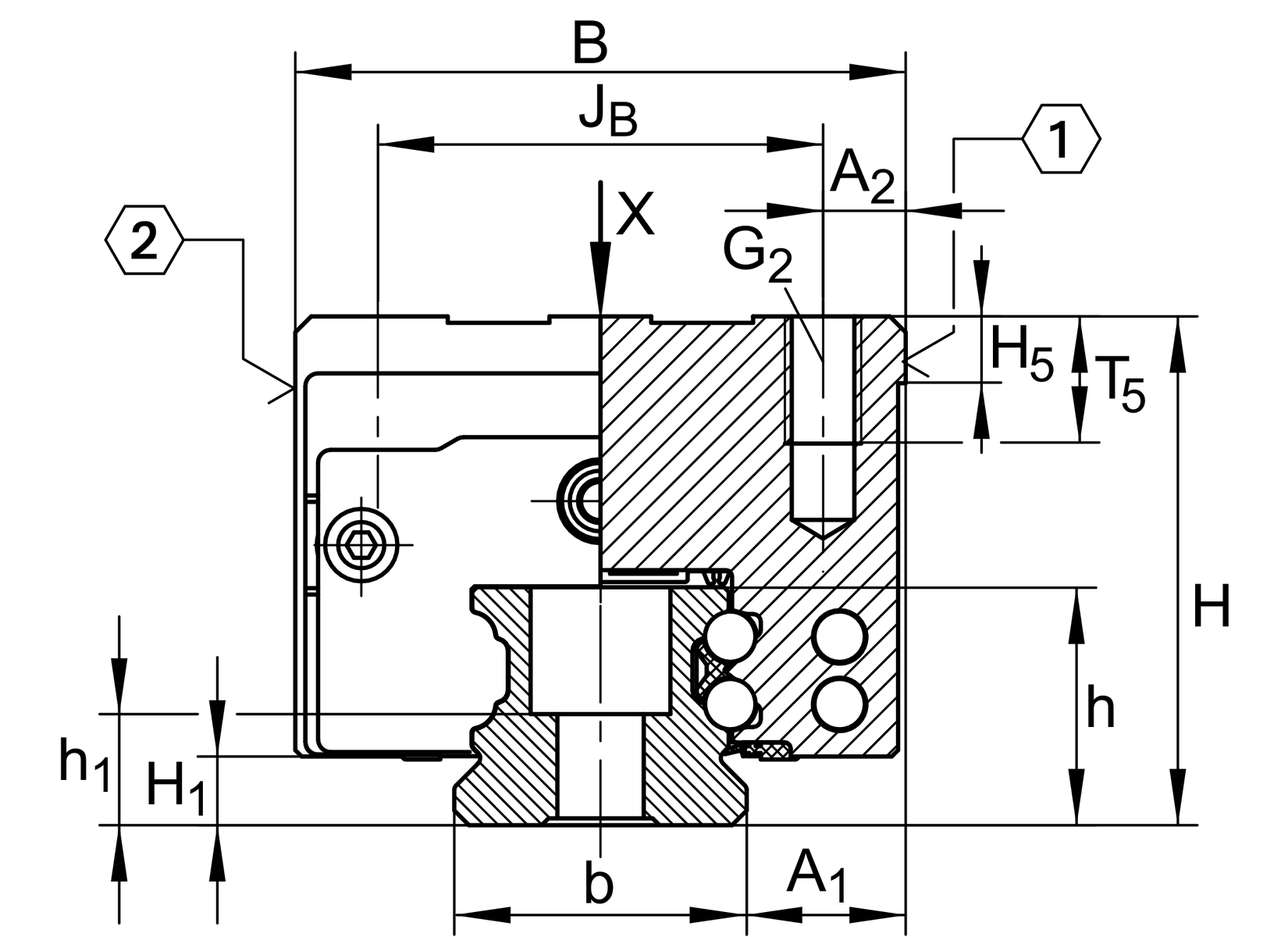

主要尺寸與性能資料
| H | 24 mm | height system |
| B | 34 mm | width carriage |
| L | 61.2 mm | overall length carriage |
| C | 7,200 N | dynamic load rating 1 |
| C0 | 14,500 N | static load rating 1 |
| M0x | 150 Nm | static moment rating about X axis |
| M0y | 100 Nm | static moment rating about Y axis |
| M0z | 100 Nm | static moment rating about Z axis |
| ≈m | 0.16 kg | 重量 |

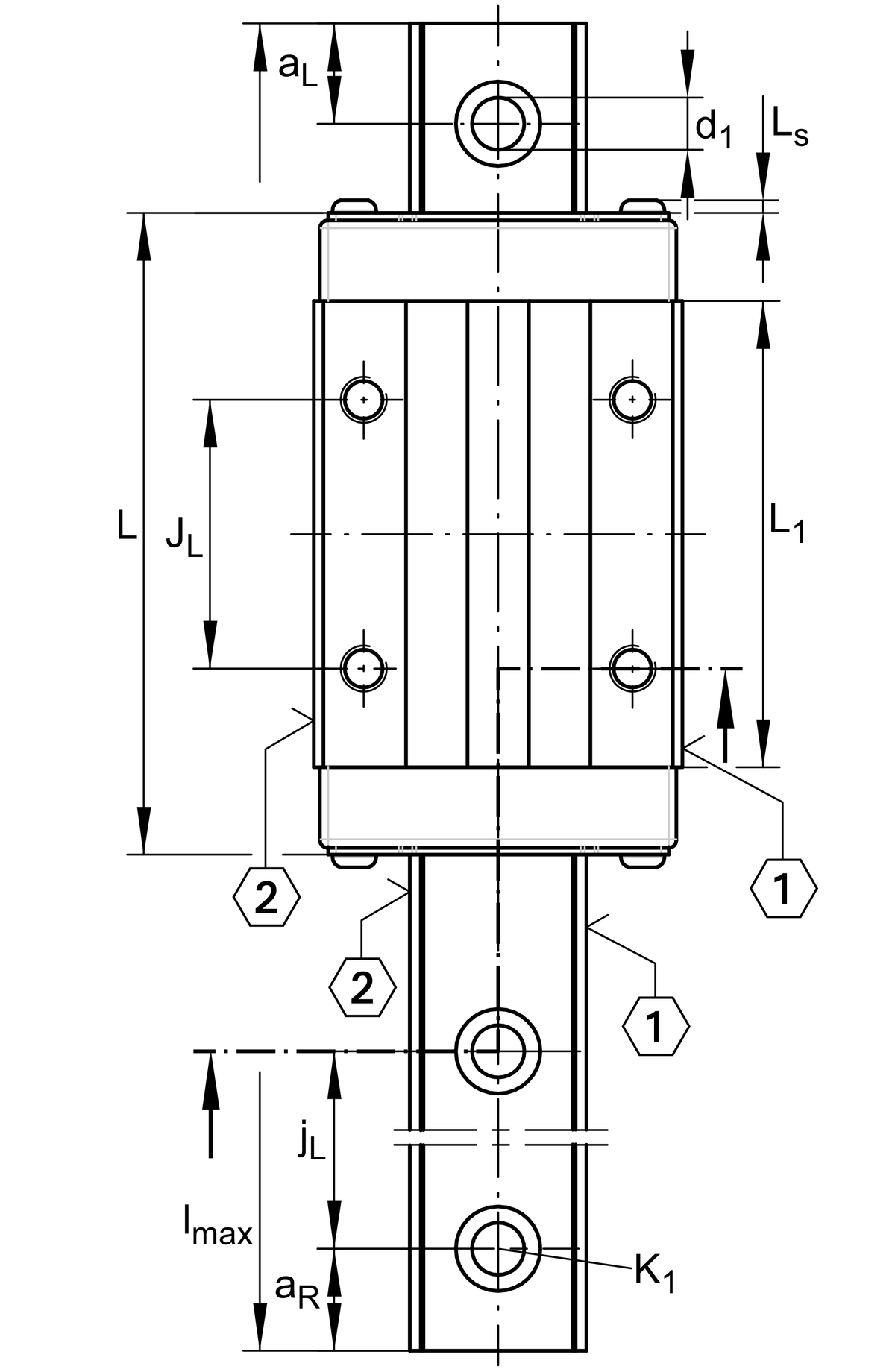

安裝尺寸
| A1 | 9.5 mm | |
| JB | 26 mm | |
| b | 15 mm | width rail |
| A2 | 4 mm | |
| L1 | 39.8 mm | |
| LS | 1.3 mm | |
| JL | 26 mm | |
| H1 | 4.3 mm | |
| H5 | 4.75 mm | |
| T5 | 6 mm | |
| G2 | M4 | fixing screws above (DIN ISO 4762-12.9) |
| G2 MA | 5 Nm | maximum tightening torque 2 |

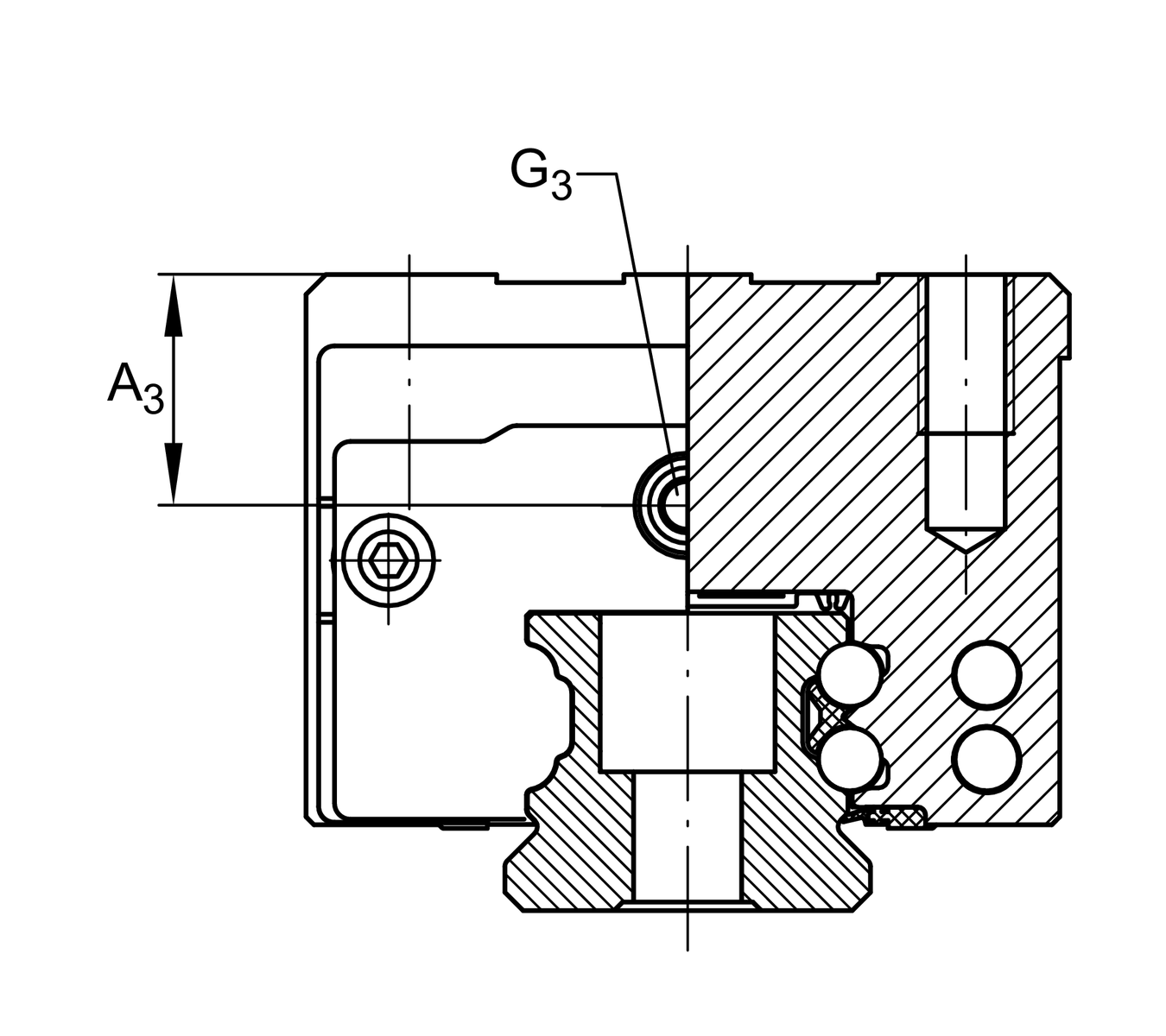

| A3 | 4.3 mm | position lubrication connector |
| G3 | M3 | lubrication connector |
| t G3 | 5.5 mm | maximum permissible screw depth for lubrication connectors |

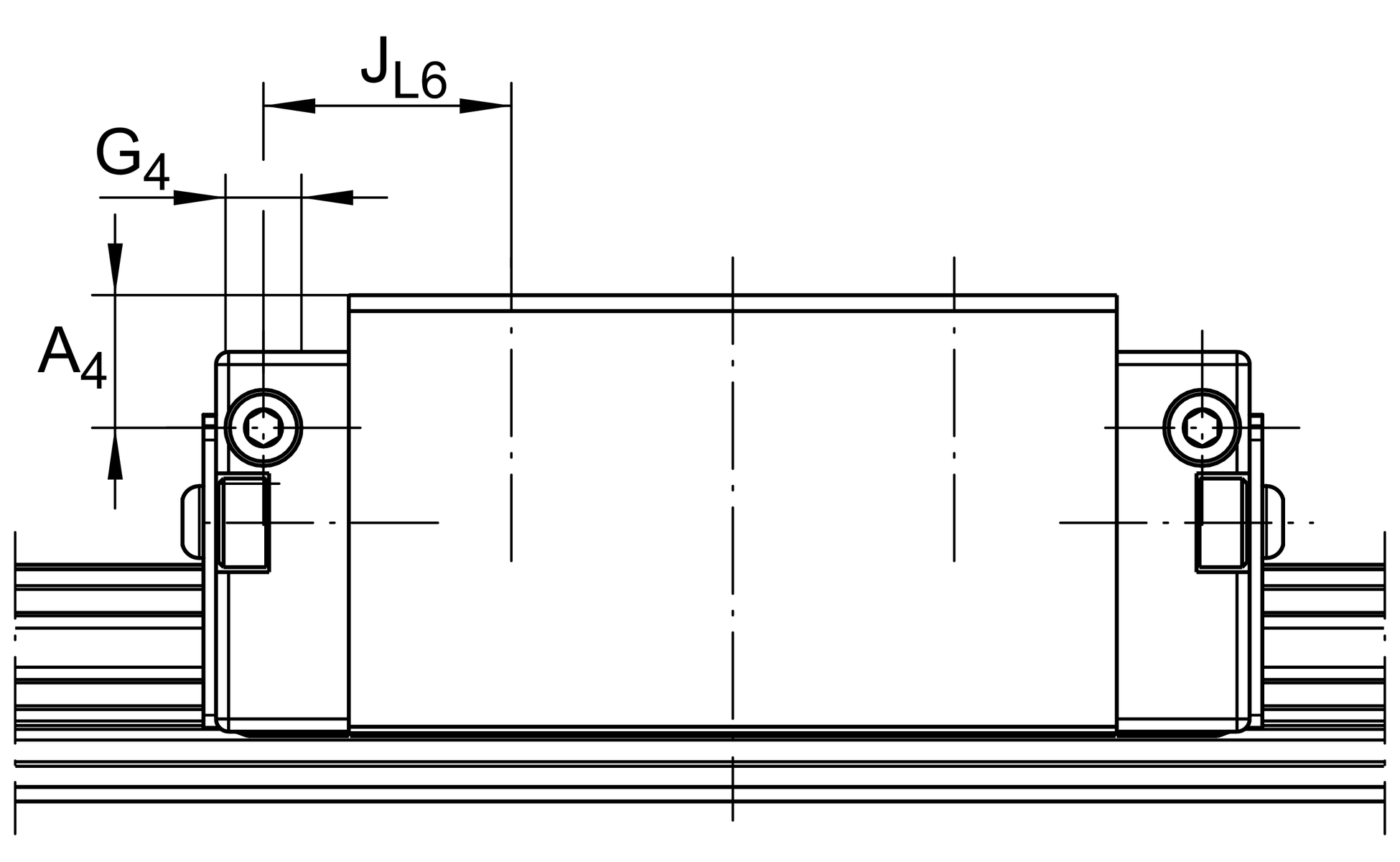

| A4 | 3.2 mm | position lubrication connector |

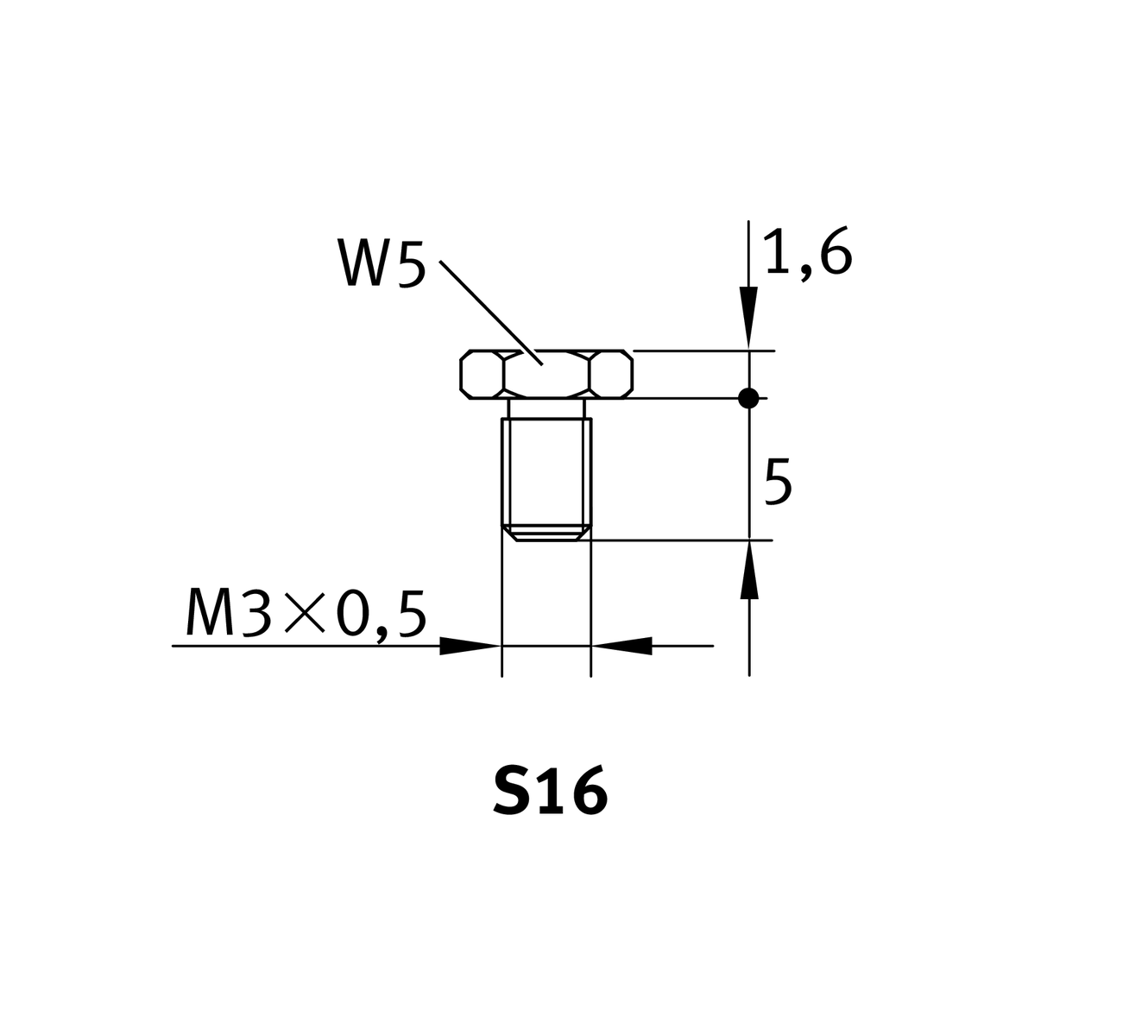

| G4 | M3 | lubrication connector |
| t G4 | 5.5 mm | maximum permissible screw depth for lubrication connectors |
| JL6 | 11.1 mm | position lubrication connector |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 15 | |
| Version | B | |
| Carriage design | S | Narrow Carriage |
