主要尺寸與性能資料

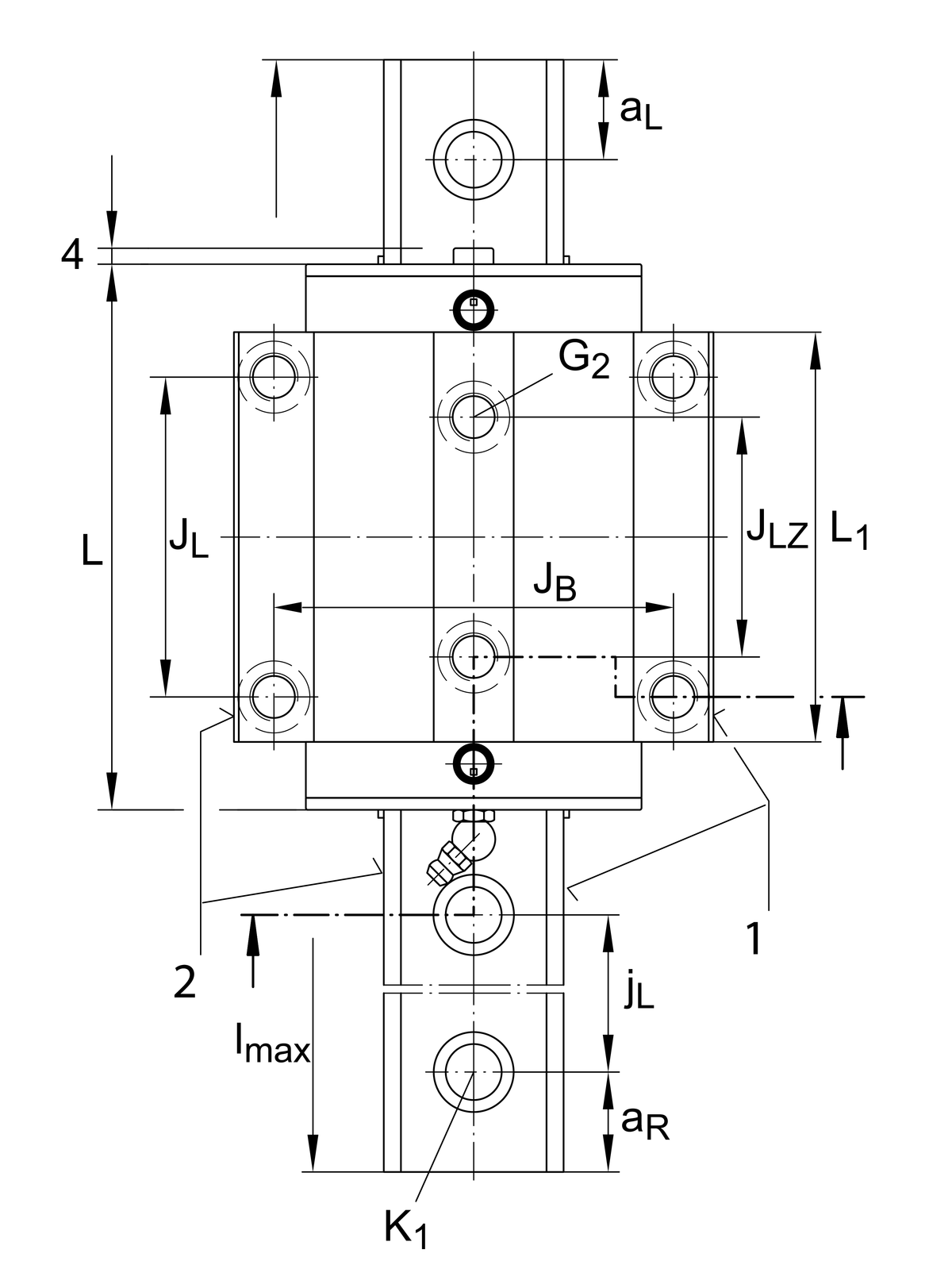

| H | 60 mm | height system |
| B | 120 mm | width carriage |
| L | 138.7 mm | overall length carriage |
| I C | 80,000 N | dynamic load rating, load direction I: compressive load |
| I C0 | 174,000 N | static load rating, load direction I: compressive load |
| II C | 72,300 N | dynamic load rating, load direction II: tensile load |
| II C0 | 117,400 N | static load rating, load direction II: tensile load |
| III C | 76,900 N | dynamic load rating; 基本額定動載重, Load direction III: lateral load |
| III C0 | 121,800 N | static load rating, Load direction III: lateral load |
| ≈m | 3.15 kg | 重量 |
安裝尺寸

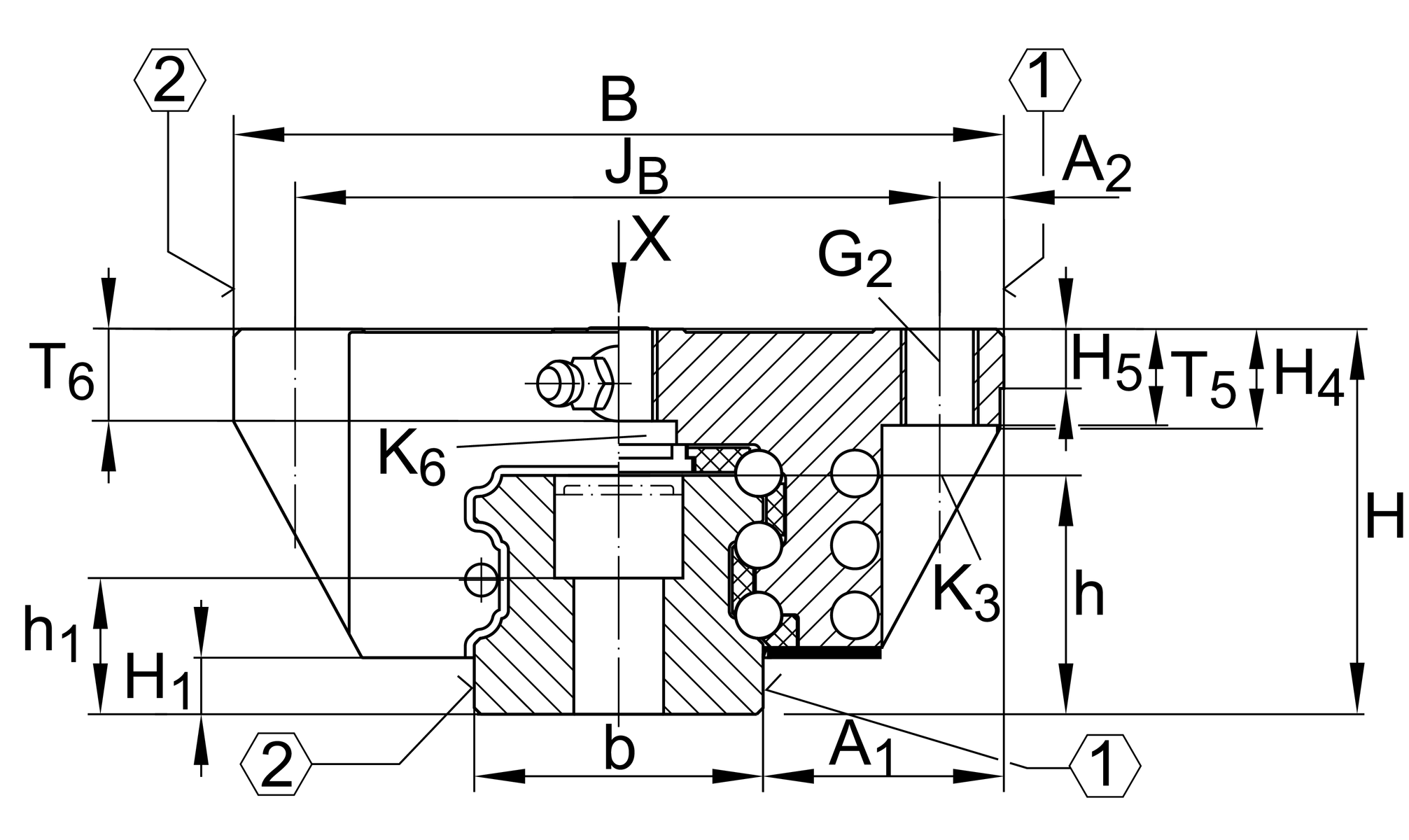

| A1 | 37.5 mm | |
| JB | 100 mm | |
| b | 45 mm | width rail |
| A2 | 10 mm | |
| L1 | 103.1 mm | |
| JL | 80 mm | |
| JLZ | 60 mm | |
| H1 | 8.6 mm | |
| H4 | 17.7 mm | |
| H5 | 9 mm | |
| T5 | 15 mm | |
| T6 | 15 mm | |
| G2 | M12 | fixing screws below (DIN ISO 4762-12.9) |
| G2 MA | 83 Nm | maximum tightening torque |
| K3 | M10 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 83 Nm | maximum tightening torque |
| K6 | M10 | fixing screws below (DIN ISO 4762-12.9) |
| K6 MA | 48 Nm | maximum tightening torque |
| D2 | 10.6 mm | |
| N2 | 6 mm | max. diameter of lubrication hole in adjacent construction |

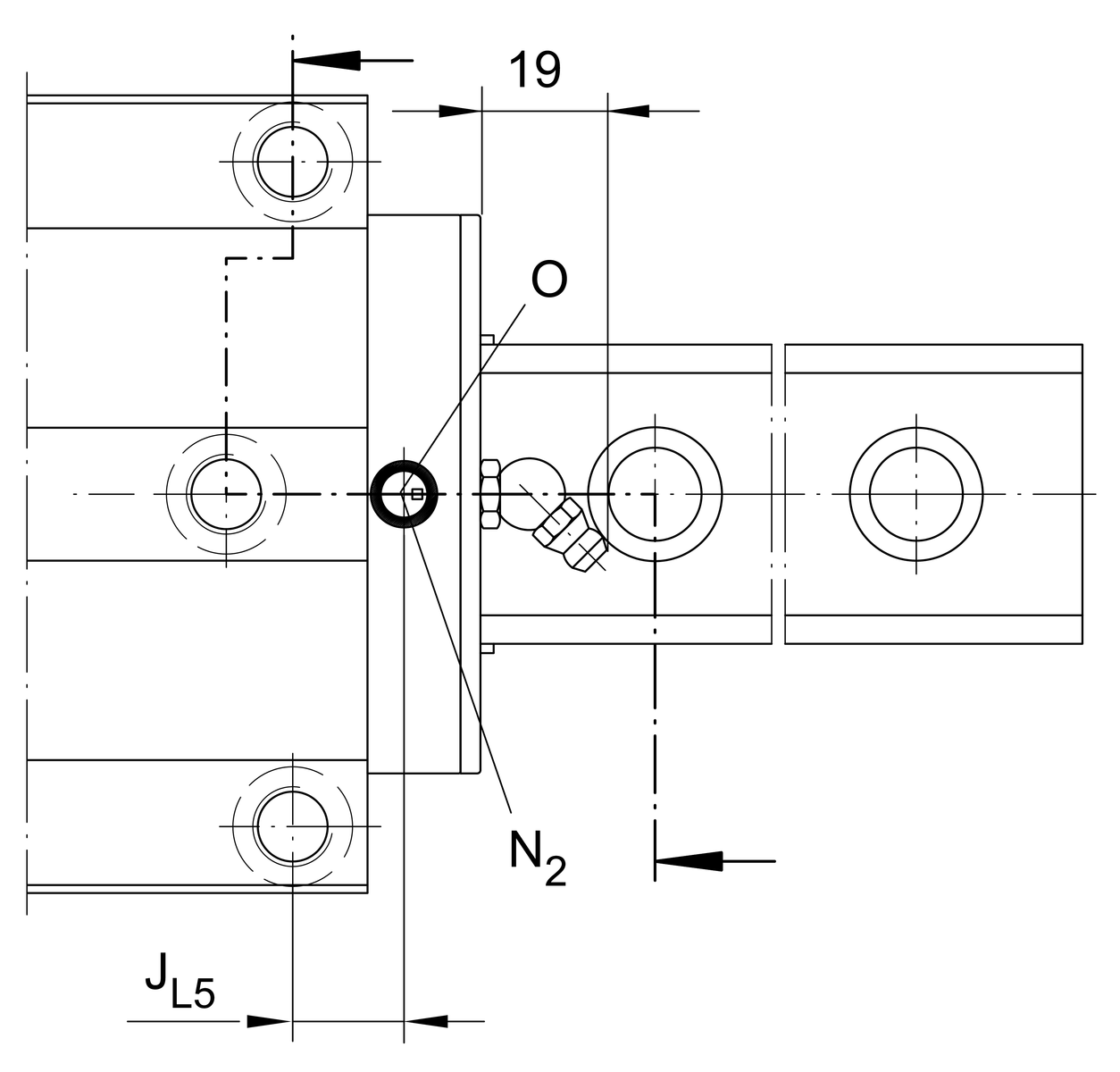

| JL5 | 15.65 mm | position lubrication connector |

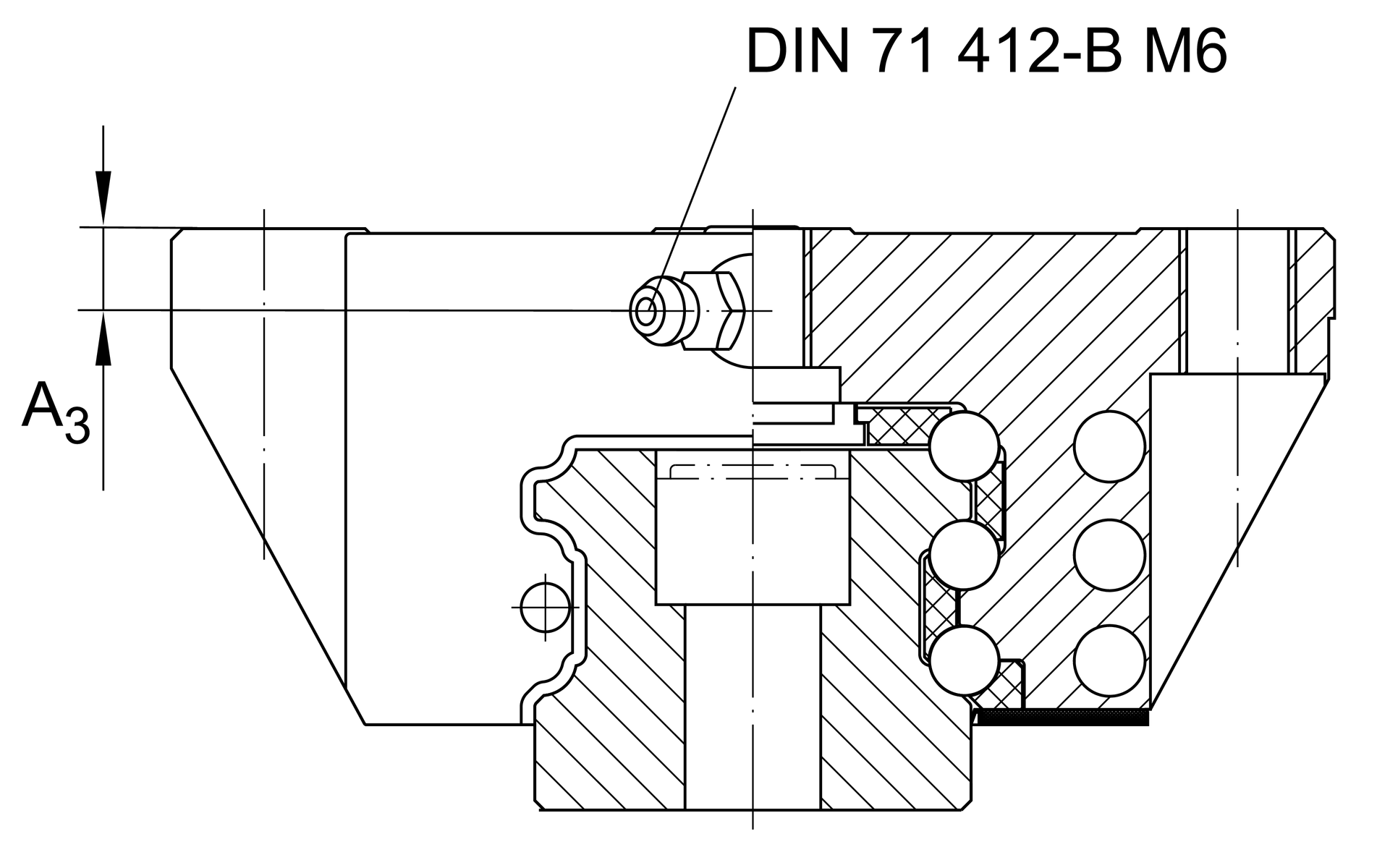

| A3 | 8.5 mm | position lubrication connector |
| t A3 | 7 mm | maximum permissible screw depth for lubrication connectors |
| O | 7x1,5 | O-Ring DIN 3771 |

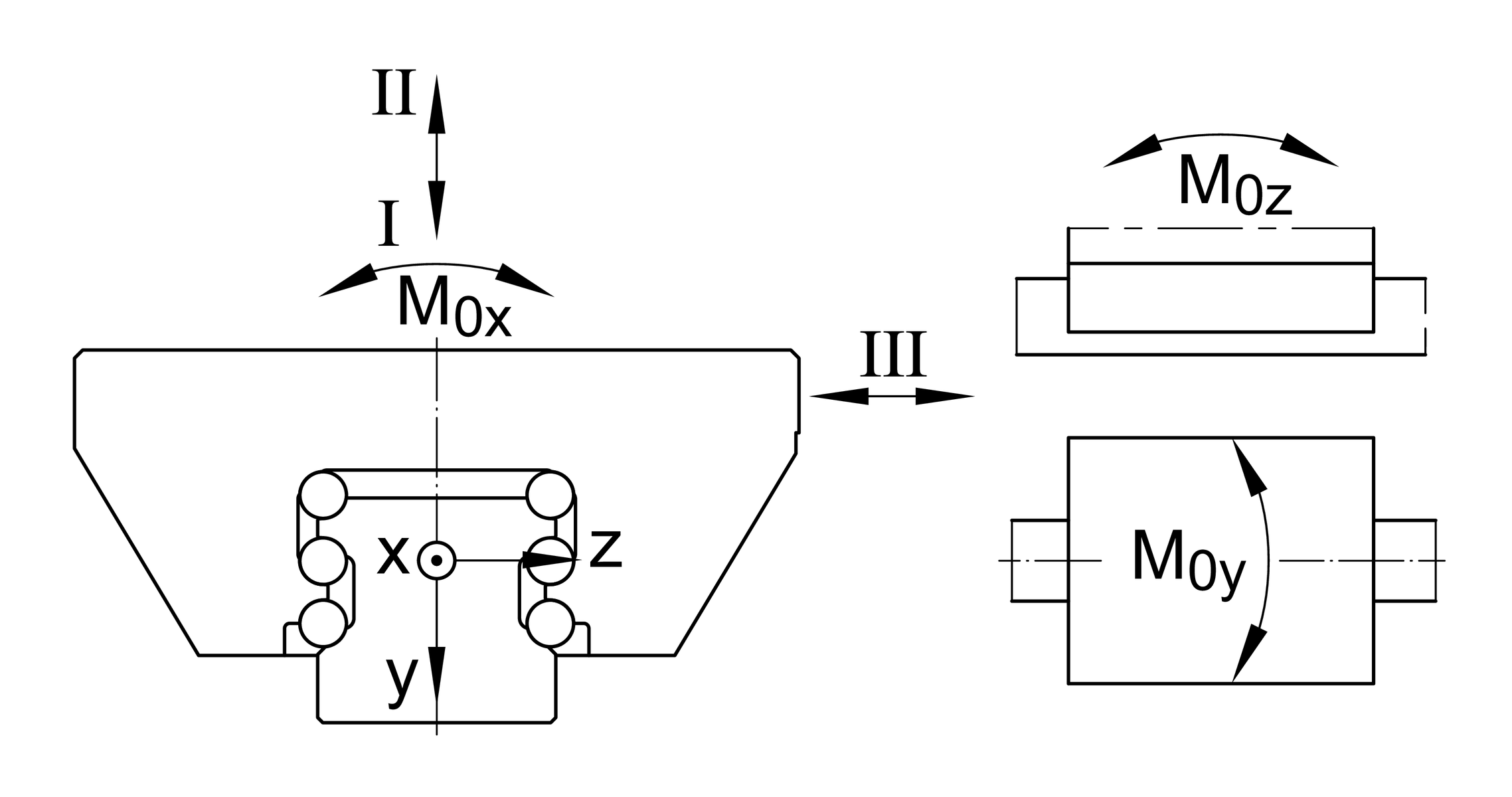

| M0X | 4,500 Nm | Moment |
| M0Y | 2,280 Nm | Moment |
| M0Z | 2,050 Nm | Moment |
附加資訊
| VMKB_065 | KWSE | Material name |
您目前的產品型號
| Size code | 45 |
