主要尺寸與性能資料
| H | 48 mm | height system |
| B | 100 mm | width carriage |
| L | 138.9 mm | overall length carriage |

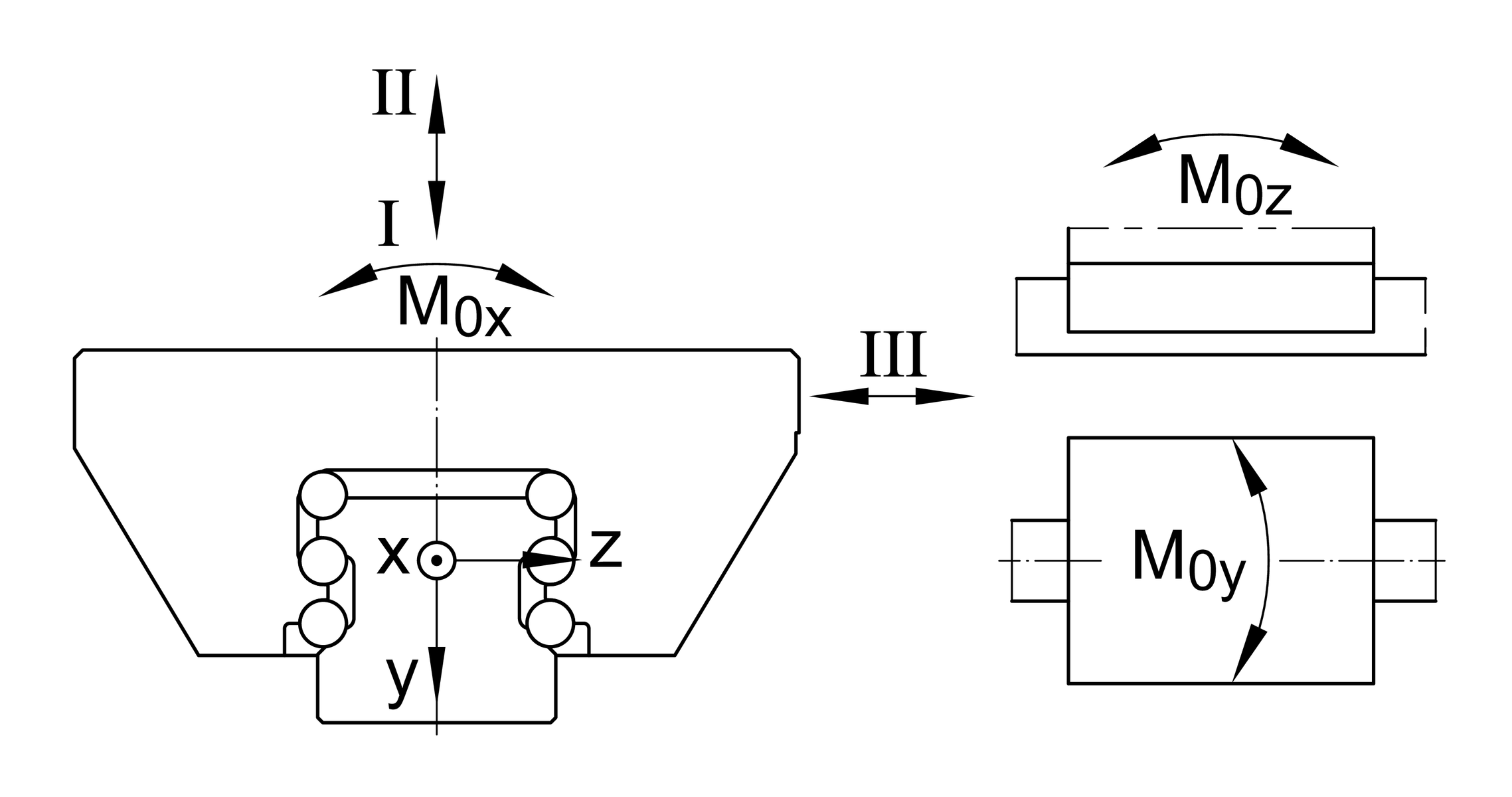

| I C | 70,000 N | dynamic load rating, load direction I: compressive load |
| I C0 | 145,000 N | static load rating, load direction I: compressive load |
| II C | 67,500 N | dynamic load rating, load direction II: tensile load |
| II C0 | 119,000 N | static load rating, load direction II: tensile load |
| III C | 71,000 N | dynamic load rating; 基本額定動載重, Load direction III: lateral load |
| III C0 | 125,000 N | static load rating, Load direction III: lateral load |
| ≈m | 2.1 kg | 重量 |

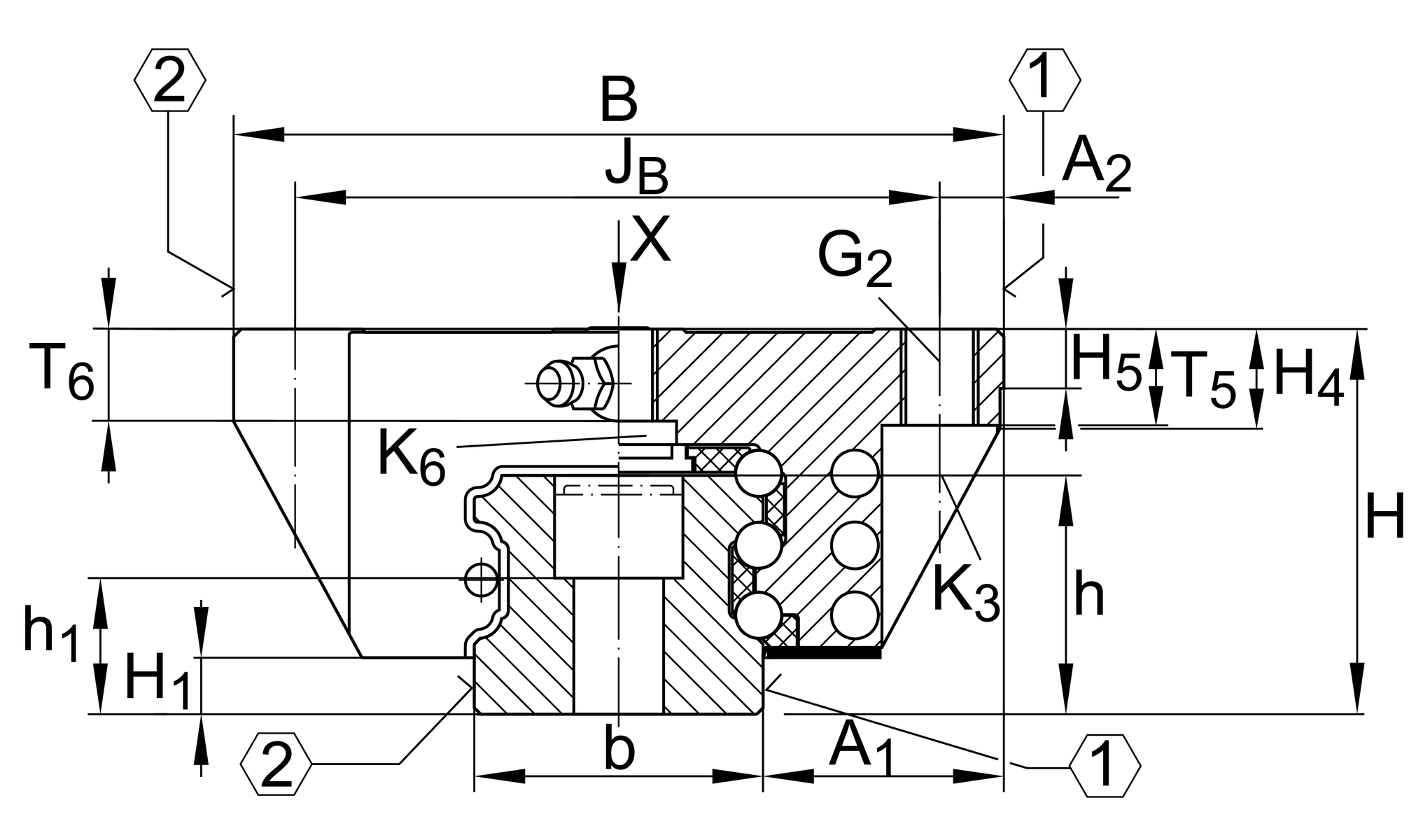

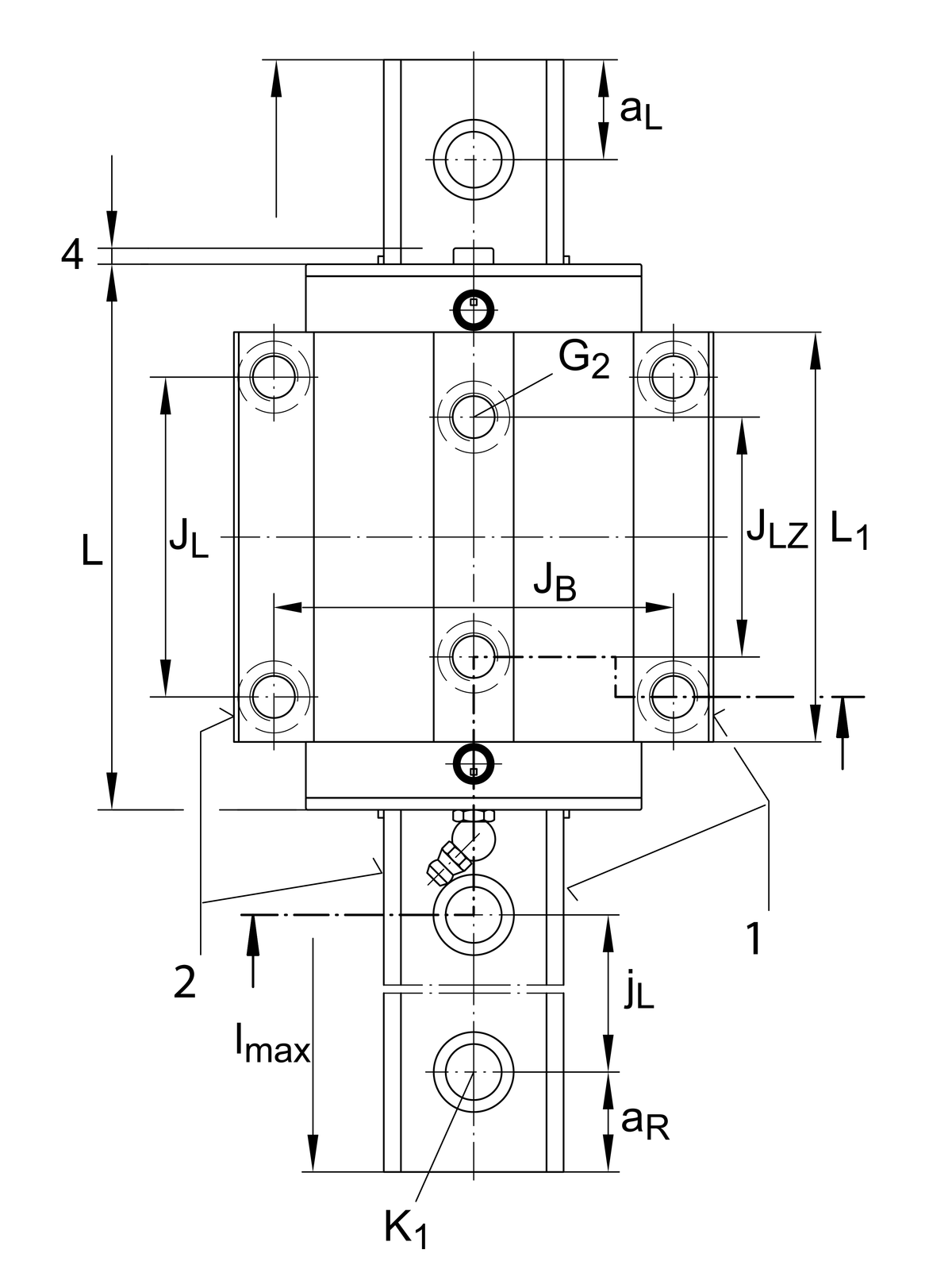

安裝尺寸
| A1 | 33 mm | |
| JB | 82 mm | |
| b | 34 mm | width rail |
| A2 | 9 mm | |
| L1 | 109.9 mm | |
| JL | 62 mm | |
| JLZ | 52 mm | |
| H1 | 6.6 mm | |
| H4 | 13.3 mm | |
| H5 | 6.5 mm | |
| T5 | 13 mm | |
| T6 | 12 mm | |
| G2 | M10 | fixing screws below (DIN ISO 4762-12.9) |
| G2 MA | 41 Nm | maximum tightening torque |
| K3 | M8 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 41 Nm | maximum tightening torque |
| K6 | M8 | fixing screws below (DIN ISO 4762-12.9) |
| K6 MA | 24 Nm | maximum tightening torque |
| D2 | 8.6 mm | |
| N2 | 4.5 mm | max. diameter of lubrication hole in adjacent construction |

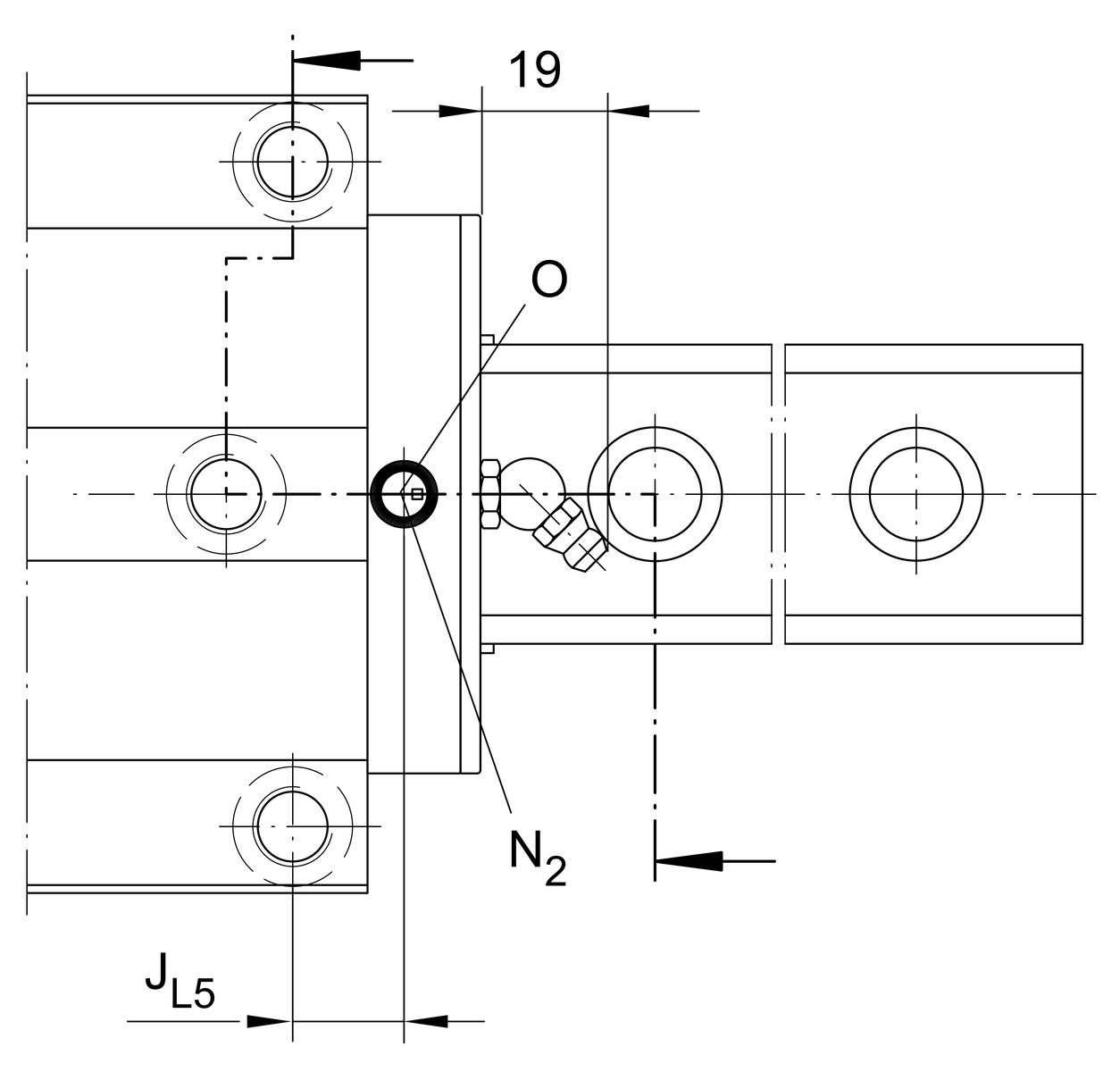

| JL5 | 27.75 mm | position lubrication connector |

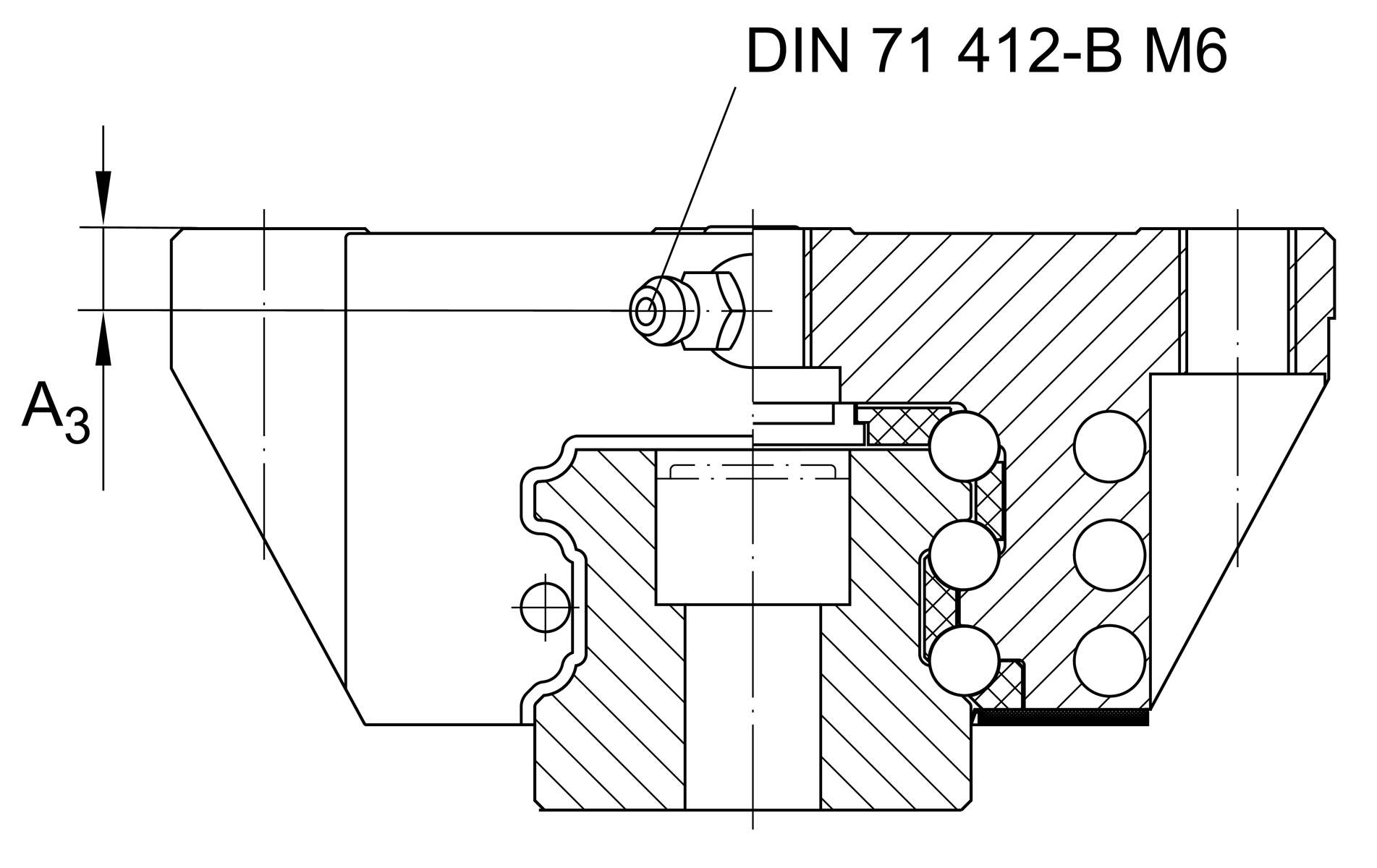

| A3 | 7.2 mm | position lubrication connector |
| t A3 | 7 mm | maximum permissible screw depth for lubrication connectors |
| O | 4,5x1,5 | O-Ring DIN 3771 |
| M0X | 3,300 Nm | Moment |
| M0Y | 2,480 Nm | Moment |
| M0Z | 2,190 Nm | Moment |
附加資訊
| VMKB_065 | KWSE | Material name |
您目前的產品型號
| Size code | 35 | |
| Carriage design | L | Long carriage |
