主要尺寸與性能資料
| H | 36 mm | height system |
| B | 70 mm | width carriage |
| L | 81.8 mm | overall length carriage |
| I C | 28,000 N | dynamic load rating, load direction I: compressive load |
| I C0 | 67,000 N | static load rating, load direction I: compressive load |
| II C | 26,000 N | dynamic load rating, load direction II: tensile load |
| II C0 | 45,000 N | static load rating, load direction II: tensile load |
| III C | 28,000 N | dynamic load rating; 基本額定動載重, Load direction III: lateral load |
| III C0 | 47,000 N | static load rating, Load direction III: lateral load |
| ≈m | 0.6 kg | 重量 |

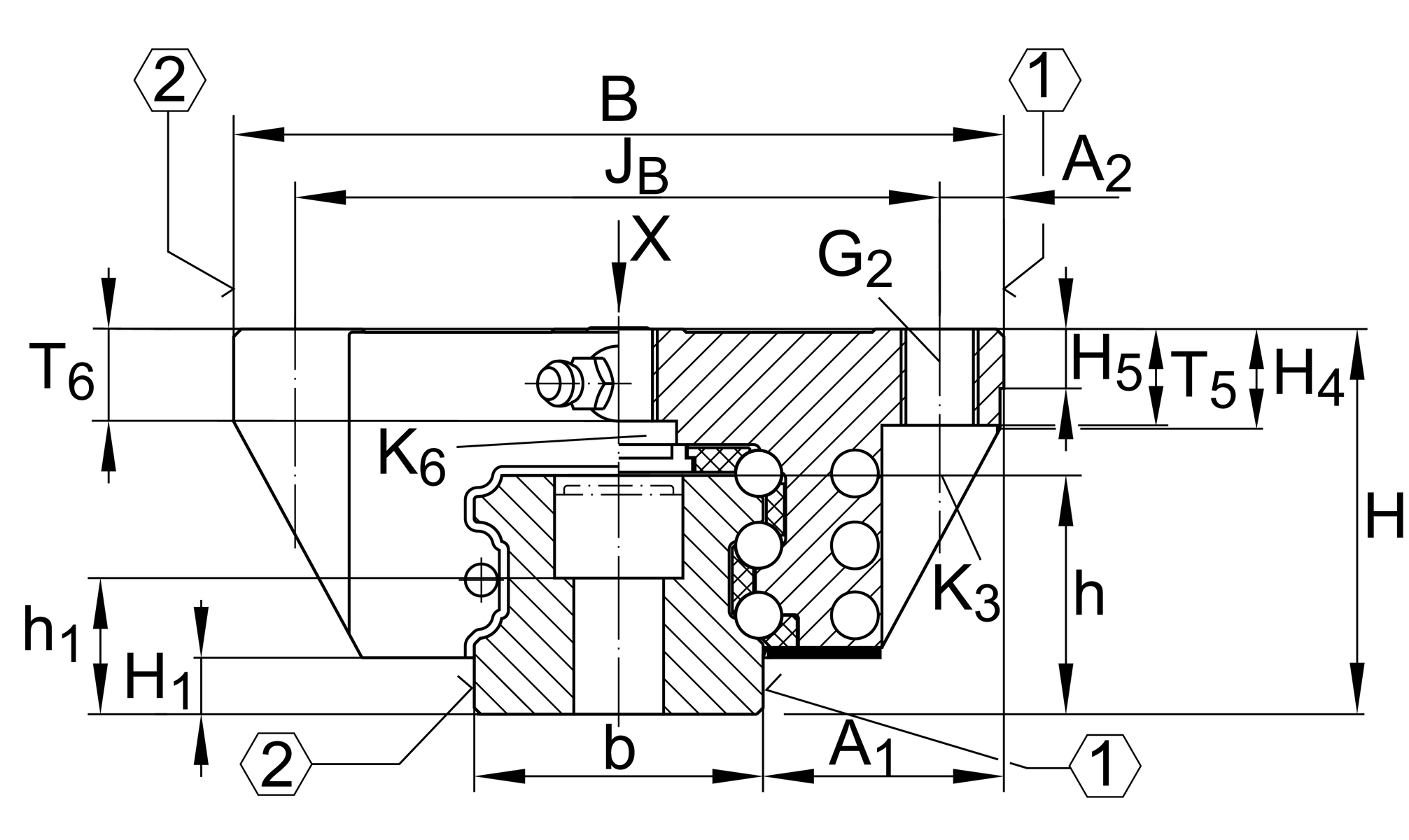

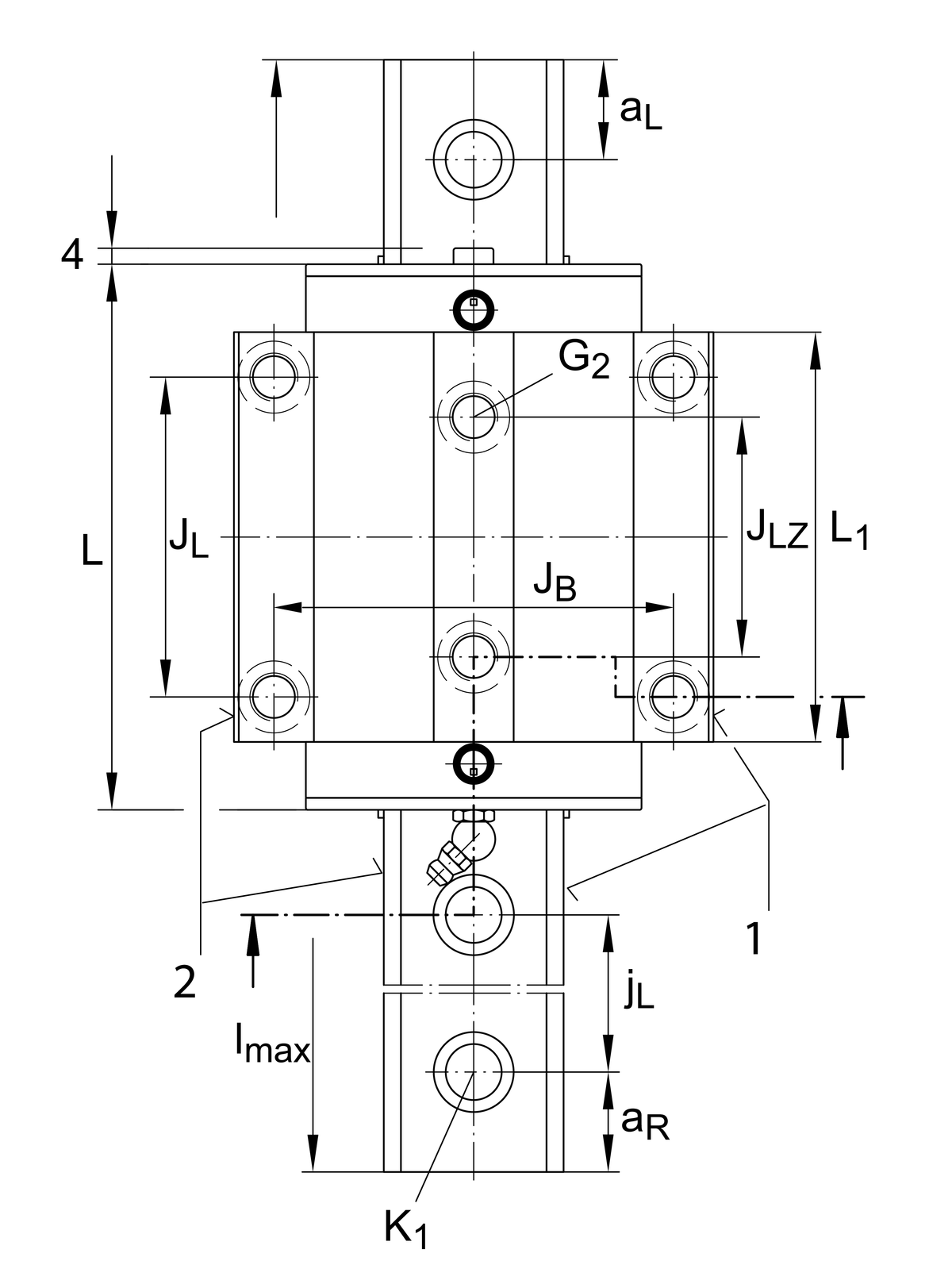

安裝尺寸
| A1 | 23.5 mm | |
| JB | 57 mm | |
| b | 23 mm | width rail |
| A2 | 6.5 mm | |
| L1 | 60.9 mm | |
| JL | 45 mm | |
| JLZ | 40 mm | |
| H1 | 5.2 mm | |
| H4 | 9.8 mm | |
| H5 | 5 mm | |
| T5 | 10 mm | |
| T6 | 9.5 mm | |
| G2 | M8 | fixing screws below (DIN ISO 4762-12.9) |
| G2 MA | 24 Nm | maximum tightening torque |
| K3 | M6 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 17 Nm | maximum tightening torque |
| K6 | M6 | fixing screws below (DIN ISO 4762-12.9) |
| K6 MA | 10 Nm | maximum tightening torque |
| D2 | 6.7 mm | |
| N2 | 3 mm | max. diameter of lubrication hole in adjacent construction |

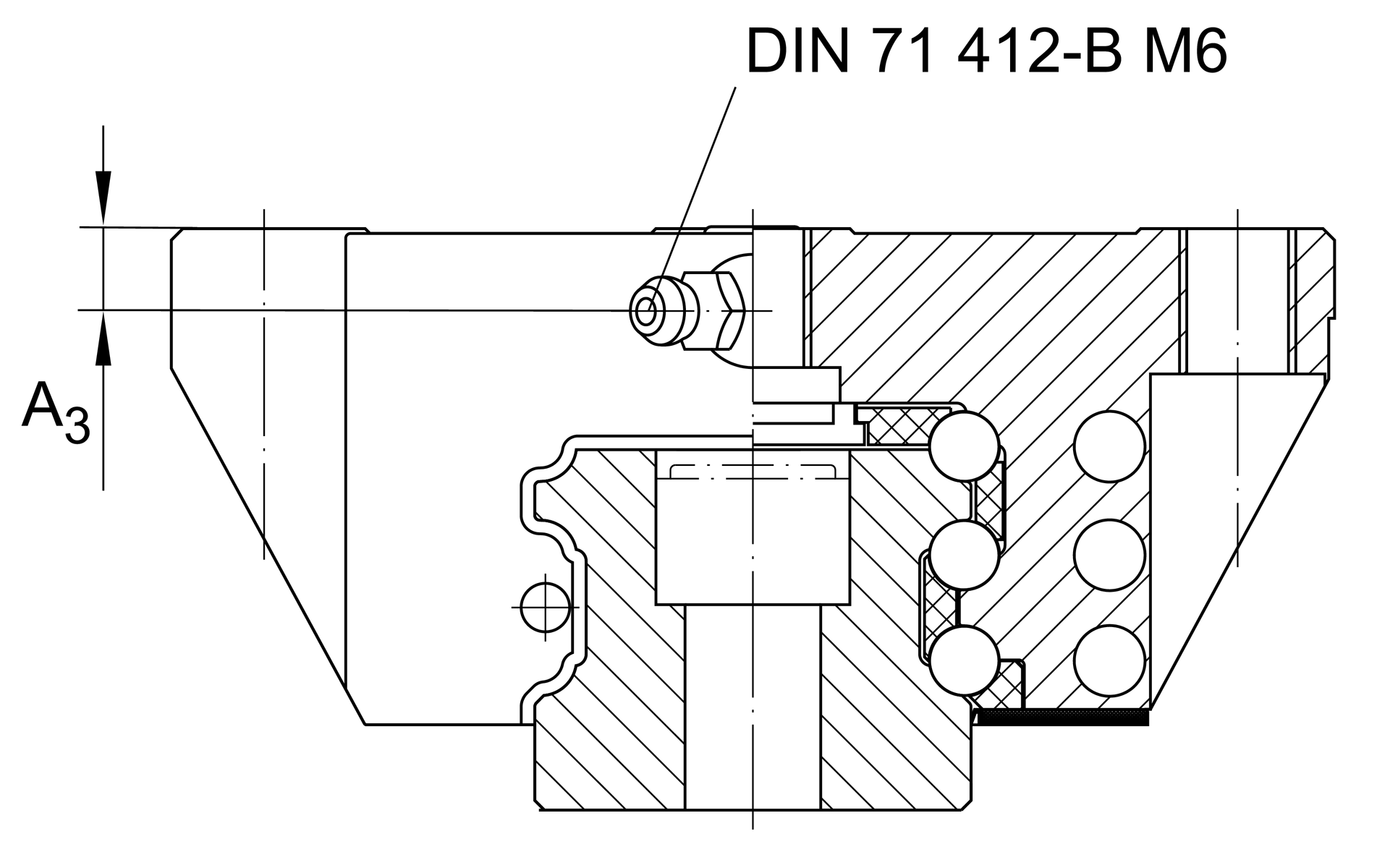

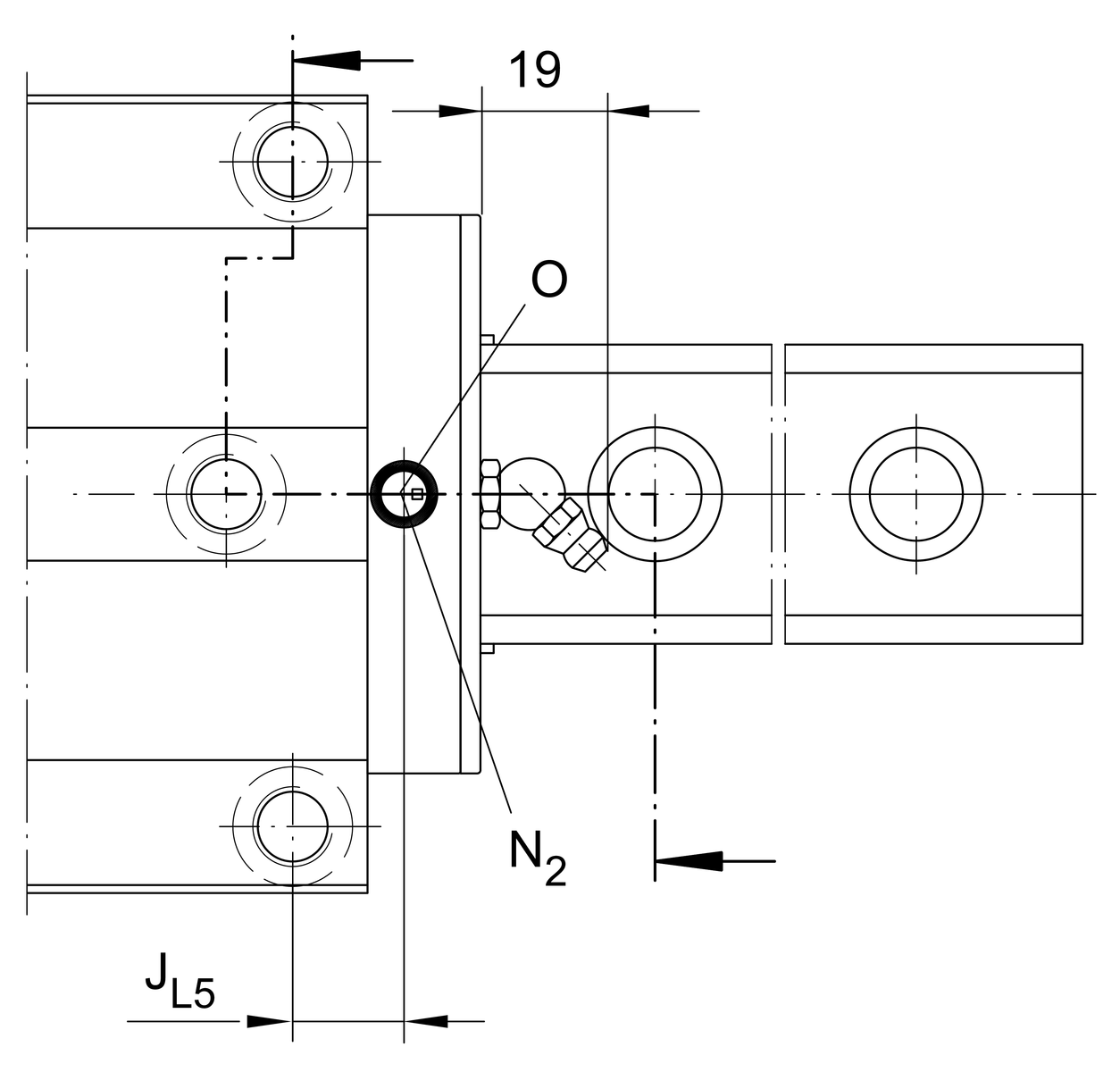

| JL5 | 12.94 mm | position lubrication connector |
| A3 | 6 mm | position lubrication connector |
| t A3 | 7 mm | maximum permissible screw depth for lubrication connectors |
| O | 3x1,5 | O-Ring DIN 3771 |

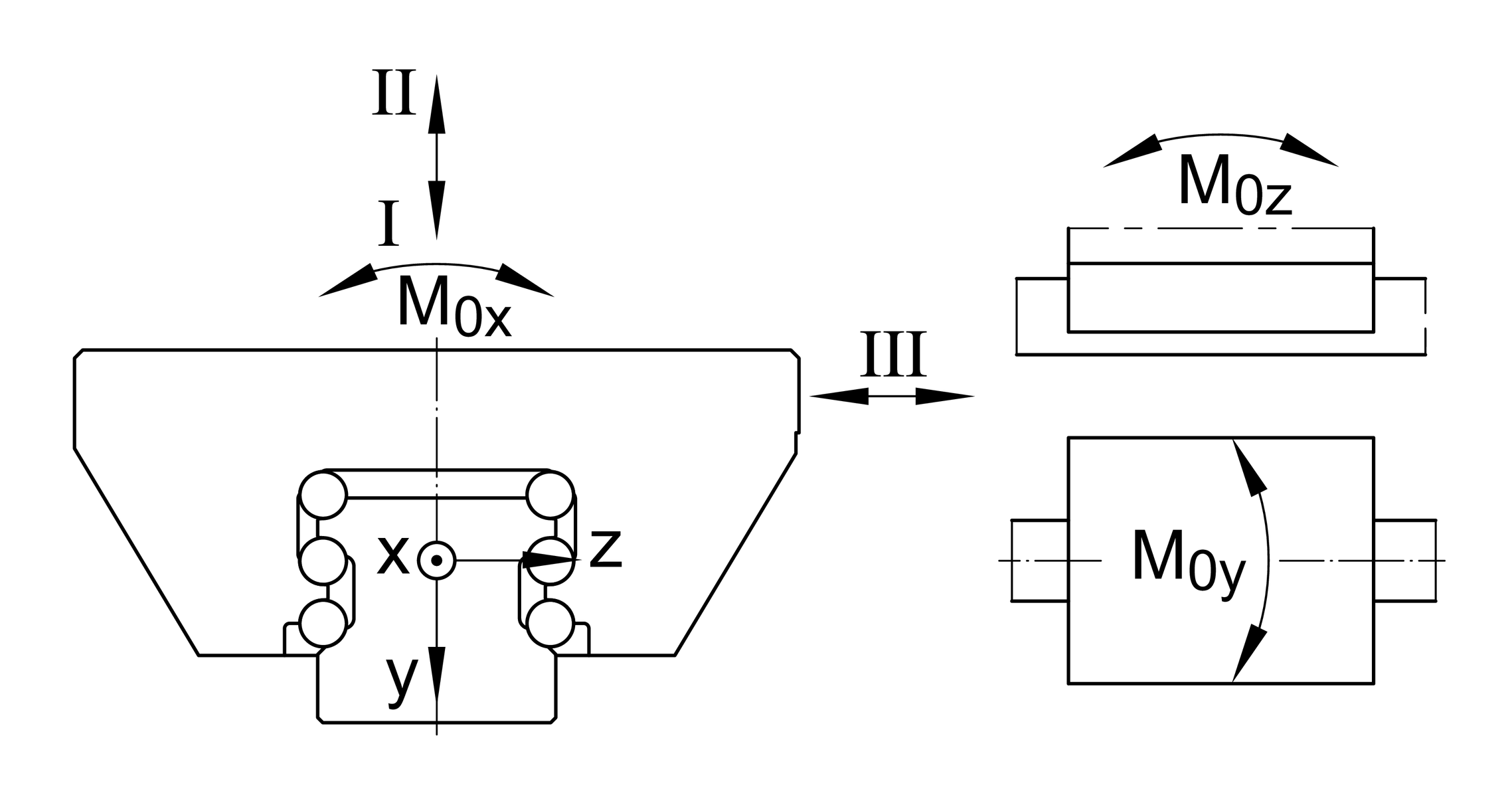

| M0X | 840 Nm | Moment |
| M0Y | 510 Nm | Moment |
| M0Z | 450 Nm | Moment |
附加資訊
| VMKB_065 | KWSE | Material name |
您目前的產品型號
| Size code | 25 |
