主要尺寸與性能資料
| H | 30 mm | height system |
| B | 63 mm | width carriage |
| L | 91.9 mm | overall length carriage |

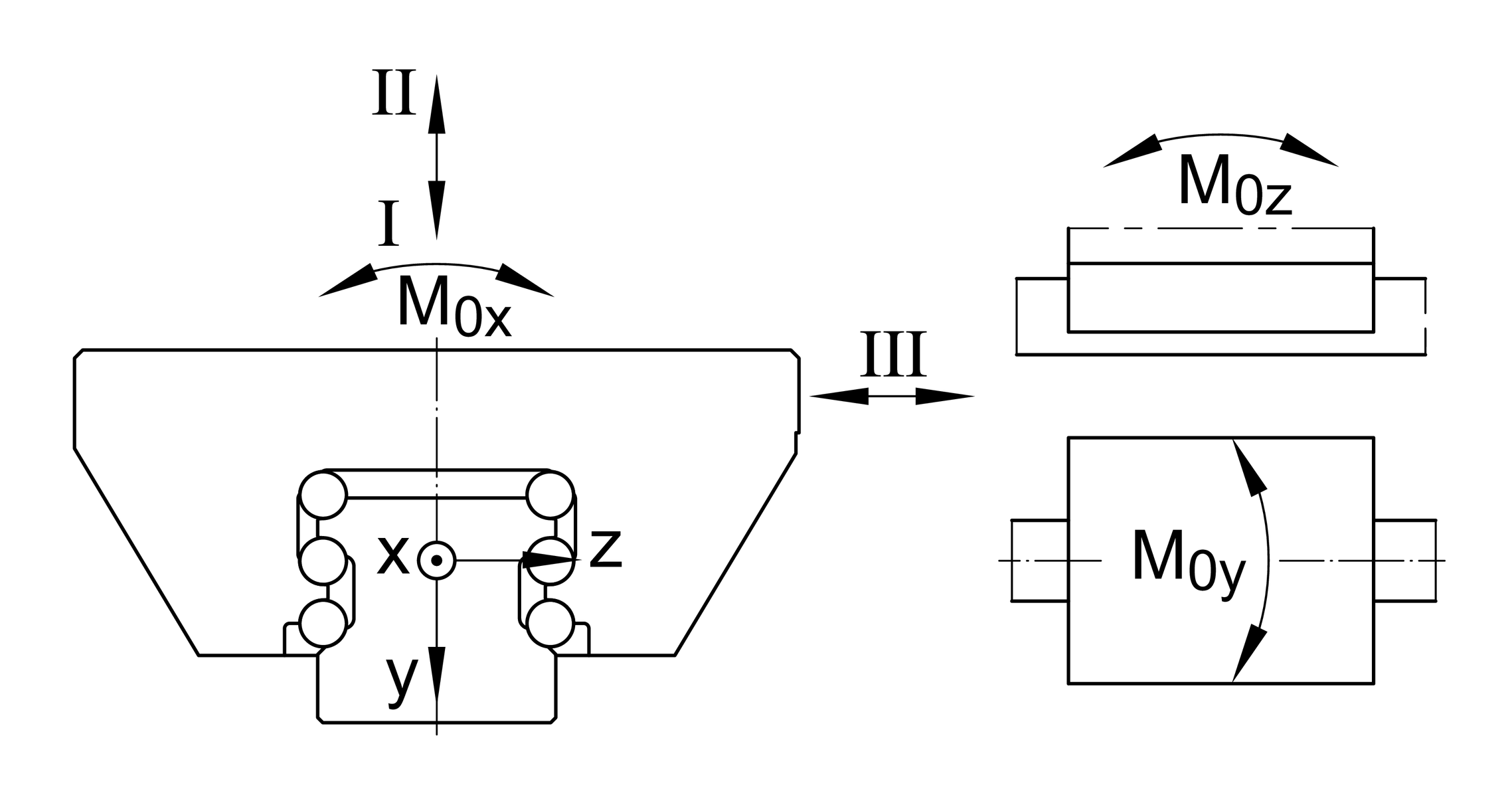

| I C | 28,000 N | dynamic load rating, load direction I: compressive load |
| I C0 | 72,000 N | static load rating, load direction I: compressive load |
| II C | 25,000 N | dynamic load rating, load direction II: tensile load |
| II C0 | 47,000 N | static load rating, load direction II: tensile load |
| III C | 26,000 N | dynamic load rating; 基本額定動載重, Load direction III: lateral load |
| III C0 | 48,000 N | static load rating, Load direction III: lateral load |
| ≈m | 0.6 kg | 重量 |

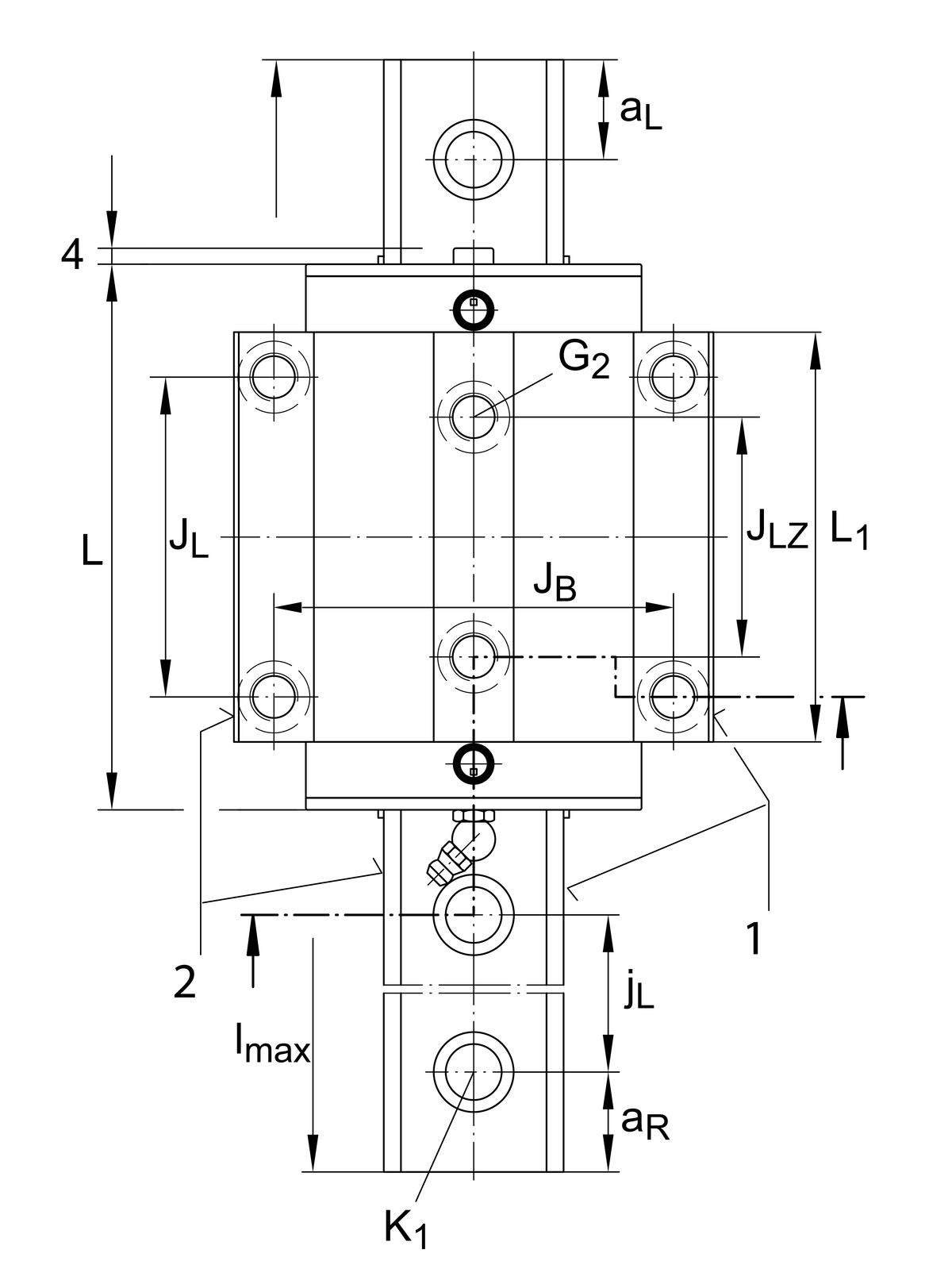

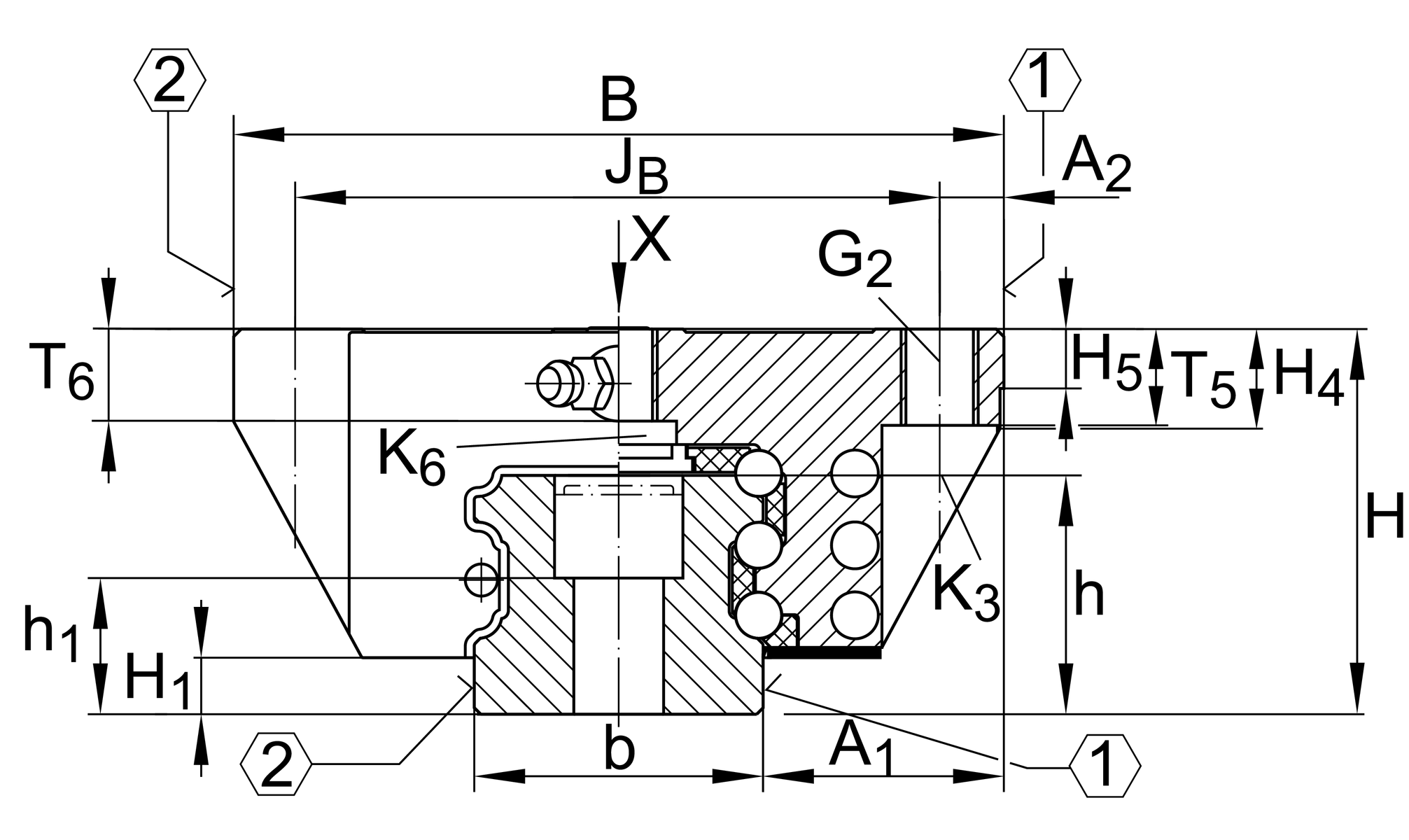

安裝尺寸
| A1 | 21.5 mm | |
| JB | 53 mm | |
| b | 20 mm | width rail |
| A2 | 5 mm | |
| L1 | 72.9 mm | |
| JL | 40 mm | |
| JLZ | 35 mm | |
| H1 | 4.6 mm | |
| H4 | 10.6 mm | |
| H5 | 5 mm | |
| T5 | 10 mm | |
| T6 | 7.2 mm | |
| G2 | M6 | fixing screws below (DIN ISO 4762-12.9) |
| G2 MA | 10 Nm | maximum tightening torque |
| K3 | M5 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 10 Nm | maximum tightening torque |
| K6 | M5 | fixing screws below (DIN ISO 4762-12.9) |
| K6 MA | 5.8 Nm | maximum tightening torque |
| D2 | 5.5 mm | |

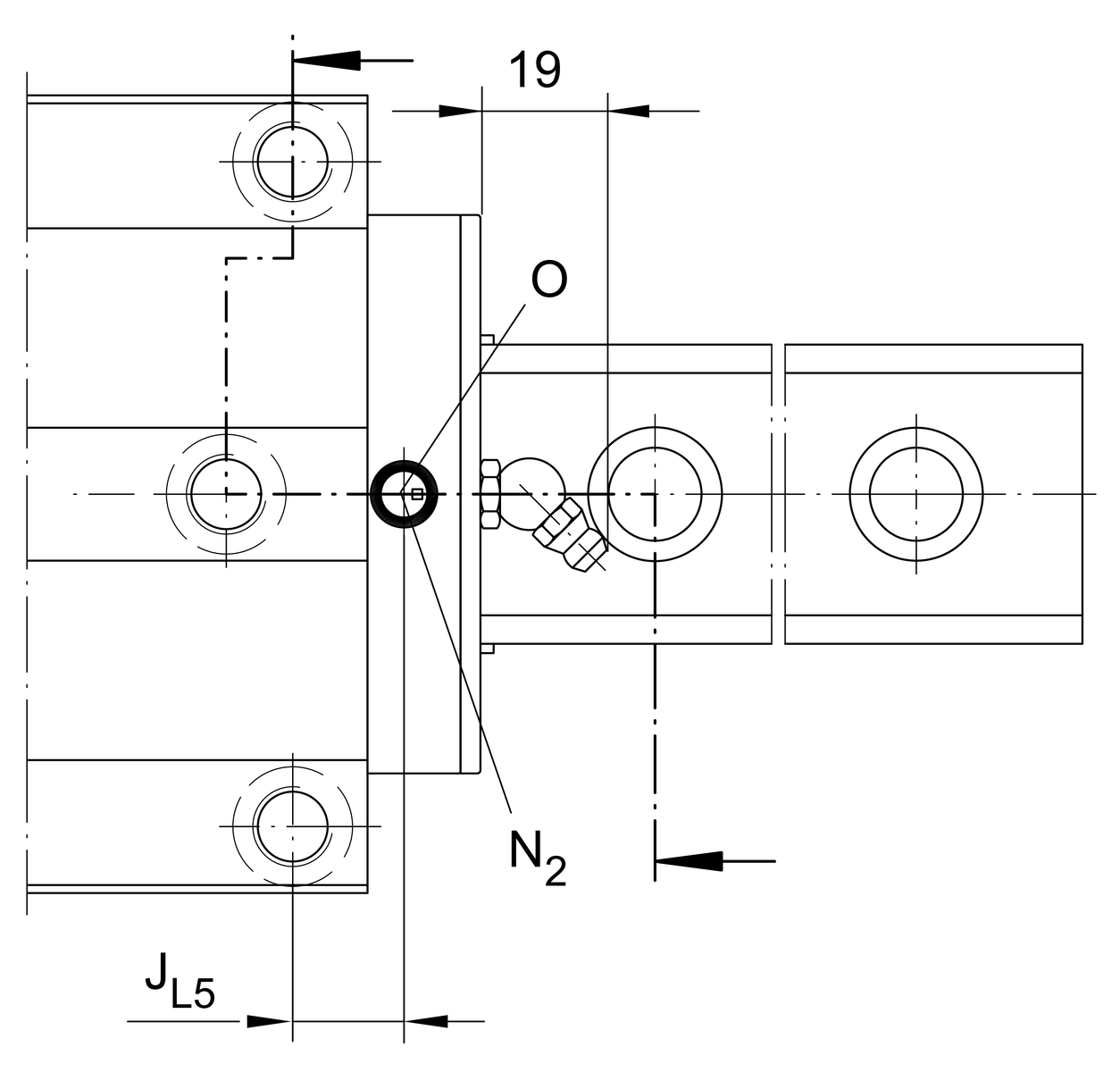

| N2 | 3 mm | max. diameter of lubrication hole in adjacent construction |
| JL5 | 20.19 mm | position lubrication connector |

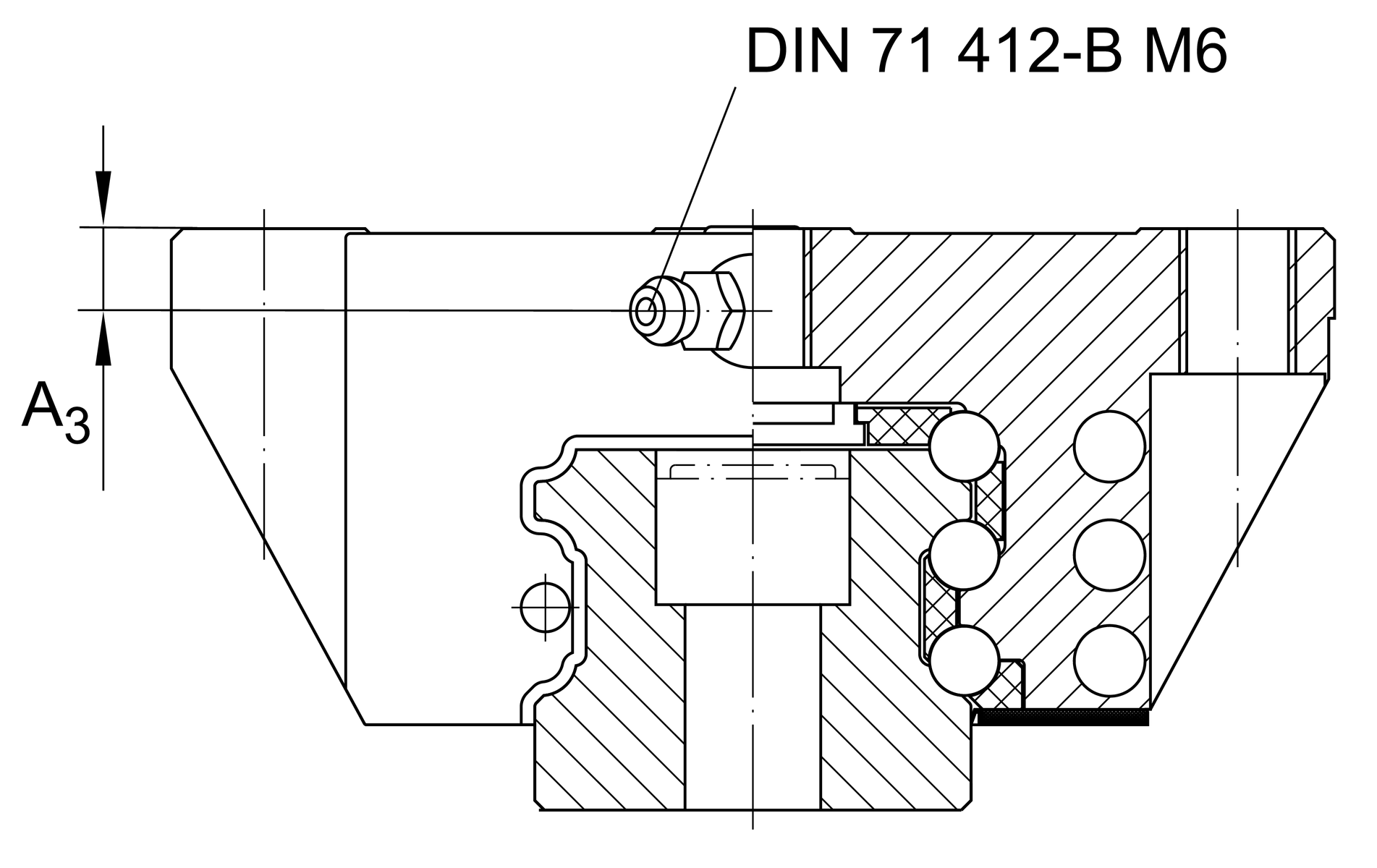

| A3 | 5.8 mm | position lubrication connector |
| t A3 | 7 mm | maximum permissible screw depth for lubrication connectors |
| O | 3x1,5 | O-Ring DIN 3771 |
| M0X | 730 Nm | Moment |
| M0Y | 640 Nm | Moment |
| M0Z | 570 Nm | Moment |
附加資訊
| VMKB_065 | KWSE | Material name |
您目前的產品型號
| Size code | 20 | |
| Carriage design | L | Long carriage |
