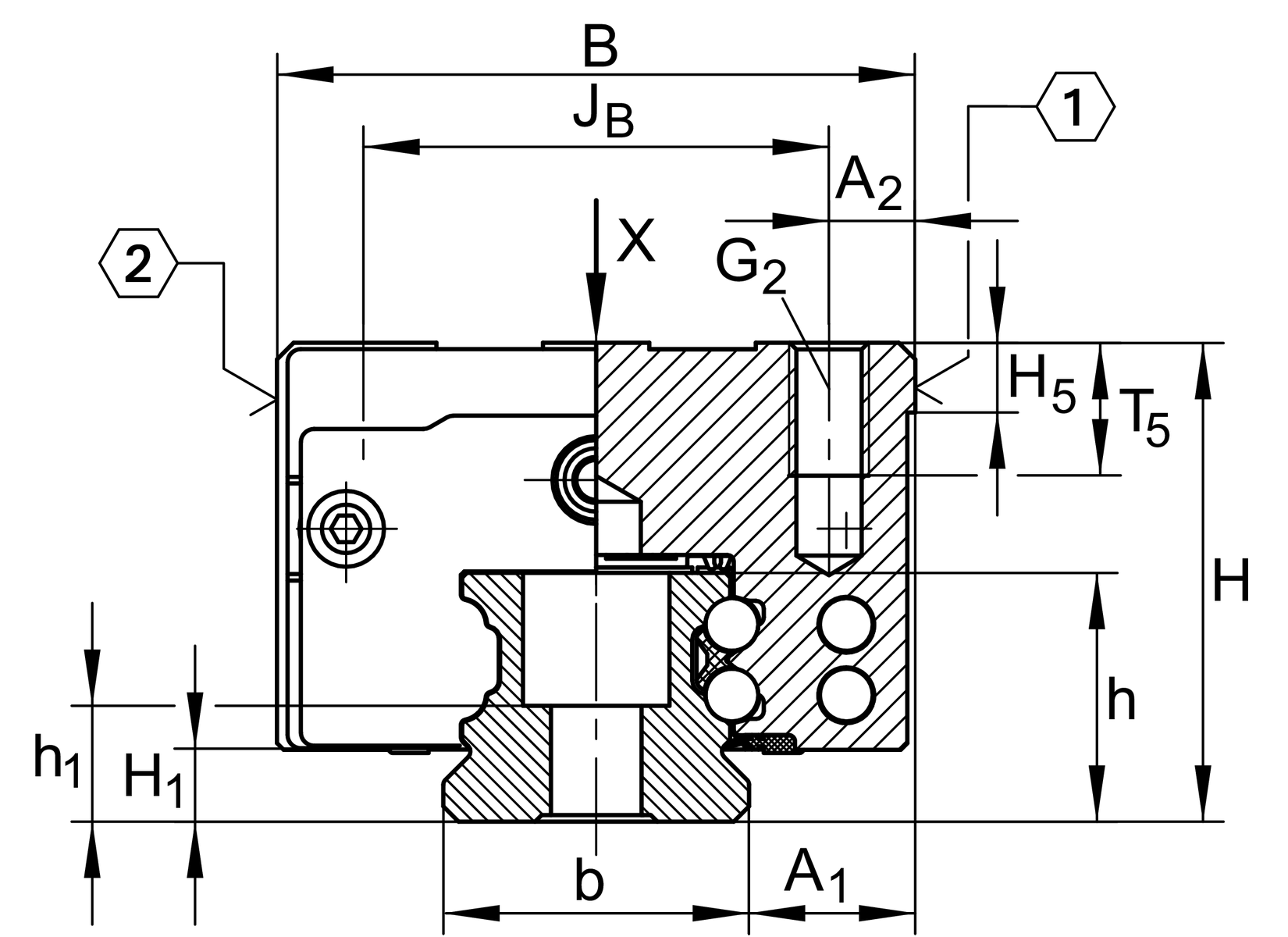

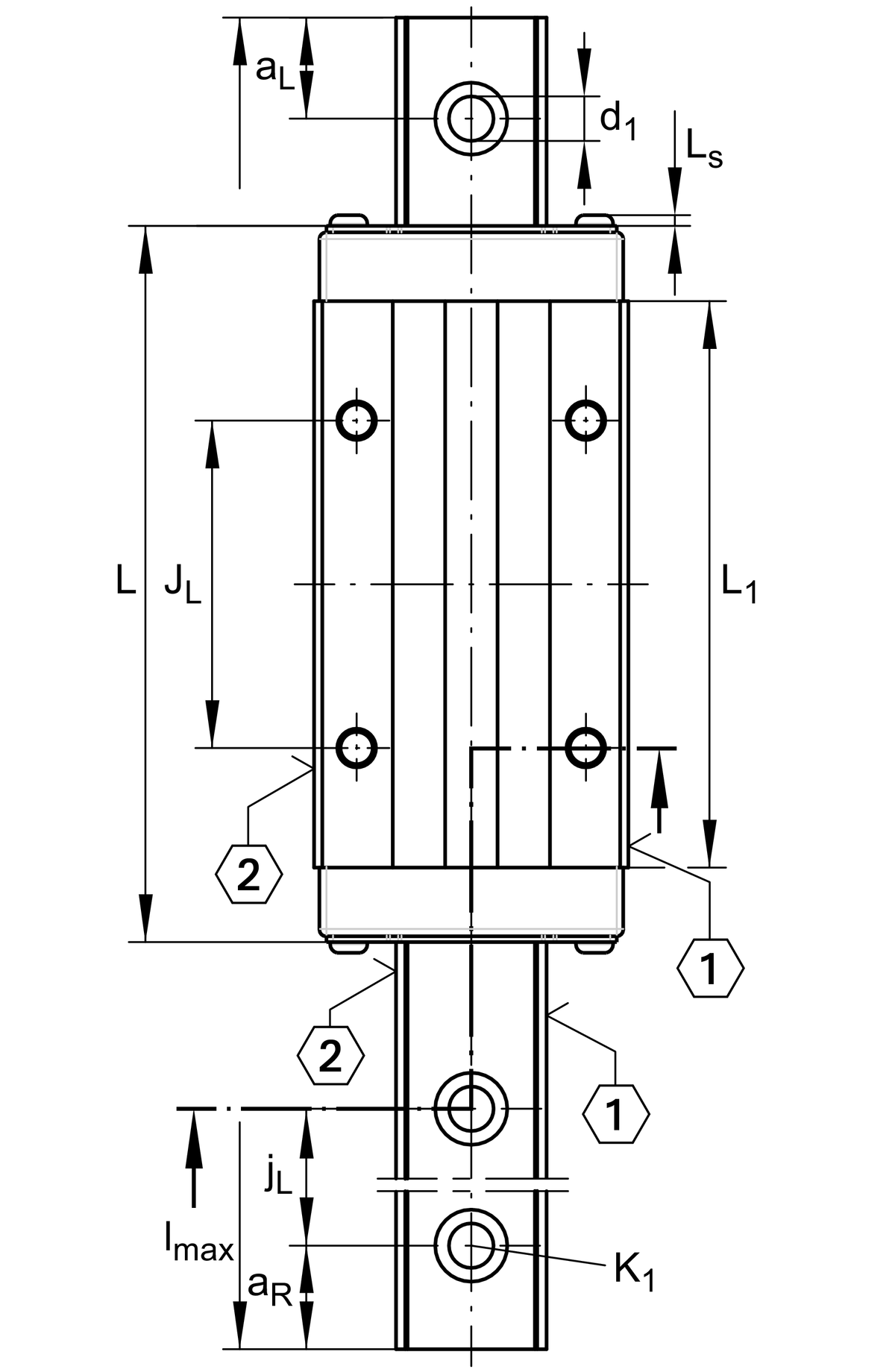

主要尺寸與性能資料
| H | 70 mm | height system |
| B | 100 mm | width carriage |
| L | 211.6 mm | overall length carriage |
| C | 127,000 N | dynamic load rating 1 |
| C0 | 285,000 N | static load rating 1 |
| M0x | 7,500 Nm | static moment rating about X axis |
| M0y | 4,725 Nm | static moment rating about Y axis |
| M0z | 4,800 Nm | static moment rating about Z axis |
| ≈m | 6.3 kg | 重量 |
安裝尺寸
| A1 | 23.5 mm | |
| JB | 75 mm | |
| b | 53 mm | width rail |
| A2 | 12.5 mm | |
| L1 | 170 mm | |
| LS | 2.2 mm | |
| JL | 95 mm | |
| H1 | 13.5 mm | |
| H5 | 11.25 mm | |
| T5 | 15 mm | |
| G2 | M12 | fixing screws above (DIN ISO 4762-12.9) |
| G2 MA | 140 Nm | maximum tightening torque 2 |

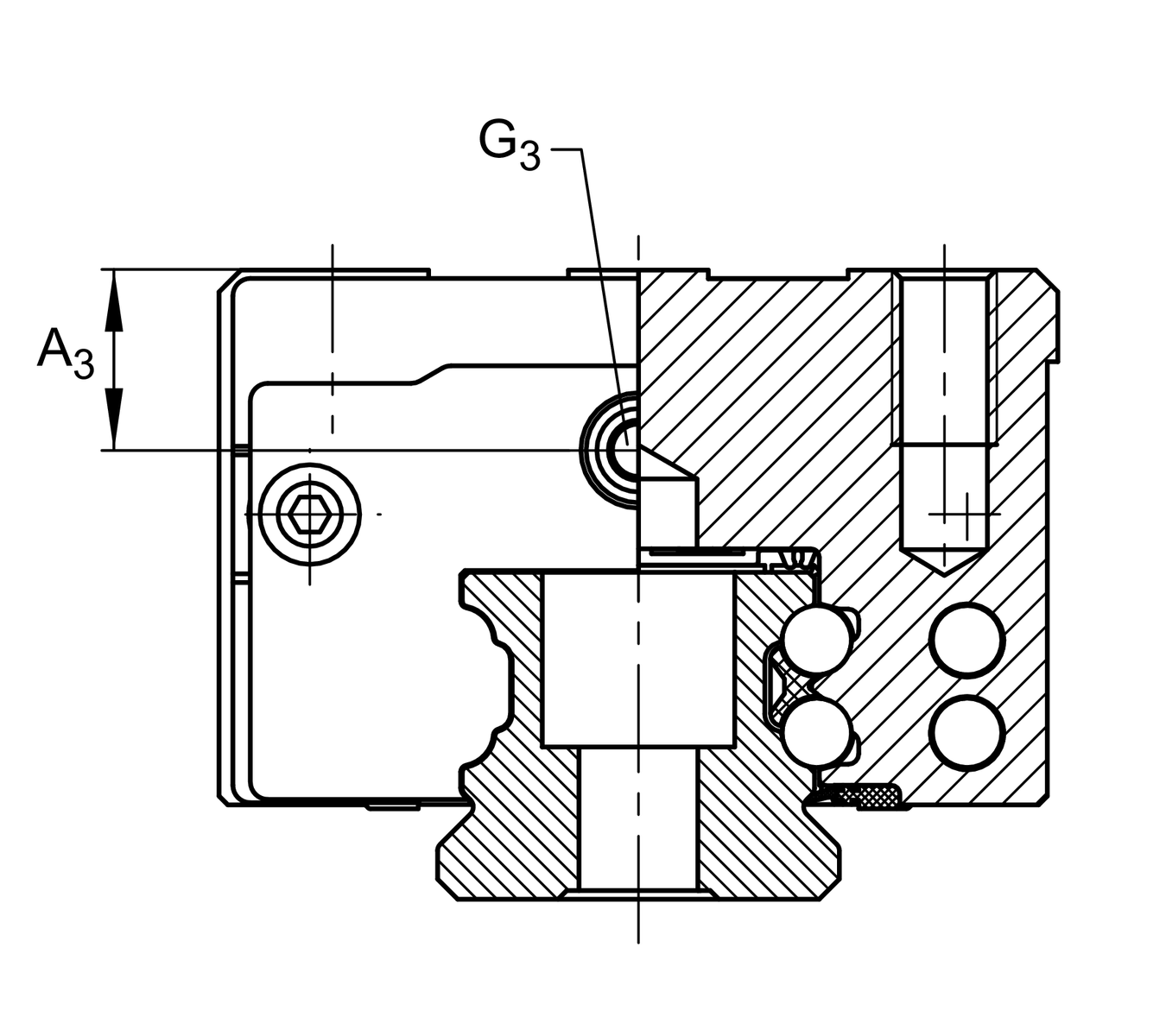

| A3 | 15 mm | position lubrication connector |
| G3 | M6 | lubrication connector |
| t G3 | 7 mm | maximum permissible screw depth for lubrication connectors |
| A4 | 15 mm | position lubrication connector |
| G4 | M6 | lubrication connector |
| t G4 | 7 mm | maximum permissible screw depth for lubrication connectors |

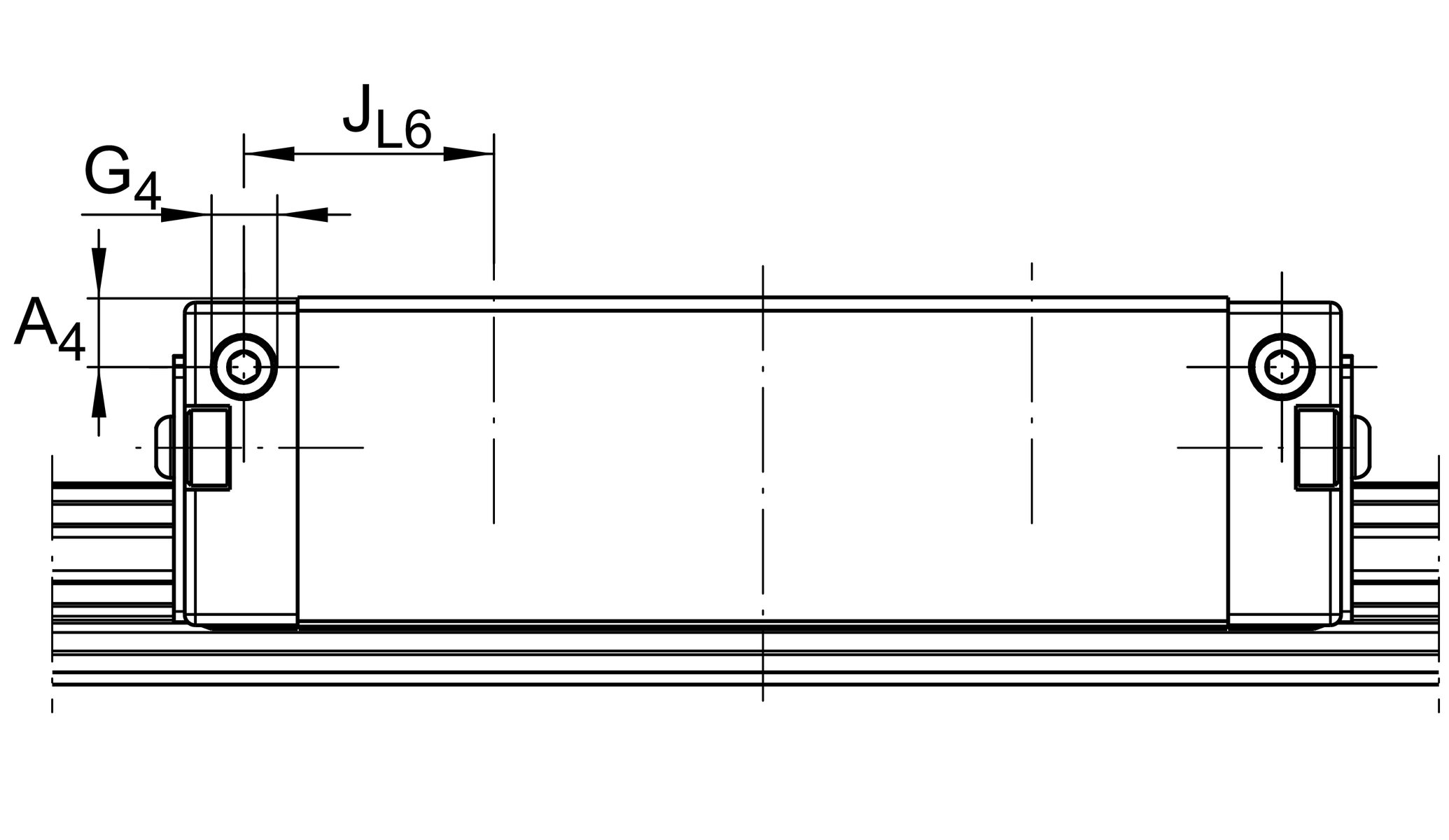

| JL6 | 49.5 mm | position lubrication connector |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 55 | |
| Version | B | |
| Carriage design | SL | Narrow, long carriage |
