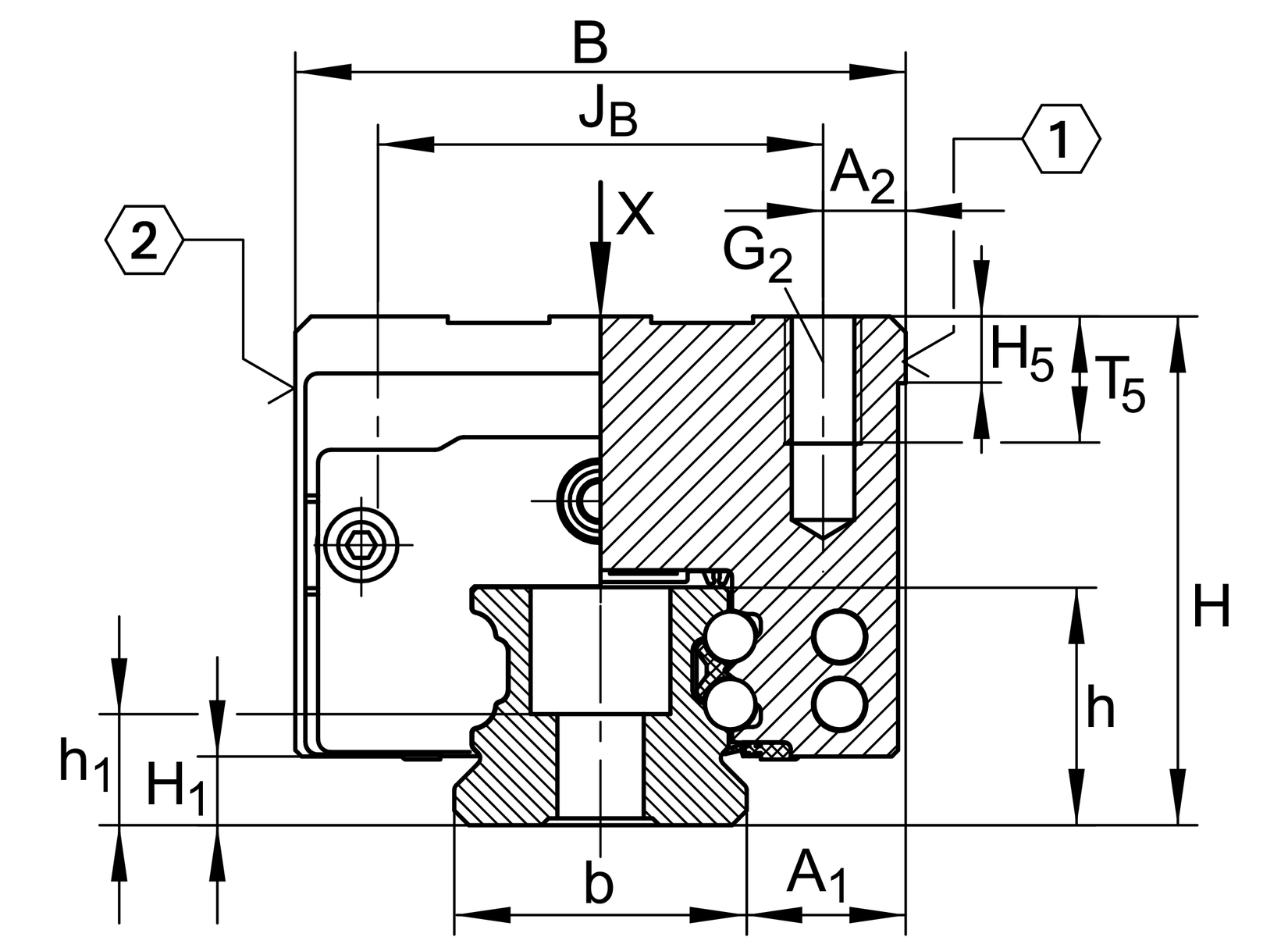

主要尺寸與性能資料
| H | 70 mm | height system |
| B | 100 mm | width carriage |
| L | 173.6 mm | overall length carriage |
| C | 104,000 N | dynamic load rating 1 |
| C0 | 213,000 N | static load rating 1 |
| M0x | 5,600 Nm | static moment rating about X axis |
| M0y | 2,730 Nm | static moment rating about Y axis |
| M0z | 2,730 Nm | static moment rating about Z axis |
| ≈m | 4.35 kg | 重量 |
安裝尺寸
| A1 | 23.5 mm | |
| JB | 75 mm | |
| b | 53 mm | width rail |
| A2 | 12.5 mm | |

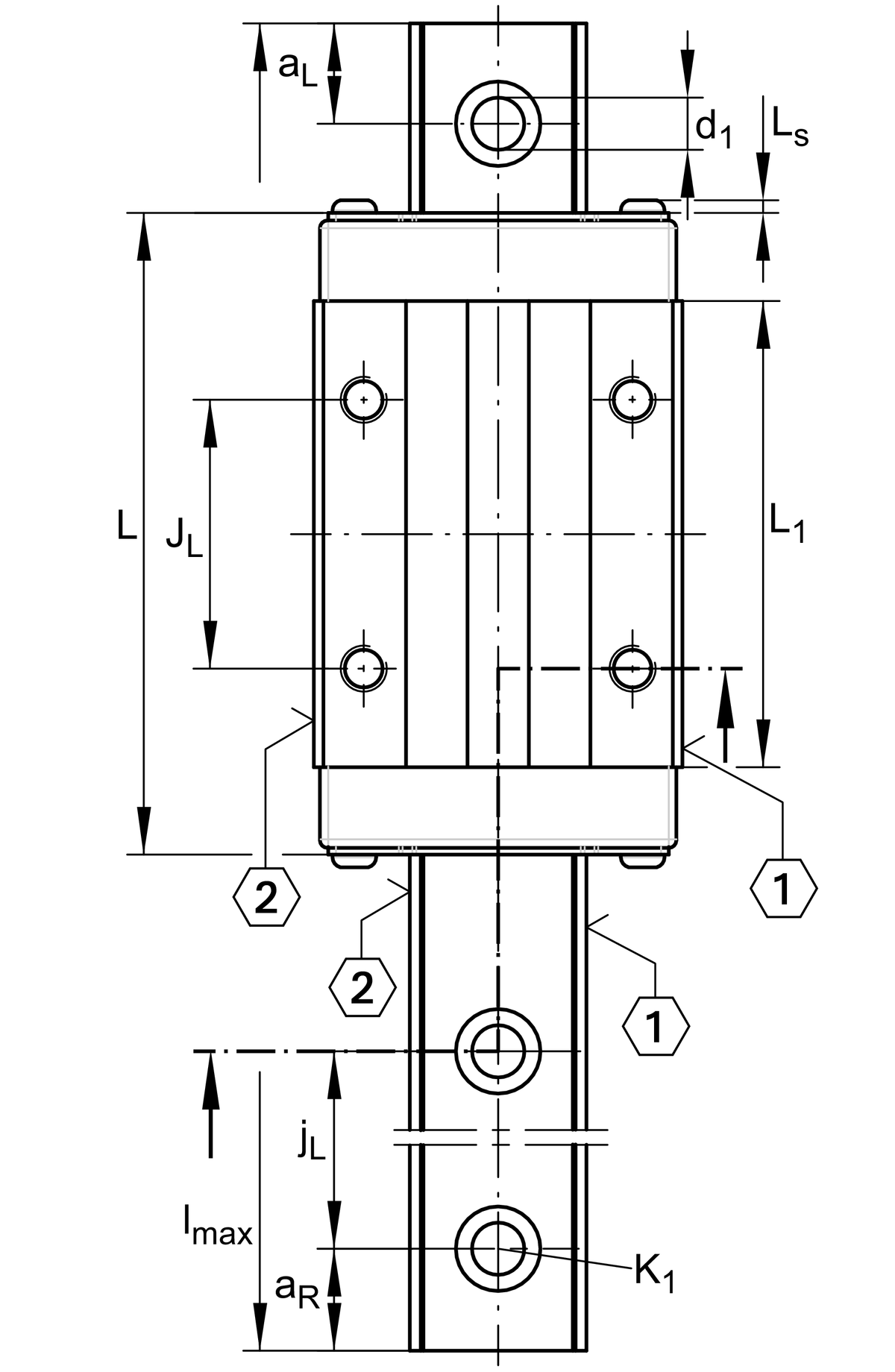

| L1 | 132 mm | |
| LS | 2.2 mm | |
| JL | 75 mm | |
| H1 | 13.5 mm | |
| H5 | 11.25 mm | |
| T5 | 15 mm | |
| G2 | M12 | fixing screws above (DIN ISO 4762-12.9) |
| G2 MA | 140 Nm | maximum tightening torque 2 |

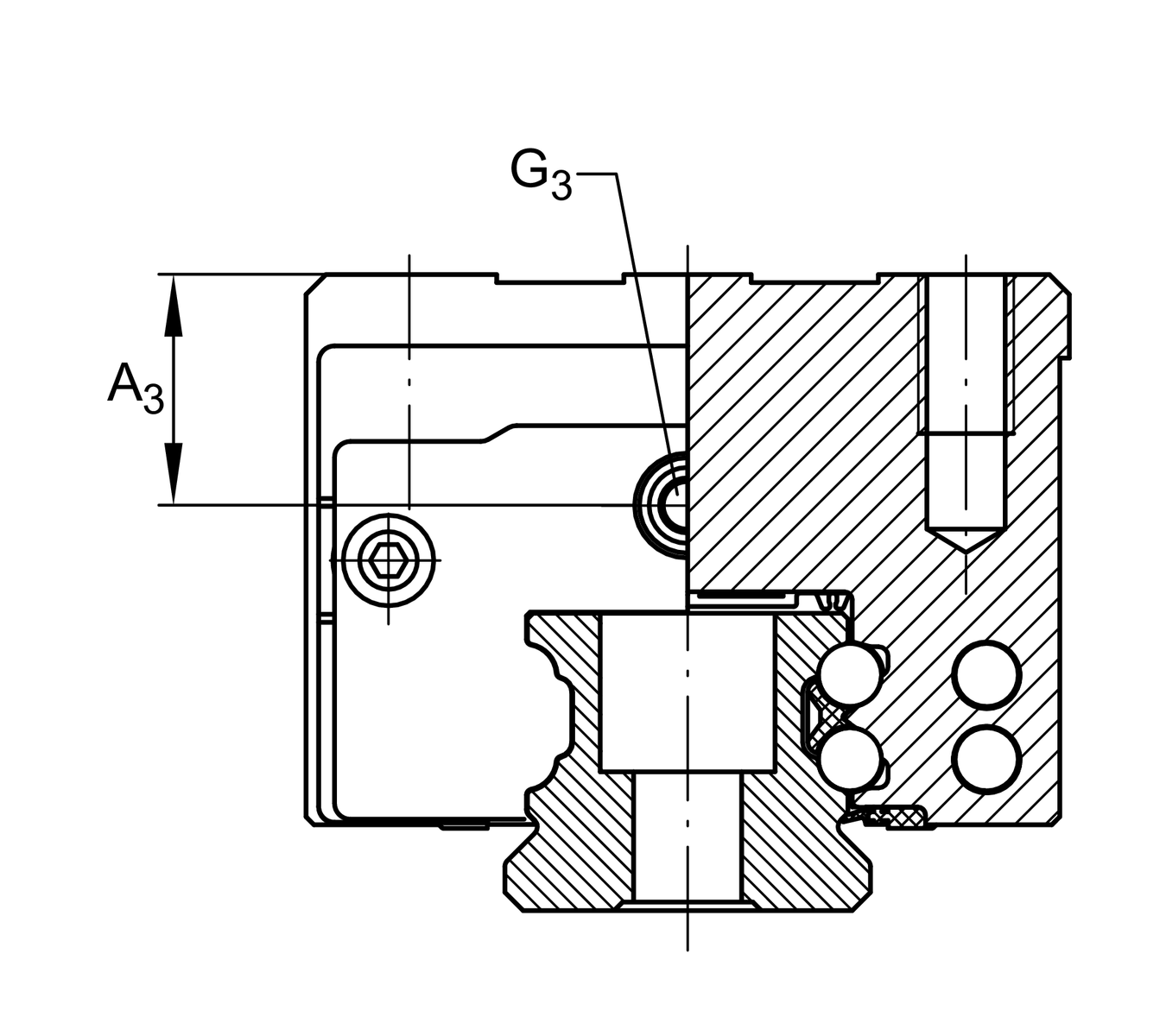

| A3 | 15 mm | position lubrication connector |
| G3 | M6 | lubrication connector |
| t G3 | 7 mm | maximum permissible screw depth for lubrication connectors |
| A4 | 15 mm | position lubrication connector |
| G4 | M6 | lubrication connector |
| t G4 | 7 mm | maximum permissible screw depth for lubrication connectors |

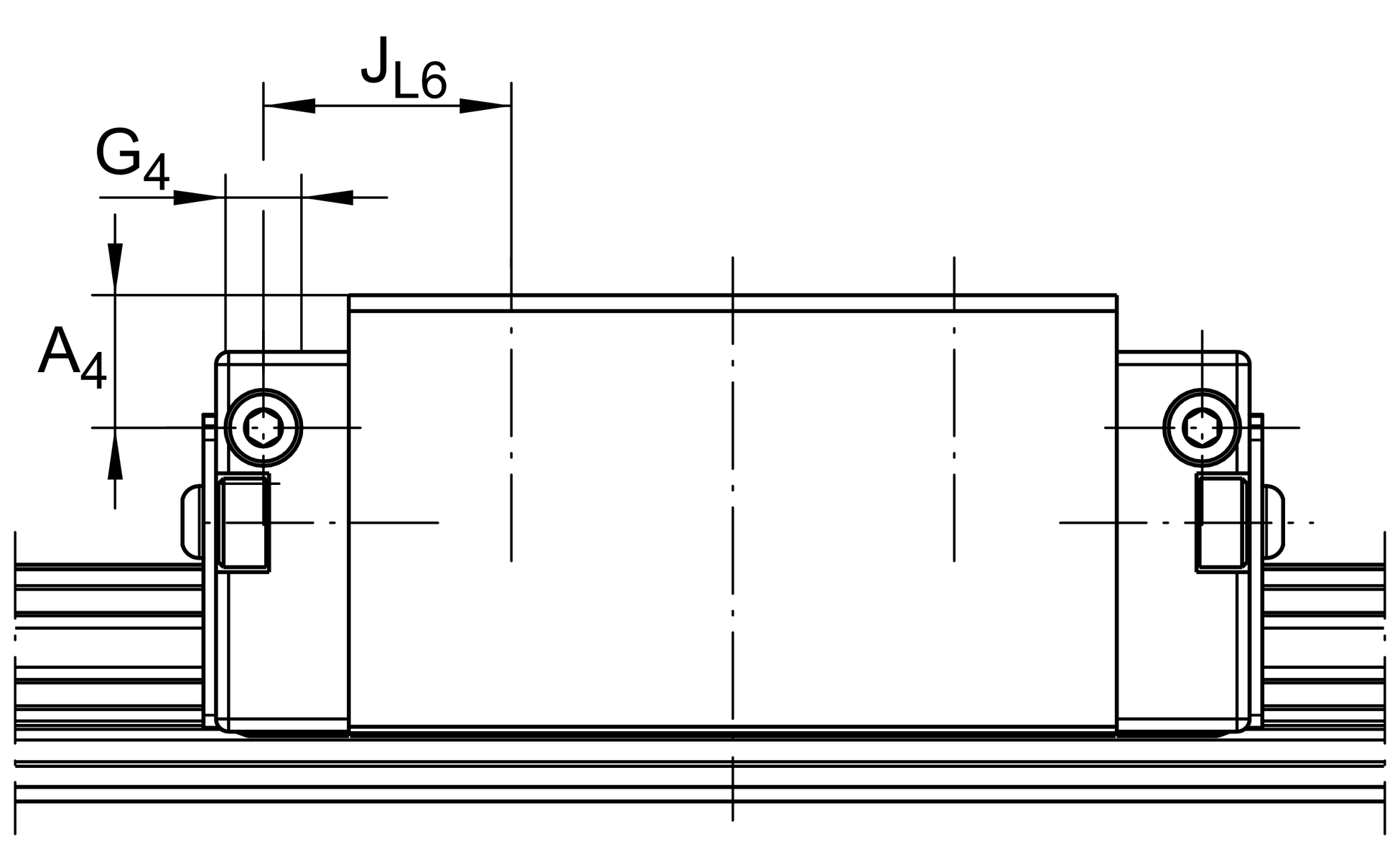

| JL6 | 40.5 mm | position lubrication connector |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 55 | |
| Version | B | |
| Carriage design | S | Narrow Carriage |
