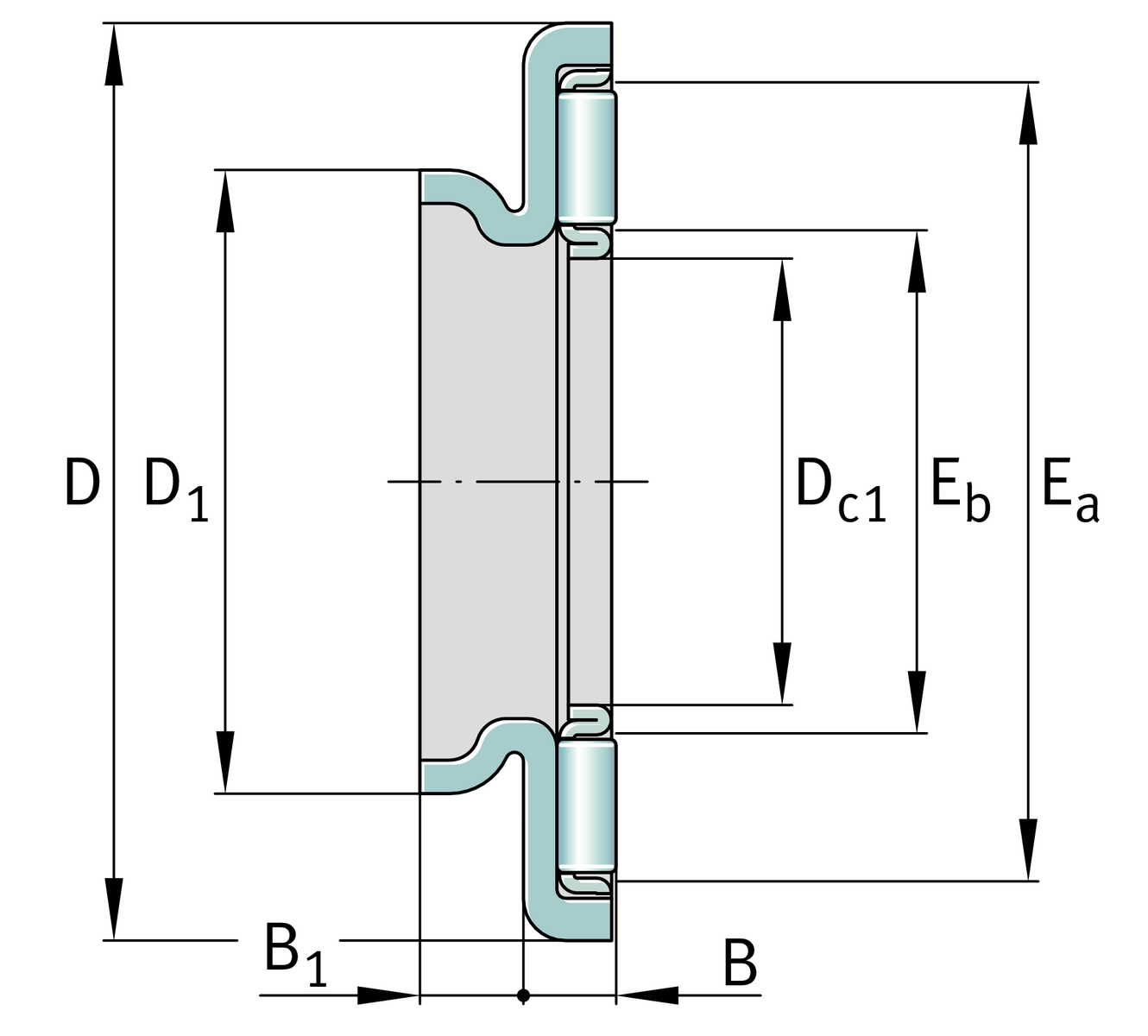

主要尺寸與性能資料
| Dc1 | 50 mm | 內徑 cage |
| D | 73 mm | 外徑 bearing washer |
| B | 4.2 mm | Height bearing |
| B1 | 4.5 mm | Height centering collar |
| D1 | 58 mm | 外徑 centering collar |
| Ea | 68 mm | Raceway dimension |
| Eb | 55 mm | Raceway dimension |
| C | 32,000 N | 基本額定動載荷，軸向 |
| C0a | 143,000 N | 基本額定靜態載荷，軸向 |
| cua | 15,100 N | 疲勞負荷極限，軸向 |
| nG | 4,800 1/min | 極限轉速 |
| n ϑr | 2,230 1/min | 參考轉速 |
| ≈m | 48.94 g | 重量 |
附加資訊
AS5070 | Axial bearing washer | |
HK5022-RS | Drawn cup needle roller bearings turned | |
HK5025 | Drawn cup needle roller bearings | |
HK5020 | Drawn cup needle roller bearings for radial bearing arrangement | |
NKIS35 | Needle roller bearings with inner ring | |
NKS43 | Needle roller bearings with out inner ring |
