主要尺寸與性能資料
| h | 98.6 mm | 高度 |
| b | 52 mm | 寬度 |

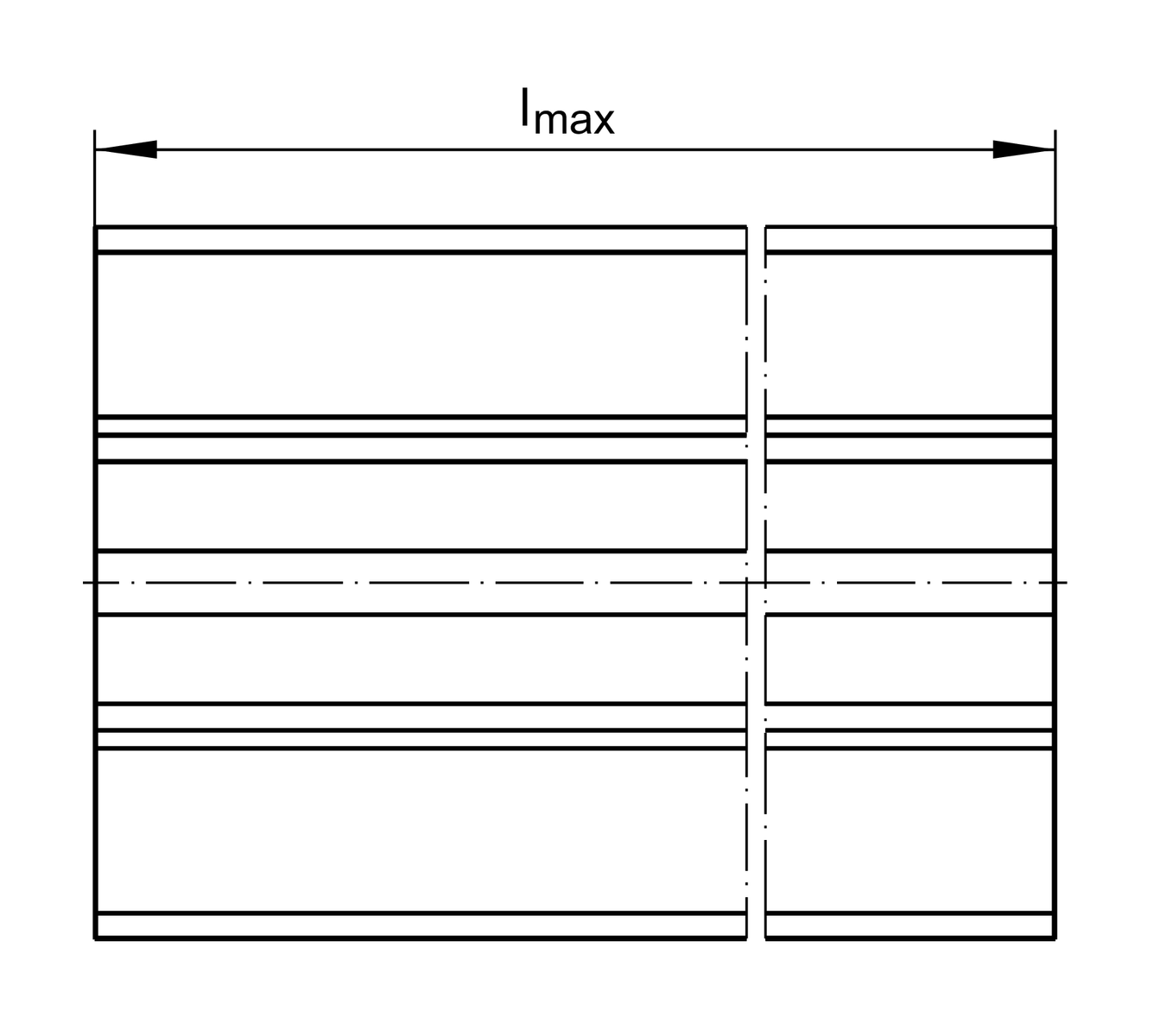

| lmax | 8,000 mm | Length maximum 1 |
| ly | 3,717,250 mm⁴ | Second moment of area |
| lz | 3,014,470 mm⁴ | Second moment of area |
| LFQ | 3,691 mm² | Cross-sectional area 2 |
| Wy | 66,380 mm³ | Wider resistance torque |
| Wz | 55,462 mm³ | Wider resistance torque |

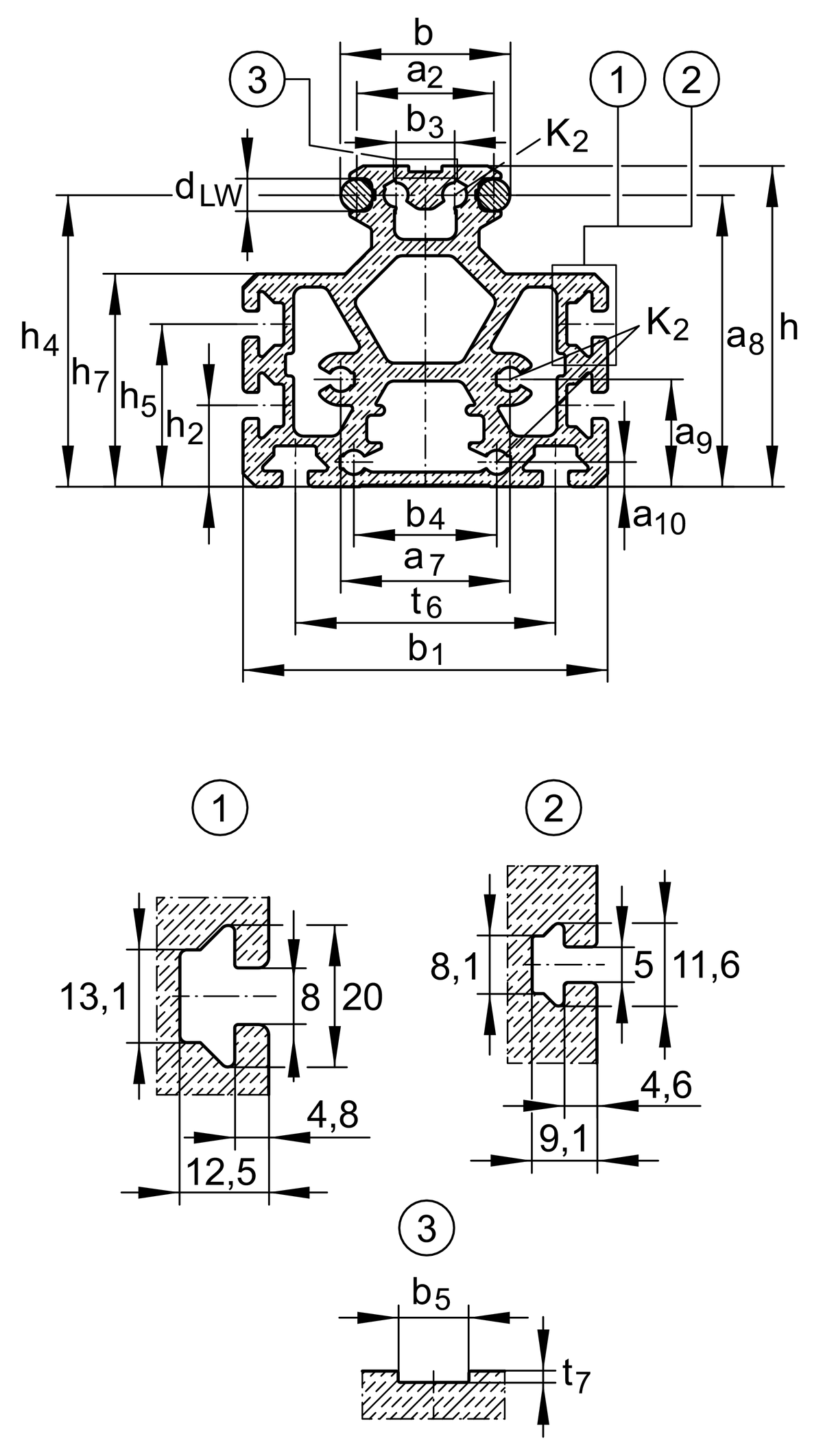

尺寸
| a2 | 42 mm | Distance |
| a7 | 52 mm | Distance |
| a8 | 89.7 mm | Distance |
| a9 | 33 mm | Distance |
| a10 | 7.5 mm | Distance |
| b1 | 112 mm | 寬度 |
| b3 | 18 mm | Width 3 |
| b4 | 44 mm | 寬度 |
| b5 | 10.2 mm | 寬度 |
| dLW | 10 mm | Diameter |

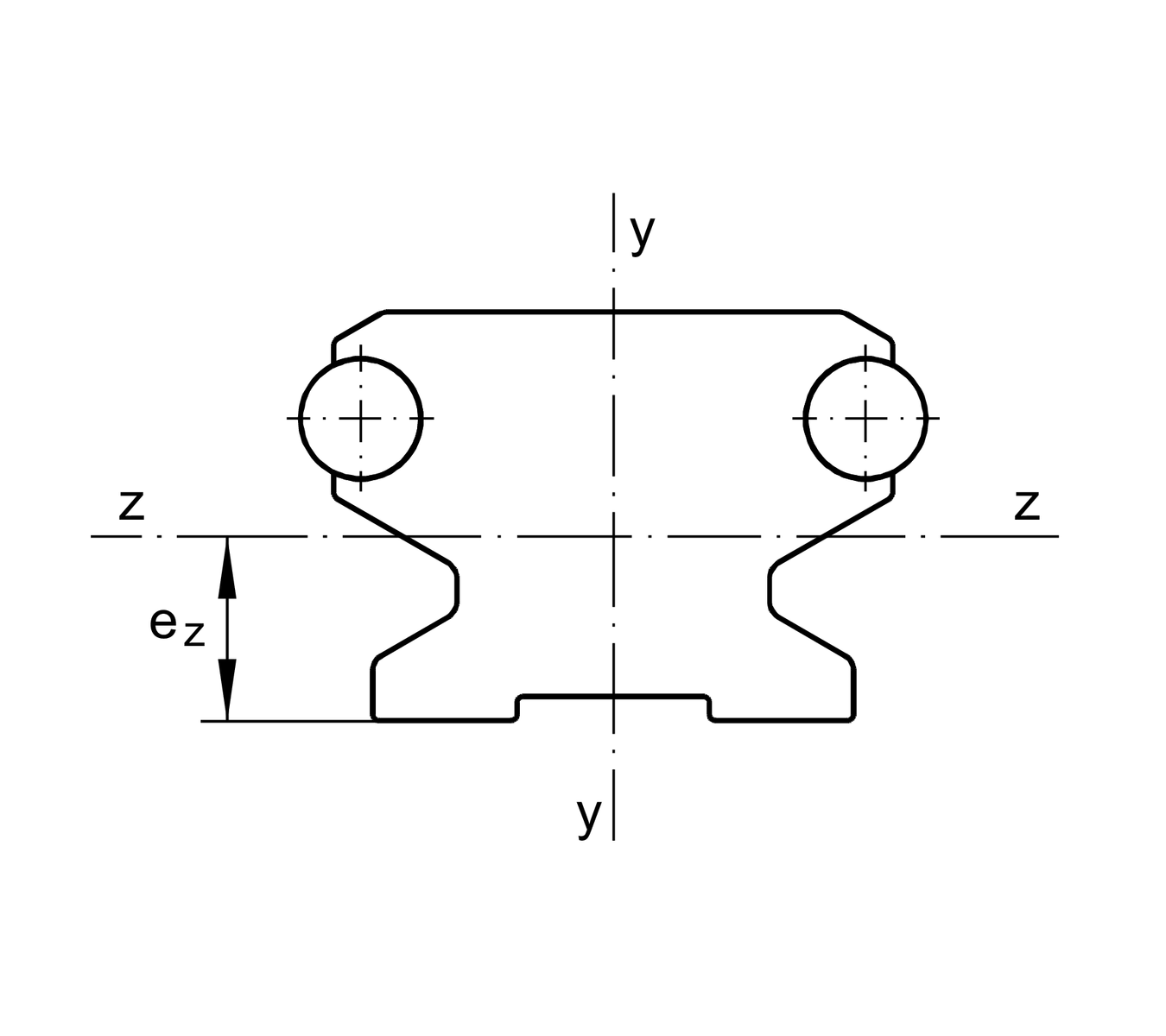

| eZ | 42.6 mm | Distance |
| h2 | 25 mm | 高度 |
| h4 | 89.7 mm | 高度 |
| h5 | 50 mm | 高度 |
| h7 | 65.4 mm | 高度 |
| K2 | 7.45 mm | Diameter |
| t6 | 80 mm | 深度 |
| t7 | 1.8 mm | 深度 |
您目前的產品型號
| Size code | 52 | |
| Design | M | hollow section profile, with fixing slots |
