主要尺寸與性能資料

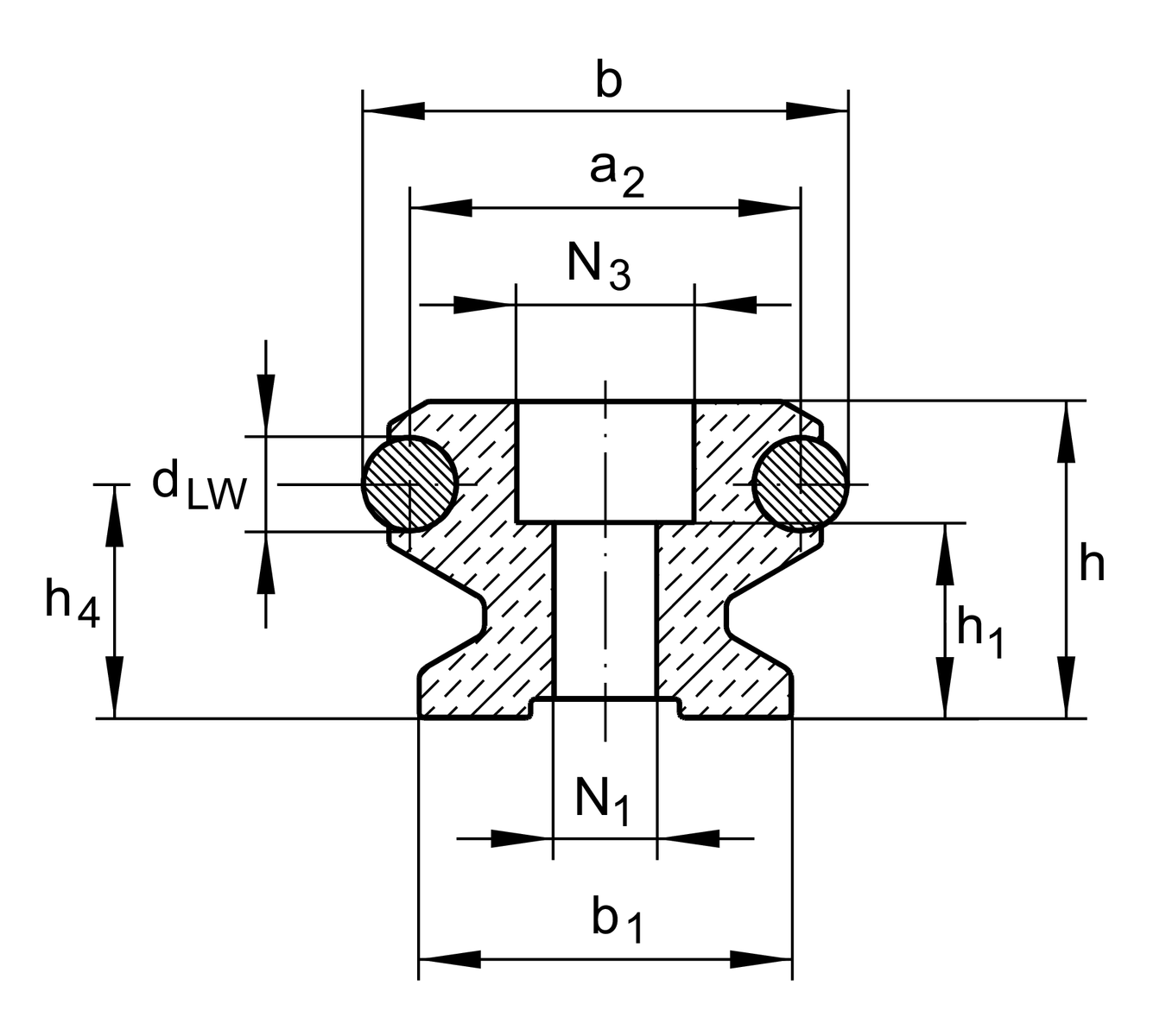

| h | 15 mm | 高度 |
| b | 25 mm | 寬度 |

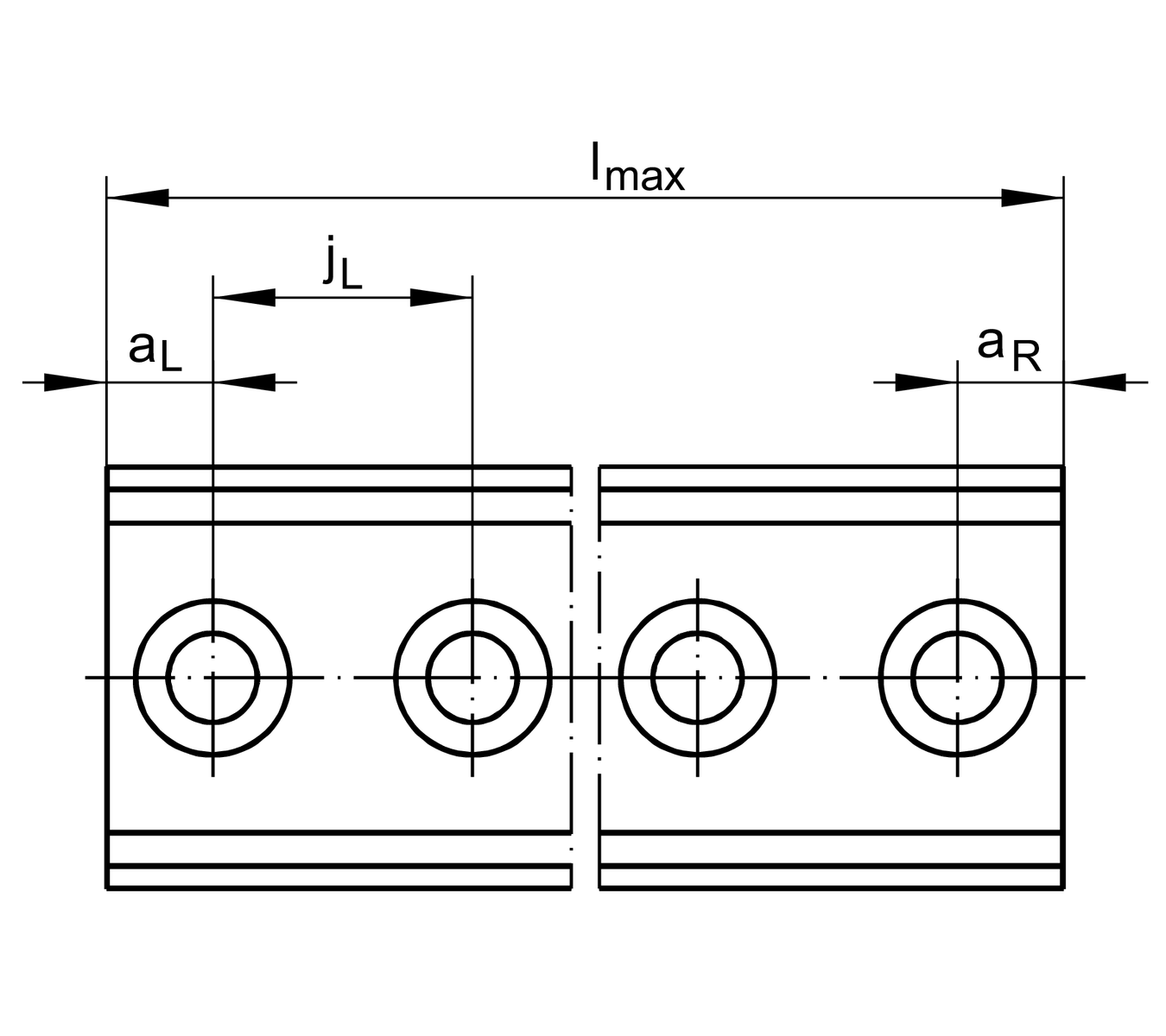

| lmax | 2,400 mm | Length maximum 1 |
| ly | 6,390 mm⁴ | Second moment of area |
| lz | 4,510 mm⁴ | Second moment of area |
| LFQ | 237 mm² | Cross-sectional area 2 |
| Wy | 608 mm³ | Wider resistance torque |
| Wz | 600 mm³ | Wider resistance torque |
安裝尺寸
| N1 | 5.5 mm | 內徑 3 |
| N3 | 10 mm | 內徑 4 |
尺寸
| a2 | 19 mm | Distance |
| aL max | 54 mm | Distance 5 |
| aL min | 10 mm | Distance 5 |
| aR max | 54 mm | Distance 5 |
| aR min | 10 mm | Distance 5 |
| b1 | 21 mm | 寬度 |
| dLW | 6 mm | Diameter |

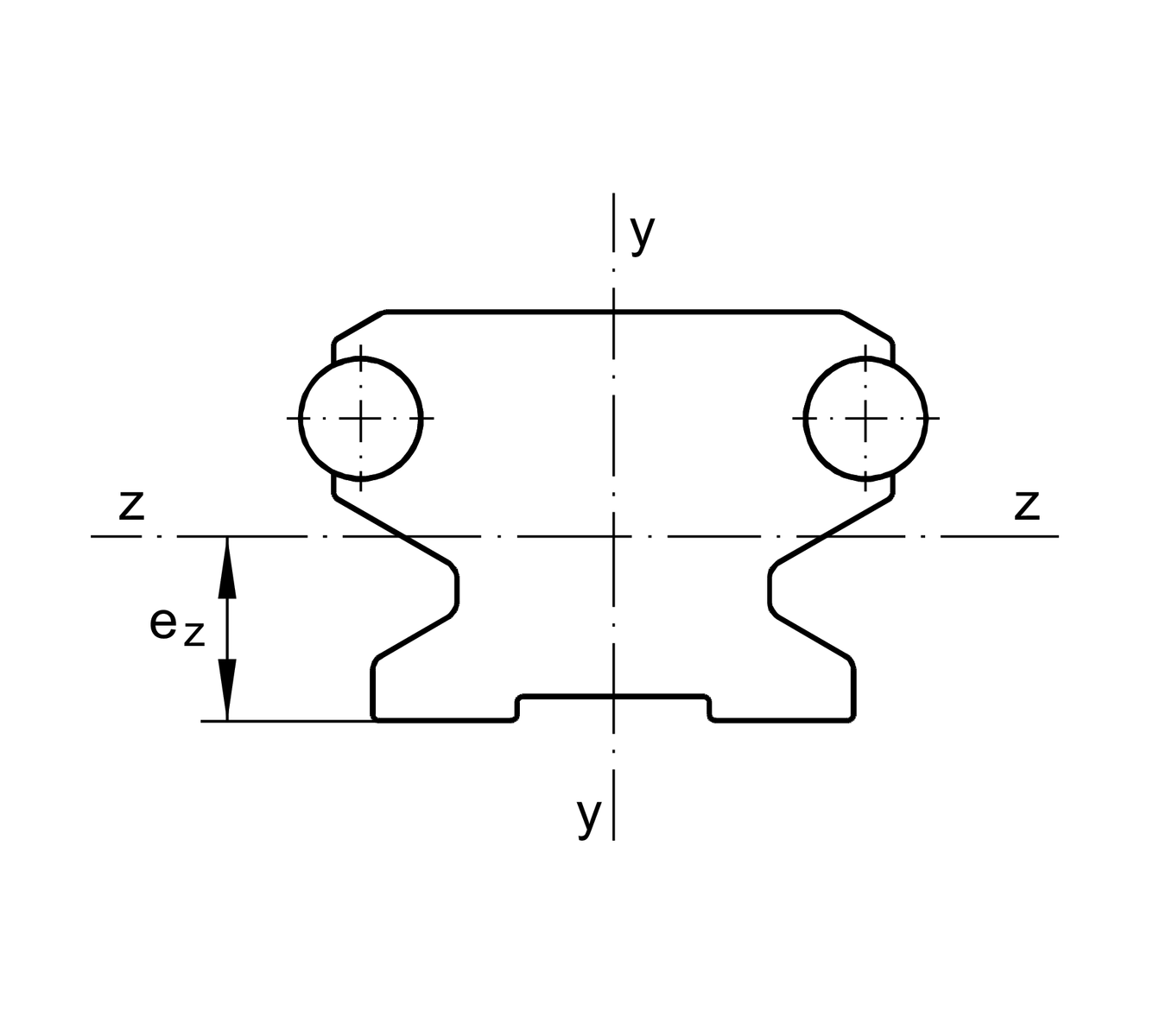

| eZ | 7.5 mm | Distance |
| h1 | 8.5 mm | Height 6, 7 |
| h4 | 10.6 mm | 高度 |
| jL | 62.5 mm | Increment 8 |
您目前的產品型號
| Size code | 25 |
