FAG INA Schaeffler
FAG
SNW09X0107
Adapter sleeve SNW09X0107
加入詢價

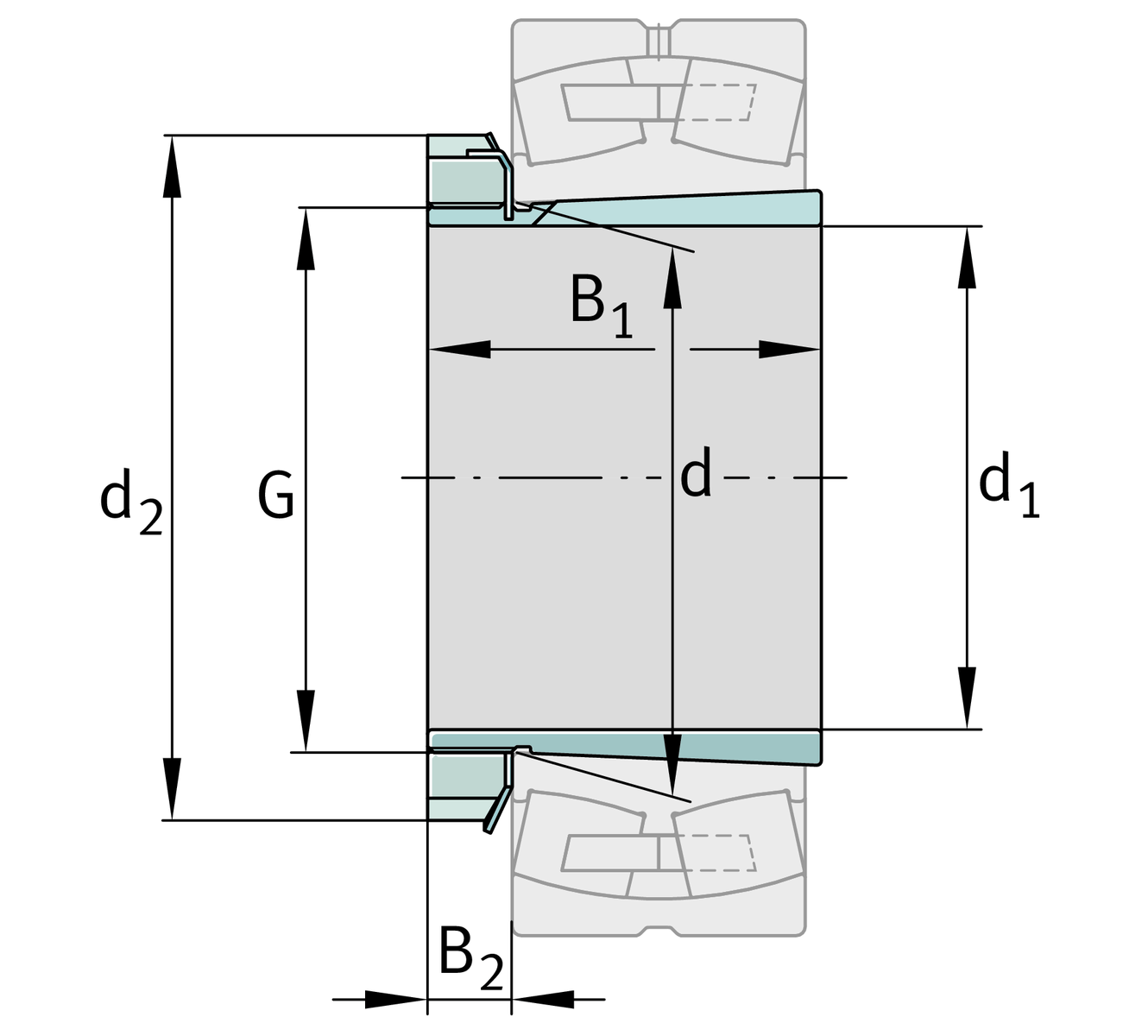

主要尺寸與性能資料
d1
1.4375 in
內徑 (Inch)
G
1,767
線
18
Threads per inch
B1
1.574 in
sleeve length (Inch)
d2
2.536 in
外徑 nut (Inch)
≈m
8.783 oz
重量

尺寸
d
1.7717 in
內徑 bearing (Inch)
B2
1.668 in
Width nut and lock (Inch)

附加資訊
N-09
Locknut
W-09
Fuse
1:12
Taper
