FAG INA Schaeffler
FAG
SNW10X0111
Adapter sleeve SNW10X0111
加入詢價

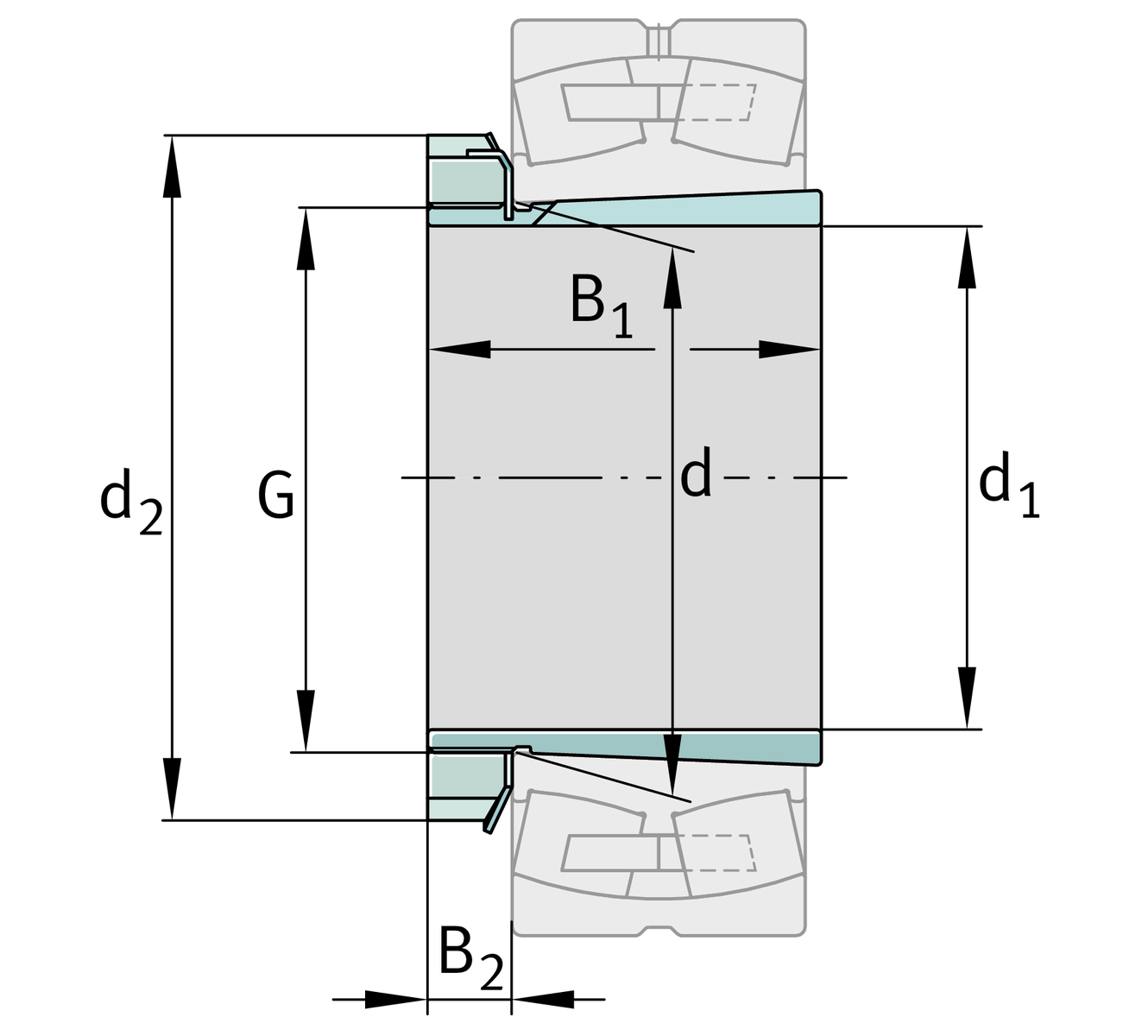

主要尺寸與性能資料
d1
1.6875 in
內徑 (Inch)
G
1,967
線
18
Threads per inch
B1
1.755 in
sleeve length (Inch)
d2
2.693 in
外徑 nut (Inch)
≈m
0.728 lbs
重量

尺寸
d
1.9685 in
內徑 bearing (Inch)
B2
1.73 in
Width nut and lock (Inch)

附加資訊
N-10
Locknut
W-10
Fuse
1:12
Taper
