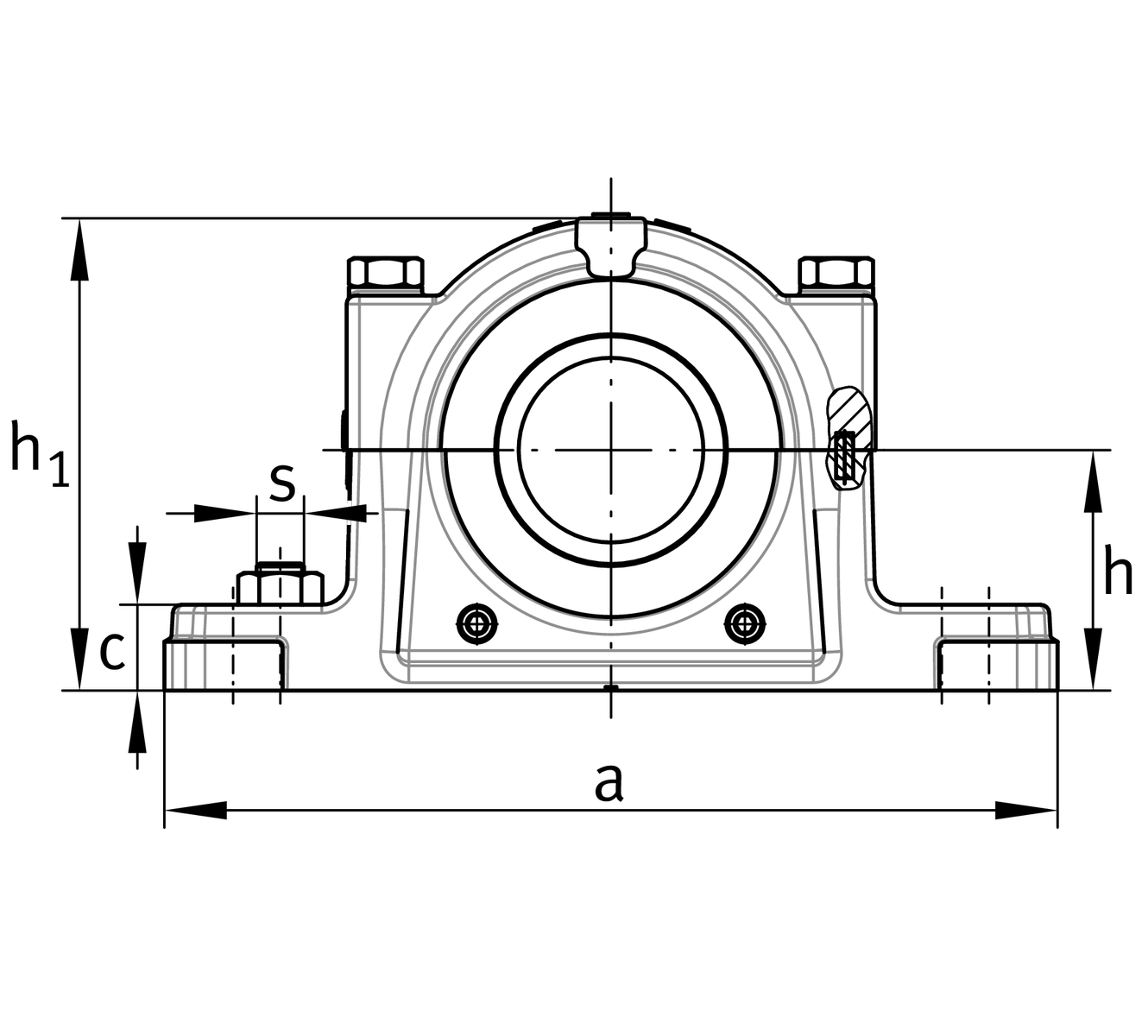

主要尺寸與性能資料
| d1 | 201.612 mm | Shaft diameter inch |
| d1 | 201.6125 mm | Shaft diameter |
| a | 831.85 mm | Length foot |
| h1 | 473.075 mm | Total height |
| g | 298.45 mm | Width 軸承座 body |
| ≈m | 201.9 kg | 重量 |

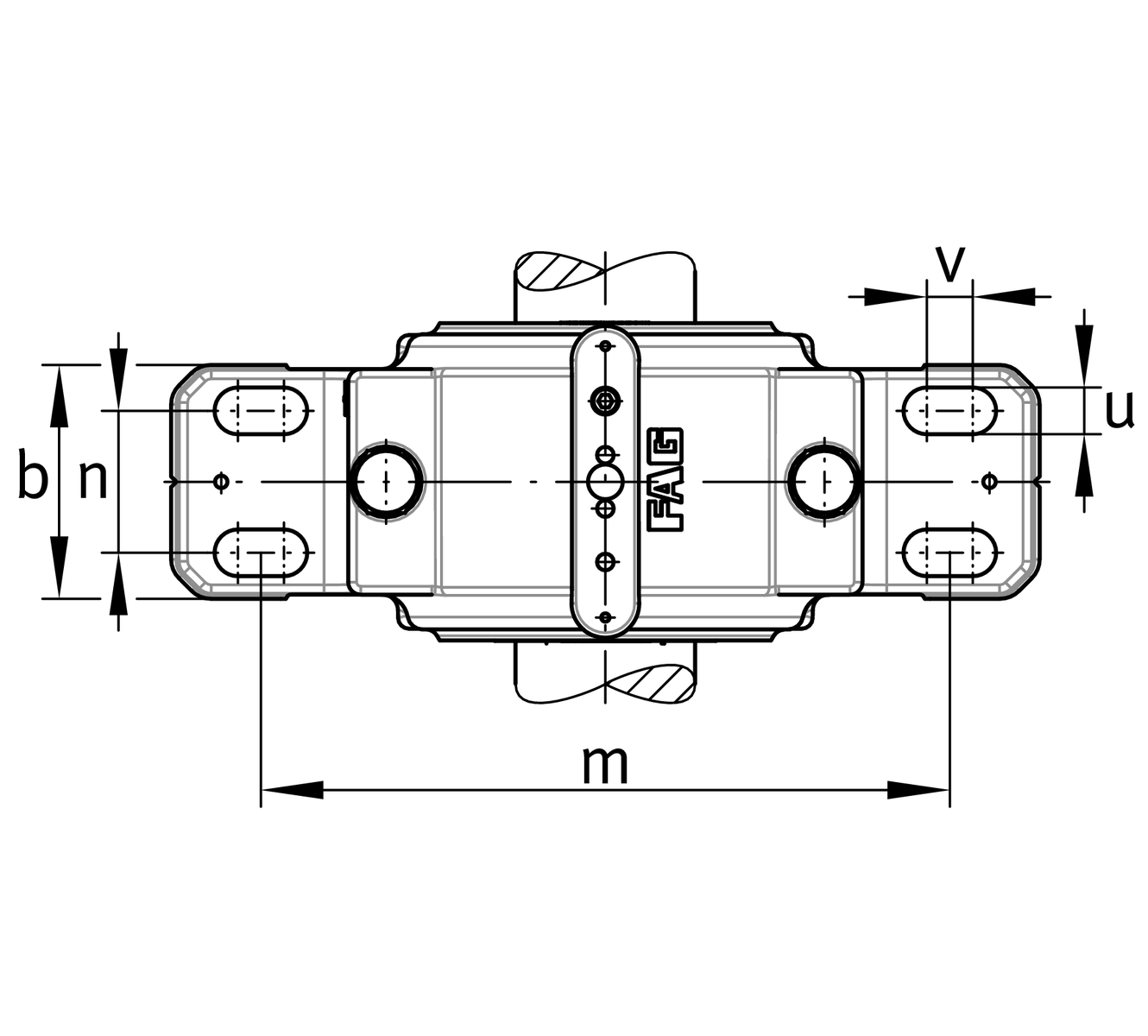

尺寸
| b | 222.25 mm | Width foot |
| c | 95.25 mm | Height foot |
| D | 400 mm | 外徑 bearing |
| e | 5.08 mm | Offset Bearing centre |
| h | 241.3 mm | Distance shaft axis |
| k | 117.8 mm | Width bearing seat |
| m | 668.337 mm | Distance mounting holes |
| n | 133.35 mm | Width bore spacing |
| s | 38.1 mm | screw size |
| v | 41.275 mm | Width oblong hole |
| v | 39.688 mm | Length oblong hole |
