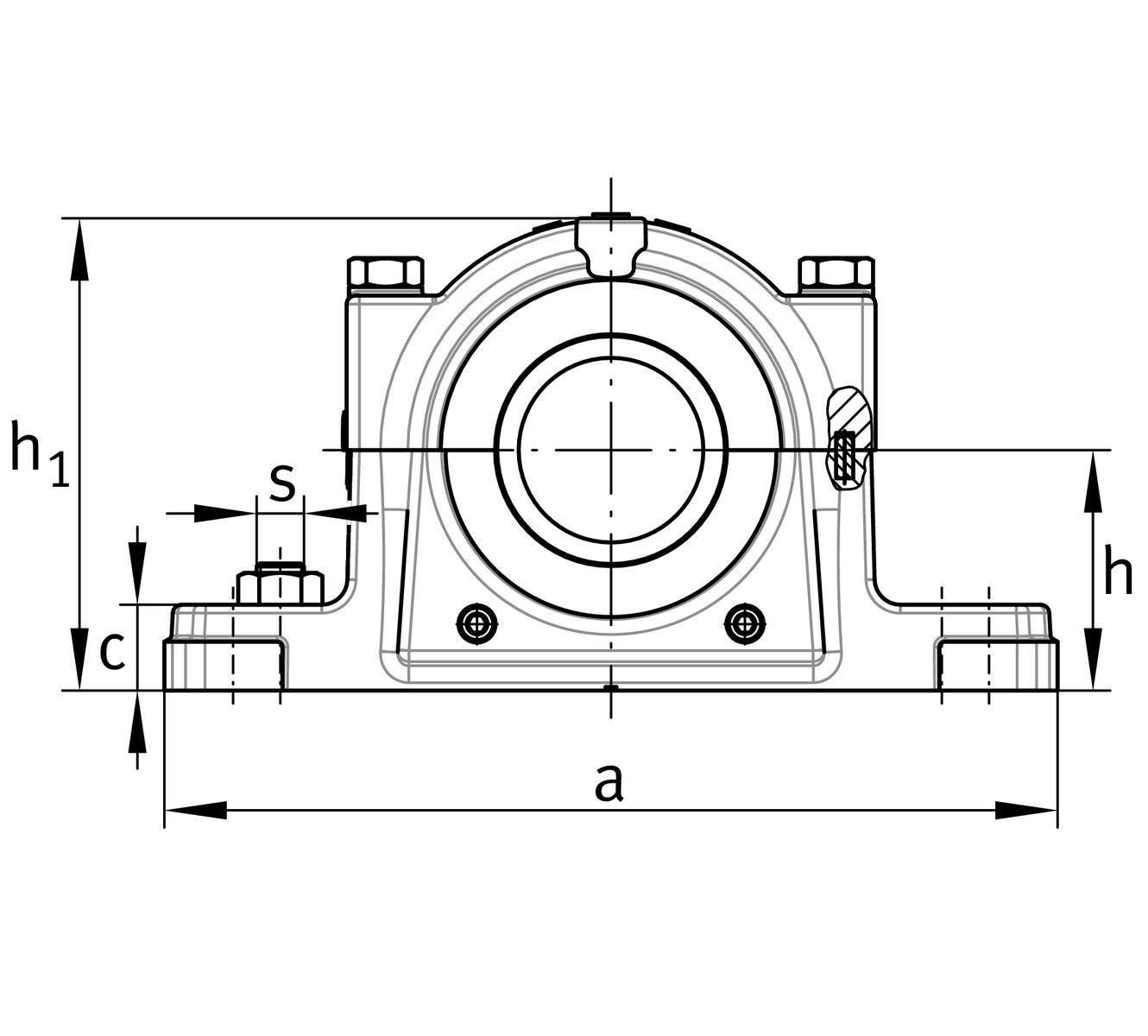

主要尺寸與性能資料
| d1 | 182.563 mm | Shaft diameter inch |
| d1 | 182.5625 mm | Shaft diameter |
| a | 749.3 mm | Length foot |
| h1 | 419.1 mm | Total height |
| g | 279.4 mm | Width 軸承座 body |
| ≈m | 154.4 kg | 重量 |

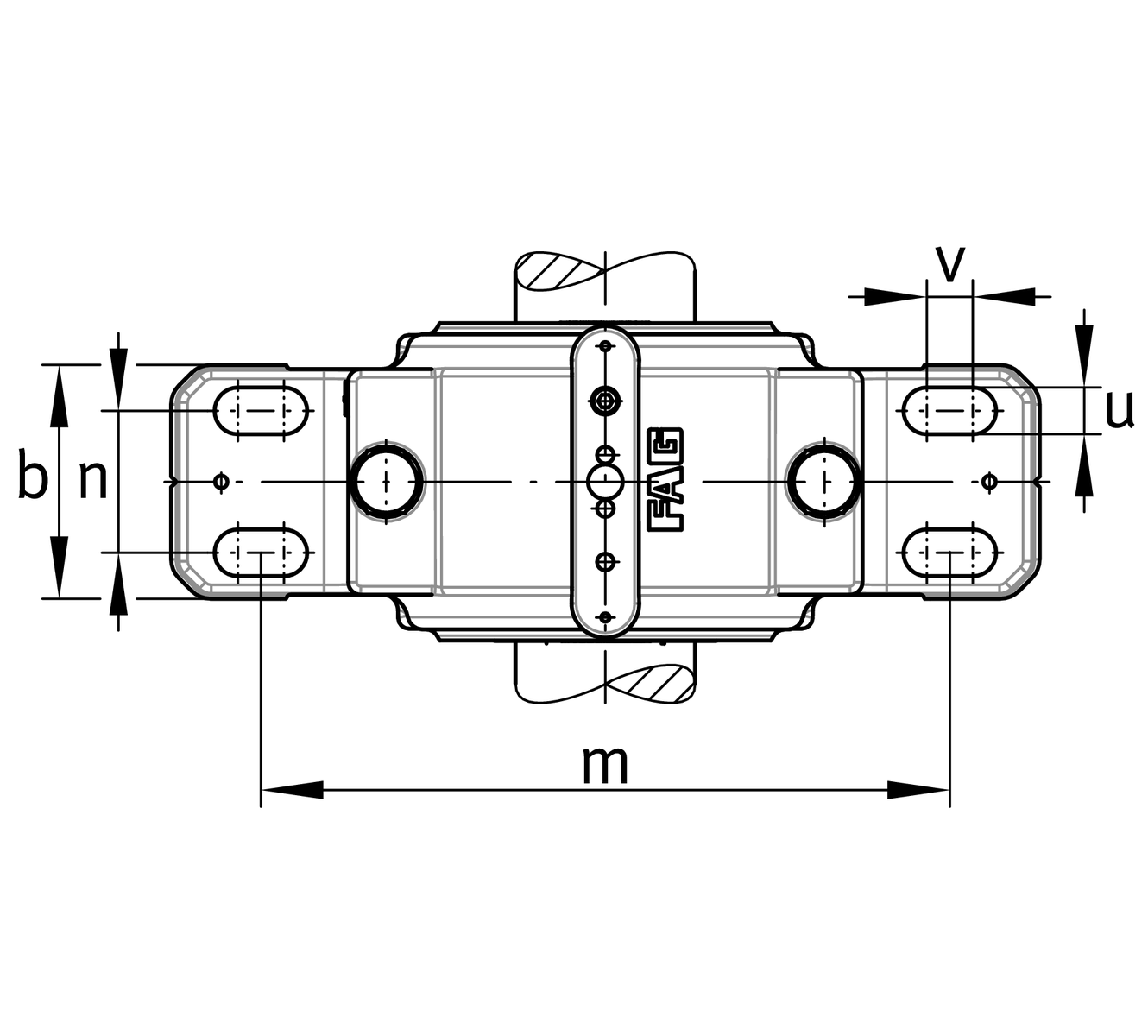

尺寸
| b | 203.2 mm | Width foot |
| c | 85.725 mm | Height foot |
| D | 360 mm | 外徑 bearing |
| e | 5.08 mm | Offset Bearing centre |
| h | 209.55 mm | Distance shaft axis |
| k | 107.8 mm | Width bearing seat |
| m | 603.25 mm | Distance mounting holes |
| n | 127 mm | Width bore spacing |
| s | 31.75 mm | screw size |
| v | 34.925 mm | Width oblong hole |
| v | 31.75 mm | Length oblong hole |
