主要尺寸與性能資料

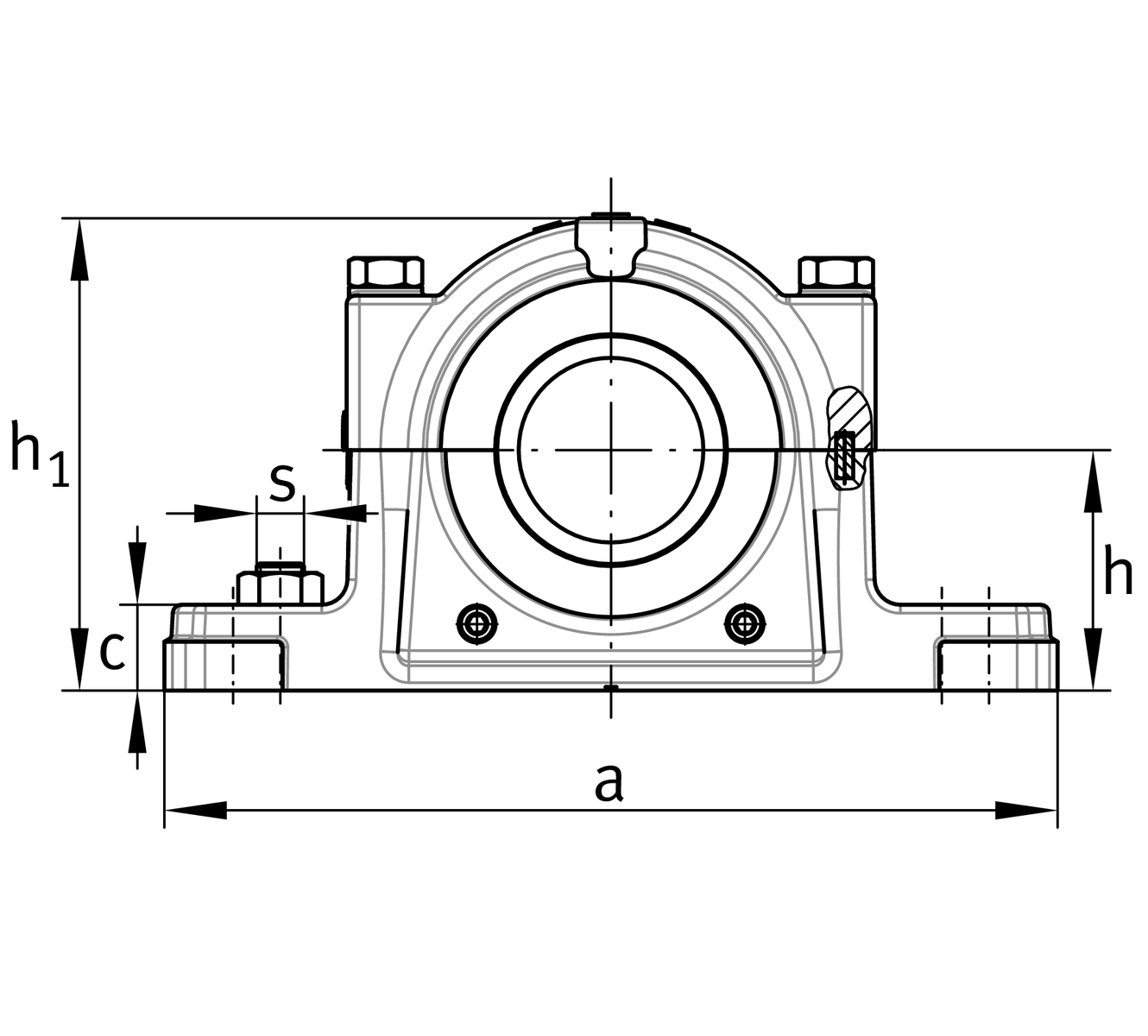

| d1 | 49.212 mm | Shaft diameter inch |
| d1 | 49.2125 mm | Shaft diameter |
| a | 244.475 mm | Length foot |
| h1 | 133.35 mm | Total height |
| g | 95.25 mm | Width 軸承座 body |
| ≈m | 5.3 kg | 重量 |
尺寸

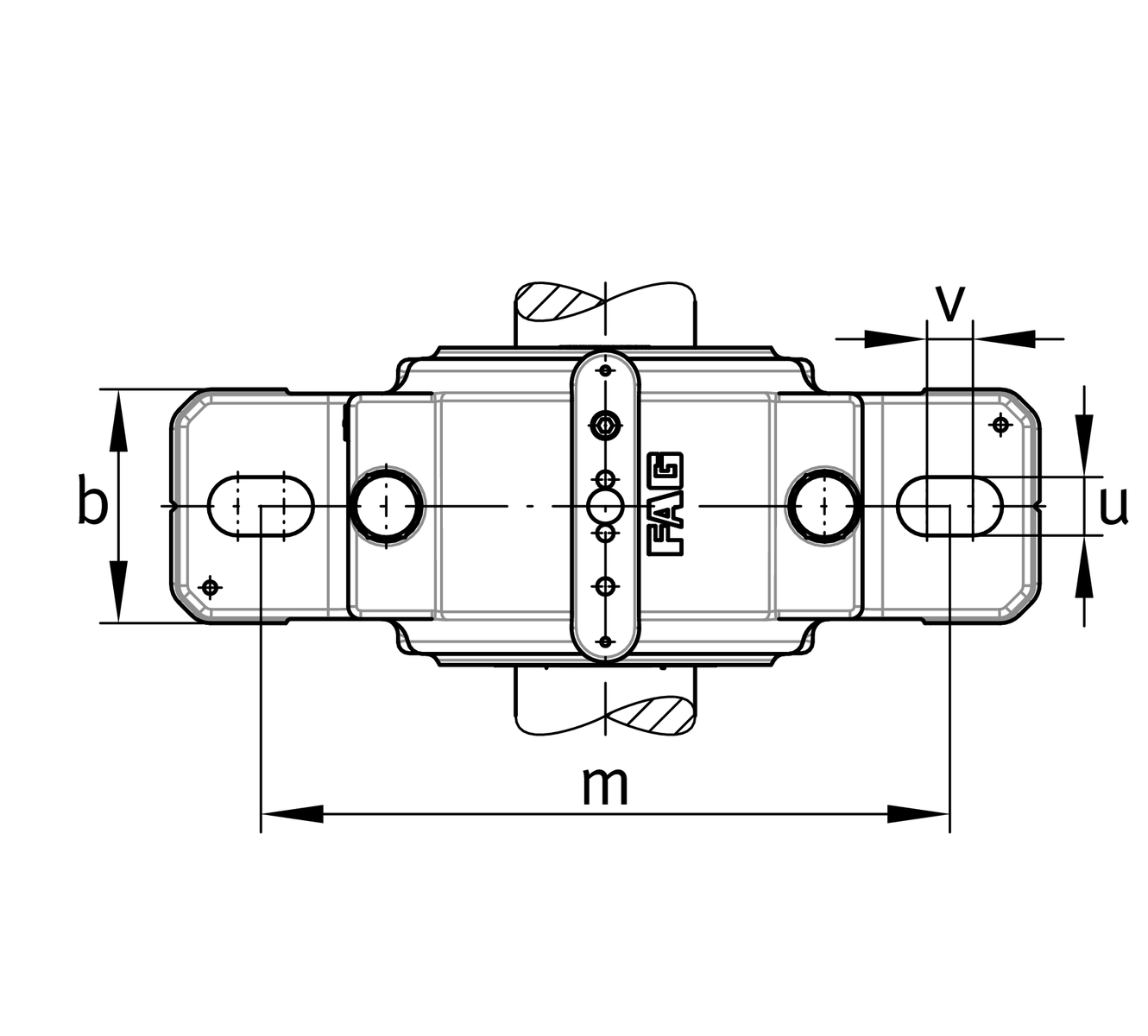

| b | 69.85 mm | Width foot |
| c | 23.813 mm | Height foot |
| D | 100 mm | 外徑 bearing |
| e | 2.54 mm | Offset Bearing centre |
| h | 69.85 mm | Distance shaft axis |
| k | 30.8 mm | Width bearing seat |
| m | 193.675 mm | Distance mounting holes |
| s | 15.875 mm | screw size |
| v | 19.05 mm | Width oblong hole |
| v | 6.35 mm | Length oblong hole |
