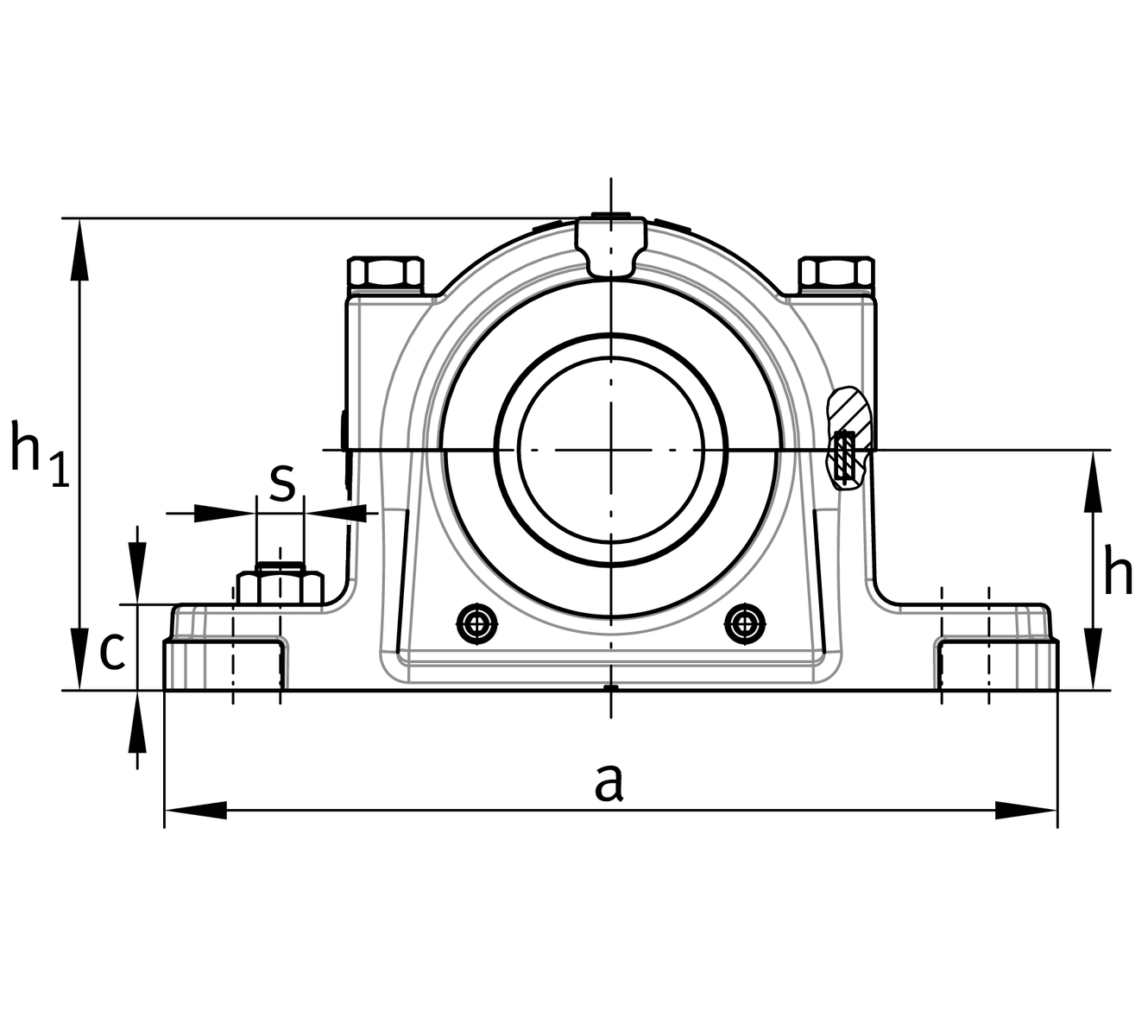

主要尺寸與性能資料
| d1 | 42.862 mm | Shaft diameter inch |
| d1 | 42.8625 mm | Shaft diameter |
| a | 209.55 mm | Length foot |
| h1 | 120.65 mm | Total height |
| g | 87.313 mm | Width 軸承座 body |
| ≈m | 4.05 kg | 重量 |

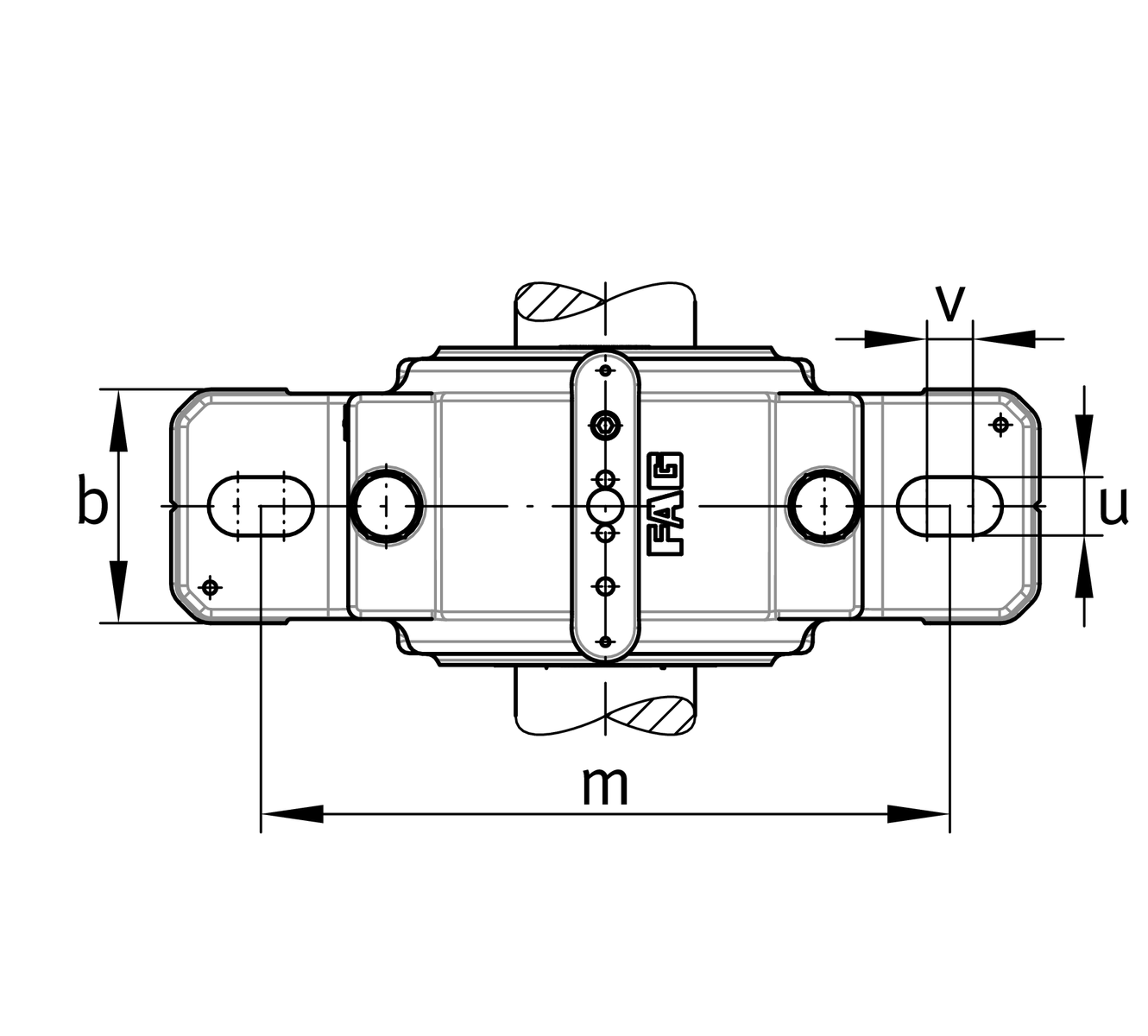

尺寸
| b | 60.325 mm | Width foot |
| c | 23.813 mm | Height foot |
| D | 90 mm | 外徑 bearing |
| e | 2.54 mm | Offset Bearing centre |
| h | 63.5 mm | Distance shaft axis |
| k | 29.8 mm | Width bearing seat |
| m | 171.45 mm | Distance mounting holes |
| s | 12.7 mm | screw size |
| v | 15.875 mm | Width oblong hole |
| v | 6.35 mm | Length oblong hole |
