INA
HR100
Flat cage HR100
加入詢價
主要尺寸與性能資料
| lk max | 4,000 mm | Max. length 1 |
| DW | 10 mm | Rolling element diameter |
| b | 24 mm | |

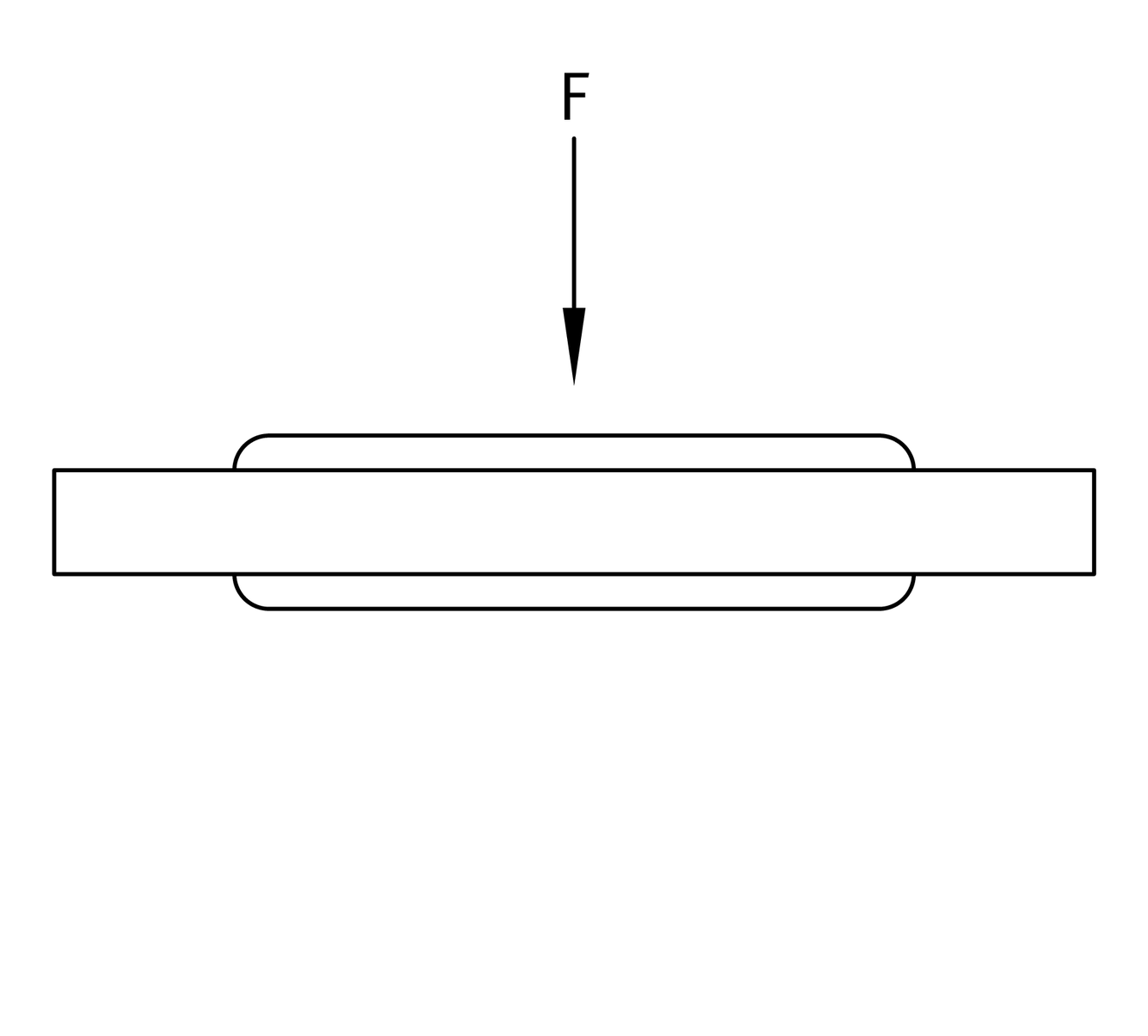

| C | 109,900 N | Load capacity dyn. 2 |
| C0 | 174,200 N | Load capacity stat. 2 |
| ≈m | 598 g/m | 重量 |

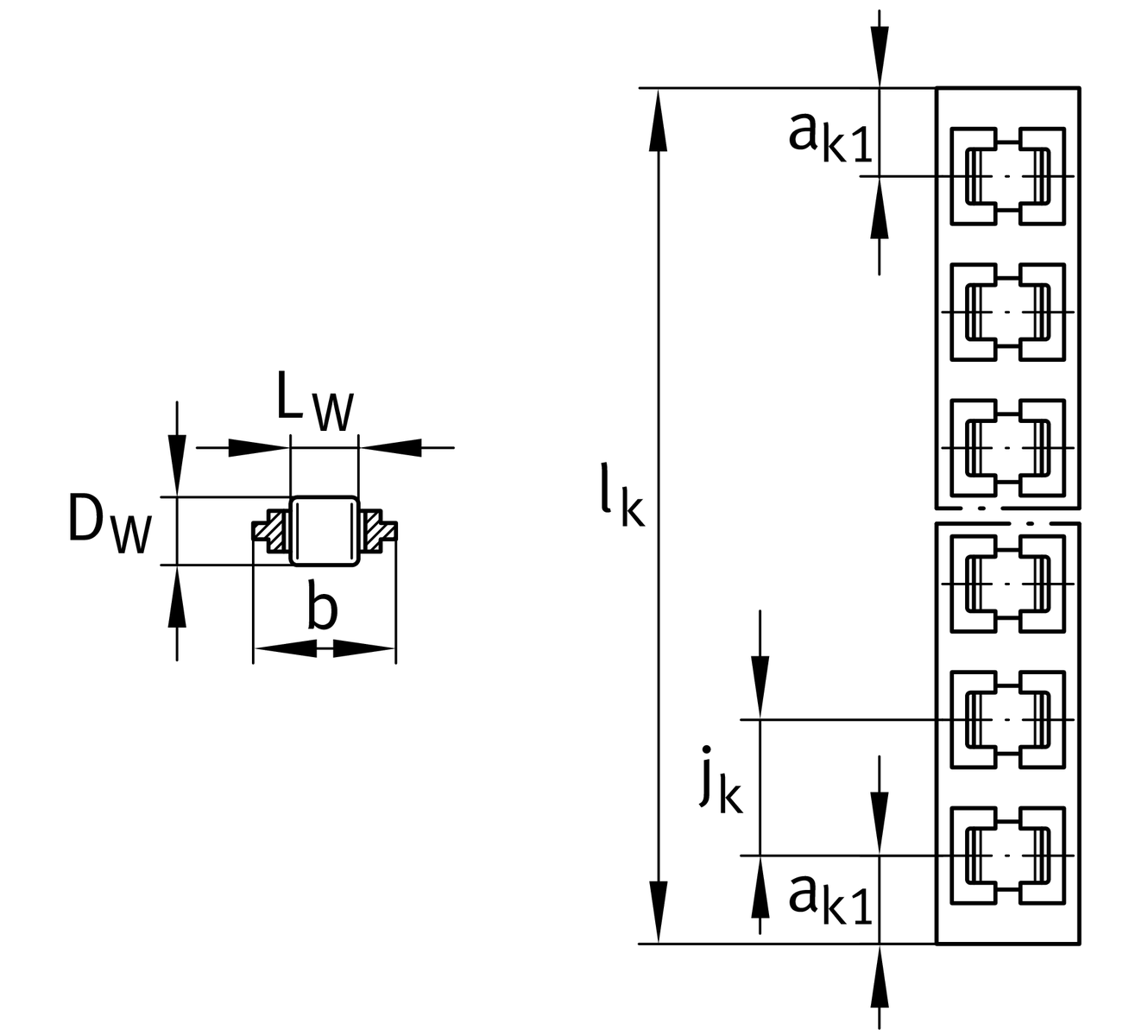

尺寸
| LW | 14 mm | Length rolling element |
| jk | 17 mm | |
| ak1 | 10 mm | |

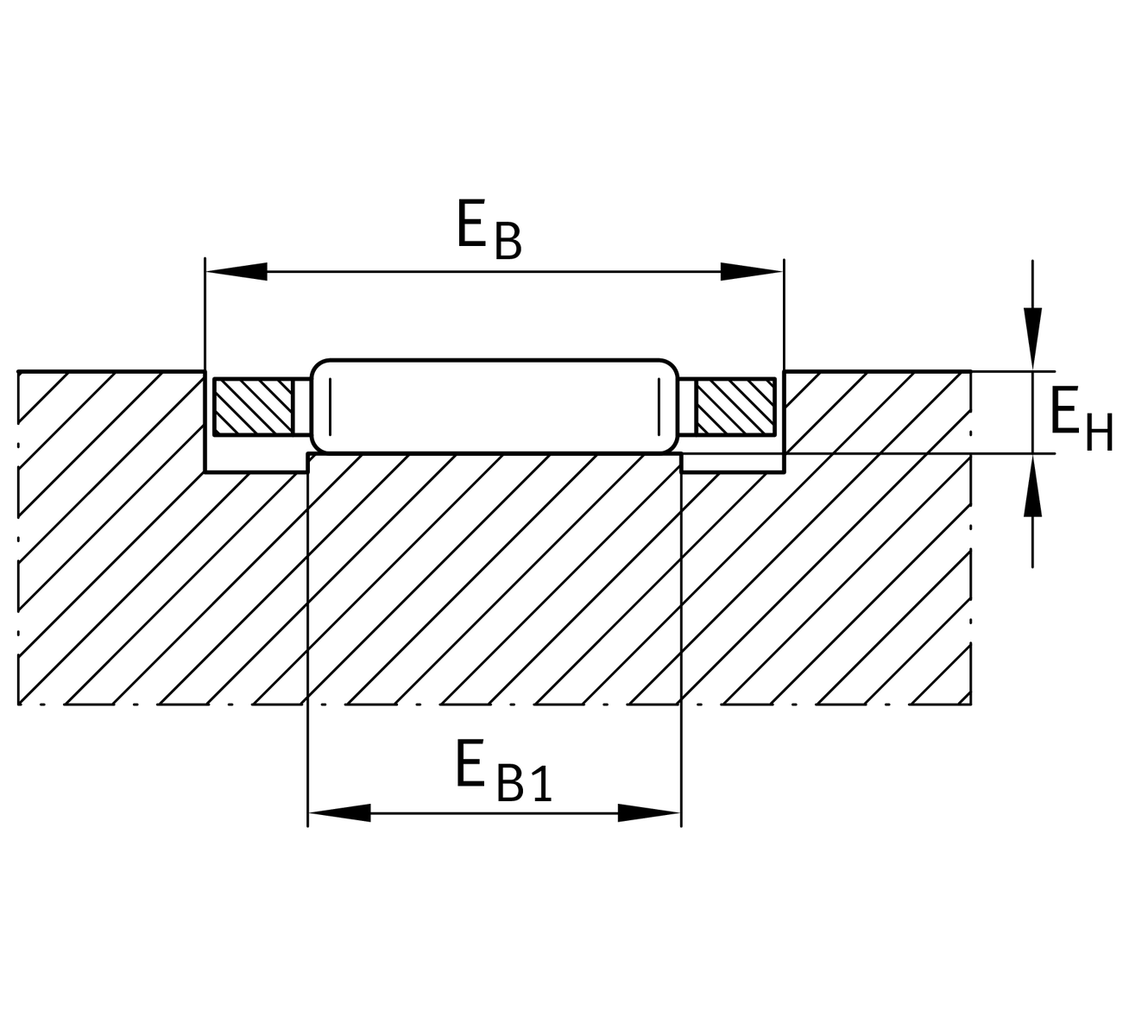

安裝尺寸
| EB | 24.4 mm | |
| Tol EB | +0,2 | Tolerance |
| EB1 | 14 mm | min. |
| EH | 6.5 mm | |
