FAG INA Schaeffler
FAG
SNW44X0715
Adapter sleeve SNW44X0715
加入詢價

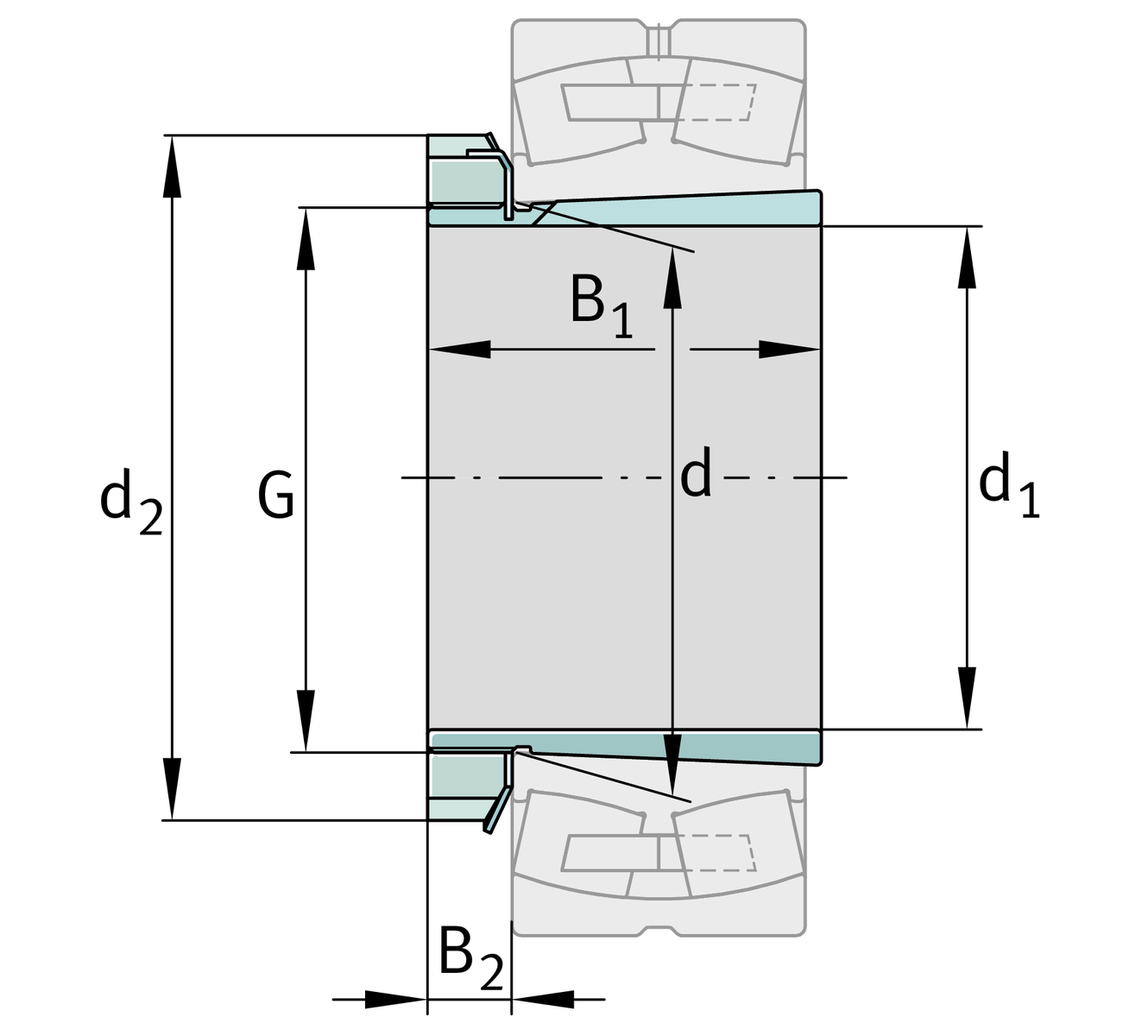

主要尺寸與性能資料
d1
7.9375 in
內徑 (Inch)
G
8,628
線
8
Threads per inch
B1
5.891 in
sleeve length (Inch)
d2
11.005 in
外徑 nut (Inch)
≈m
15.476 lbs
重量

尺寸
d
8.6614 in
內徑 bearing (Inch)
B2
4.97 in
Width nut and lock (Inch)

附加資訊
N-44
Locknut
W-44
Fuse
1:12
Taper
