FAG INA Schaeffler
FAG
SNW40X0703
Adapter sleeve SNW40X0703
加入詢價

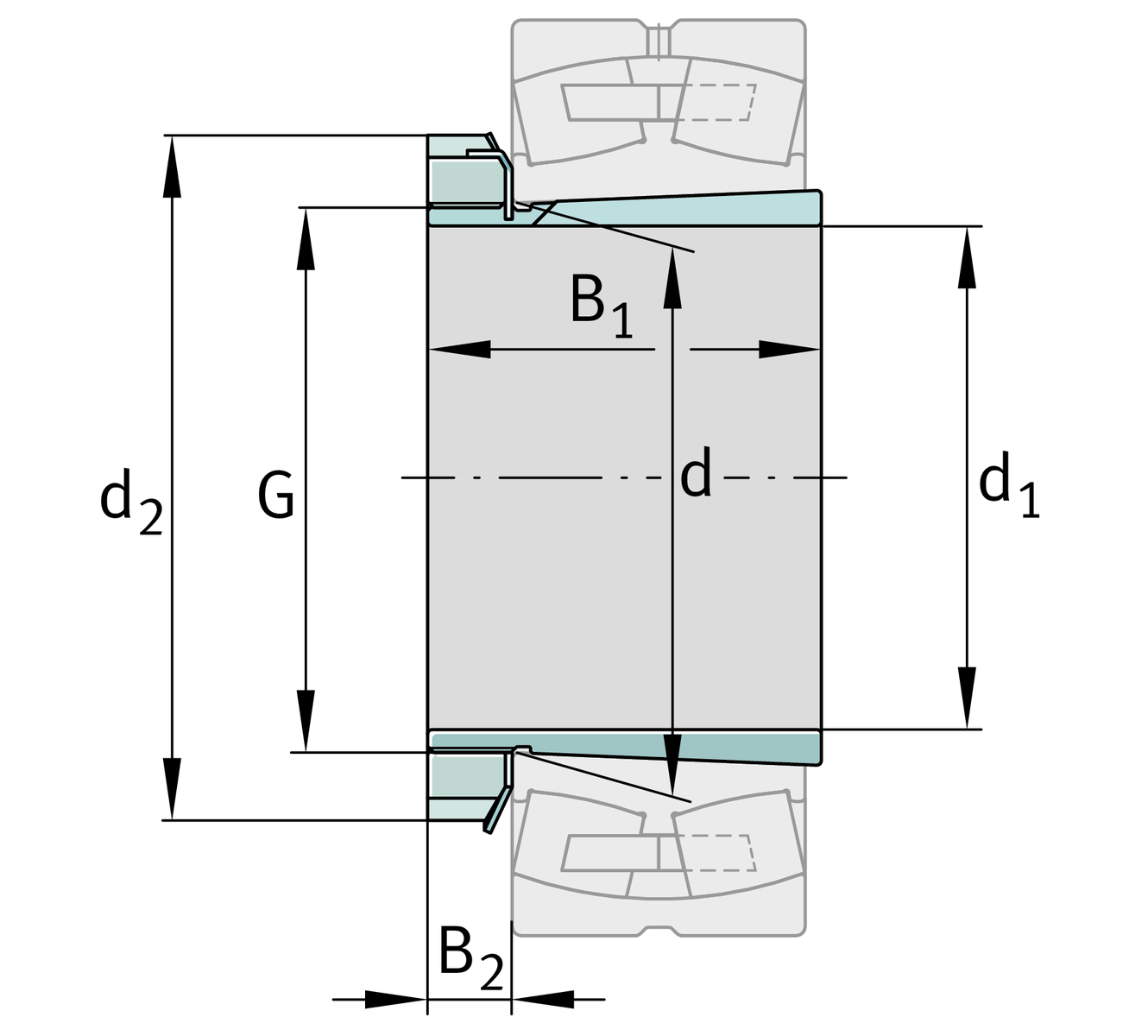

主要尺寸與性能資料
d1
7.1875 in
內徑 (Inch)
G
7,847
線
8
Threads per inch
B1
5.474 in
sleeve length (Inch)
d2
9.849 in
外徑 nut (Inch)
≈m
11.199 lbs
重量

尺寸
d
7.874 in
內徑 bearing (Inch)
B2
4.908 in
Width nut and lock (Inch)

附加資訊
AN-40
Locknut
W-40
Fuse
1:12
Taper
